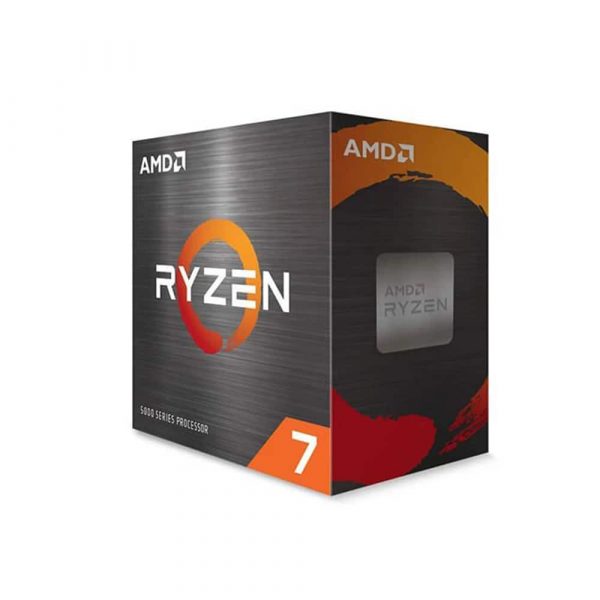

AMD Ryzen 7 5700 Processor :
Introducing the AMD Ryzen 7 5700 Processor, delivering exceptional performance for gaming, content creation, and multitasking. With advanced features and high-speed processing, it redefines computing.
Specifications :
| Model | AMD Ryzen 7 5700 |
| Platform | Boxed Processor |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen 7 5700 Desktop Processors |
| Consumer Use | Yes |
| Former Codename | “Cezanne” |
| Architecture | “Zen 3” |
| # of CPU Cores | 8 |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.6GHz |
| Base Clock | 3.7GHz |
| L1 Cache | 512KB |
| L2 Cache | 4MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570 X470 X370 B550 B450 B350 A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| USB Type-C® Support | Yes |
| Native USB 4 (40Gbps) Ports | 0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) | 24 / 20 |
| Additional Usable PCIe Lanes from Motherboard |
|
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| System Memory Subtype | UDIMM |
| System Memory Specification | Up to 3200MT/s |
| Max Memory Speed |
|
| ECC Support | No |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| Key Features | |
| Supported Technologies | AMD StoreMI Technology AMD Ryzen™ VR-Ready Premium |
| Warranty | 3 Years |
