ASRock B650 Pro RS Motherboard

Original price was: ₹26,000.Current price is: ₹18,649. (Inclusive of GST)

-28%
Brand:

Out of stock

Email when back in stock

ASRock B650 Pro RS Motherboard :

Features :

  • Supports AMD Ryzen™ 7000 Series Processors
  • 14+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6200+(OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
    1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4),
    1 Hyper M.2 (PCIe Gen4x4),
    1 M.2 (PCIe Gen3x2 & SATA3),
    4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front),
    2 USB 3.2 Gen2 Type A+C (Rear),
    4 USB 3.2 Gen1 (2 Rear, 2 Front),
    9 USB 2.0 (6 Rear, 3 Front)
  • Realtek 2.5G LAN

Specifications :

  • Unique Feature
Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
Ultrafast Connectivity
– 2.5G LAN EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
  • CPU
– Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • Chipset
– AMD B650
  • Memory
– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • BIOS
– 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
  • LAN
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
  • Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
– 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*- Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage
CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 2 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
– 2 x SATA3 6.0 Gb/s Connectors
  • RAID
– Supports RAID 0 and RAID 1 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
  • USB
– 1 x USB 3.2 Gen2x2 Type-C (Front)
– 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
– 9 x USB 2.0 (6 Rear, 3 Front)
  • Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

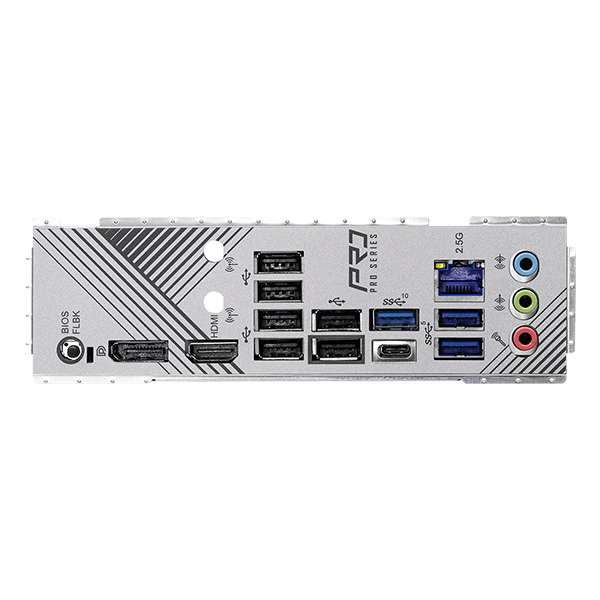

  • Rear Panel I/O
– 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
– 2 x USB 3.2 Gen1 Ports
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
  • Accessories
– 1 x User Manual
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
  • Form Factor
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 8 Layer PCB
  • OS
– Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Weight5 kg
Brand

Asrock

Socket

AM5

Chipset

B650

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

AMD

Memory Slot Type

DDR5
