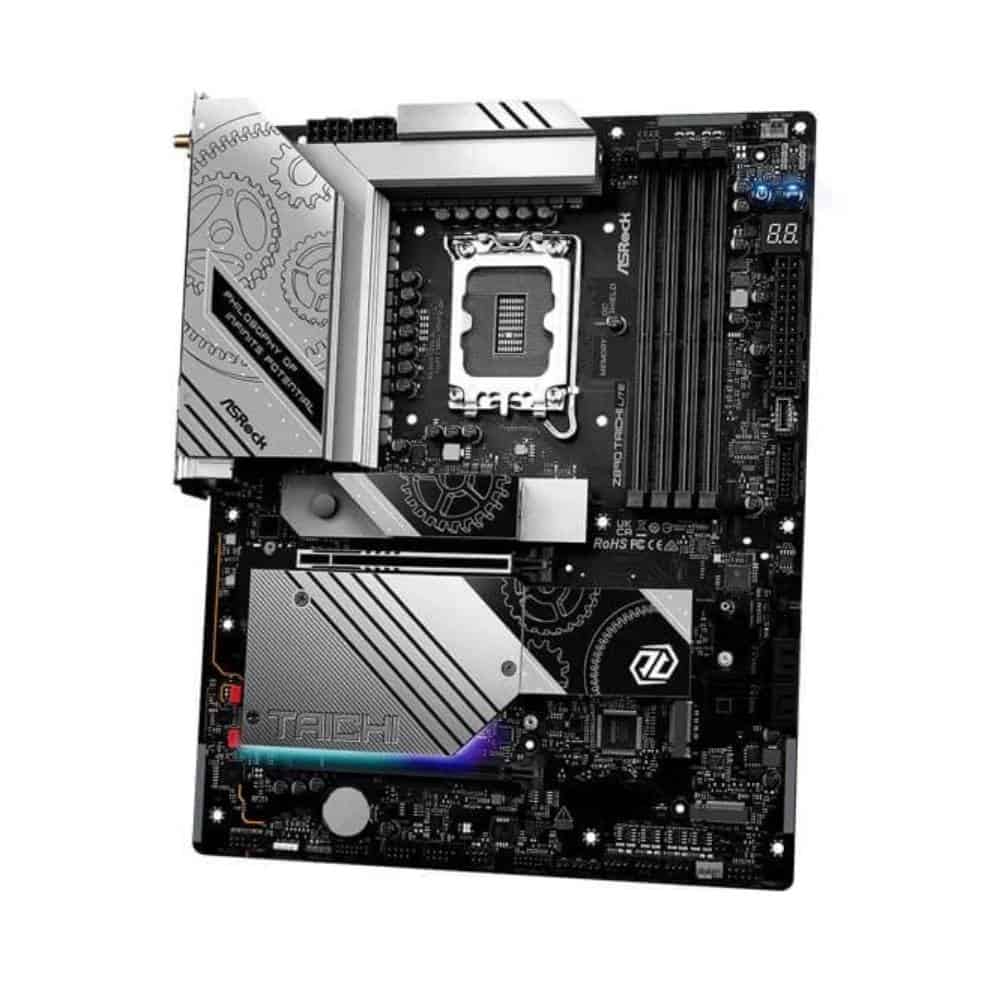

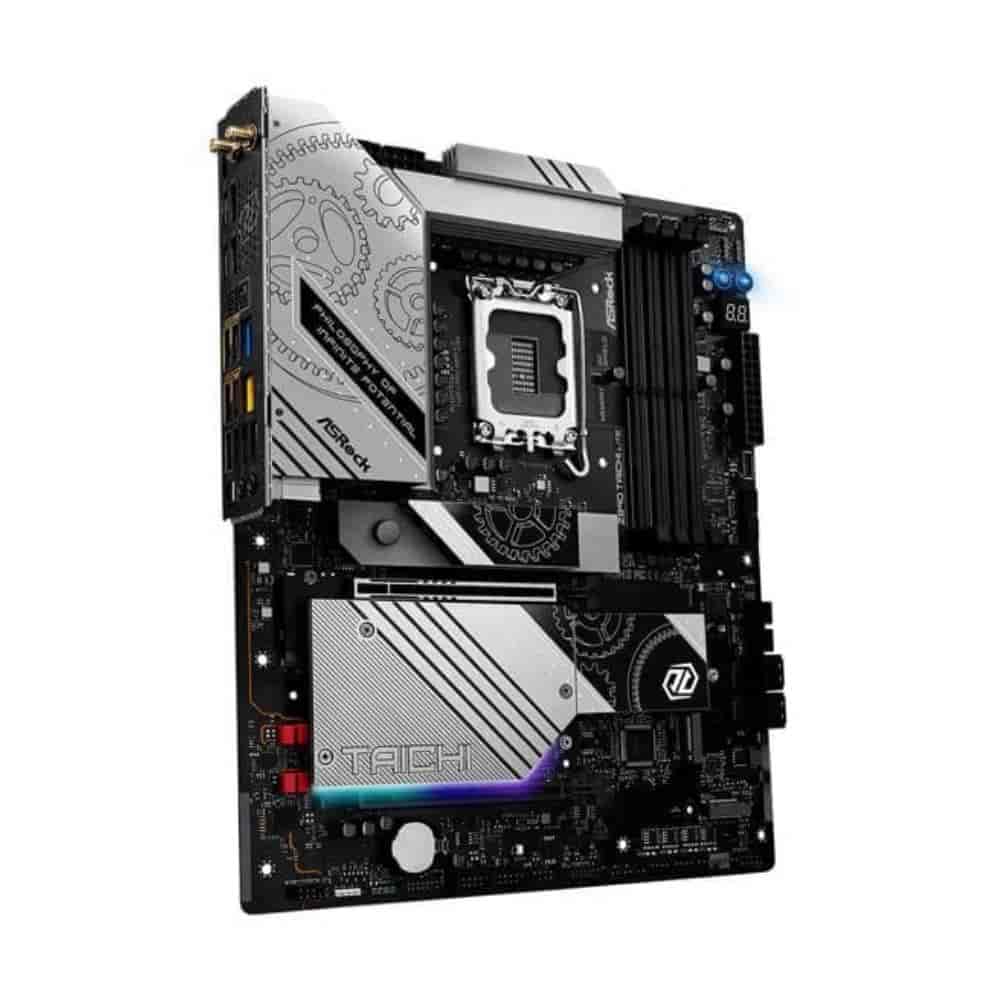

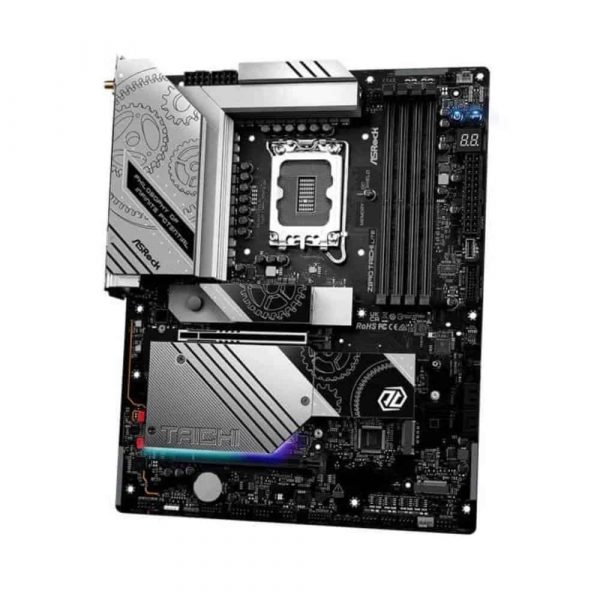

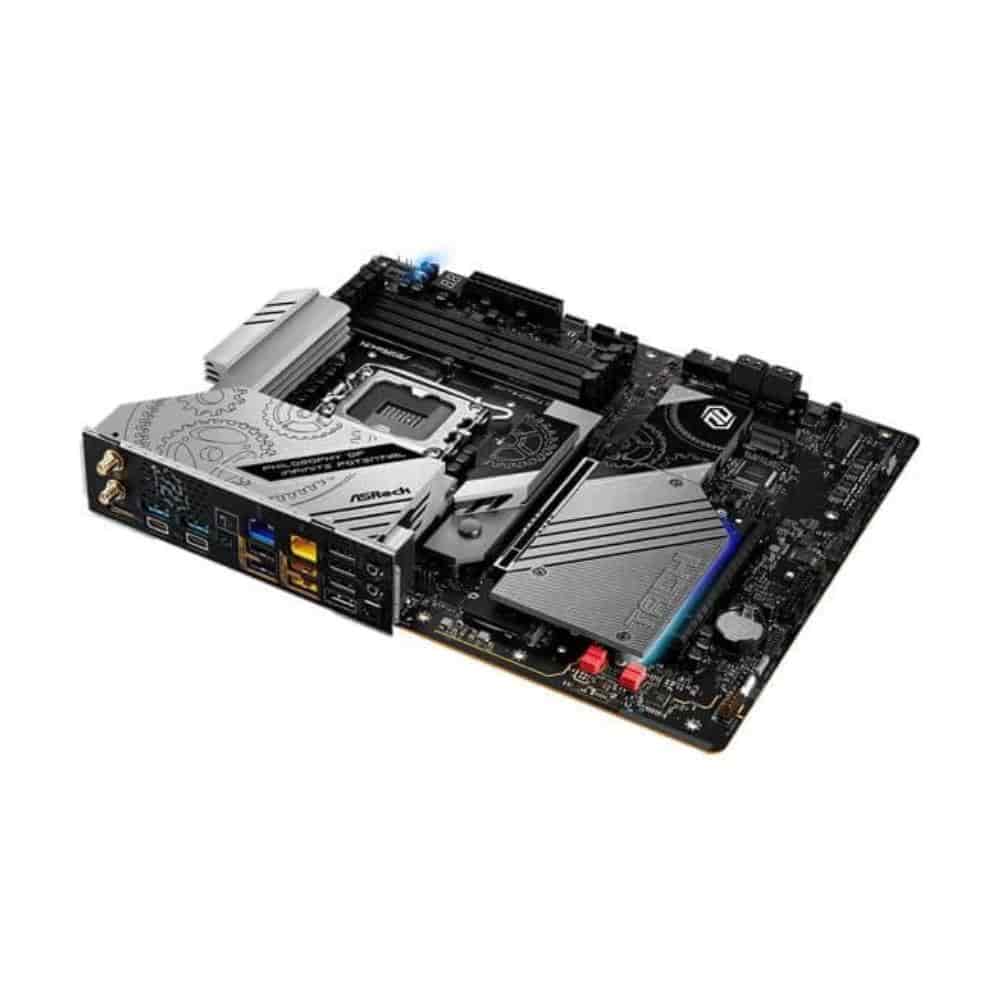

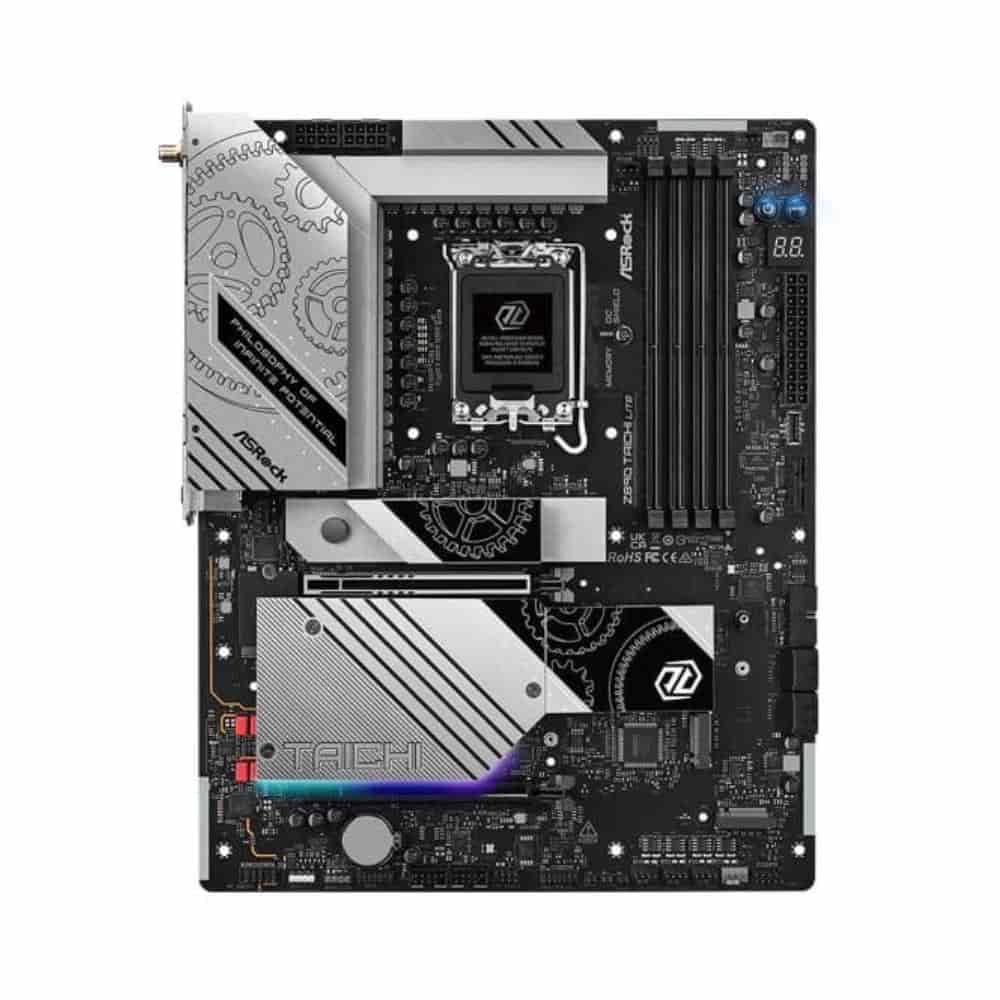

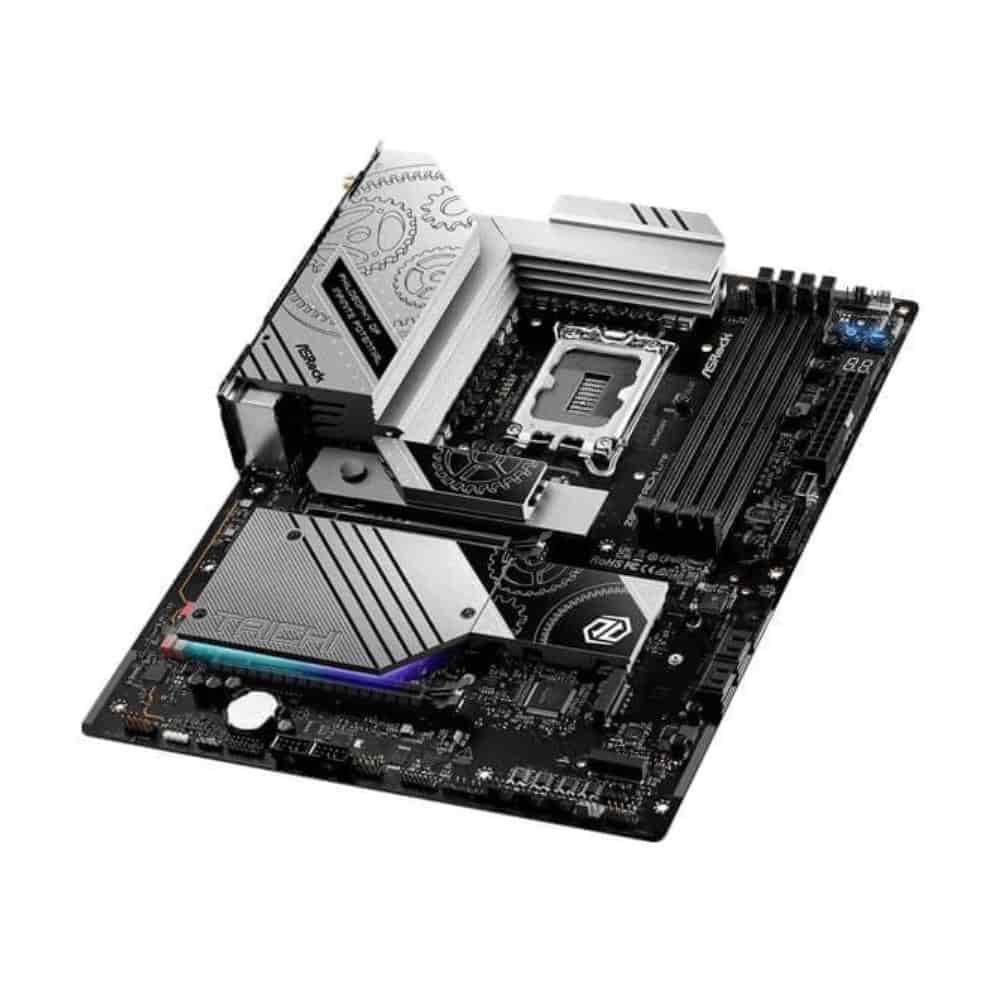

ASRock Z890 Taichi Lite Wi-Fi Motherboard :
Features :
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 9600+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C
- Realtek ALC4082 5.1 CH HD Audio Codec,
- ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 4 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 2 Thunderbolt™ 4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 4 USB 3.2 Gen2 Type-A (Rear)
- 8 USB 3.2 Gen1 (4 Rear, 4 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- 5Gbps LAN, 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance
Overview :
ASRock Z890 Taichi Lite
The ASRock Z890 Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design.

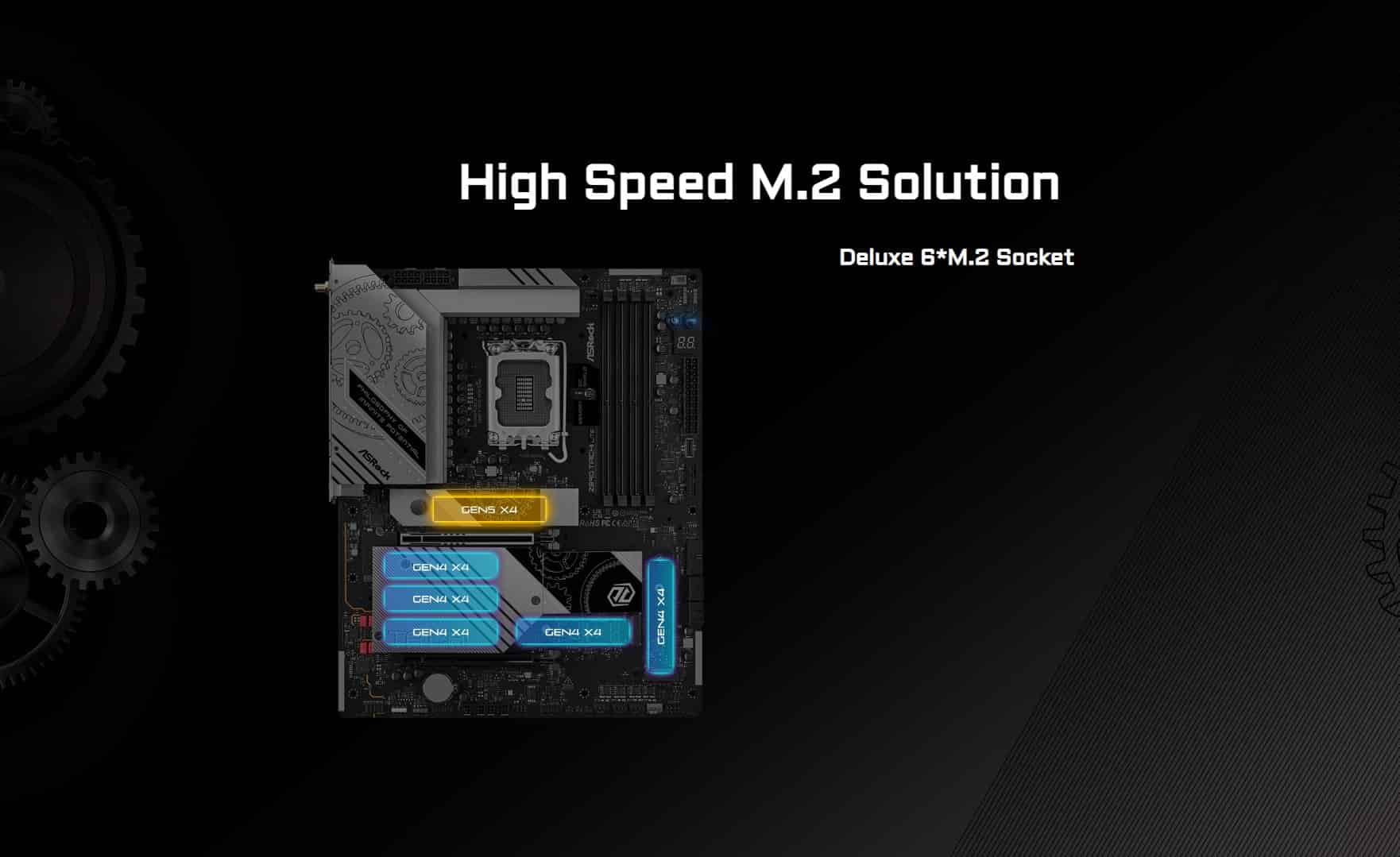

Deluxe 6*M.2 Socket
ASRock Z890 Taichi Lite Supports up to 6*NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed. ASRock Z890 Taichi Lite is ready to unleash the full potential of future ultrafast SSDs. to give a lightning fast data transferring experience
Enlarged M.2 Heatsink
The ASRock Z890 Taichi Lite has extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
PHILOSOPHY OF INFINITE POTENTIAL
ASRock Z890 Taichi Lite represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.
Hi-Density Power Connector
ASRock Z890 Taichi Lite has CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking. All in ASRock Z890 Taichi Lite.

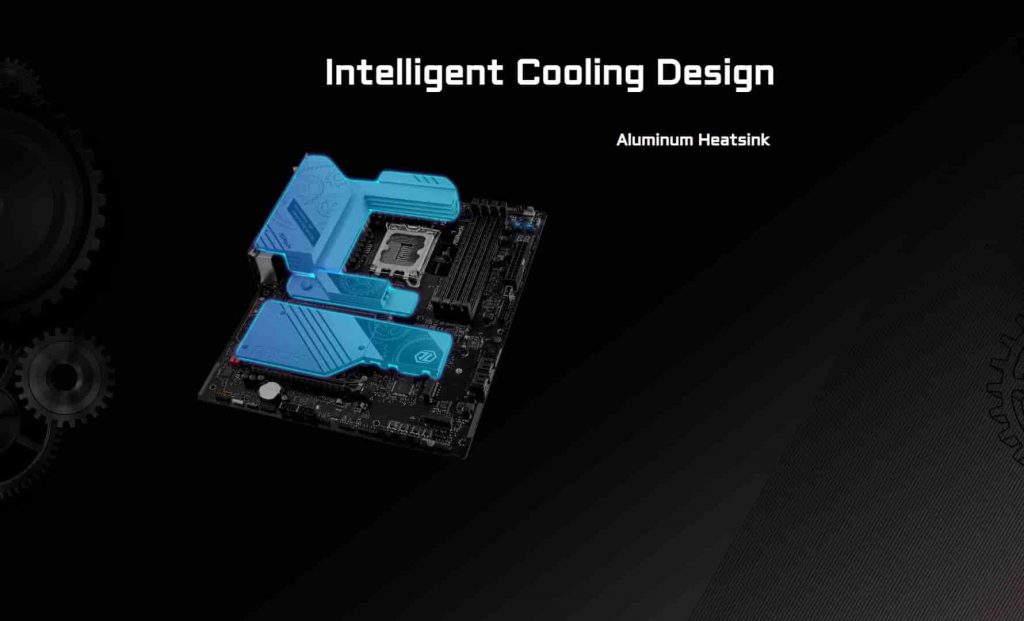

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design of ASRock Z890 Taichi Lite. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ASRock Z890 Taichi Lite ensure system stability and durability effortlessly.
Thunderbolt™ 4 Type-C
ASRock Z890 Taichi Lite hasThunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable. All in ASRock Z890 Taichi Lite.
Specifications:
| Model Name | ASRock Z890 Taichi Lite |
| Unique Feature | Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer |
| CPU | – Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) – Integrated NPU for dedicated AI acceleration – Supports ASRock Hyper BCLK Engine |
| Chipset | – Intel® Z890 |
| Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9600+(OC) – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – WIMA Audio Capacitors (For Rear Outputs) – ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) – Individual PCB Layers for R/L Audio Channel – Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) – Nahimic Audio |
| LAN | 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126) 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control |
| Wireless LAN | – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO |
| Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 4 x SATA3 6.0 Gb/s Connectors |
| RAID | – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 4 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front) |
| Connector | – 3 x Thermistor Cable Headers – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED |

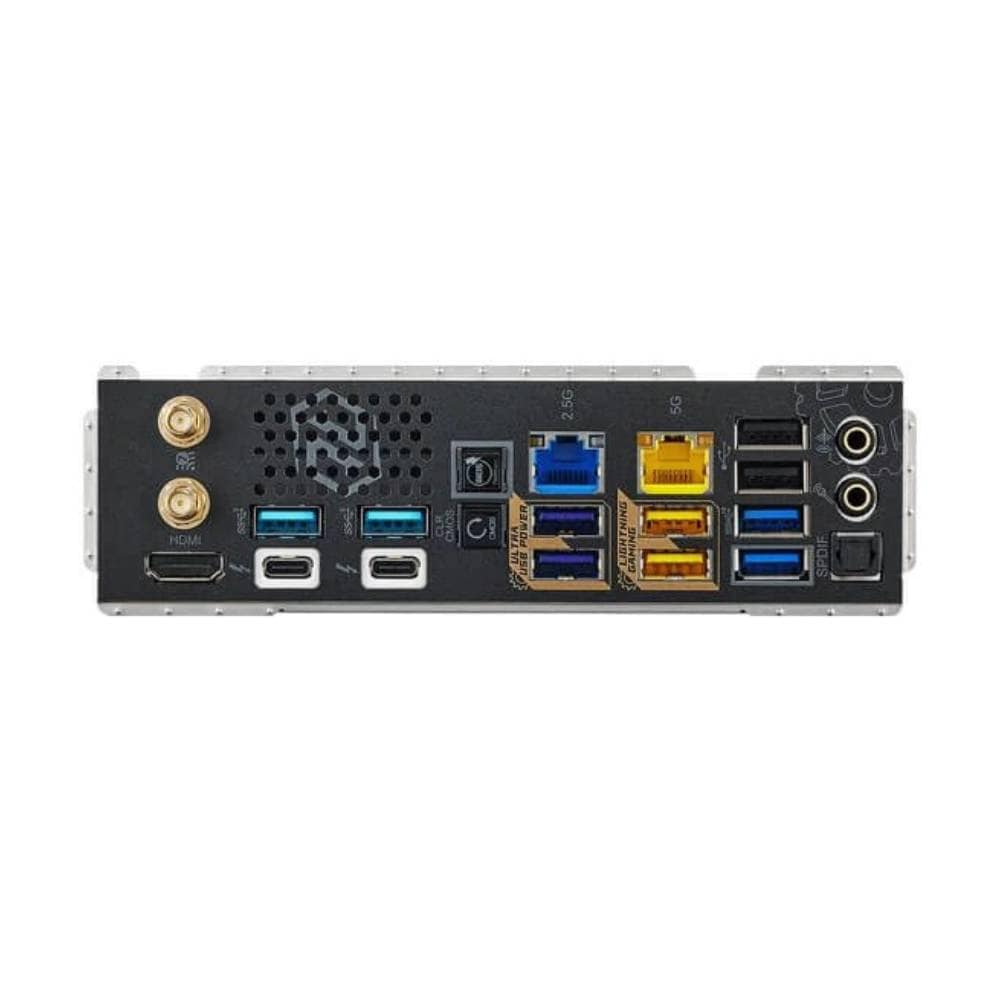

| Rear Panel I/O | – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) – 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 2 x RJ-45 LAN Ports – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock Dragon 2.5G LAN Software* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash |

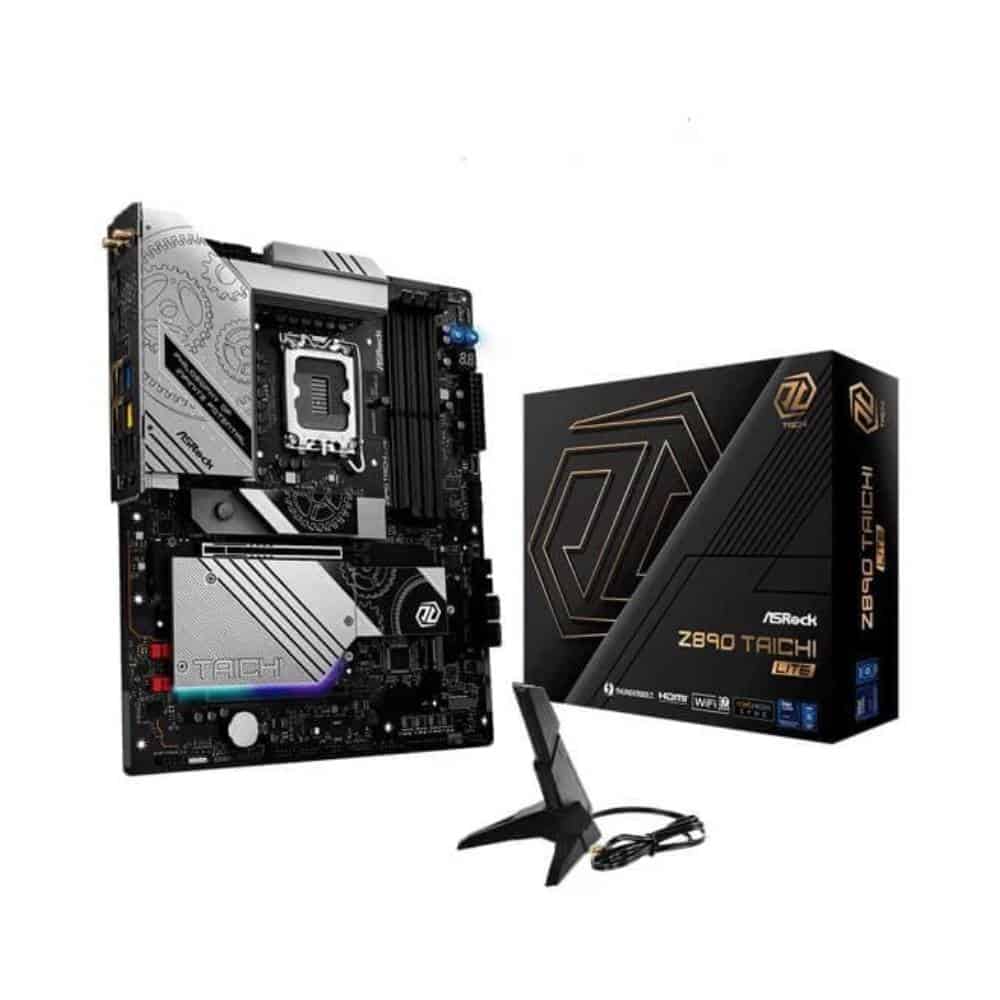

| Accessories | – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 3 x Thermistor Cables – 2 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB |
| OS | – Microsoft Windows® 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) – CEC Tier II ready |
| Warranty | 3 Years |
