Features
- Stable Wi-Fi Range – Fast, stable Wi-Fi throughout your office with 4×4 MIMO antenna design and ASUS AiRadar beamforming.
- Hardware Dual-WAN – Dual physical WAN ports for ultimate speed and reliability, with up to 2Gbps aggregated bandwidth and failover capability.
- M.2 Slot for Faster Storage – Internal M.2 SATA slot for ultra-fast networked SSD storage.
- Easy Management – Grow your business with Captive Portal to set up customer Wi-Fi within steps ; and manage your network with convenient Device Grouping and RADIUS server.
- Improved Network Safety – Protect sensitive company information with AiProtection, VLAN, and hardware crypto engine IPsec VPN, all without sacrificing working efficiency.
- Teaming Support – Up to 4Gbps LAN connections.
- Up to 250 Simultaneous Client Connections – MU-MIMO design and robust connectivity for the most demanding environments.
Specifications
| Product Segment | AC2600 ultimate AC performance : 800+1734 Mbps |
| Data Rate | 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 800 Mbps 802.11ac : up to 1734 Mbps |
| Antenna | External 3 dBi dipole antenna x 4 |
| Transmit/Receive | MIMO technology 2.4 GHz 4 x 4 5 GHz 4 x 4 |
| Memory | 256 MB Flash 512 MB RAM |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Encryption | 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support |
| Firewall & Access Control | Firewall：SPI intrusion detection,DoS protection Access control：Access control, Network service filter, URL filter, Port filter |
| VPN Support | IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through IPSec server PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
| WAN Connection Type | Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Dual Link support WAN Bridge support |
| Ports | RJ45 for Gigabits BaseT for WAN x 2, RJ45 for Gigabits BaseT for LAN x 8 USB 3.0 x 2 M.2 SATA(SOCKET3) x 1 |
| Button | WPS Button, Reset Button, Power Button, Power Switch, USB eject |
| Features | Link Aggregation – 802.3ad – Static MU-MIMO Traffic Analyzer Adaptive QoS SmartQoS – WMM – User definable rules for IP/MAC/Port – Upload and download bandwidth management – ACK/SYN/FIN/RST/ICMP with highest priority AiProtection Parental Control Guest Network : VPN server : PPTP Server, OpenVPN Server, IPSec(Host-to-Net) server, IPSec(Net-to-Net) server VPN client : PPTP client, L2TP client, OpenVPN client, IPSec(Net-to-Net) client, IPSec(Peer-to-Peer) client 3G/4G data sharing AiDisk file server – Samba and FTP server with account management Dual WAN IPTV support |
| LED Indicator | Power x 1 LAN x 8 Wi-Fi x 2 LAN x 2 Fail-over x 1 SSD x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current |
| OS Support | Windows® 10 Windows® 8.1 Windows® 8 Windows® 7 Windows® Vista Windows® 2000 Windows® ME Windows® XP Mac OS X 10.4 to 10.12 |
| Dimensions | 200 x 300 x 49.5 ~ mm (WxDxH) (Without Bezel) |
| Weight | 950 g |

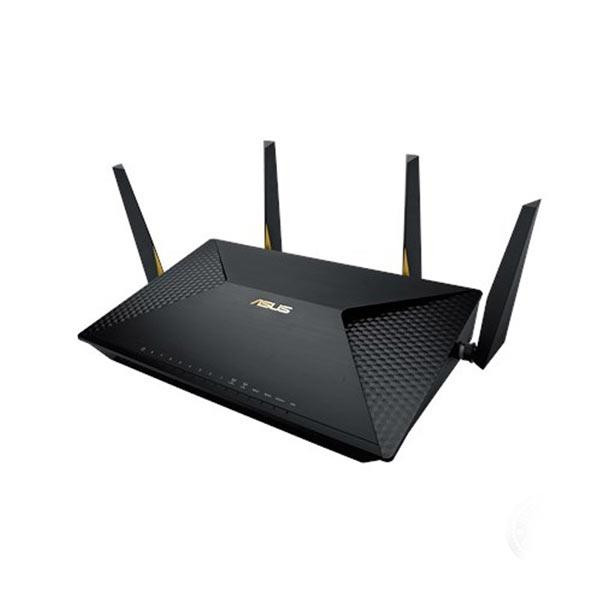

| Package Content | BRT-AC828 Dual WAN VPN wireless router RJ-45 cable Quick start guide Support CD(Manual) Power adapter |
| Router Special Features | 3G/4G data sharing |
| Operation mode | Wireless router mode Access point mode |
| Warranty | 3 Years |
