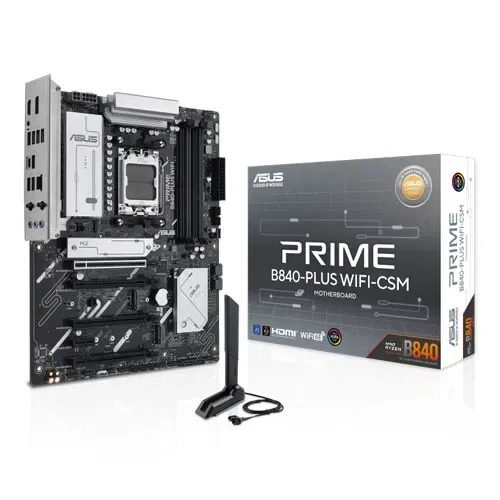

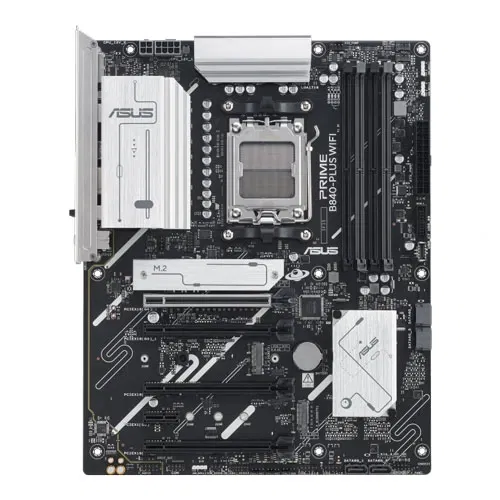

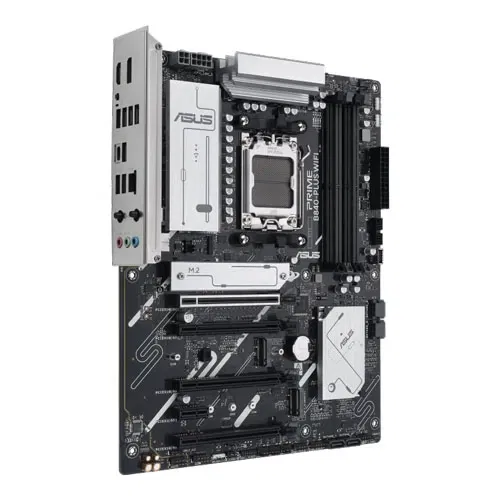

Asus Prime B840-Plus WiFi CSM ATX Motherboard :
Overview :
The Asus Prime B840-Plus WiFi CSM ATX Motherboard is designed for users seeking stability, connectivity, and performance for their AMD Ryzen™ 9000, 8000, and 7000 series processors. Featuring support for DDR5 memory, PCIe 4.0 expansion, high-speed connectivity, and integrated Wi-Fi, Asus Prime B840-Plus WiFi CSM ATX Motherboard motherboard is ideal for productivity and gaming builds. With ASUS Corporate Stable Model (CSM) support, Asus Prime B840-Plus WiFi CSM ATX Motherboard ensures long-term availability and reliability for business and professional users.
Features :
AMD B840 Chipset – Optimized for Ryzen™ 9000, 8000, and 7000 series processors.
DDR5 Memory Support – Up to 192GB RAM with speeds up to 6400+ MT/s (OC).
PCIe 4.0 Slots – Faster data transfer for GPUs and NVMe storage.
Dual M.2 Slots – Supports PCIe 4.0 x4 NVMe SSDs for high-speed storage.
Wi-Fi 6 & 2.5G LAN – Fast and reliable networking for gaming and productivity.
USB 3.2 & USB-C – Multiple high-speed ports for connectivity.
AI Cooling & Fan Xpert 4 – Advanced thermal management for optimal performance.
Corporate Stable Model (CSM) Support – Ensures long-term reliability and software updates.
Enhanced Power Delivery – 8+1 Power Stages for stable CPU performance.
Comprehensive I/O – HDMI, DisplayPort, multiple USB ports, and dedicated audio.
Specifications Table :
| Chipset | AMD B840 |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, Up to 192GB, 6400+ MT/s (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 2x PCIe 3.0 x1 |
| Graphics Output | HDMI 2.1, DisplayPort 1.4 (Requires CPU with Integrated Graphics) |
| Storage | 2x M.2 (PCIe 4.0 x4) + 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 10 for SATA and M.2 NVMe |
| LAN | Realtek 2.5G Ethernet |
| Wi-Fi & Bluetooth | Wi-Fi 6 + Bluetooth 5.3 |
| USB Ports (Rear) | 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 1, 4x USB 2.0 |
| USB Ports (Front) | 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0 |
| Audio | Realtek ALC897 7.1-Channel HD Audio |
| Fan Headers | CPU Fan, AIO Pump, 3x System Fan |
| RGB & ARGB Headers | 2x Addressable Gen 2 RGB, 1x RGB Header |
| BIOS Features | ASUS UEFI BIOS, EZ Flash, AI Overclocking |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
