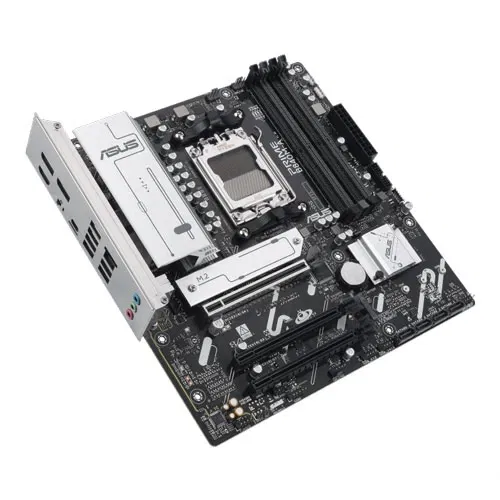

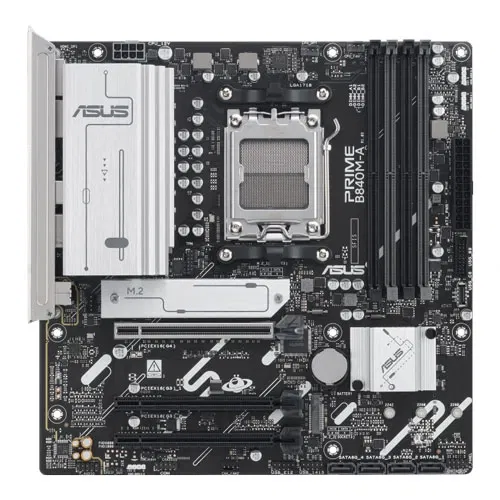

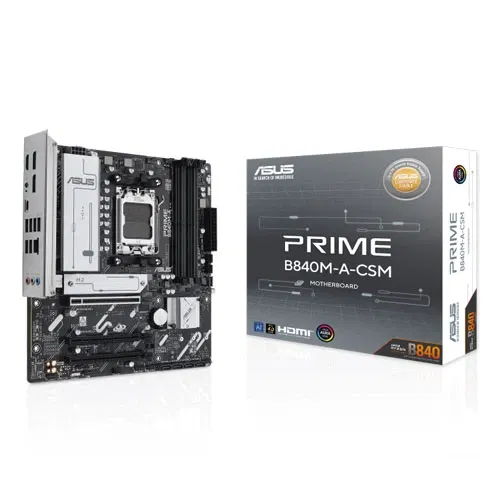

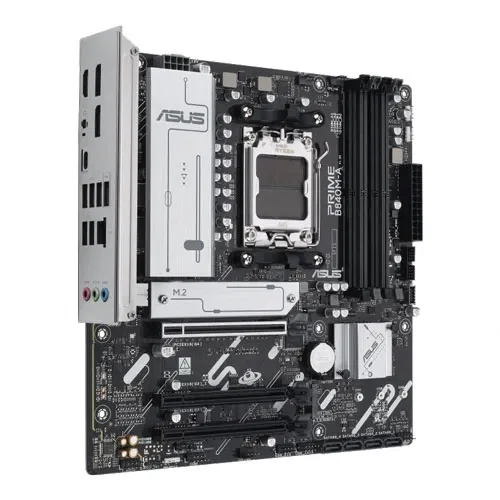

Asus Prime B840M-A-CSM Micro-ATX Motherboard :
Overview :
The Asus Prime B840M-A-CSM M-ATX Motherboard is designed for stability, reliability, and efficiency, making Asus Prime B840M-A-CSM M-ATX Motherboard an ideal choice for business users and professionals. Built on the AMD B840 chipset, Asus Prime B840M-A-CSM M-ATX Motherboard supports AMD Ryzen™ 9000/8000/7000 Series processors with AM5 socket compatibility. Featuring DDR5 memory support, PCIe 4.0, M.2 storage expansion, and comprehensive connectivity options, this motherboard ensures smooth performance for various computing needs. Enhanced with Asus Corporate Stable Model (CSM) program, Asus Prime B840M-A-CSM M-ATX Motherboard offers long-term reliability and IT management support.
Key Features :
AMD Ryzen™ 9000/8000/7000 Series Support – Compatible with the latest AM5 processors for high performance.
DDR5 Memory Support – Up to 192GB DDR5 RAM with overclocking capabilities.
PCIe 4.0 Expansion – High-speed PCIe 4.0 x16 slot for next-generation GPUs and storage devices.
Dual M.2 Slots – Supports PCIe 4.0 NVMe SSDs for ultra-fast data transfers.
Comprehensive Connectivity – Includes USB 10Gbps Type-C, USB 5Gbps Type-A, and multiple front/rear USB ports.
Realtek 2.5G LAN – Ensures fast and stable wired networking.
Enhanced Business Security – TPM 2.0 support and Asus CSM program for IT management.
Reliable Power Delivery – Durable VRMs and cooling solutions for stable performance.
Asus Q-Design Features – Q-LED for troubleshooting, SafeSlot Core for reinforced PCIe slots, and flexible fan controls.
Specifications :
| Chipset | AMD B840 |
| CPU Support | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Socket | AM5 |
| Memory | 4x DDR5 UDIMM, up to 192GB |
| Memory Speed | DDR5 6400 – 4800 MT/s (OC) / 5600 – 4800 MT/s (JEDEC) |
| Memory Features | – Dual-Channel Mode – Supports AMD EXPO™ Overclocking – Non-ECC, Unbuffered Memory |
| Graphics Output | 1x HDMI™ 2.1 (4K @ 60Hz) (Requires CPU with integrated graphics) |
| PCI-E Slots | – PCIe 4.0 x16 (For Ryzen™ 9000/8000/7000) – PCIe 3.0 x1 slots (From chipset) |
| Storage | – 2x M.2 Slots (PCIe 4.0) – 4x SATA 6G Ports |
| RAID Support | RAID 0, RAID 1, RAID 10 (SATA) |
| Audio | Realtek® High Definition Audio 7.1-Channel |
| USB Ports (Rear) | – 4x USB 2.0 – 2x USB 5Gbps Type-A – 1x USB 10Gbps Type-A – 1x USB 10Gbps Type-C |
| USB Ports (Front) | – 4x USB 2.0 – 2x USB 5Gbps Type-A – 1x USB 5Gbps Type-C |
| LAN | Realtek® 2.5G LAN |
| Internal I/O | – 1x ATX Power Connector – 1x CPU Power Connector – 3x System Fan Headers – 2x Addressable RGB LED Headers – 1x TPM Header (Supports TPM 2.0) |
| LED Features | Q-LED for troubleshooting |
| Back Panel Ports | – HDMI™ 2.1 – USB 10Gbps Type-C – USB 10Gbps Type-A – USB 5Gbps Type-A – USB 2.0 – 2.5G LAN – Audio Jacks |
| Form Factor | Micro-ATX (244mm x 244mm) |
| Operating System | Windows® 11 64-bit |
| Warranty | 3 Years |
