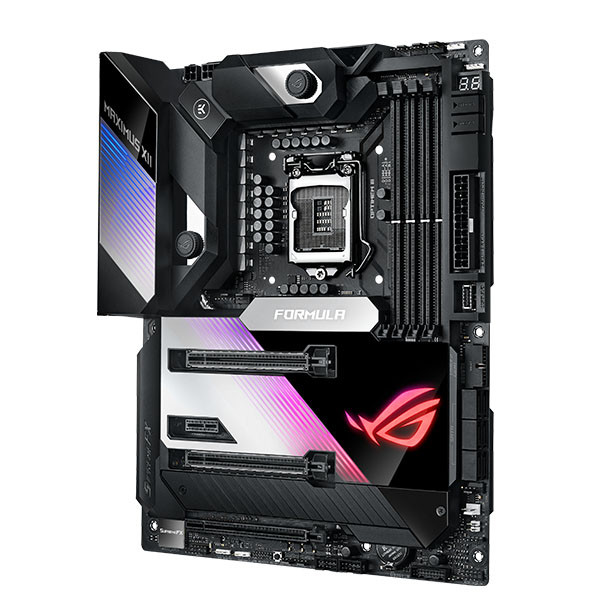

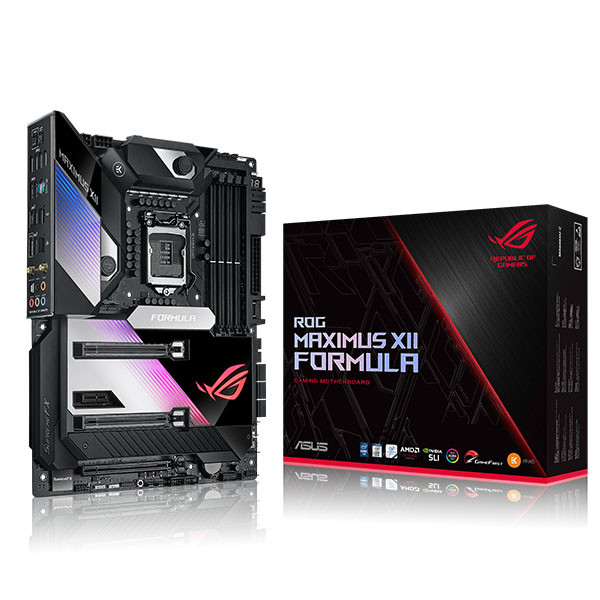

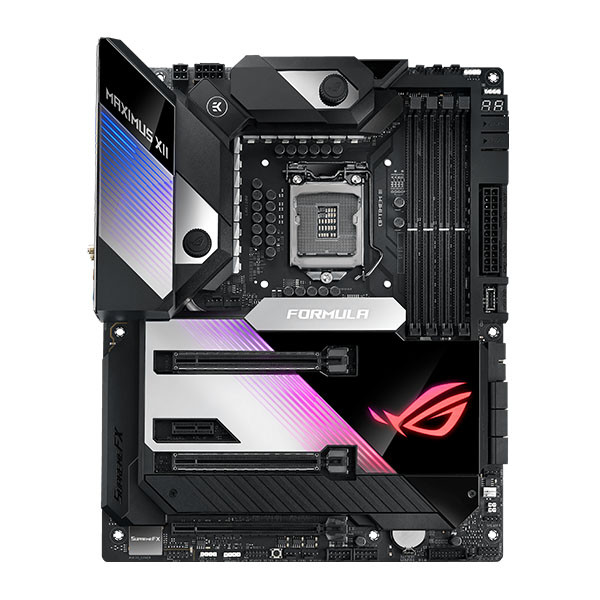

ASUS ROG MAXIMUS XII FORMULA Intel Z490 Motherboard INTEL Z490 ATX MOTHERBOARD FOR 10TH GEN INTEL PROCESSOR WITH 16 POWER STAGES, EK CROSSCHILL III, OPTIMEM III, TRIPLE M.2, ON-BOARD WI-FI 6 (AX201), 10 GB ETHERNET AND 2.5 GB ETHERNET, USB 3.2 GEN 2, AURA SYNC RGB LIGHTING
Features
- LGA 1200 socket for 10th-gen Intel® Core™ desktop processors
- AI Feature: AI Overclocking, AI Cooling and AI Networking (GameFirst VI)
- Robust power delivery: Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors
- Cooling & Performance: OptiMem III, CrossChill EK III, 16 teamed power stages with extended heatsink, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate
- Connectivity: Intel® Wi-Fi 6, 10 Gb Ethernet and Intel® 2.5 Gb Ethernet, triple M.2 slots
- Customization: 2″ LiveDash OLED, 2X addressable header + 2X 4-pin RGB header
Overview :
ROG Maximus XII series motherboards are designed to explore the upper echelons of gaming and overclocking. The Formula is plumbed for custom liquid cooling and includes other enhancements to punctuate premium systems. The CrossChill EK III VRM block, co-developed with EK Water Blocks, help cope with higher VRM loads associated with Intel Comet Lake CPUs. Aesthetically, Maximus XII Formula has a stealthy black finish with intricate patterns cut into its reflective armor. The latest-generation Formula is all set to make your showcase rig shine.
AI Overclocking
Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.
AI Cooling
AI Cooling automatically manages and controls motherboard-connected fans, ensuring the most efficient settings depending on the current system load and temperature.
AI Networking
GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.
COOLING
The focus on maximizing performance would be futile without similar dedication to improving the cooling that allows systems to sustain faster speeds. The CrossChill EK III VRM block enables Maximus XII Formula to cope with the high VRM loads of ten core CPUs. The hybrid cooling system sits atop of a heatpipe that’s directly linked to the extended VRM heatsink, giving it cooling capabilities that surpass the requirements of this current generation.
OPTIMIZATION
Maximus XII Formula is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.
CONNECTIVITY
Maximus XII Formula is well equipped to deliver supersmooth wireless connectivity and compatibility with multiple input sources and PCIe extensions, all of which are a must-have for gaming setups.
PERSONALIZED FOR YOU
In addition to extraordinary performance, Maximus XII Formula provides extensive styling and customization options to let you build a system that truly stands apart.
Specification :
| CPU | Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supports Intel® 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to www.asus.com for CPU support list | |
| **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| OptiMem III | |
| * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Multi-GPU Support | |
| Supports NVIDIA 2-Way SLI® Technology | |
| Supports AMD 3-Way CrossFireX™ Technology | |
| Expansion Slots | |
| Intel® 10th Gen Processors | |
| 2 x PCIe 3.0 x16 (x16 or dual x8) *1 | |
| Intel® Z490 Chipset | |
| 1 x PCIe 3.0 x16 (x4 mode) *2 | |
| 1 x PCIe 3.0 x1 *3 | |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel® Z490 Chipset : | |
| 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4 | |
| 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*5 | |
| 6 x SATA 6Gb/s port(s) | |
| 1 x M.2_3 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*6 | |
| Support Raid 0, 1, 5, 10 | |
| Intel® Rapid Storage Technology supports | |
| Intel® Optane™ Memory Ready | |
| LAN | Intel® I225-V 2.5Gb Ethernet |
| Marvell® AQtion AQC107 10Gb Ethernet | |
| ASUS LANGuard | |
| Wireless Data Network | |
| Intel® Wi-Fi 6 AX201 | |
| Supports up to 2.4Gbps max data rate | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160 | |
| Supports CNVI interface | |
| Bluetooth | |
| Bluetooth v5.1* | |
| *BT 5.1 function will be ready in Windows 10 build 19041 or later. | |
| Audio | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 |
| Impedance sense for front and rear headphone outputs | |
| Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback | |
| High quality120dBSNR stereo playback outputand113dBSNR recording input | |
| Supports up to 32-Bit/192kHz playback | |
| Audio Feature : | |
| SupremeFX Shielding™ Technology | |
| Gold-plated jacks | |
| Optical S/PDIF out port(s) at back panel | |
| Premium Japanese audio capacitors | |
| Audio Cover | |
| USB Ports | Rear USB Port ( Total 10 ) |
| 4 x USB 3.2 Gen 2 port(s)(3 x Type-A + USB Type-CTM) | |
| 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) | |
| Front USB Port ( Total 9 ) | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) | |
| 4 x USB 3.2 Gen 1 port(s) | |
| 4 x USB 2.0 port(s) | |
| Operating System Support | Windows® 10 64-bit |
| Software Features | |
| ROG Exclusive Software | Mem Tweakit |
| RAMCache III | |
| ROG CPU-Z | |
| GameFirst VI | |
| Sonic Studio III + Sonic Studio Virtual Mixer | |
| Sonic Radar III | |
| DTS® Sound Unbound | |
| Overwolf | |
| BullGuard Internet Security (1-year full version) | |
| ASUS Exclusive Software | Armoury Crate |
| Aura Creator | |
| Aura Sync | |
| AI Suite 3 | |
| 5-way Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| Digi+ Power Control | |
| Fan Xpert 4 | |
| Turbo app | |
| EZ update | |
| AI Charger | |
| WinRAR | |
| UEFI BIOS | AI Overclocking Guide |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| ASUS Special Features | ROG Extreme OC kit |
| FlexKey button | |
| ReTry button | |
| Start button | |
| ASUS Q-Design | |
| ASUS Q-Code | |
| ASUS Q-Connector | |
| ASUS Q-DIMM | |
| ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| ASUS Q-Slot | |
| ASUS Thermal Solution | |
| Aluminum M.2 heatsink | |
| CrossChill EK III | |
| Steel backplate | |
| ASUS EZ DIY | |
| BIOS Flashback™ button | |
| Clear CMOS button | |
| Procool II | |
| Premounted I/O shield | |
| SafeSlot | |
| AURA Sync | |
| ROG Aura sync Armor | |
| Standard RGB header(s) | |
| Addressable Gen 2 RGB header(s) | |
| LiveDash OLED 2″ | |

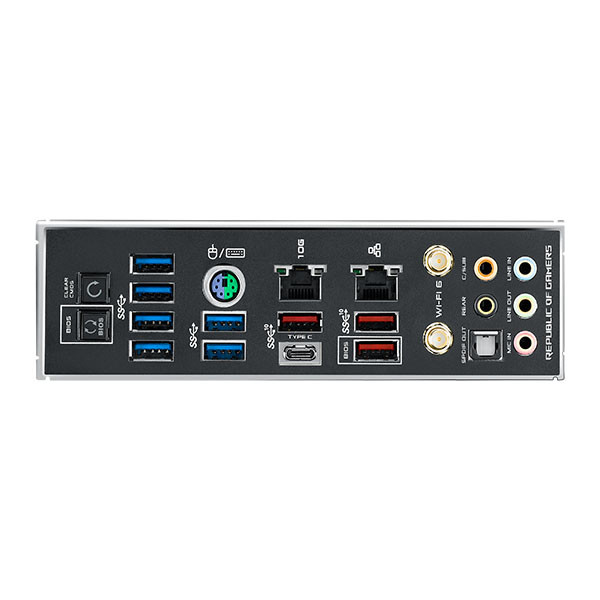

| Back I/O Ports | 1 x Intel® I225-V 2.5Gb Ethernet |
| 1 x PS/2 keyboard/mouse combo port(s) | |
| 4 x USB 3.2 Gen 2 | |
| 6 x USB 3.2 Gen 1 | |
| 1 x Optical S/PDIF out | |
| 1 x Clear CMOS button(s) | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| 1 x ASUS Wi-Fi Module | |
| 5 x Gold-plated audio jacks | |
| 1 x Aquantia AQC-107 10G LAN port | |
| Internal I/O Ports | 1 x CPU Fan connector(s) |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x H_AMP fan connector | |
| 1 x W_PUMP+ connector | |
| 1 x W_IN header | |
| 2 x W_OUT header | |
| 3 x W_FLOW header | |
| 1 x AAFP connector | |
| 2 x Aura RGB Strip Headers | |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 3 x M.2 Socket 3 | |
| 6 x SATA 6Gb/s connector(s) | |
| 1 x Thunderbolt header(s) | |
| 1 x 24-pin EATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x 4-pin ATX 12V Power connector(s) | |
| 1 x Thermal sensor connector(s) | |
| 1 x ReTry button | |
| 1 x System panel connector | |
| 1 x USB 3.2 Gen 2 front panel connector | |
| 1 x Speaker connector | |
| 1 x Start button | |
| 1 x FlexKey button | |
| Accessories | User´s manual |
| Addressable LED extension cable | |
| 1 x ROG logo plate sticker | |
| 4 x SATA 6Gb/s cable(s) | |
| 2 x M.2 Screw Package | |
| 1 x Supporting DVD | |
| 1 x ROG big sticker | |
| 1 x Q-Connector | |
| 1 x Wi-Fi Antenna(s) | |
| 1 x Extension Cable for RGB strips (40 cm) | |
| 2 x ROG weave SATA 6G cable | |
| 1 x ROG Thank you card | |
| 1 ROG key chain | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
