Asus ROG-RYUJIN-240
Overview

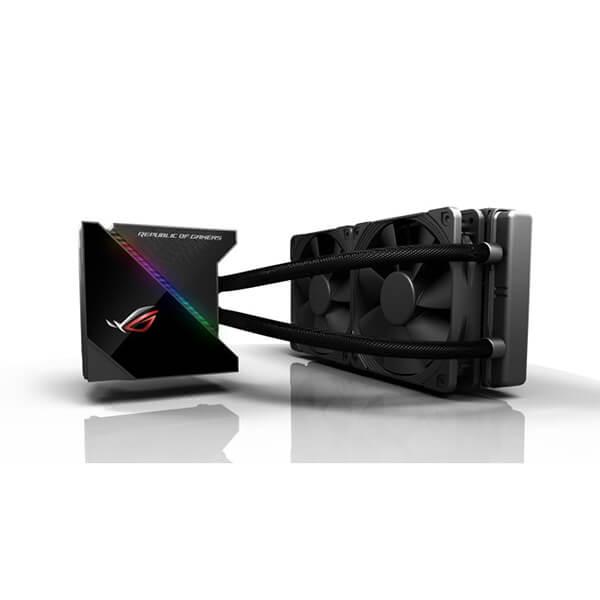

ROG Ryujin is the flagship all-in-one cooler for high-end builds designed to deliver the best thermal performance. Featuring Noctua Industrial PPC fans for cooler and quieter operation, plus an embedded fan in the pump housing for additional cooling to the VRM and M.2, ROG Ryujin keeps your system running its absolute best. Coupled with a LiveDash OLED that displays system stats or custom graphics and Aura Sync RGB lighting, ROG Ryujin is the ultimate thermal solution destined to become a vital part of your gaming rig.
- 1.77” color OLED for real-time system stats and personalized logos or animations
- Embedded microfan helps to cool VRM and M.2 area by up to 20°C
- Quality Noctua Industrial PPC PWM fans deliver high airflow and minimal noise
- LiveDash one-stop control center for lighting and OLED display
- Individually addressable RGB and NCVM coating pump cover accentuates the sleek, modern aesthetics
- Styled to complement ROG motherboards, at the center stage of your build
- Reinforced, sleeved tubing for increased durability

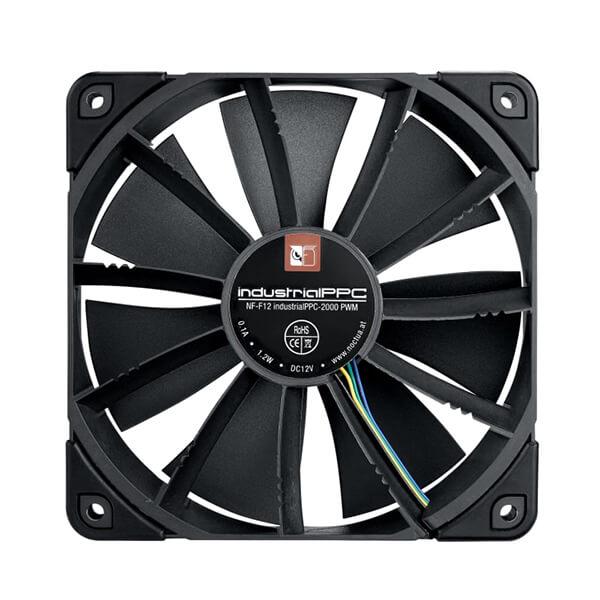

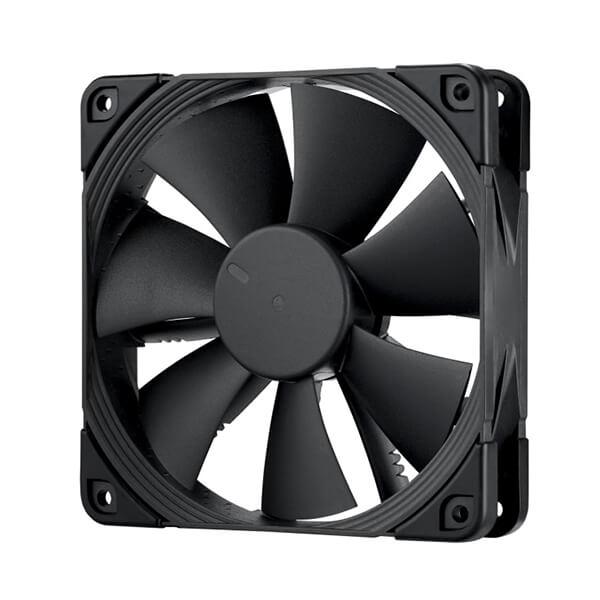

Noctua Industrial iPPC fan
ROG Ryujin meets the thermal challenges of the latest multi-core CPUs with industrial-grade Noctua iPPC-2000 PWM fans on the radiator that deliver high performance and low-noise operation. The 120-mm fans generate 122 m3h of airflow at 2,000 RPM yet are extremely efficient with a 29.7-dB(A) acoustic footprint that’s much quieter than competing fans.

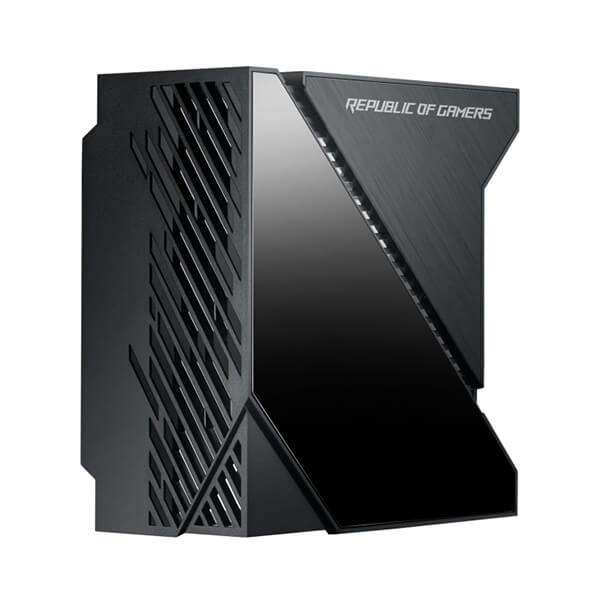

Pump embedded fan
While powerful, liquid cooling does not circulate air around the CPU socket like a traditional heatsink and fan. ROG Ryujin overcomes this limitation with a 60mm fan embedded in the pump housing that circulates air to the CPU VRMs, M.2 slot and surrounding components to dramatically reduce temperatures for improved performance and stability.
LiveDash OLED
ROG Ryujin is the world’s first AIO cooler to feature an embedded 1.77-inch LiveDash color OLED that displays useful system information*, such as temperatures, voltages, fan speeds, or frequencies. You can also customize LiveDash to display a customized image or animation** highlighting your clan insignia or gamertag.
*Hardware monitoring feature is only compatible with ASUS motherboards.
**OLED only support GIF’s and JPG files which are 160 x 128 pixels.
Complete LiveDash customizability
The LiveDash software utility lets you easily customize ROG Ryujin’s LiveDash OLED display and RGB lighting effects. Select which system stats to monitor, choose personalized GIFs and images to display, and control RGB lighting from an intuitive interface that arranges settings in a step-by-step flow from top to bottom.
Subtle, striking, sleek
Infused with Aura RGB lighting in dramatic slash patterns on the shroud, Ryujin exudes a vibrant glow that highlights the CPU at the heart of your build
PERFECT SYNCHRONIZATION
The impact of Aura RGB lighting can be further enhanced with ASUS Aura Sync, which allows harmonized lighting effects with other Aura-enabled system components and external accessories. Aura software give you complete control of lighting across all compatible devices, letting you dial in the vibe you want to display quickly and easily.
EXTENDED COMPATIBILITY
ROG Ryujin is compatible with a wide range of Intel and AMD motherboard platforms, giving you the flexibility to pair it with your choice of processor. It also comes fitted with 38cm of tubing to make mounting and routing easier.
CPU socket support
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
*the mounting bracket is bundled with TR4 processor package
Specification
| Water Block | |
| Water Block Dimension | 100 x 100 x 70 mm |
| Block Material (CPU plate) | Copper |
| CPU Socket Support | Intel: LGA 1200, LGA 115x,1366, 2011, 2011-3, 2066 AMD: AM4, TR4* *The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN’s package |
| Radiator | |
| Radiator Dimension | 121 x 272 x 27mm |
| Radiator Material | Aluminum |
| Tube | Sleeved Rubber tube 380mm |
| Fan | |
| Fan | 2 x Noctua NF-F12 industrialPPC 2000 PWM |
| Fan size | 2 Fan Slots (120mm) |
| Fan Dimension | 120 x 120 x 25 mm |
| Fan Speed | 450 ~ 2000 RPM +/- 10 % |
| Fan Static Pressure | 3.94 mmH2O |
| Fan Air Flow | 121.8 m3h |
| Fan Noise | 29.7 dB(A) |
| Control Mode | PWM |
| Special Features | |
| OLED Display | 1.77 ” Full Color OLED |
| AURA Sync Support | Yes |
| Embedded FAN | Yes |
| Embedded Fan Speed | 4800 RPM +/- 10 % |
| Embedded Fan Air Pressure | 3.23 mmH2O |
| Embedded Fan Air Flow | 19.41 CFM |
| Embedded Fan Noise | 31 dB(A) |
| Warranty | 3 Years |
