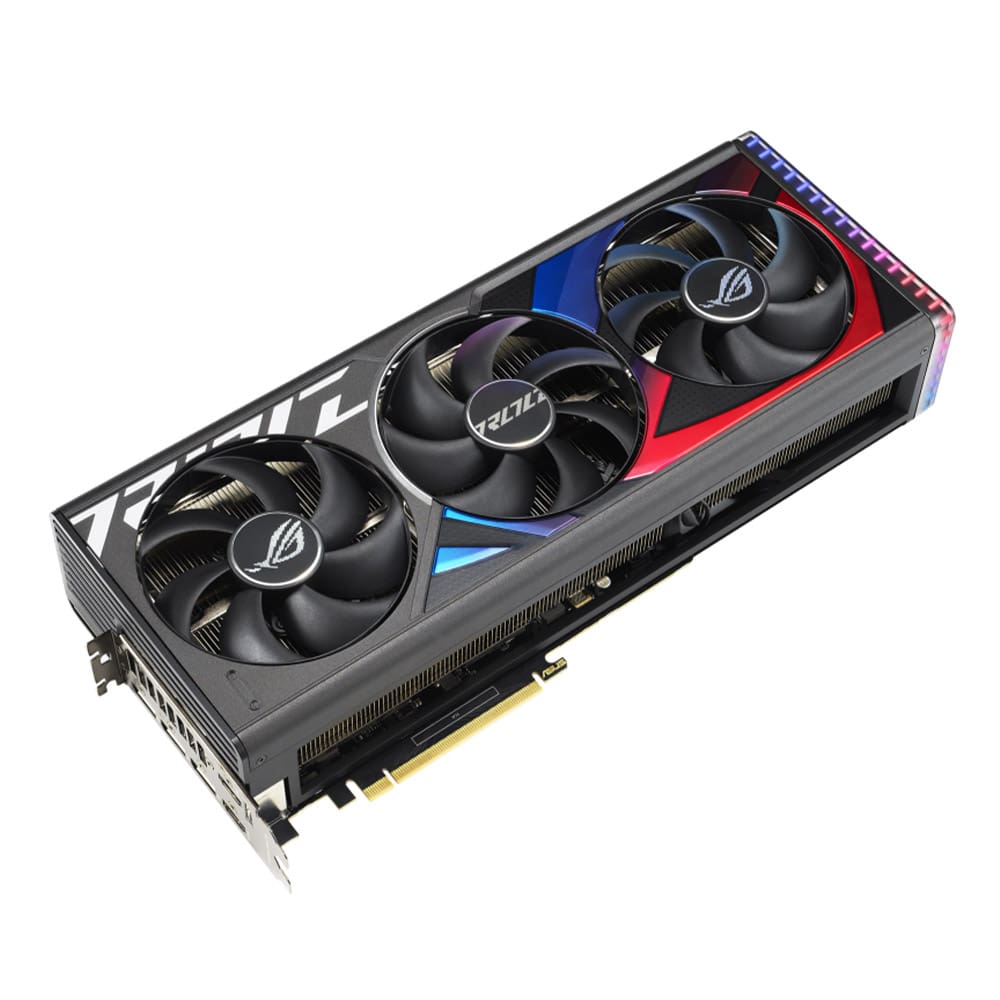

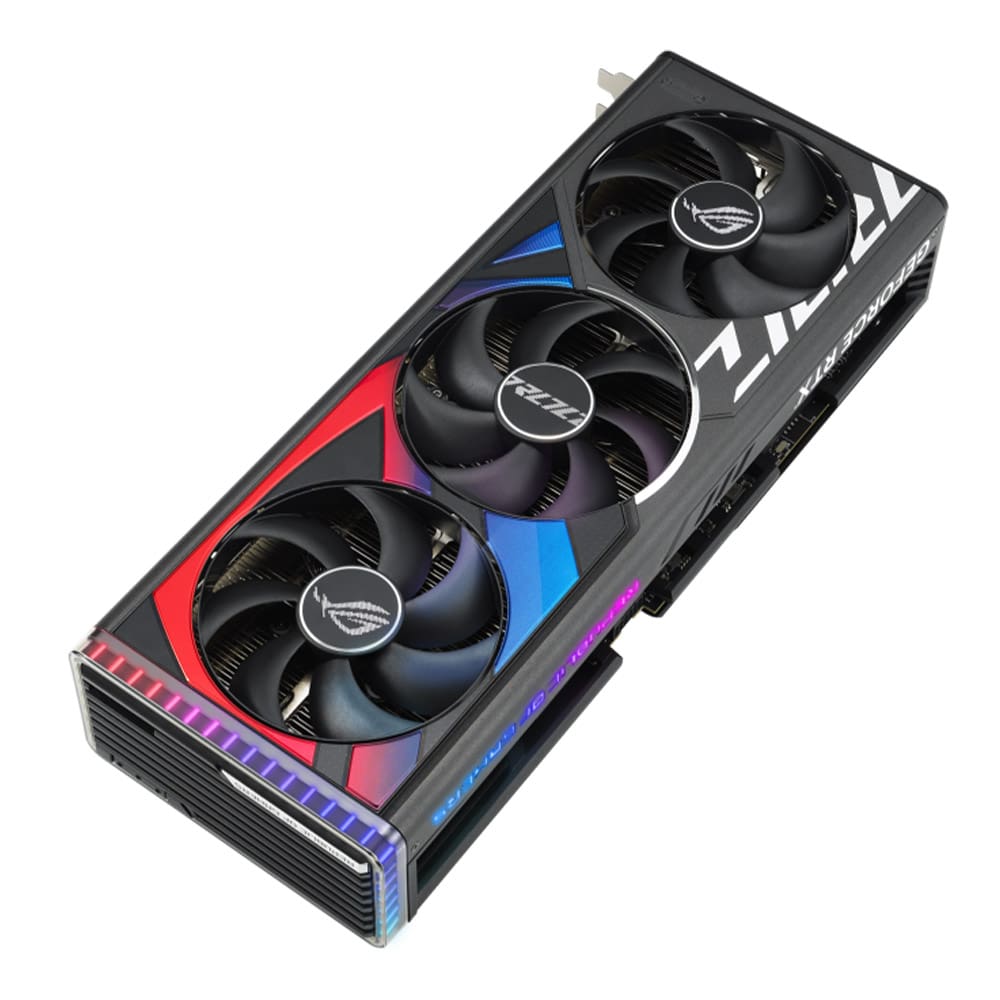

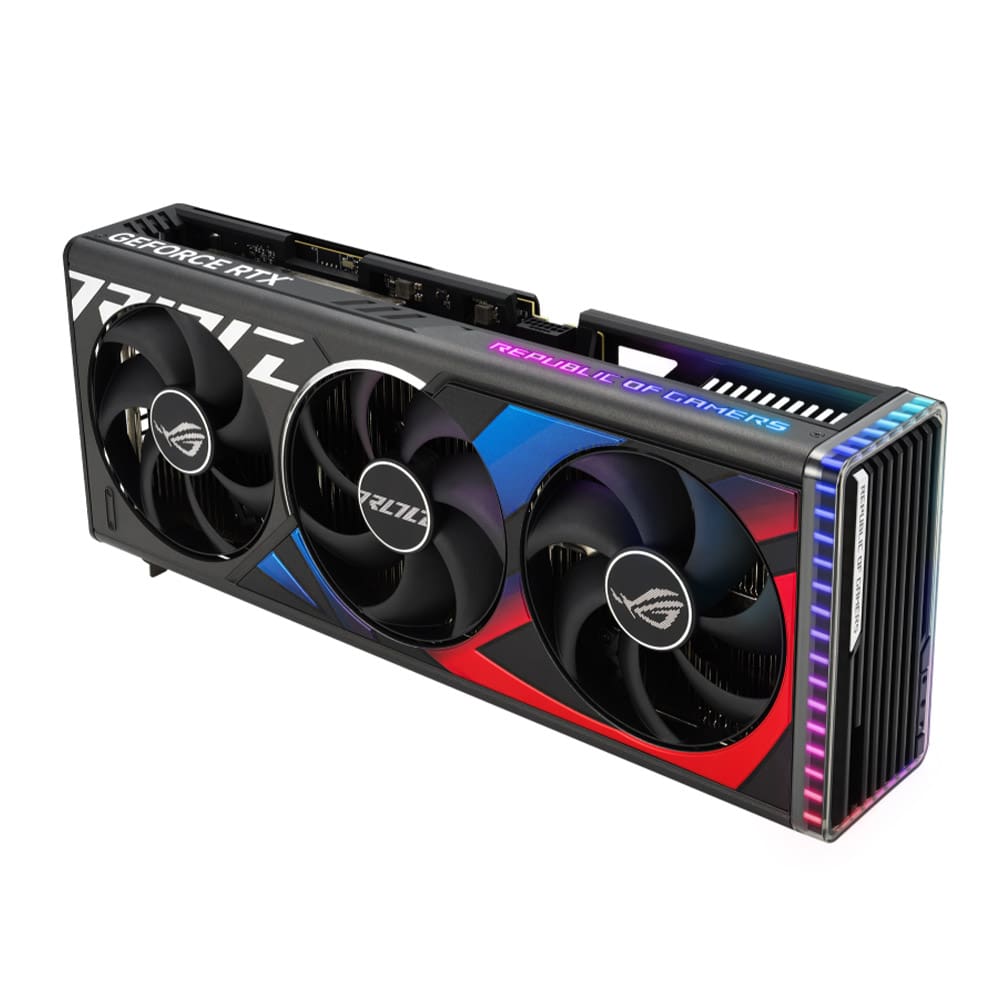

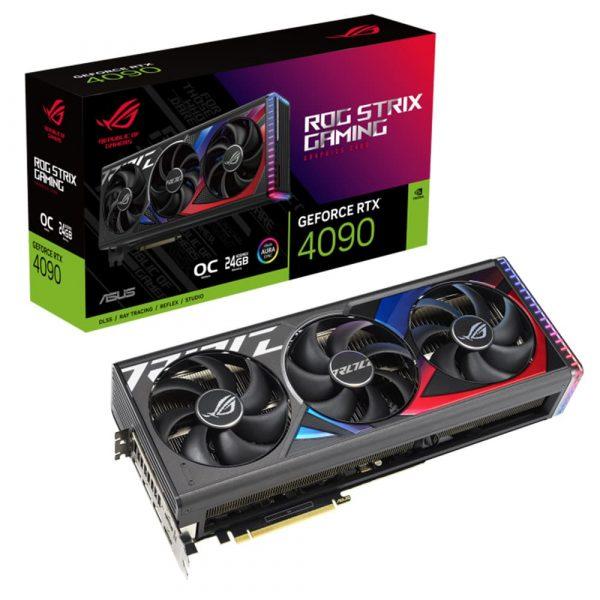

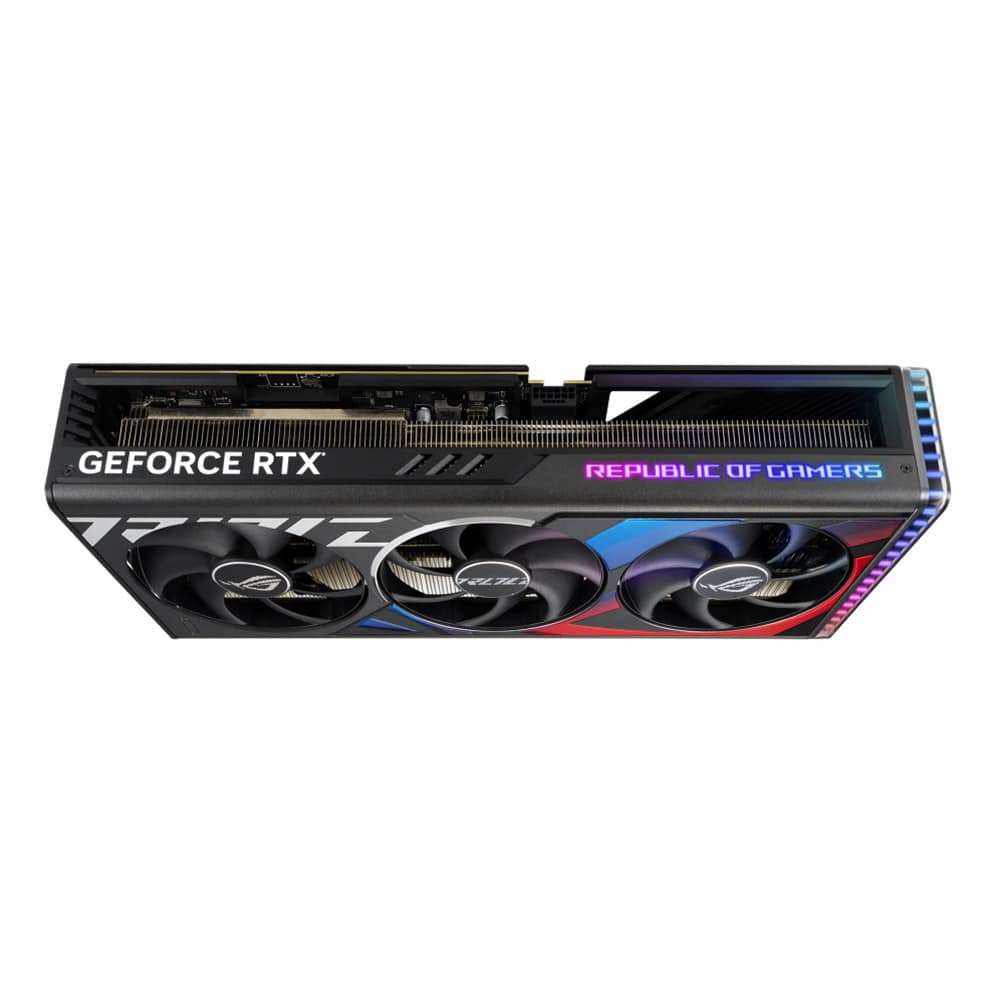

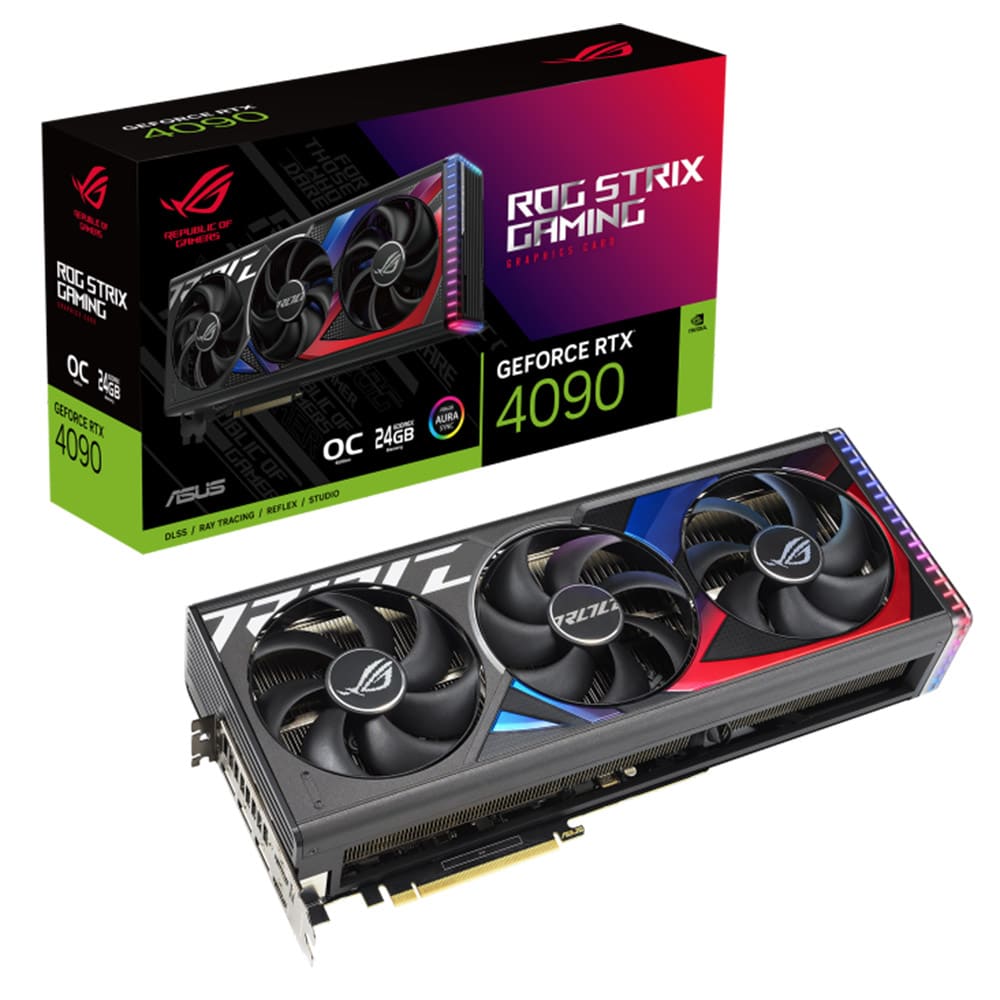

Asus ROG Strix RTX 4090 OC 24GB GDDR6X buffed-up design with chart-topping thermal performance Graphics Card
Features :
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Overview :
WITH THE INCREDIBLE SUM OF ITS PARTS
The Asus ROG Strix RTX 4090 OC 24GB brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

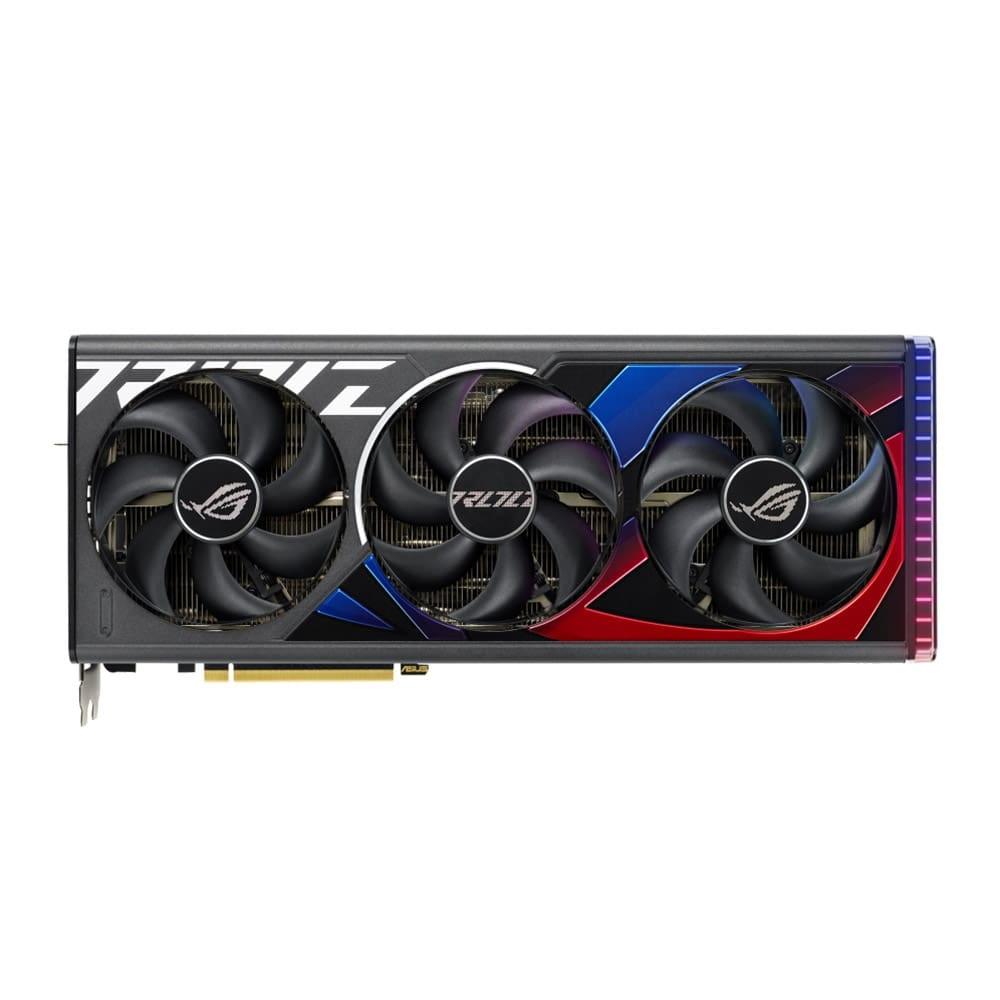

Axial-tech Upgrades
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
3.5-slot Design
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the Asus ROG Strix RTX 4090 OC 24GB so that it can be efficiently whisked away by the three Axial-tech fans.
Patented Vapor Chamber
Phase Changer
A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces Asus ROG Strix RTX 4090 OC 24GB GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.
Premium Power Delivery
1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Compact PCB
Packs a Punch

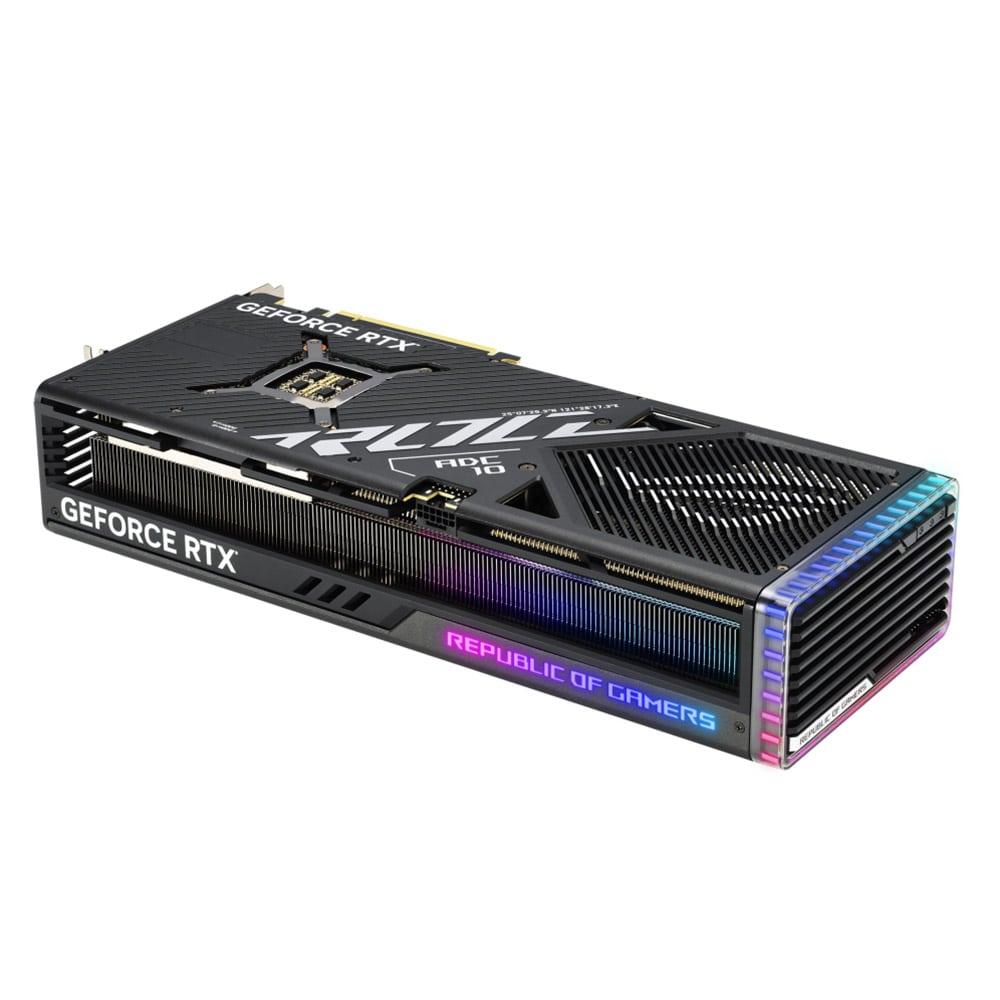

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent in Asus ROG Strix RTX 4090 OC 24GB

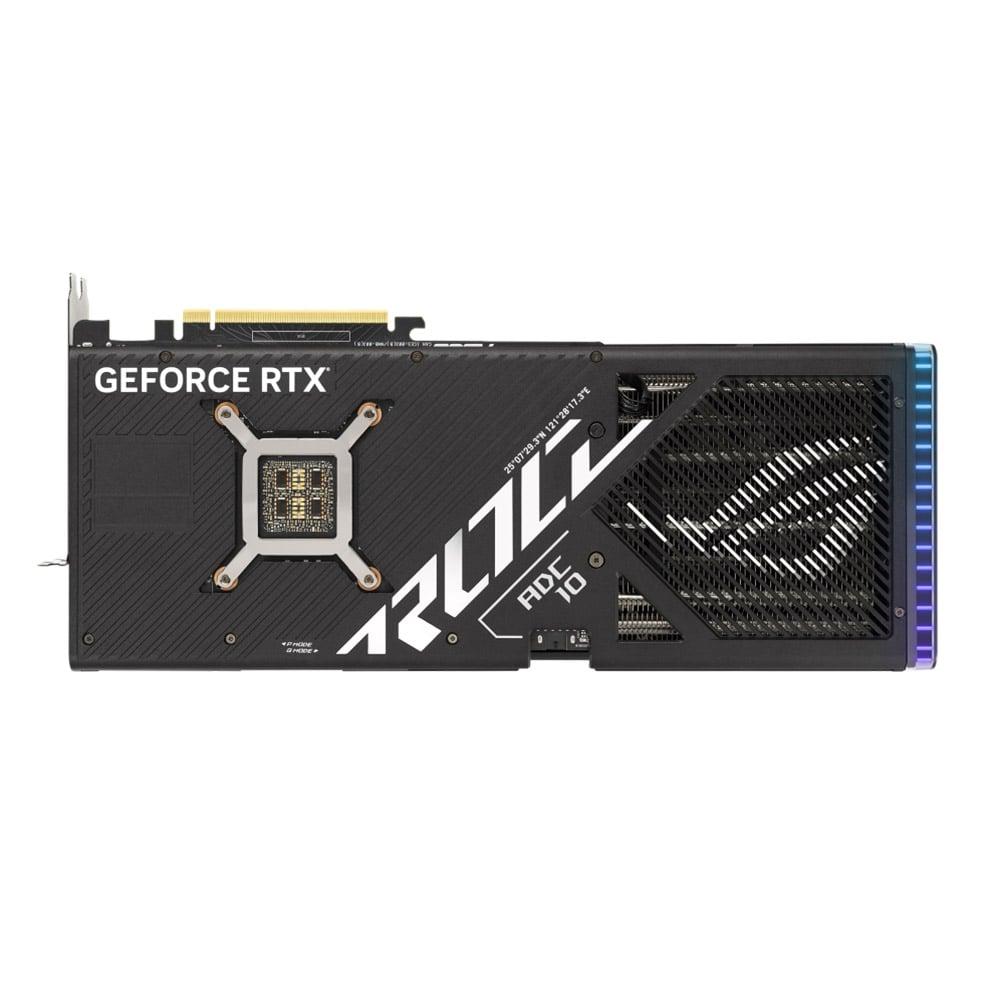

Metal Exoskeleton
Ultra-rigid
A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
GO WITH THE FLOW
It all comes together to effortlessly drive Asus ROG Strix RTX 4090 OC 24GB performance to the max.
FanConnect II
Hook up

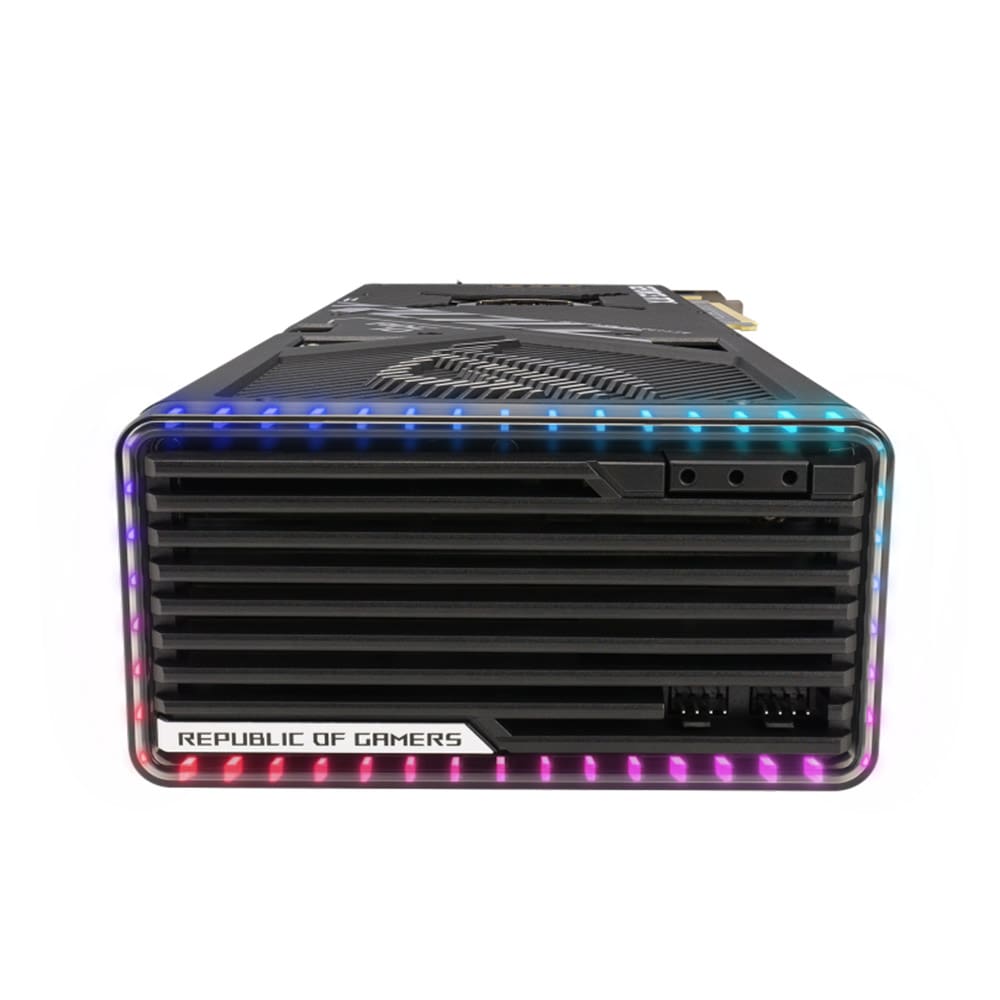

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.
Reinforcements
Additional Perks

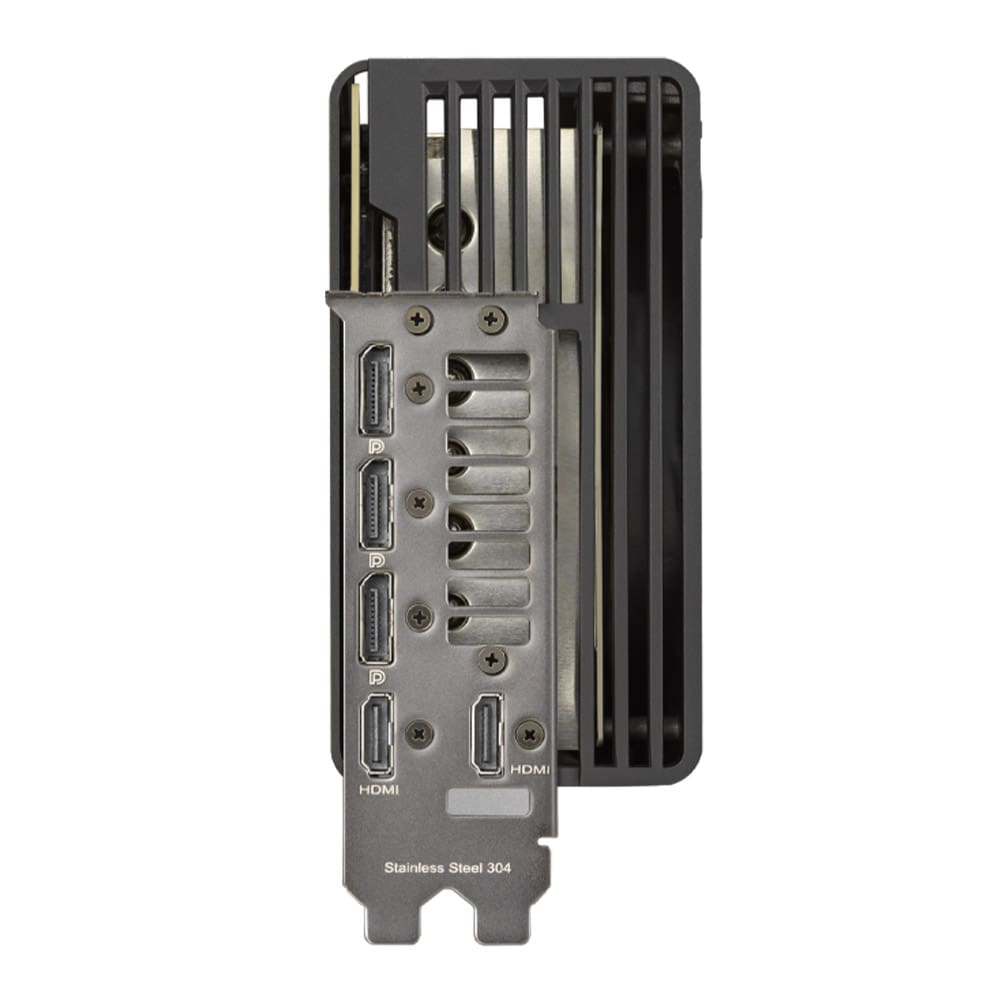

A GPU bracket provides extra stability to the critical connection between die and heat spreader in Asus ROG Strix RTX 4090 OC 24GB. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Power
Sensing
Quick Diagnosis
Know if your PSU is worthy. Asus ROG Strix RTX 4090 OC 24GB graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.
Auto-Extreme Technology
Reliability Boost
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Aura Sync
Symphony of Light
Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
Specifications :
| Graphic Engine | NVIDIA® GeForce RTX® 4090 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 24GB GDDR6X |
| Engine Clock | OC mode: 2550 MHz Gaming mode: 2520 MHz (Boost Clock) |
| CUDA Core | 16384 |
| Memory Speed | 21 Gbps |
| Memory Interface | 384-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 2 (Native HDMI 2.1a) |
| Yes x 3 (Native DisplayPort 1.4a) | HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you Card |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 357.6 x 149.3 x 70.1mm |
| Recommended PSU | 1000W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.5 Slot |
| AURA SYNC | ARGB |
| Note | * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. |
