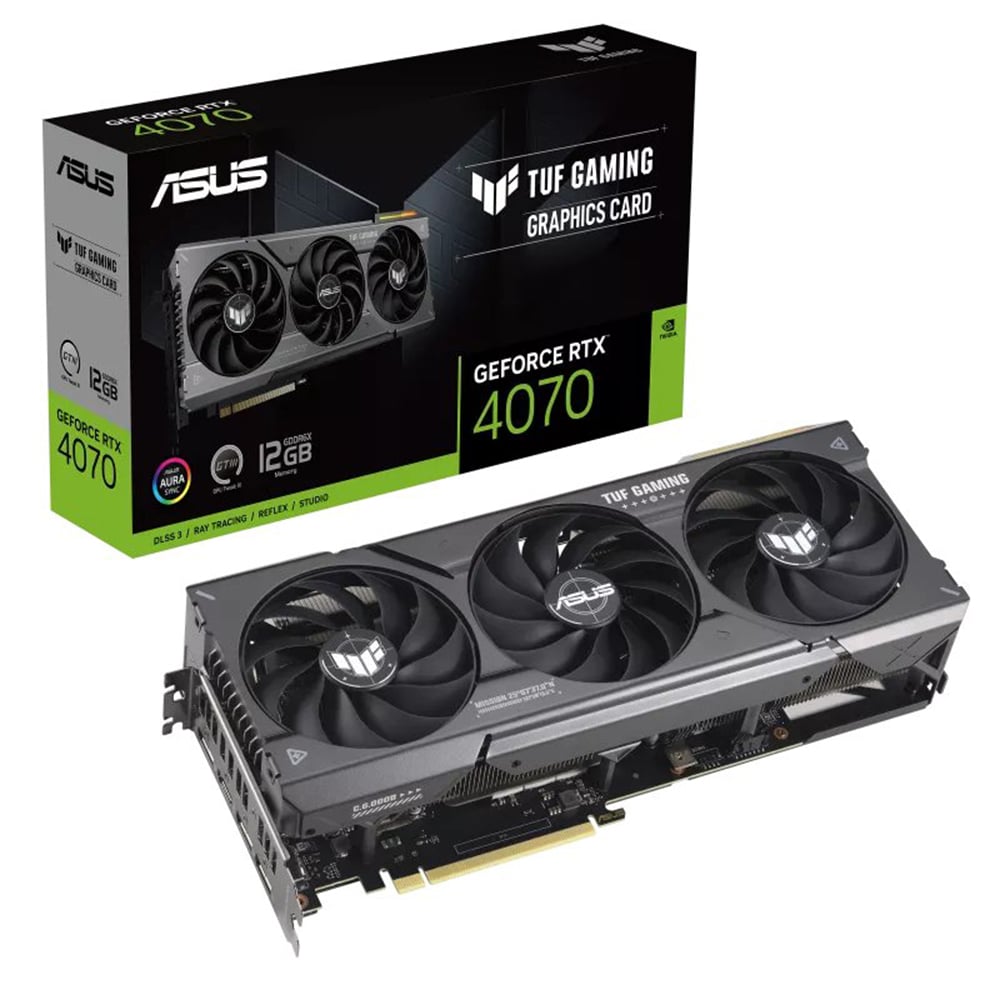

Asus TUF Gaming RTX 4070 12GB Graphics Card :
Features :
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fans scaled up for 21% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeleton adds structural rigidity and vents to increase heat reliability
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring.
Overview :
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the Asus TUF Gaming RTX 4070 12GB Graphics Card.
The Ultimate Platform for Gamers and Creators, Powered by GeForce RTX 40 Series and DLSS 3
- New Streaming Multiprocessors Up to 2x performance and power efficiency
- Fourth-Gen Tensor Cores Up to 4x performance with DLSS 3 vs. brute-force rendering
- Third-Gen RT Cores Up to 2x ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
NVIDIA Broadcast app
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers
Air Superiority

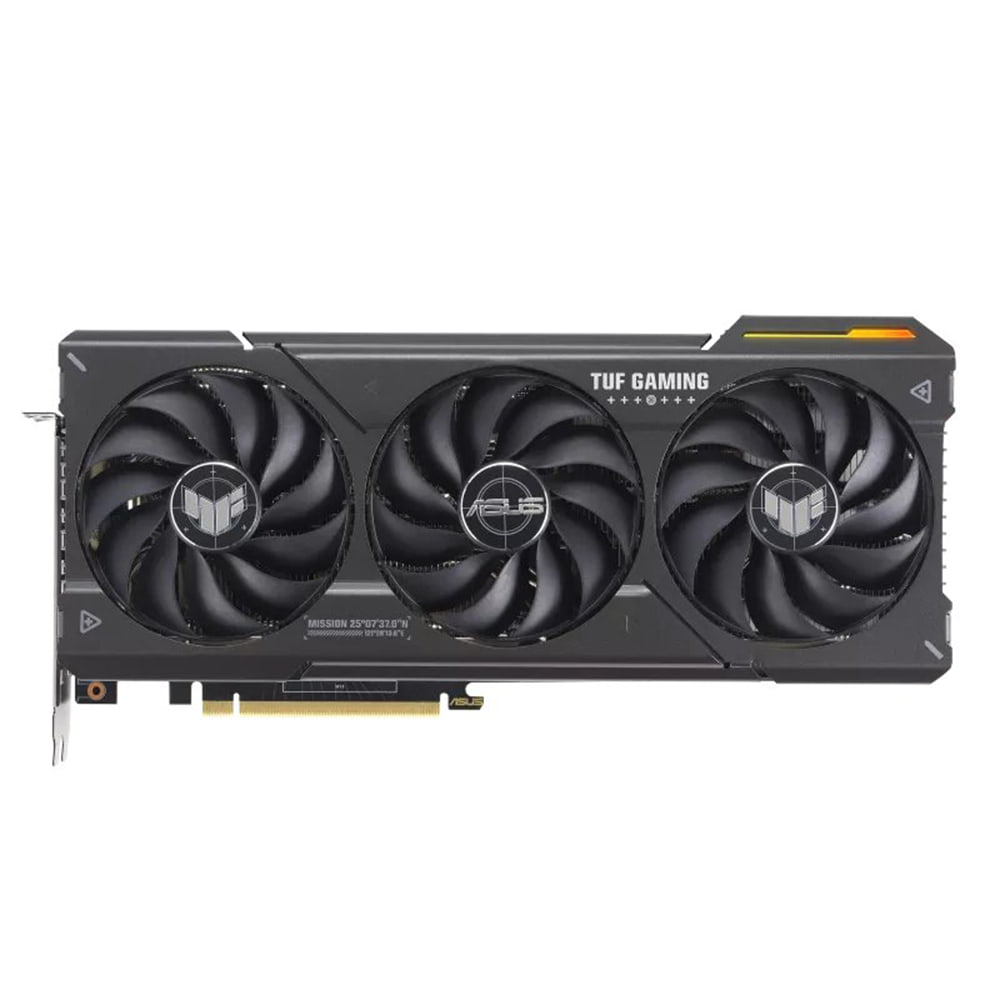

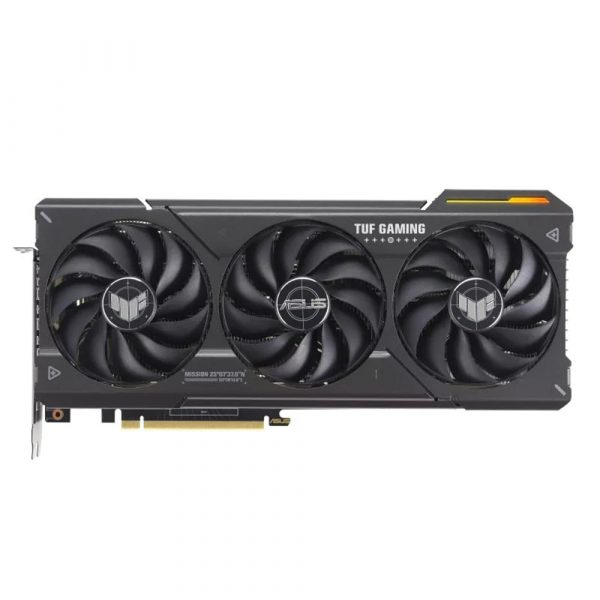

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the Asus TUF Gaming RTX 4070 12GB Graphics Card, setting the stage for lower temperatures, less noise, and higher performance.
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when Asus TUF Gaming RTX 4070 12GB Graphics Card temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze
A generously oversized heatsink combo efficiently soak up heat from the Asus TUF Gaming RTX 4070 12GB Graphics Card so that it can be whisked away by the three Axial-tech fans.
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the Asus TUF Gaming RTX 4070 12GB Graphics Card power rail, arming the card for long-term deployment in challenging conditions.
Power and Purge
Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.
Stay Frosty

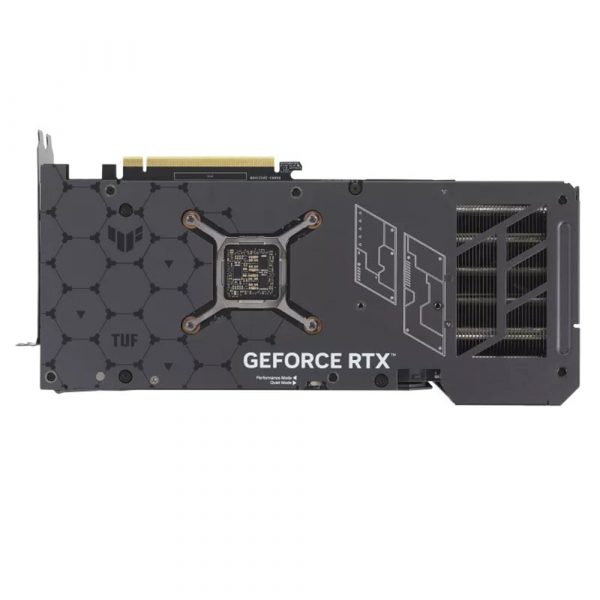

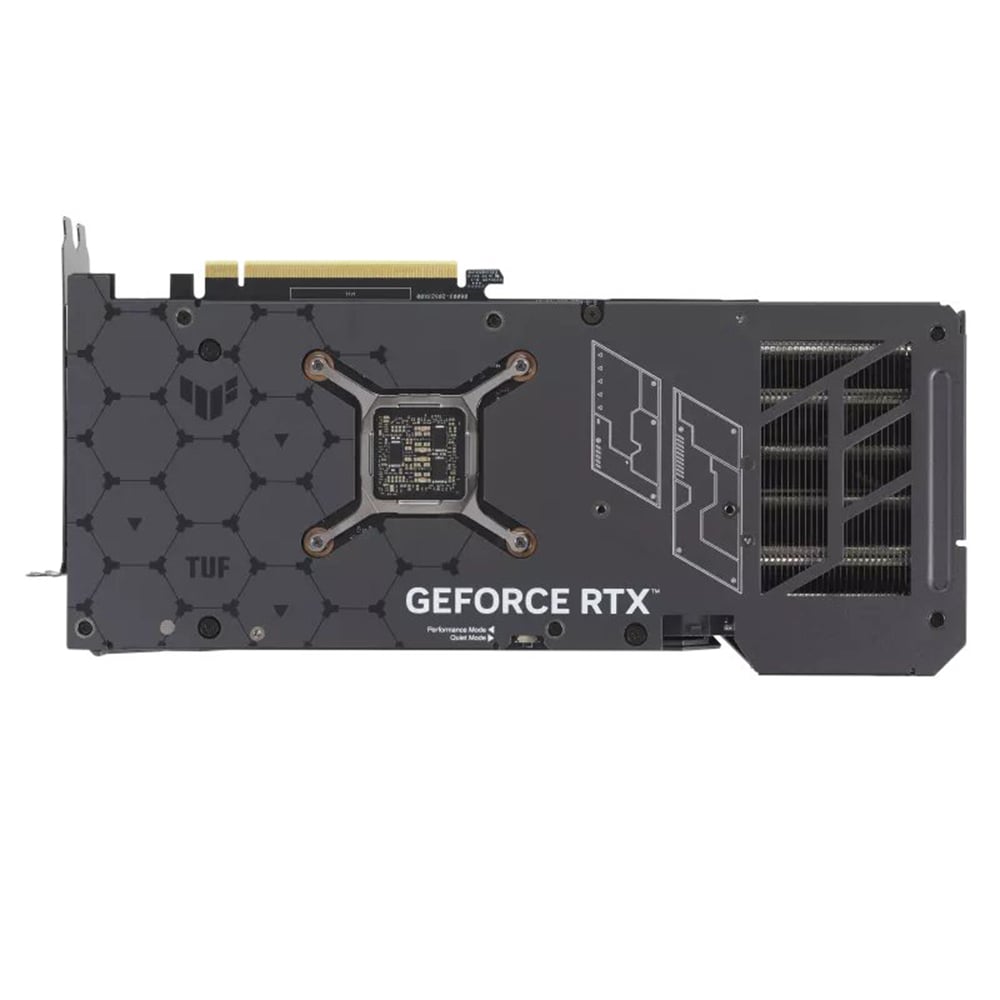

The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.
LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The Asus TUF Gaming RTX 4070 12GB Graphics Card gloriously presented on a backdrop of low noise and rugged durability.
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your Asus TUF Gaming RTX 4070 12GB Graphics Card. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build .
Specifications :
| Model | TUF-RTX4070-12G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 4070 |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 12GB GDDR6X |
| Engine Clock | OC mode: 2505 MHz Default mode: 2475 MHz (Boost) |
| CUDA Core | 5888 |
| Memory Speed | 21 Gbps |
| Memory Interface | 192-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

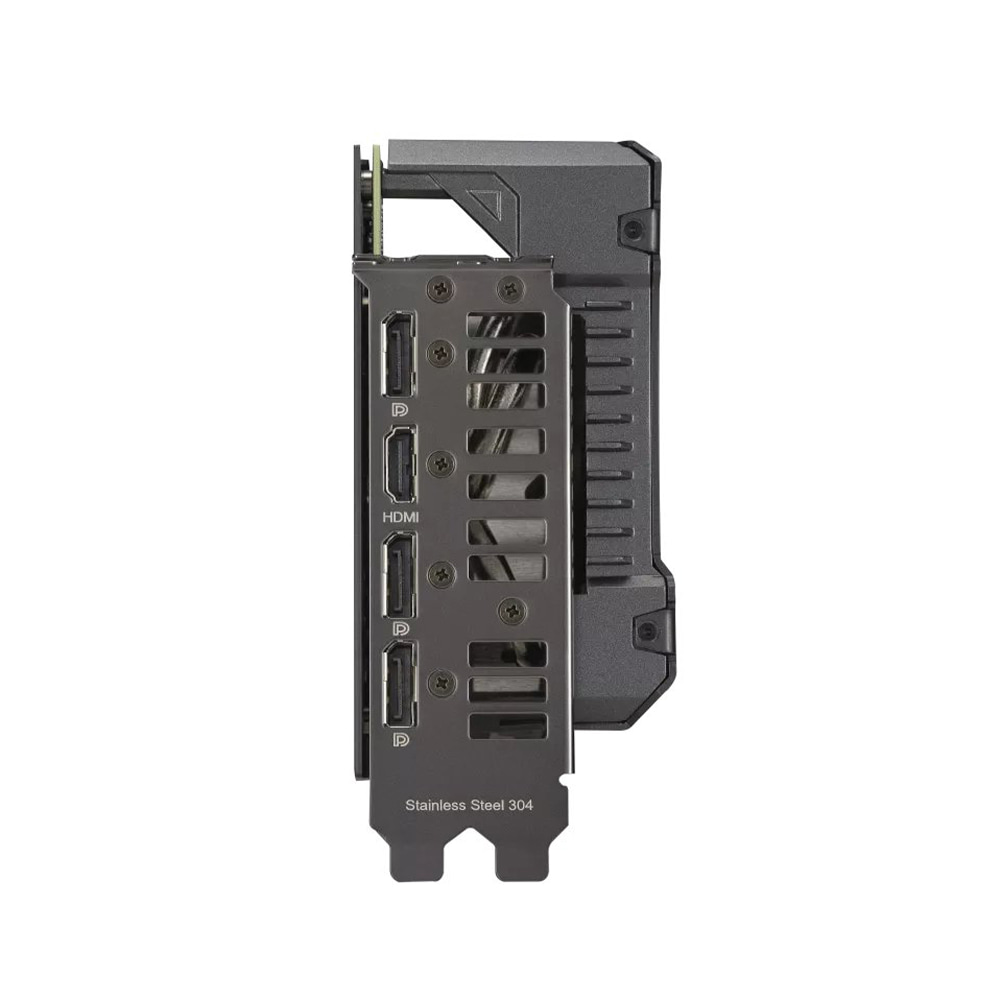

| Interface | Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Thank you Card 1 x TUF Velcro Hook & Loop 1 x TUF Graphics card holder 1 x TUF Gaming Certificate |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 301 x 139 x 63 mm |
| Recommended PSU | 650W |
| Power Connectors | 1 x 8-pin |
| Slot | 3.15 Slot |
| AURA SYNC | ARGB |
| Warranty | 3 Years |
