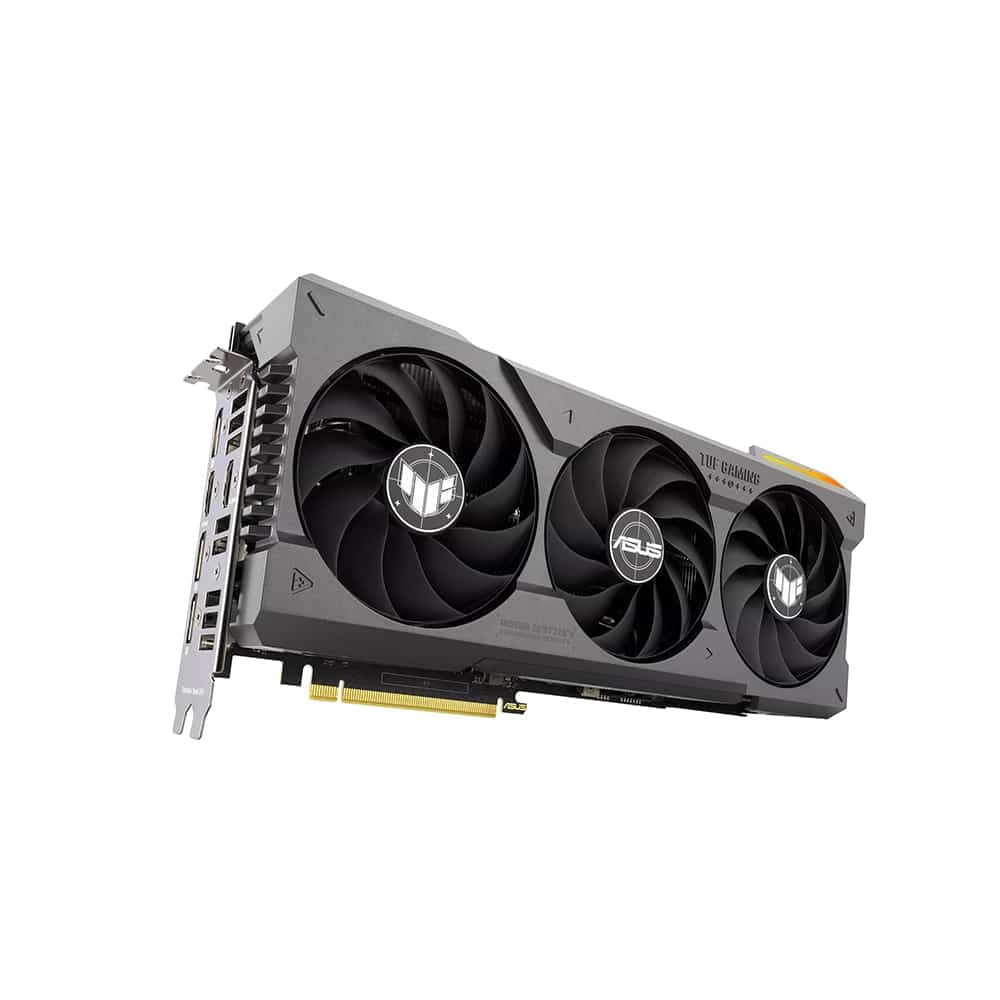

Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card :
Features :
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode)
- Axial-tech fans scaled up for 21% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal exoskeleton adds structural rigidity and vents to increase heat reliability
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Overview :

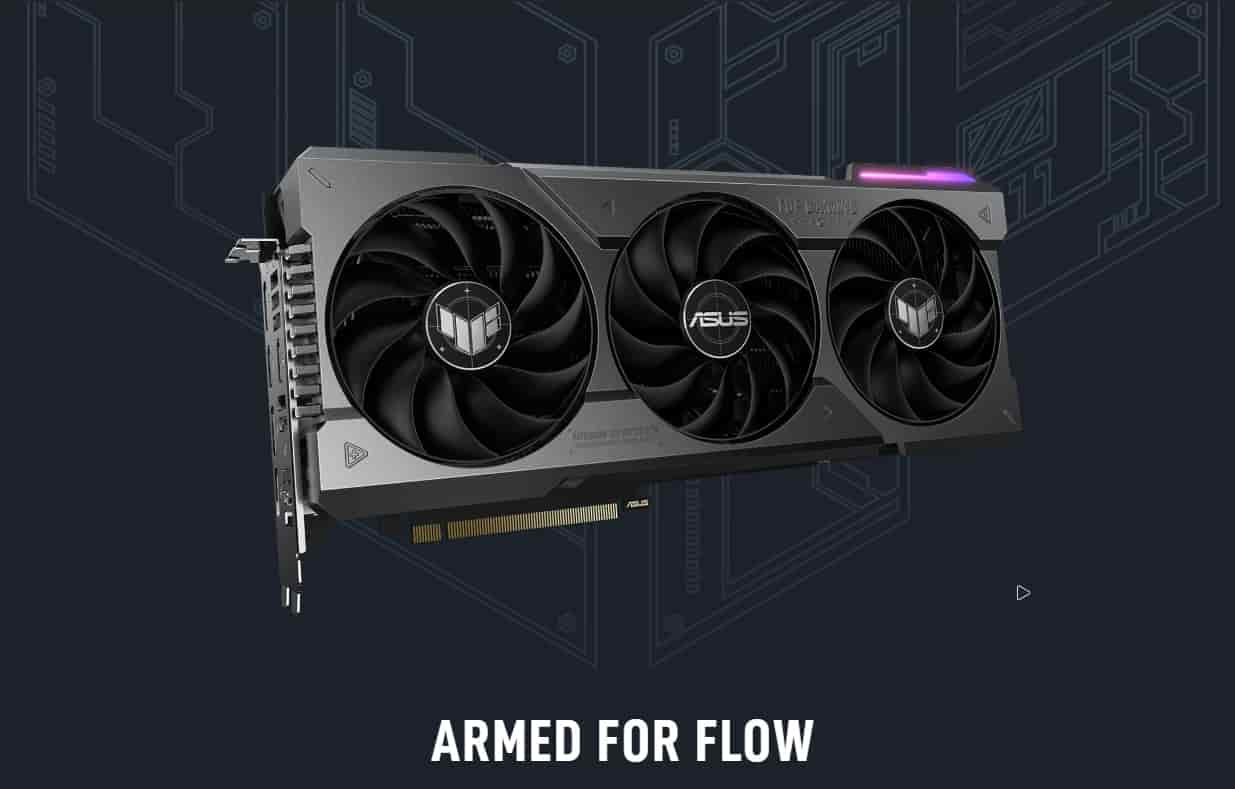

ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card.
Air Superiority

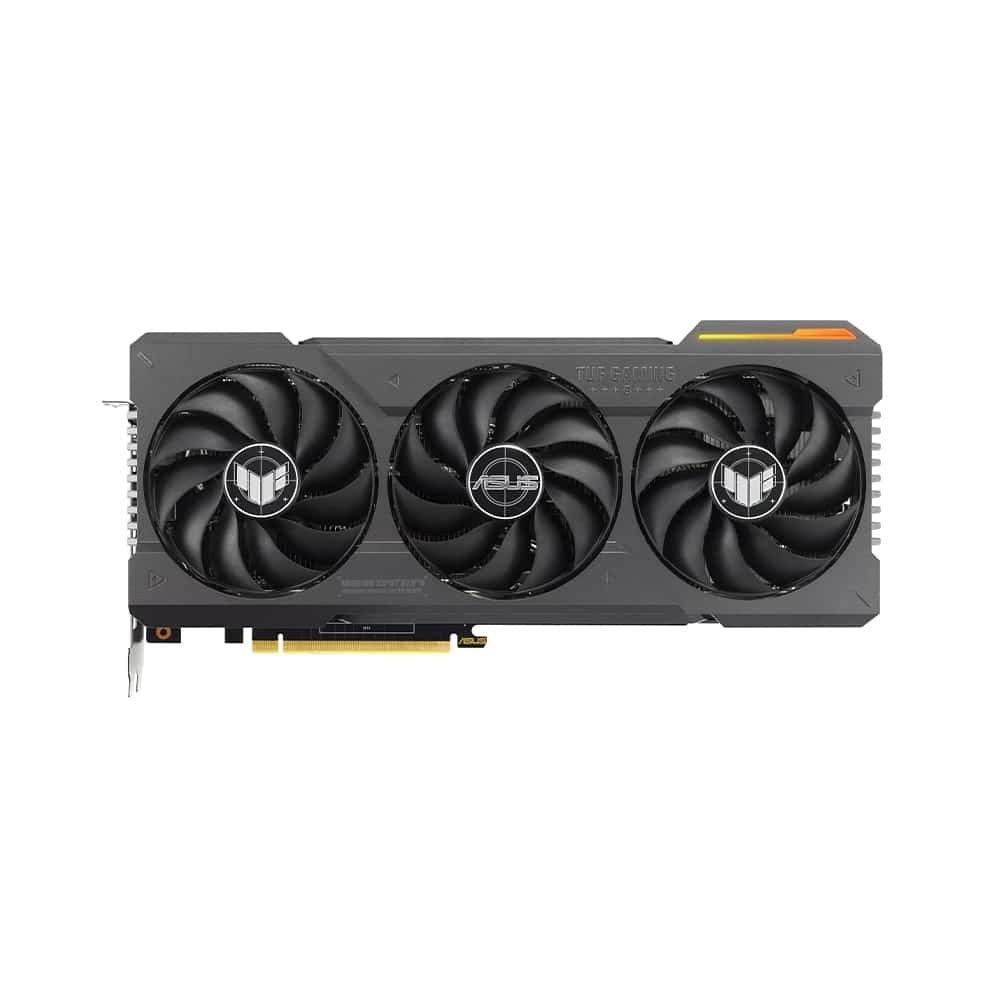

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze
A vapor chamber and generously oversized heatsink combo efficiently soak up heat from the Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card so that it can be whisked away by the three Axial-tech fans.
Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card power rail, arming the card for long-term deployment in challenging conditions.
Suit Up

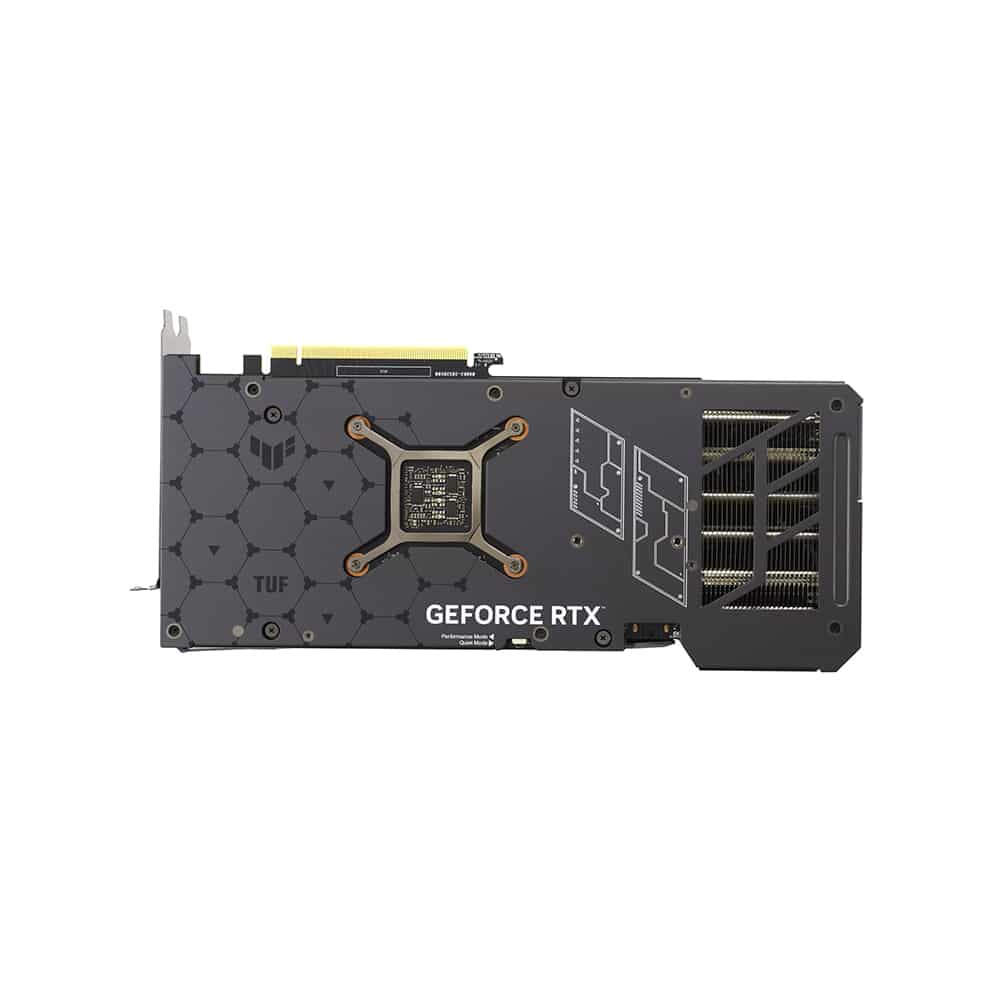

A high-quality diecast shroud and aluminum backplate prevent PCB flex and feature large vents to further increase heat dissipation.
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you in Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card.
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build your Asus TUF Gaming RTX 4070 Ti Super OC 16GB Graphics Card.
Specifications :
| Model | TUF-RTX4070TIS-O16G-GAMING |
| Graphic Engine | NVIDIA® GeForce RTX™ 4070 Ti SUPER |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6X |
| Engine Clock | OC mode : 2670 MHz Default mode : 2640 MHz (boost) |
| CUDA Core | 8448 |
| Memory Speed | 21 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

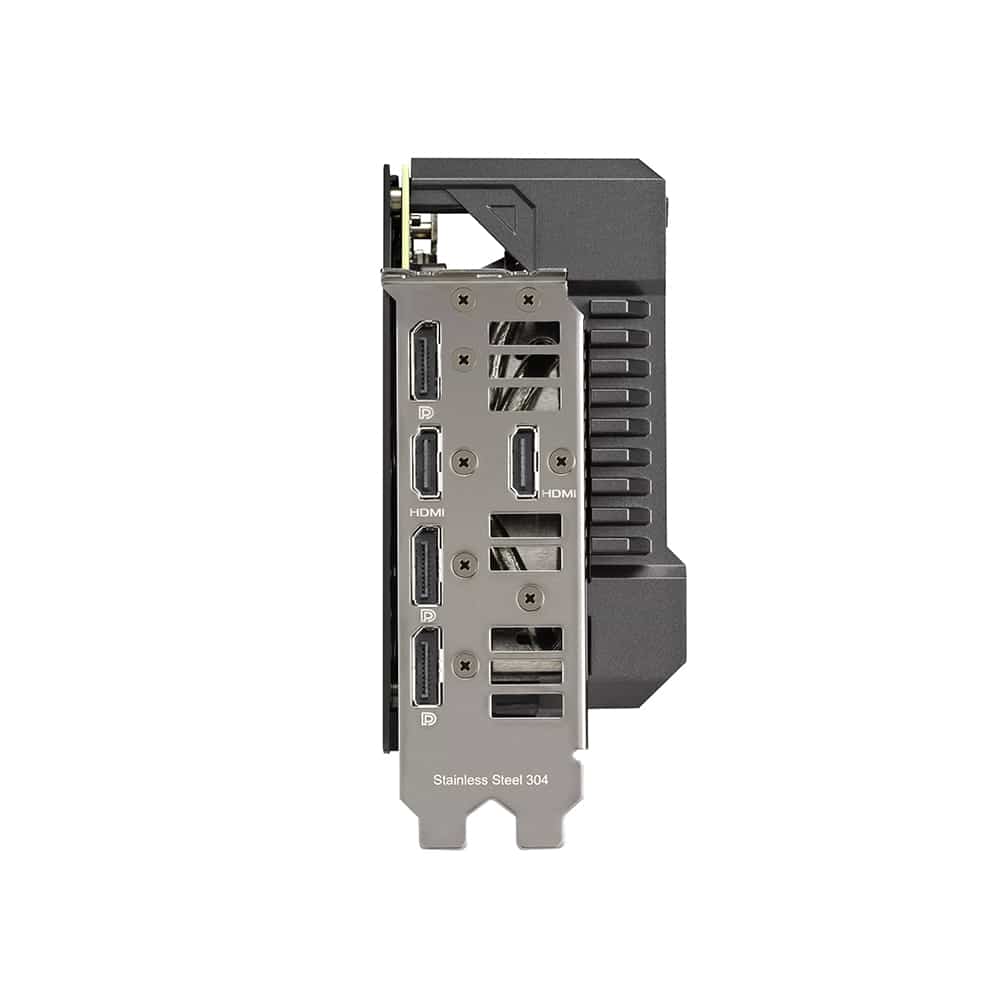

| Interface | Yes x 2 (Native HDMI 2.1a) Yes x 3 (Native DisplayPort 1.4a) |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Collection Card 1 x Speedsetup Manual 1 x Adapter Cable (1 to 2) 1 x TUF Graphics Card Holder 1 x TUF Velcro Hook & Loop 1 x Thank you Card 1 x TUF Gaming Certificate |
| Software | ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 12 x 5.43 x 2.55 inch 305 x 138 x 65 mm |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin |
| Slot | 3.25 Slot |
| AURA SYNC | ARGB |
| Warranty | 3 Years |
