Cooler Master Addressable RGB LED (ARGB) Controller :
Features :
- Compact and Convenient
- Countless Colors and Effects
- Compatible with both ARGB and RGB Devices
- Thermal Detection Function
Overview :
ADDRESSABLE RGB LED CONTROLLER

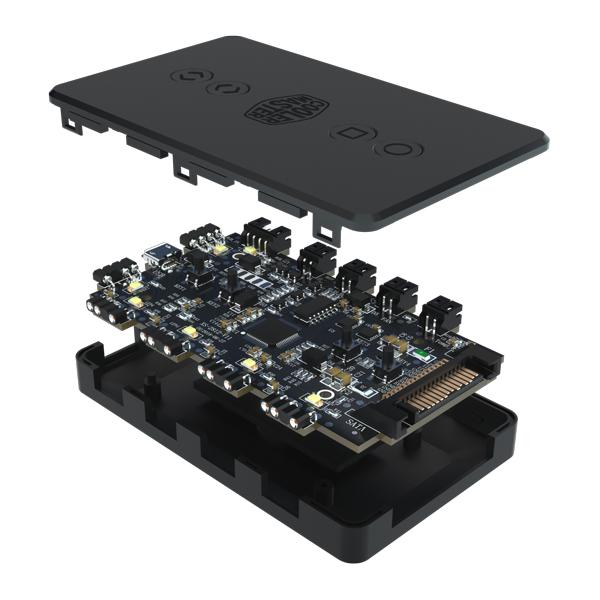

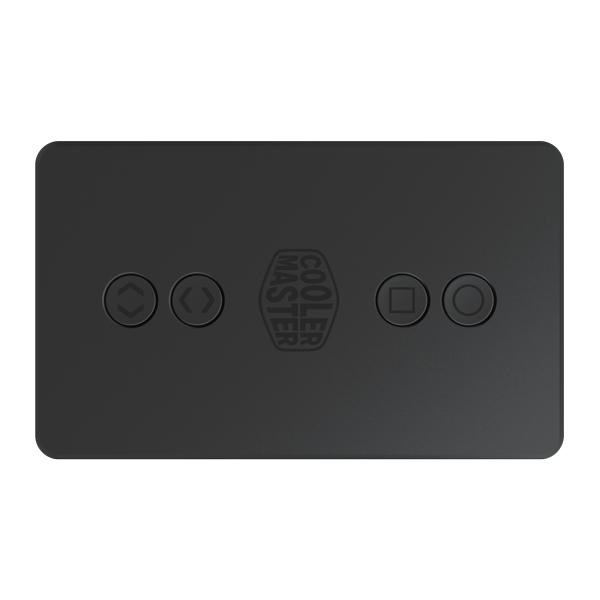

Convenient and compact design-With built-in magnets, it can be attached to any metallic surface.
COMPATIBLE WITH MOTHERBOARD CONTROL OF LIGHTING
With header Connection to Motherboard as well as compatible with motherboard software to control lighting
EASY TO SWITCH BETWEEN ARGB AND RGB LIGHTING CONTROL
1. LED Mode Adjustment
2. ARGB & RGB lighting Mode
3. LED Color Adjustment
4. LED Speed Adjustment
THERMAL DETECTION FUNCTION
With Thermal Detection Cable, temperature can be monitored and displayed through color lighting effects
RESET BUTTON
Reset Button on your Case can also control the lighting

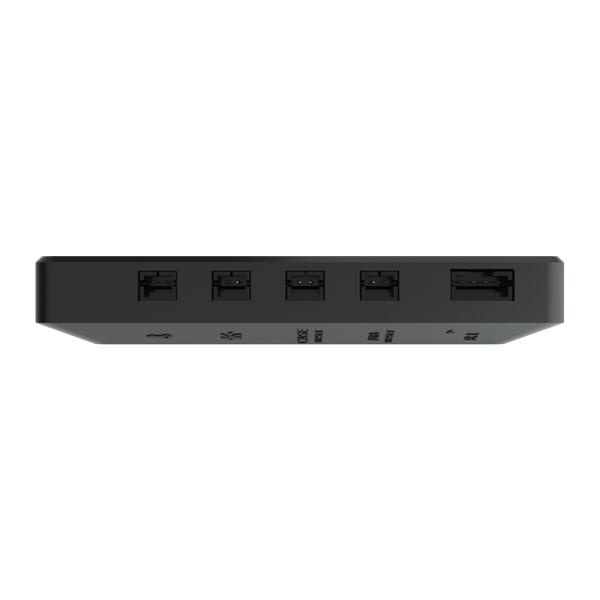

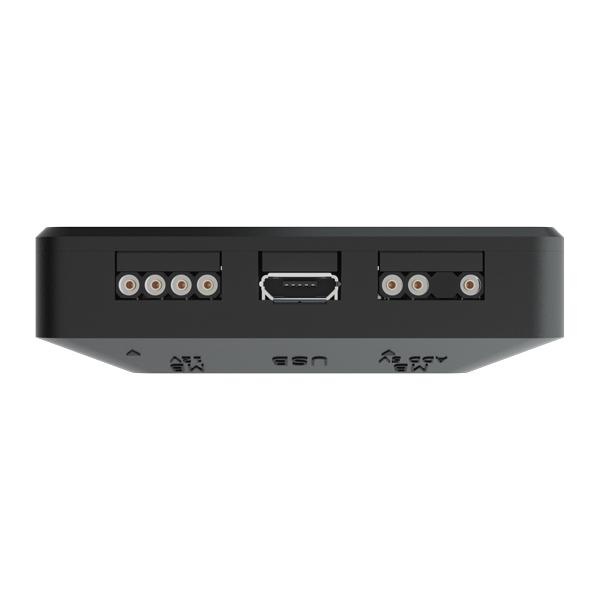

FUNCTION OF EACH CONNECTION
1. To connect Motherboard 4-Pin RGB header. Lighting can be controlled by Motherboard.
2. To connect USB of Motherboard, to update firmware of controller for more lighting effect.
3. To connect Motherboard 3-Pin ARGB header. Lighting can be controlled by Motherboard.
4. To connect 3-Pin ARGB fan.
5. Signal tracing header.
6. Case Reset header.
7. Motherboard Reset header.
8. Thermal Detection header.
Specifications :
| PRODUCT NUMBER | MFP-ACBN-NNUNN-R1 |
| DIMENSIONS (L X W X H) | 88 x 53 x 15mm / 3.5 x 2.1 x 0.6″ |

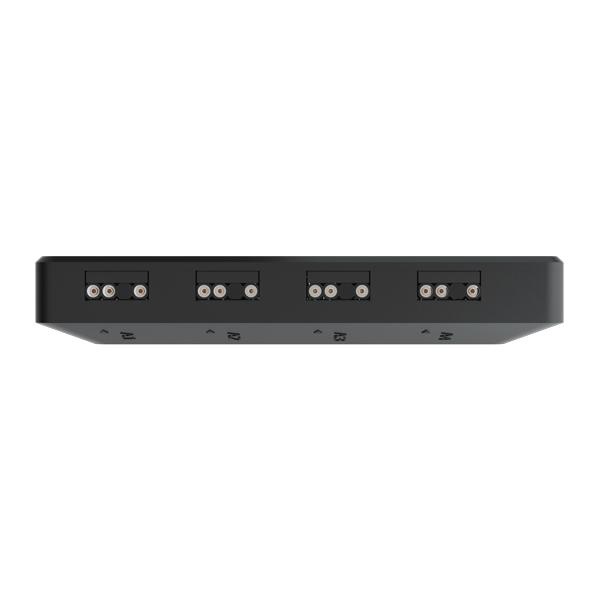

| LED CONNECTOR | Addressable RGB 4 Ports, RGB 1 Port |
| INTERFACE | Micro USB 2.0 |

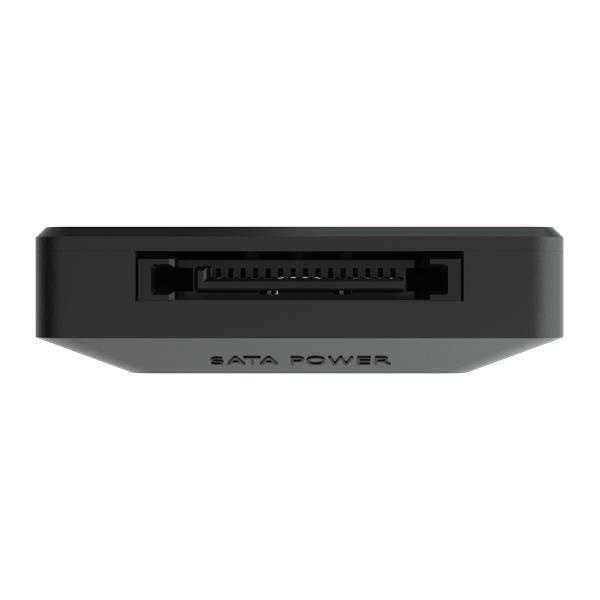

| POWER CONNECTOR | SATA |
| SOFTWARE | Yes |
| ACCESSORY | 1x Fan Signal Wire, 1x Case Restarting Wire, 1x Motherboard Restart Wire, 1x RGB 4-Pin Connector, 1x RGB 4-Pin Motherboard Connector, 1x USB Header Connector, 1x USB Adapter, 1x Addressable RGB 3-Pin Motherboard Connector, 1x Thermal Detection Sensor Wire, 4x Addressable RGB 3 Pin Connector |
| SERIES | RGB Accessories |
| Warranty | 2 Years |
