Cooler Master Cosmos C700M Cabinet :
Features :
- Highly Versatile Layout
- Graphics Card Mounting with Riser Cable
- Addressable RGB Lighting
- Extensive Cable Cover System
- Aluminum Panels & Handles
- Versatile Liquid Cooling Support
- Rich Connectivity
- Curved Tempered Glass Side Panel
Overview :
HIGHLY VERSATILE LAYOUT

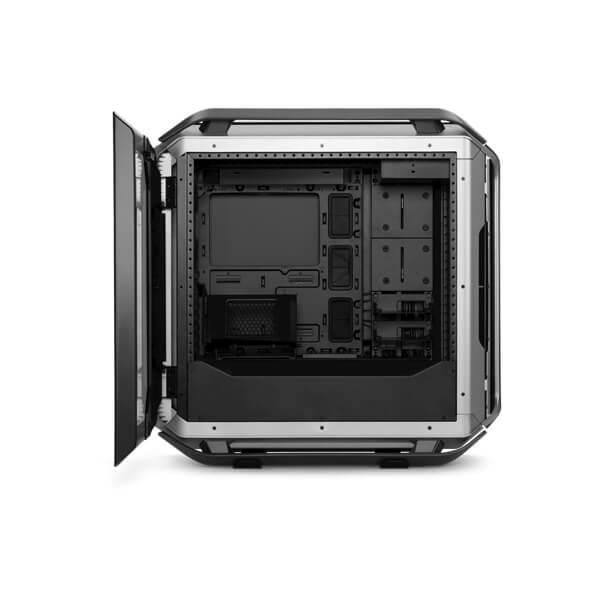

The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. Each part of the frame enables a high level of versatility. From multi-functional brackets to options in component positioning, the Cooler Master Cosmos C700M encourages freedom in building and out-of-the-box customizability.
GRAPHICS CARD MOUNTING WITH RISER CABLE
The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or on the M. Port. The bracket can also be rotated from 0 to 90 degrees. Also included is a 400mm riser cable for the convenience of being able to connect a vertically mounted graphics card to the motherboard
ALUMINUM PANELS & HANDLES

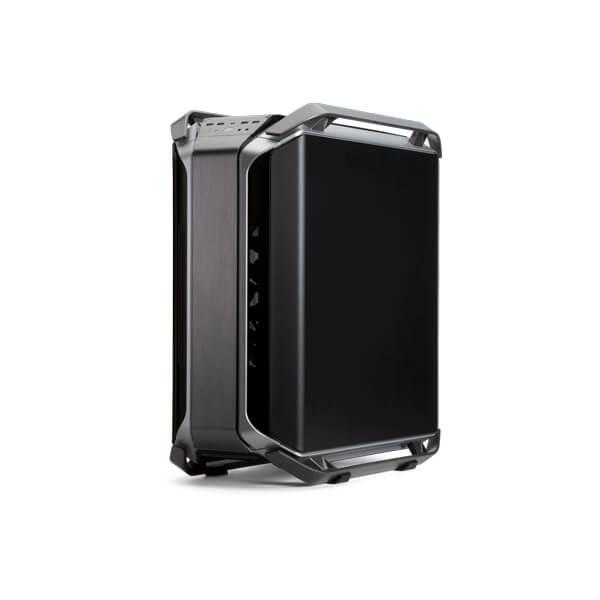

Brushed aluminum spans the top panel and front panel, with cast aluminum handles (and feet) that provide protection & support for carrying the case.
VERSATILE LIQUID COOLING SUPPORT
Cooler Master Cosmos C700M HAVE flat radiator bracket design that offers more versatility for liquid cooling with the ability to be mounted on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket.
RICH CONNECTIVITY

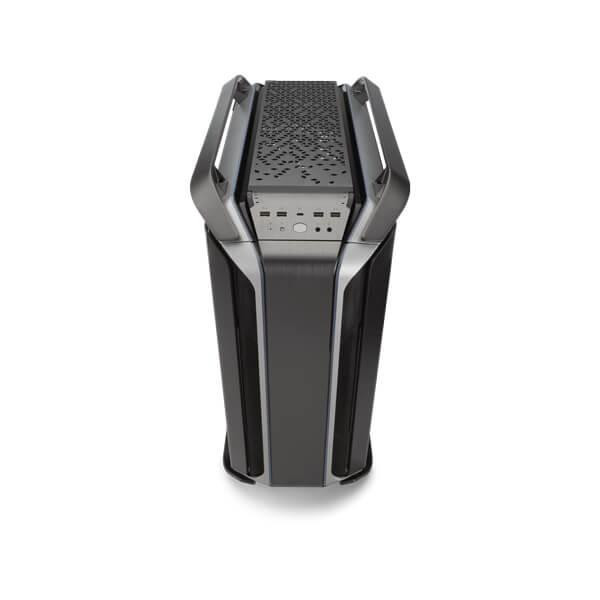

The advanced I/O panel comes with a 4-Pole headset jack (audio+mic), dedicated mic jack, USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, PWM fan speed button, and an addressable RGB control button.

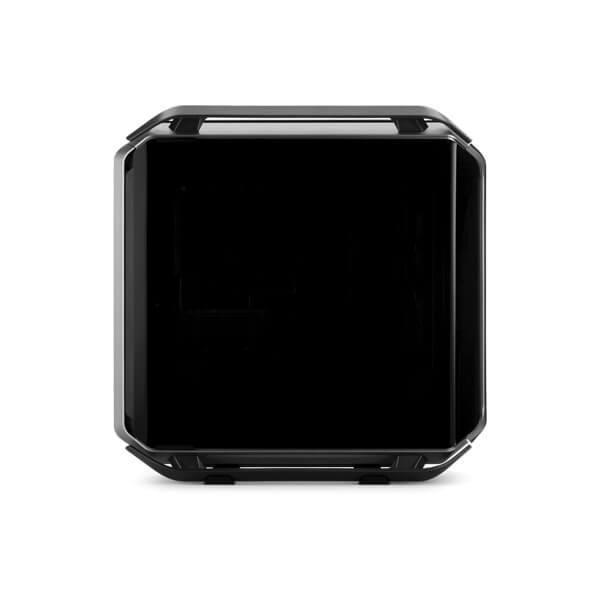

CURVED TEMPERED GLASS SIDE PANEL

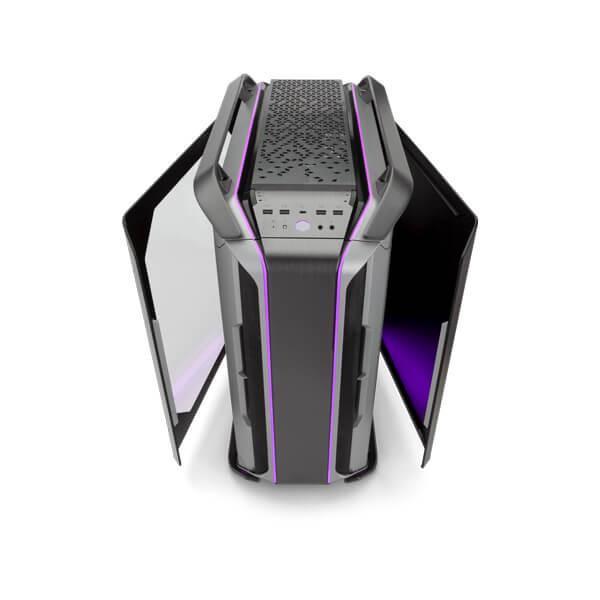

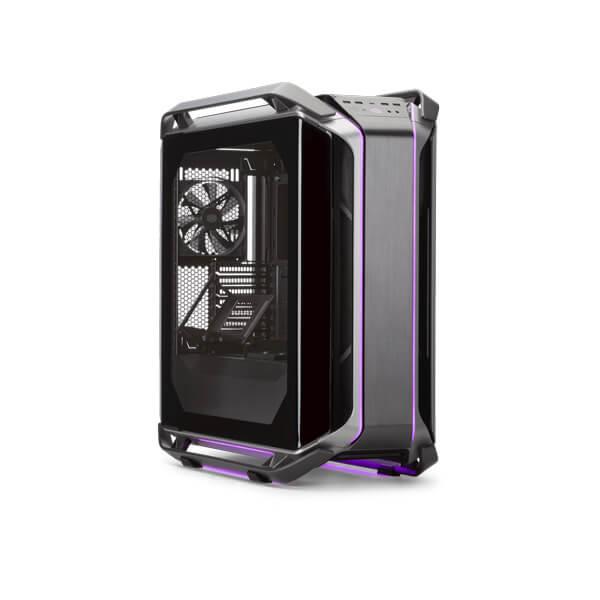

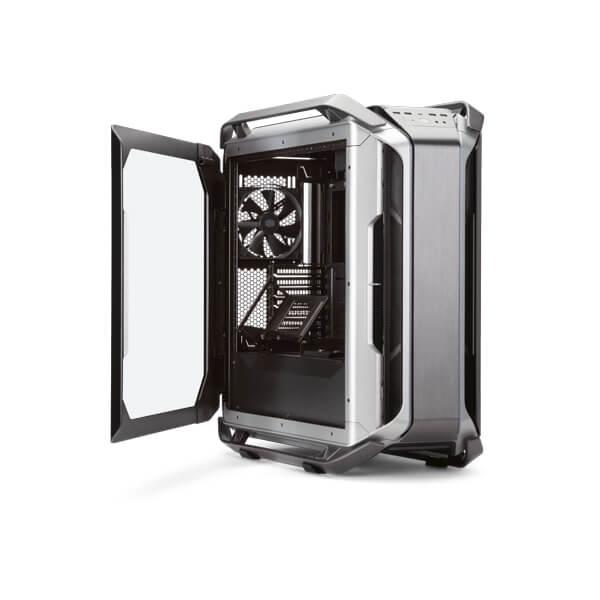

A panoramic tempered glass side panel, with two curved edges, offer a wide view of the system build.
Specifications :
| Model Number | MCC-C700M-MG5N-S00 |
| Series | COSMOS Series |
| Size | Full Tower |
| Materials | Curved Tempered Glass, Steel |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX |
| Expansion Slots | 8 |
| 5.25″ Drive Bays | 1 |
| 2.5″ / 3.5″ Drive Bays (combo) | 4+1 (in the accessory box) |
| 2.5″ Drive Bays | 4 |
| I/O Panel | 1xI/O PORT – USB PORTS / USB 3.1 TYPE, 4xI/O PORT – USB PORTS / USB 3.0 TYPE-A4, 1xI/O PORT – AUDIO – 3.5MM HEADSET JACK (AUDIO+MIC)1, 1xI/O PORT – AUDIO – 3.5MM MIC JACK |
| Pre-installed Fans – Front | 3x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin) |
| Pre-installed Fans – Rear | 1x 140mm PWM Fan (Speed: 1200RPM / Connector: 4Pin) |
| Fan Support – Top | 3x 120/140mm |
| Fan Support – Front | 1x 120/140mm |
| Fan Support – Rear / Bottom | 1x 120/140mm / 2x 120/140mm* |
| Radiator Support – Top | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm) |
| Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage) |
| Radiator Support – Rear / Bottom | 120mm, 140mm / 120mm, 140mm, 240mm |
| Clearance – CPU Cooler | 198mm |
| Clearance – PSU | N/A |
| Clearance – GFX | 490mm (w/ 3.5″ HDD cage), 490mm (w/o 3.5″ HDD cage) |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | Bottom mount, ATX PS2 |
| Dimensions (L x W x H) | 650 x 306 x 651mm / 25.6 x 12.0 x 25.6inch |
| Available Color(s) | Grey, Silver, Black |
| Warranty | 2 Years |
