Cooler Master Elite 301 Cabinet :
Features :
- High in value and attention to detail, Cooler Master Elite 301 offers users a cost effective, space conscious solution to gaming and computing needs.
- Cooler Master Elite 301 features a large intake grill and 3x 120mm ARGB fans to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.
Overview :
Tool-less Intake Panel
Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance.

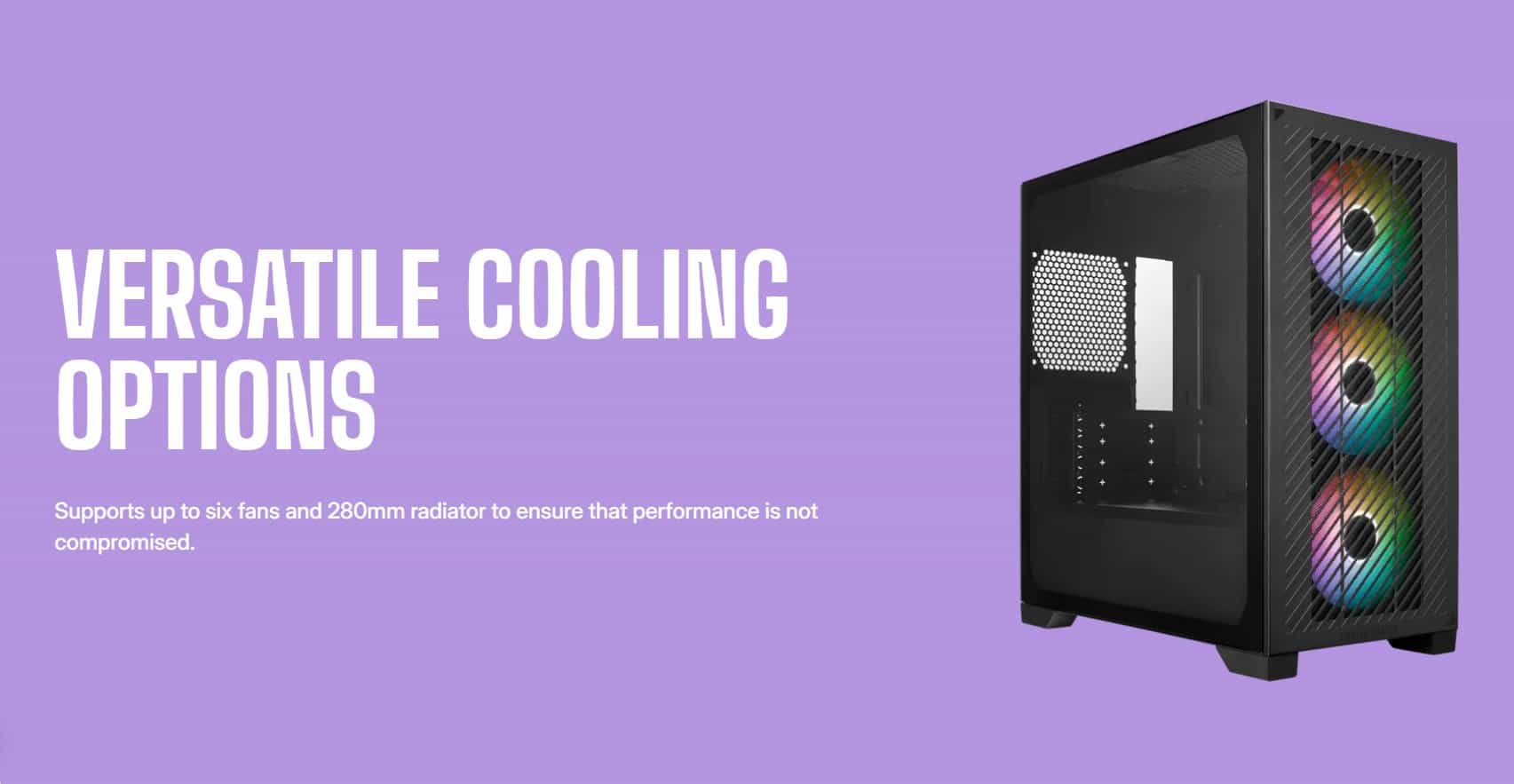

Versatile Cooling Options
Supports up to six fans and 280mm radiator to ensure that performance is not compromised.
Unrestricted Air Flow
Pre-installed with 3x 120mm ARGB fans, providing considerable airflow and adds a layer of style to the system.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies.

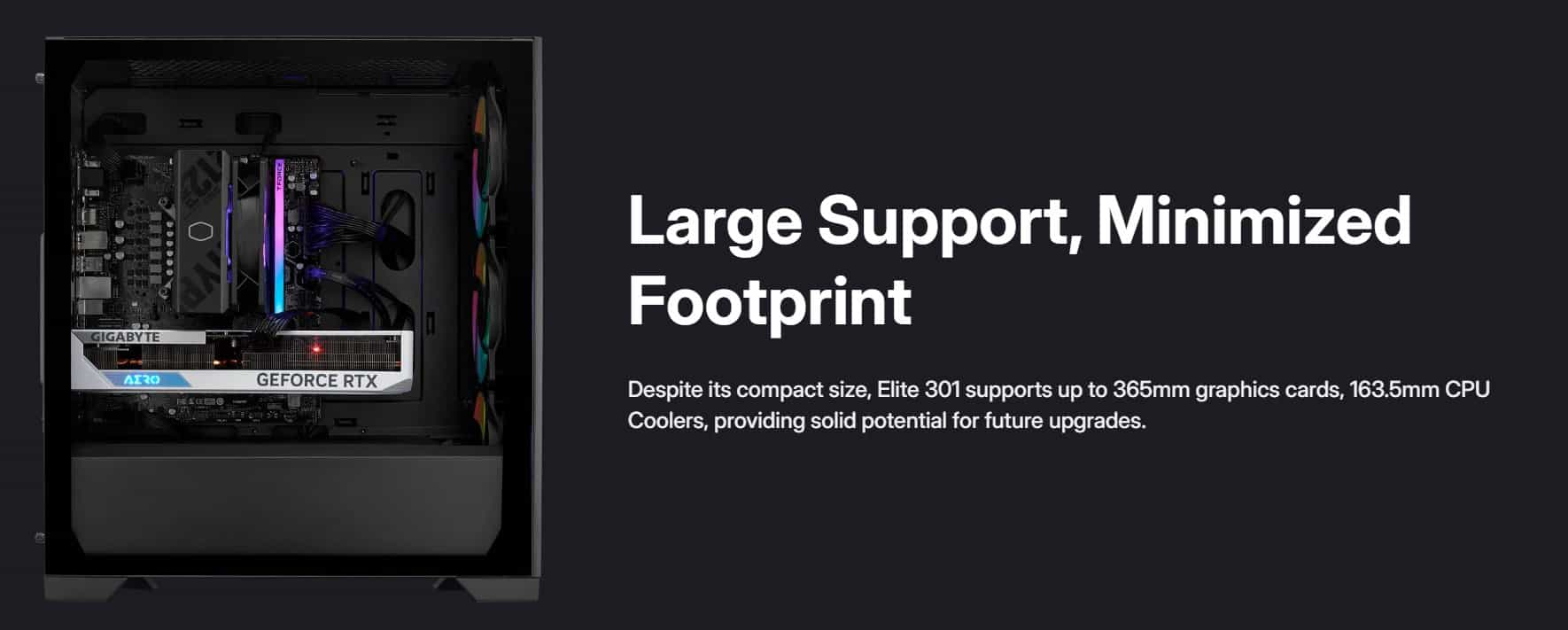

Large Support, Minimized Footprint
Despite its compact size, Elite 301 supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades.
USB Type-C Support
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Specifications :
| Model Name / Number | Cooler Master Elite 301 |
| Color | Black |
| Materials | Steel, Plastic, Tempered Glass (Left Side Panel) |
| Dimensions (L x W x H) | 390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions |
| Volume | 34.13L (incl. Protrusions) |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 4 |
| 3.5″ Drive Bays | 1 |
| 2.5″ Drive Bays | 1 (Max. 2) |
| I/O Panel | 1x USB 3.2 Gen 1 Type-A |
| I/O Panel | 1x USB 3.2 Gen 1 Type-C |
| I/O Panel – Audio In / Out | 1x 3.5mm Combo |
Fan Support – Front | 3x 120mm |
| Fan Support – Top | 2x 120mm / 2x 140mm |
| Fan Support – Rear | 1 x 120mm |
Radiator Support – Front | 120 / 240mm |
| Radiator Support – Top | 120 / 140 / 240 / 280mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 163.5mm |
| Clearance – PSU | 160mm |
| Clearance – GFX | 365mm (without front fans & radiator) |
| Cable Routing | 18.5mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Series | Elite Series |
| Size | Mini Tower |
| Warranty | 2 years |
