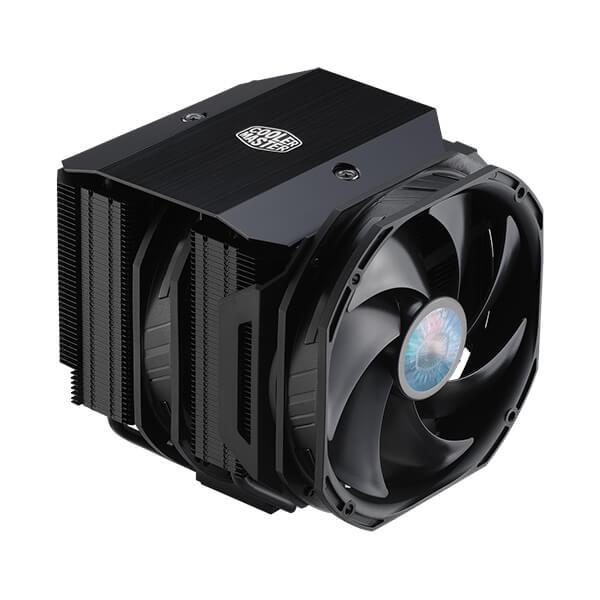

Cooler Master MA624 Stealth CPU Air Cooler :
Features :
- Premium Aluminum Black Top Cover

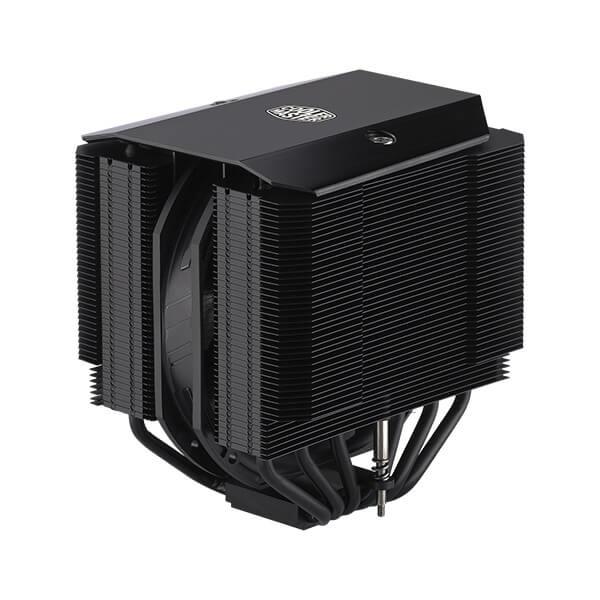

- Dual Tower Heat Sink
- 6 Heat Pipes with Nickel Plated Base
- Dual SickleFlow 140 Fan
- 3rd 120 mm fan for RAM Clearance
- Easy Mounting System
Overview :
PREMIUM AESTHETICS
Cooler Master MA624 Stealth have black aluminum top cover matches all-black hardware throughout to offer a premium finish
RELENTLESS COOLING POWER

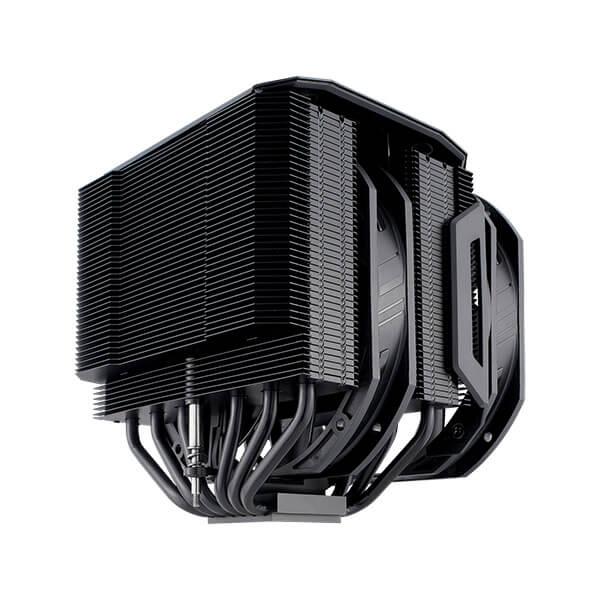

Cooler Master MA624 Stealth have 6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation.

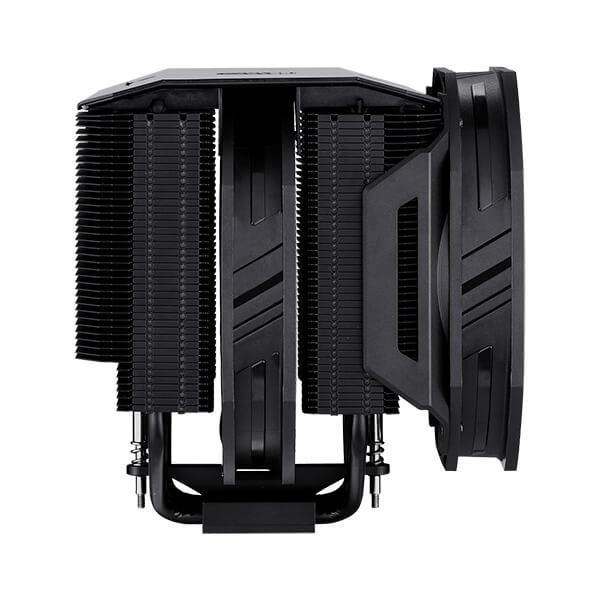

TWICE THE SURFACE AREA
Dual tower heatsinks provide twice the surface area for better cooling
Best combination of fin thickness and distance between layers ensures maximum airflow through the heatsink
QUIET AND POWERFUL

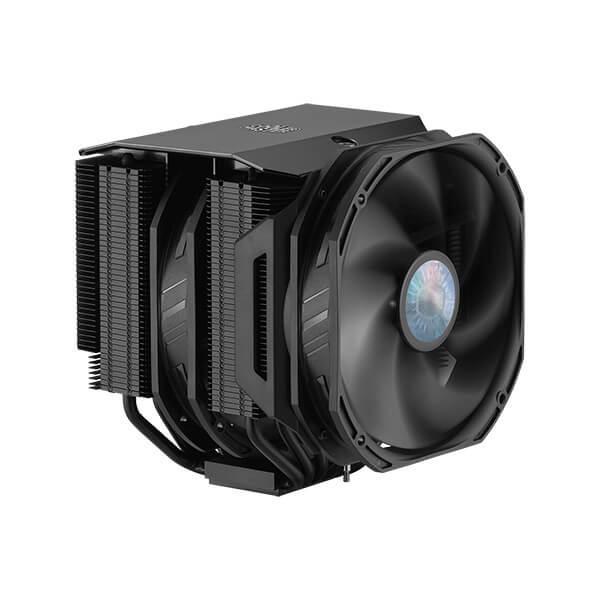

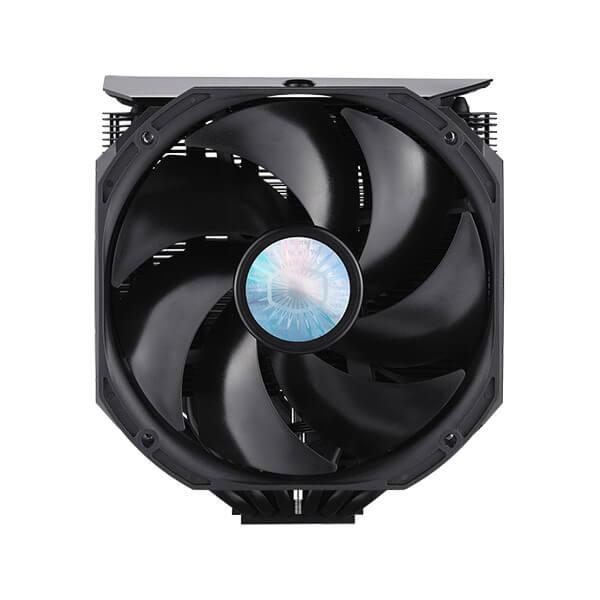

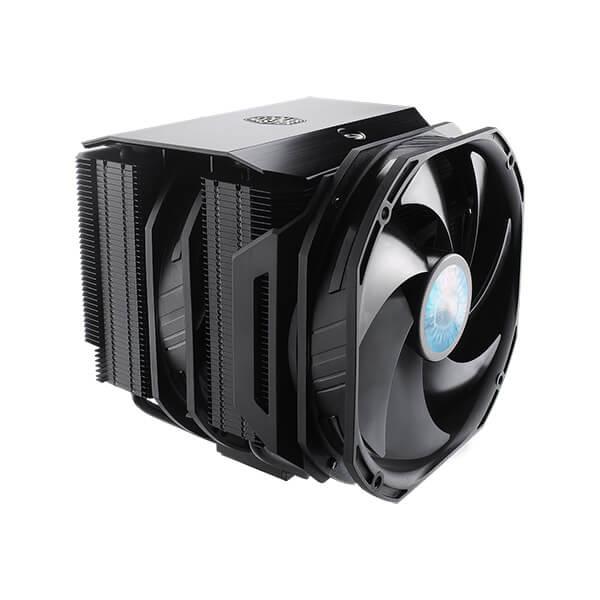

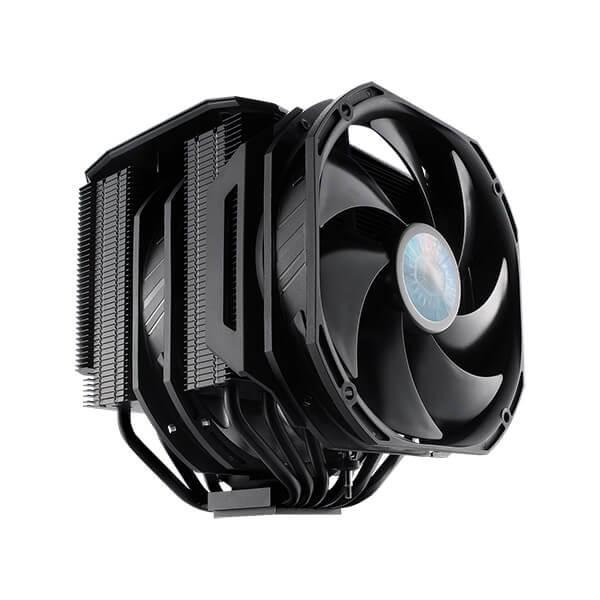

Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels

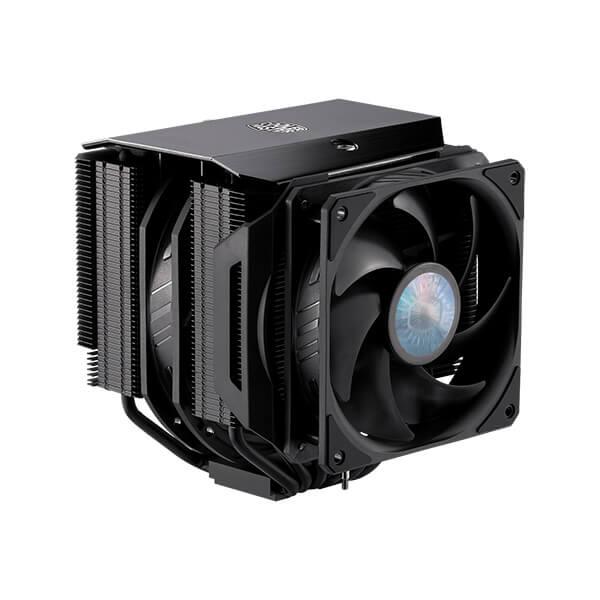

INCLUDES DUAL SICKLEFLOW 140 & ONE SICKLEFLOW 120
Optional 3rd SickleFlow 120 fan included for necessary RAM clearance
COMPATIBILITY & CLEARANCE
Optimized design for graphic cards’ compatibility on ATX and M-ATX platforms.
- Fan Configuration:
SickleFlow 120 x 1 & SickleFlow 140 x 1
Allows 40mm RAM height for clearance and compatibility. - SickleFlow 140 x1
Concave heatsink design provides up to 70mm RAM compatibility.

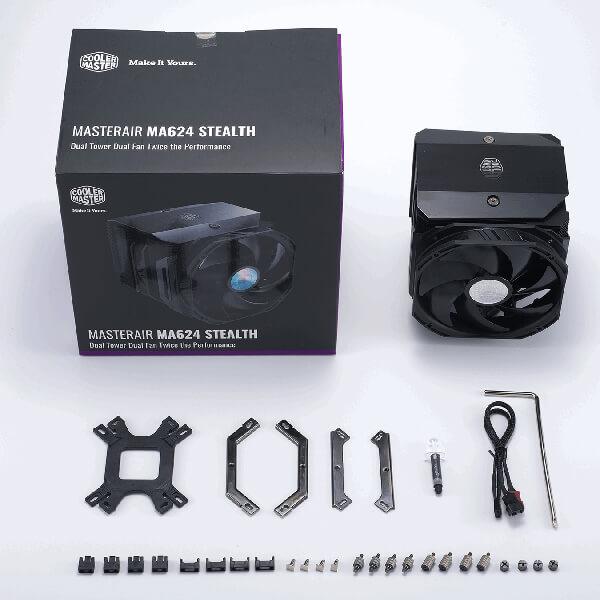

EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation

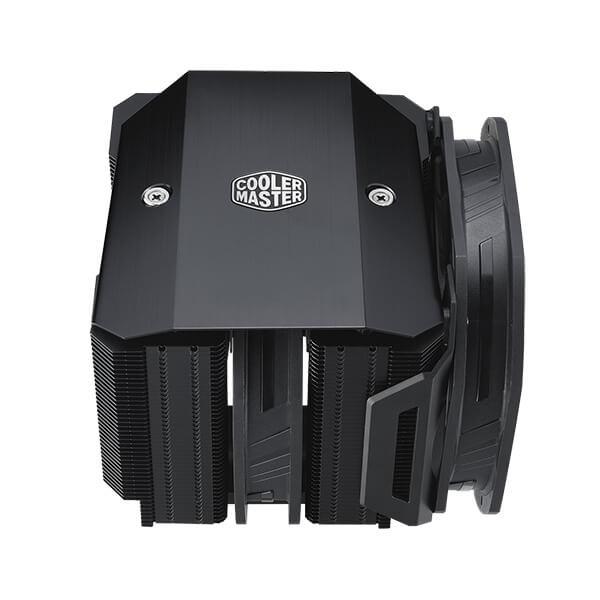

- PREMIUM ALUMINUM BLACK TOP COVER
Black aluminum top cover offers a premium finish - DUAL TOWER HEAT SINK
Dual tower heatsinks provide twice the surface area for better cooling - 6 HEAT PIPES WITH NICKEL PLATED BASE
6 heat pipes and nickel- plated base provides optimal coverage for exceptional cooling - DUAL SICKLEFLOW 140 FAN
Twin fans utilize Push-Pull setup for optimal airflow and pressure - RAM CLEARANCE OPTION
Optional 3rd SickleFlow 120mm fan included for necessary RAM compatibility and clearance - EASY MOUNTING SYSTEM
Exclusive All-In-One mounting design for easy installation
Specification :
| PRODUCT NUMBER | MAM-D6PS-314PK-R1 |
| EXTERIOR COLOR | Black |
| CPU SOCKET | LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
| HEAT SINK DIMENSIONS (L X W X H) | 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch |
| HEAT SINK MATERIAL | Aluminum Fins |
| HEATPIPES | 6 Heat Pipes |
| FAN DIMENSIONS (L X W X H) | 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| FAN QUANTITY | 140 mm Fan – 2 PCS, 120 mm Fan – 1 PC |
| FAN LED TYPE | N/A |
| FAN SPEED | 140 mm Fan – 650-1400 RPM ± 5%, 120 mm Fan – 650-1800 RPM ± 5% |
| FAN AIRFLOW | 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max) |
| FAN NOISE LEVEL | 140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA |
| FAN AIR PRESSURE | 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max) |
| FAN MTTF | 160,000 Hours |
| FAN POWER CONNECTOR | 4-Pin (PWM) |
| FAN RATED VOLTAGE | 12VDC |
| FAN RATED CURRENT | 0.15A |
| FAN SAFETY CURRENT | 140 mm Fan – 0.4A, 120 mm Fan – 0.37A |
| FAN POWER CONSUMPTION | 1.8W |
| SERIES | MasterAir |
| COOLER TYPE | Air Cooler |
| Warranty | 5 Years |
