Cooler Master MasterAir MA824 Stealth CPU Air Cooler :
Features :
- 8 Superconductive Composite Heat Pipes
- Expanded Copper Base
- Dual Tower Push-Pull Setup
- 135mm and 120mm Mobius Series Fans
- All Black Stealth Design
- Maximum RAM Clearance
Overview :
8 IN-HOUSE DESIGNED SUPERCONDUCTIVE COMPOSITE HEAT PIPES
8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.
PERFORMANCE DUAL TOWER
Cooler Master MasterAir MA824 Stealth is Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.
8 HEAT PIPE ARRAY
Cooler Master MasterAir MA824 Stealth has Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

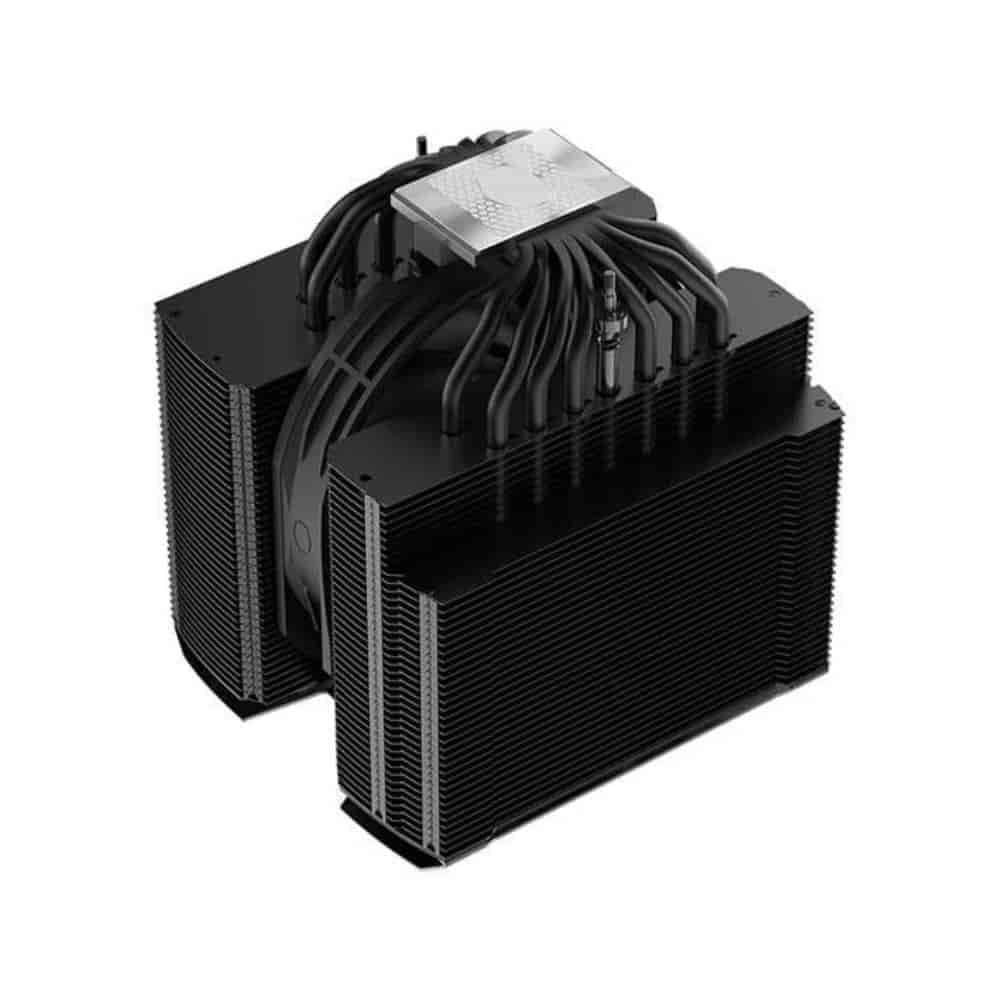

EXPANDED COPPER BASE
Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.

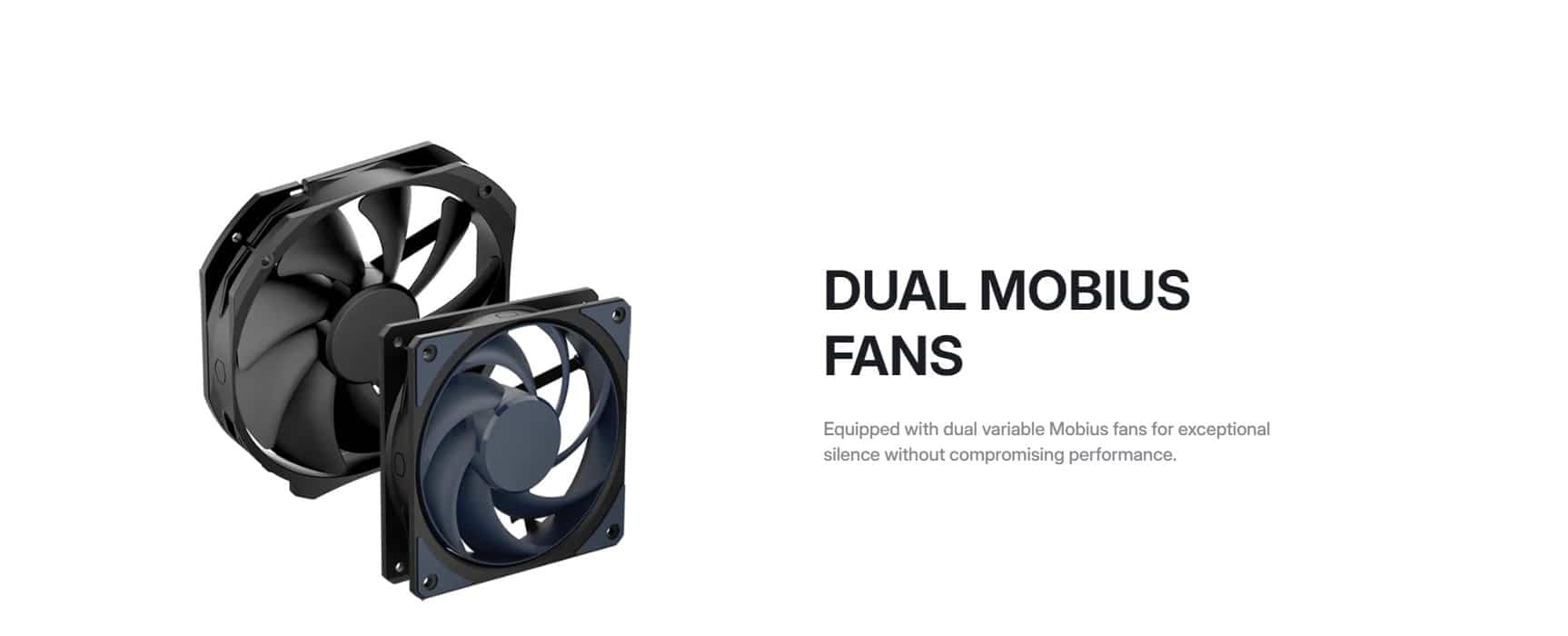

DUAL MOBIUS FANS
Cooler Master MasterAir MA824 Stealth is Equipped with dual variable Mobius fans for exceptional silence without compromising performance.
DUAL STAGGERED FAN SETUP
Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.
MAXIMUM RAM CLEARANCE
120mm Mobius fan provides 42mm of RAM clearance to fit a wider range of builds without sacrificing performance.

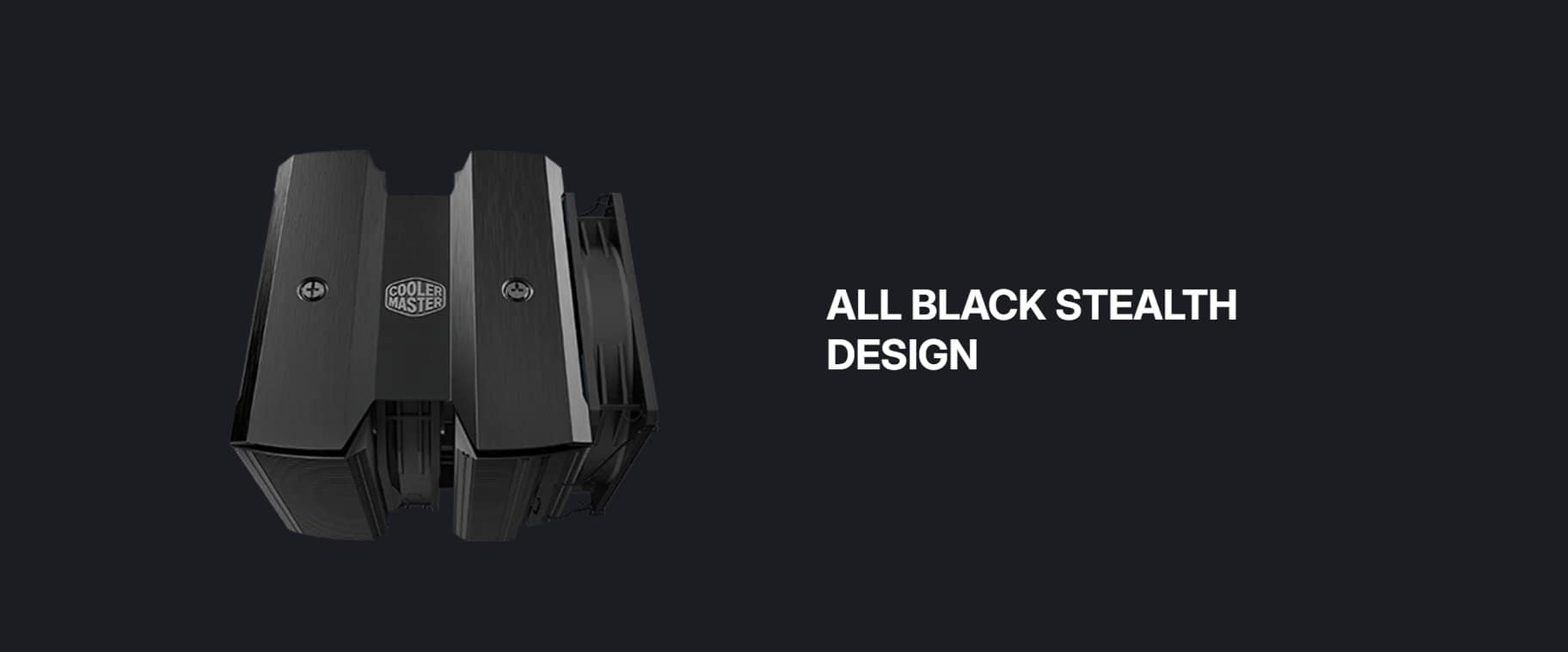

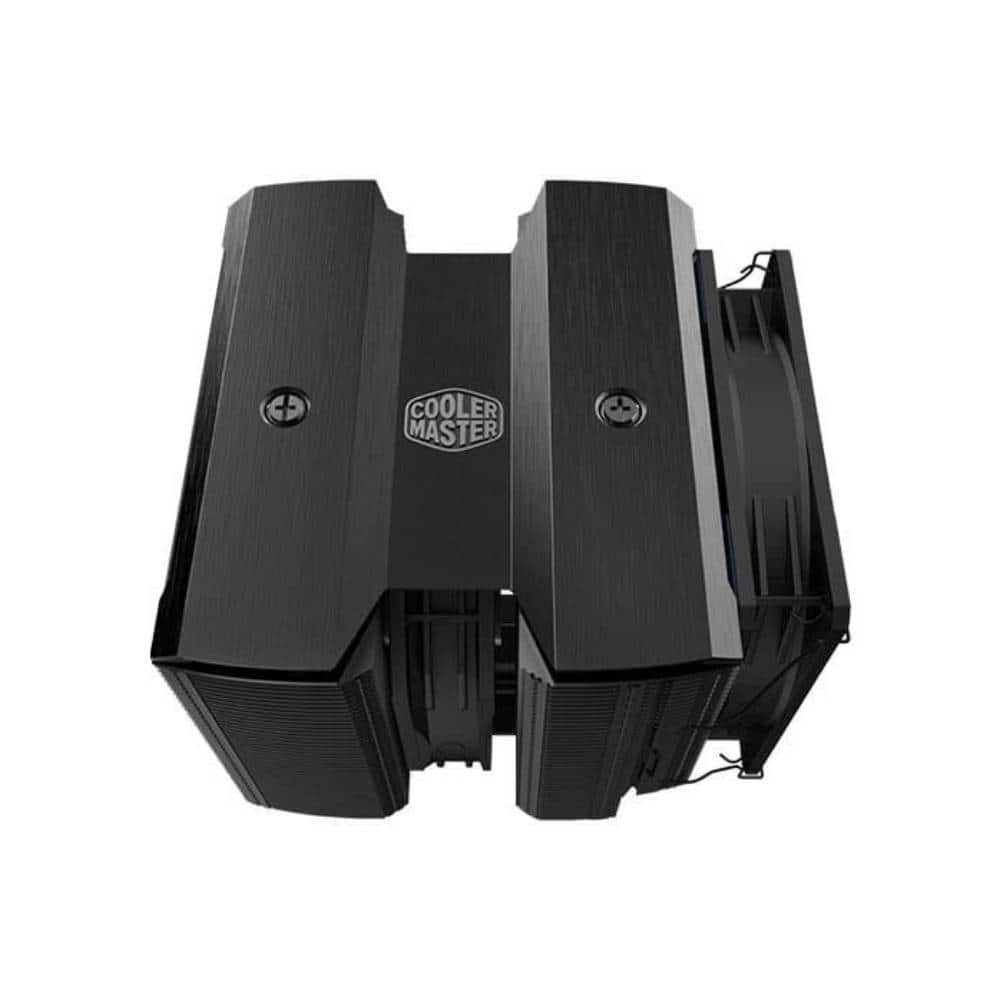

ALL BLACK STEALTH DESIGN
Stealth Series aluminum top cover and all black hardware provides a premium and clean design.
PRE-APPLIED HIGH PERFORMANCE THERMAL PASTE
Specifications :
| PRODUCT Name/ NUMBER | Cooler Master MasterAir MA824 Stealth/ MAM-D8PN-318PK-R1 |
| EXTERIOR COLOR | Black |
| CPU SOCKET | LGA1700, LGA1200, LGA1151, LGA1150, LGA1156, LGA1155, AM5, AM4 |
| HEAT SINK DIMENSIONS (L X W X H) | 162.2 x 150.6 x 165.6 mm / 6.3 x 5.9 x 6.5 inch |
| HEAT SINK MATERIAL | 8 Heat Pipes, Aluminum Fins |
| HEATPIPES | 8 |
| FAN DIMENSIONS (L X W X H) | 135mm Fan: 135 x 135 x 26 mm, 120mm Fan: 120 x 120 x 25 mm |
| FAN QUANTITY | 135mm Fan: 1 PC, 120mm Fan: 1 PC |
| FAN LED TYPE | Non-LED |
| FAN SPEED | 135mm Fan: 0-1550 RPM ± 15%, 120mm Fan: 0-1950 RPM ± 15% |
| FAN AIRFLOW | 135mm Fan: 63.6 CFM (Max), 120mm Fan: 63.1 CFM (Max) |
| FAN NOISE LEVEL | 135mm Fan: 24.6 dBA (Max), 120mm Fan: 22.6 dBA (Max) |
| FAN AIR PRESSURE | 135mm Fan: 1.92 mmH₂O, 120mm Fan: 2.69 mmH₂O |
| FAN MTTF | >200,000 Hours |
| FAN POWER CONNECTOR | 4-Pin (PWM) |
| FAN RATED VOLTAGE | 12VDC |
| FAN RATED CURRENT | 135mm Fan: 0.1 A, 120mm Fan: 0.12 A, 0.25A |
| FAN SAFETY CURRENT | 0.25A |
| FAN POWER CONSUMPTION | 135mm Fan: 1.2-2.4W, 120mm Fan: 1.44-3.0W |
| SERIES | MasterAir |
| COOLER TYPE | Air Cooler |
| Warranty | 5 Years |
