Cooler Master MB520 ARGB Black Cabinet :
Features :
- DarkMirror Front Panel
- Mesh Intakes
- ARGB Lighting System
- Tempered Glass Side Panel
Overview :
A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.
If you’re thinking about thermal upgrades, the Cooler Master MB520 ARGB Black supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

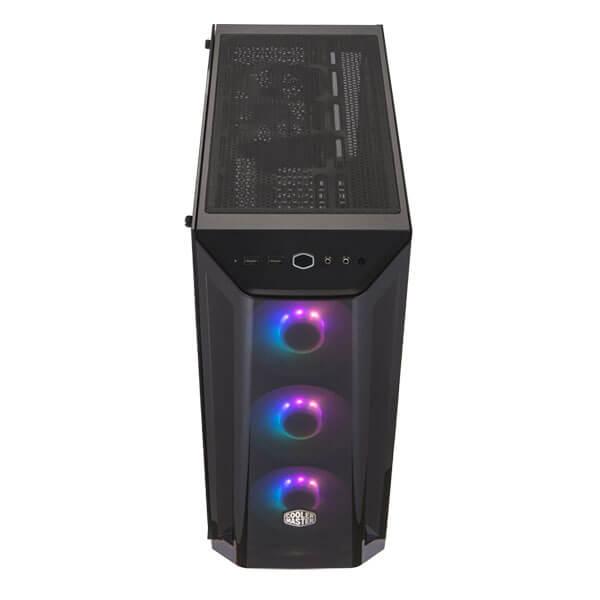

DARKMIRROR FRONT PANEL
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.
MESH INTAKES
Cooler Master MB520 ARGB Black have Large, mesh intakes on each side of the front panel provide considerable airflow to system.
ARGB LIGHTING SYSTEM
Cooler Master MB520 ARGB Black has Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

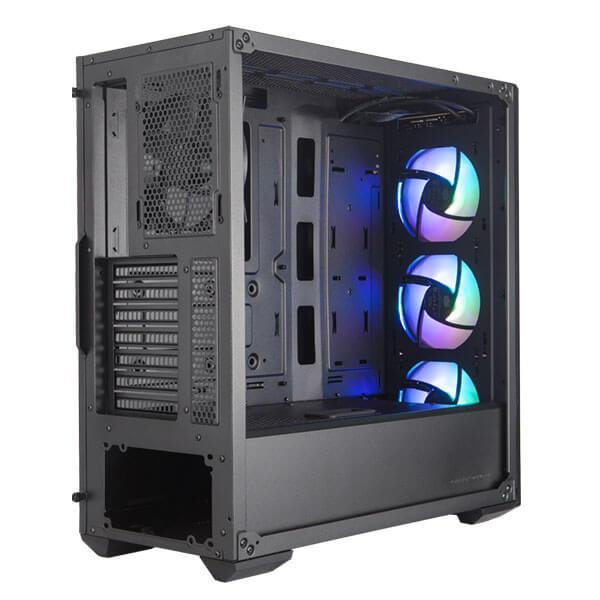

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
ARGB CONTROLLER
The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.
The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.
It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.
Specifications :
| Model Number | MCB-B520-KGNN-RGA |
| Series | MasterBox Series |
| Size | Mid Tower |
| Available Color(s) | Black |
| Materials | Steel, Plastic, Tempered Glass |
| Dimensions (L x W x H) | 496 x 217 x 469 mm |
| Weight | 6.59 kg |
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, SSI CEB*, (*support for up to 12″ x 10.7″, will limit cable management features) |
| Expansion Slots | 7 |
| 5.25″ Drive Bays | N/A |
| 2.5″ / 3.5″ Drive Bays (combo) | 2 (Max.2) |
| 2.5″ Drive Bays | 4 (Max.6) |
| I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter |
| Pre-installed Fans – Front | 3x 120mm ARGB Fans |
| Pre-installed Fans – Rear | 1x 120mm (Black) |
| Fan Support – Top | 3x 120mm, 2x 140mm |
| Fan Support – Front | 3x 120mm, 2x 140mm |
| Fan Support – Rear | 1x 120mm |
| Radiator Support – Top | 120mm, 240mm, 360mm, (44mm max motherboard component height) |
| Radiator Support – Front | 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance) |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 165mm/6.49″ |
| Clearance – PSU | 180mm/7.08″ |
| Clearance – GFX | 410mm/16.1″ |
| Cable Routing | 19~27mm |
| Dust Filters | Top, Front, Bottom |
| Power Supply Support | Bottom mount, ATX |
| Warranty | 2 Years |
