Cooler Master MWE 1250 V2 ATX 3.0 80 Plus Gold Power Supply :
Cooler Master MWE 1250 V2 ATX 3.0 brings optimal performance for a classic configuration. The Cooler Master MWE 1250 V2 ATX 3.0 power supply features virtue of 80 PLUS Gold efficiency, fully modular cabling, and a 140mm silent fan, fully support ATX3.0 with 600W 12VHPWR connectors. Together, Cooler Master provides the power supply complete with high efficiency and reliability to improve your PC experience.
Features :
Highly Efficient Performance : The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

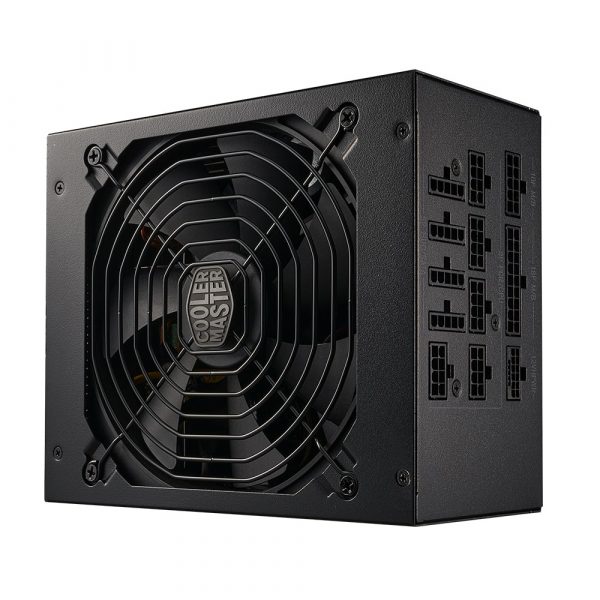

140mm FDB Fan : Cooler Master MWE 1250 V2 ATX 3.0 has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.
Fully support ATX3.0 : 12VHPWR connector with a compact 12+4 pin cable can pump up to 600W of power to a GPU via a single cable.

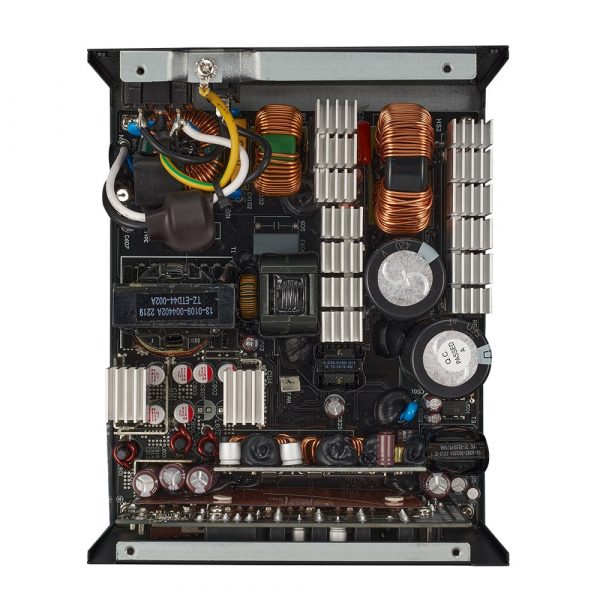

100% Japanese Capacitors : Implementing the highest quality of Japanese capacitors to increase efficiency and reduce ripple noise.

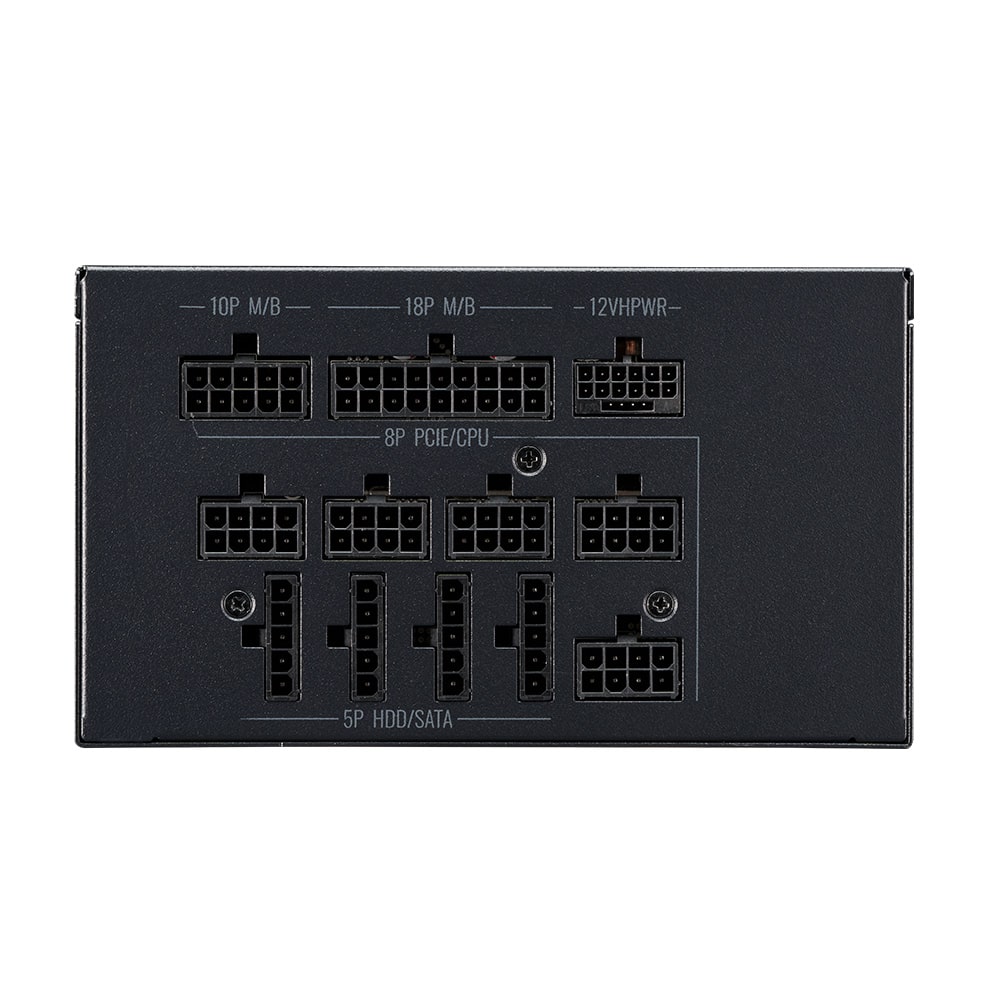

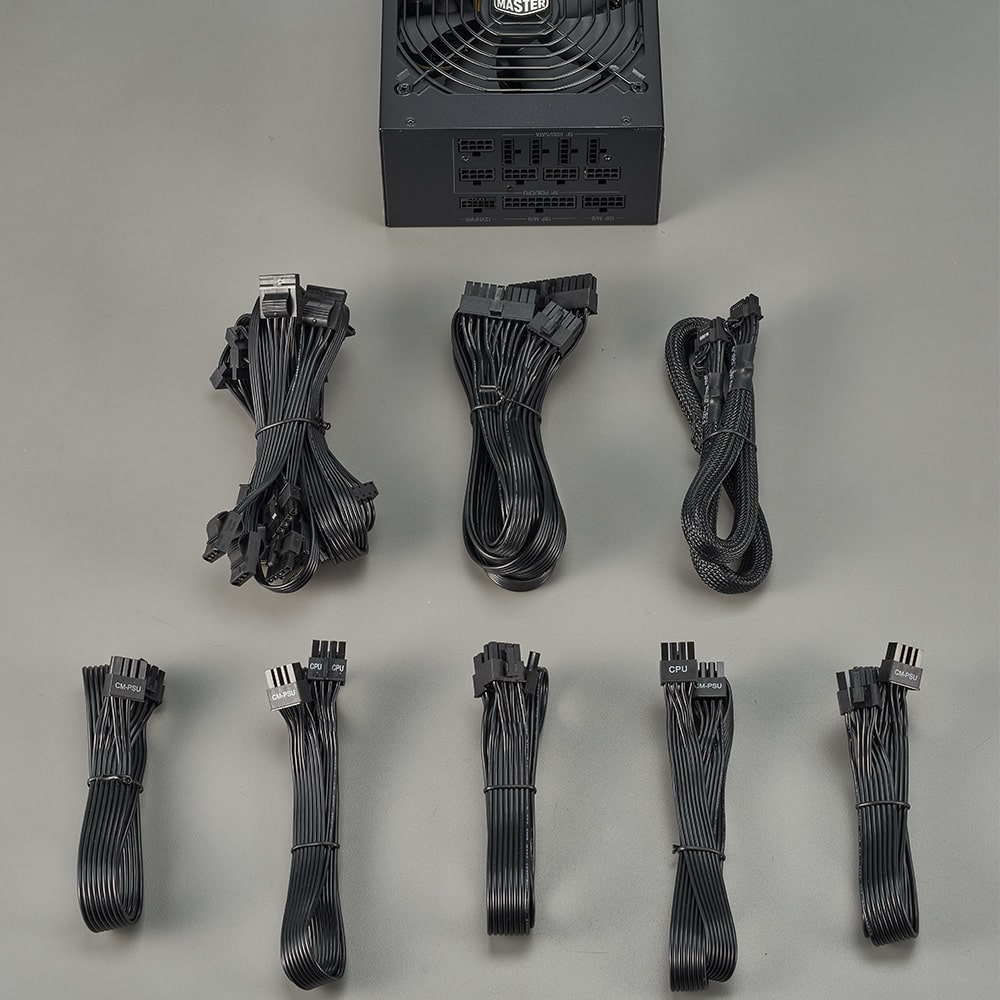

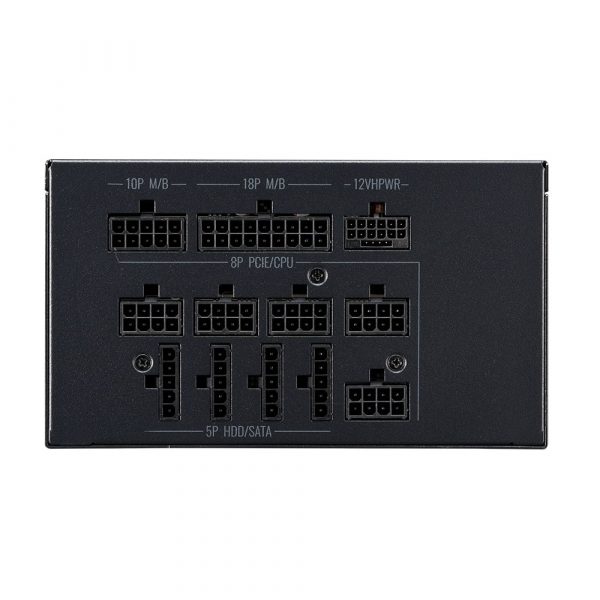

Fully Modular Cabling : Cooler Master MWE 1250 V2 ATX 3.0 comes with fully modular flat, black cables for increased airflow.
10 Year Warranty : Cooler Master MWE 1250 V2 ATX 3.0 model comes with a 10 year factory warranty from purchase date.
Specifications :
| MODEL | MPE-C501-AFCAG-3 |
| ATX VERSION | ATX Rev. 3.0 |
| PFC | Active PFC |
| INPUT VOLTAGE | 100 – 240V |
| INPUT CURRENT | 15 – 7A |
| INPUT FREQUENCY | 50 – 60Hz |
| DIMENSIONS (L X W X H) | 180 x 150 x 86 mm |
| FAN SIZE | 140mm |
| FAN BEARING | FDB |
| EFFICIENCY | ≥ 90% @ Typical Load |
| 80 PLUS RATING | 80 PLUS Gold |
| ERP 2014 LOT 3 | Yes |
| OPERATING TEMPERATURE | 0-50°C |
| POWER GOOD SIGNAL | 100 – 150 ms |
| HOLD UP TIME | ≥ 16ms at 100% Load |
| MTBF | >100,000 Hours |
| PROTECTIONS | OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
| REGULATORY | TUV,cTUVus,CE,FCC,BSMI,CCC, EAC,RCM,UKCA,BIS |
| ATX 24-PIN CONNECTORS | x1 = 1x (650mm) |
| EPS 4+4 PIN CONNECTORS | x1 = 1x (650mm) |
| EPS 8 PIN CONNECTOR | x1 = 1x (650mm) |
| SATA CONNECTORS | x12 = 3x (500+120+120+120mm) |
| PERIPHERAL 4-PIN CONNECTORS | x4 = 1x (500+120+120+120mm) |
| PCI-E 6+2 PIN CONNECTORS | x3 = 3x (550mm) |
| 12VHPWR | x1 = 1x (650mm) |
| MODULAR | Fully Modular |
| WATTAGE | Above 750W |
| Warranty | 10 Years |
