Cooler Master MWE 550 V3 230V 80 Plus Bronze Power Supply :
Features :
- Cooler Master 80 PLUS Standard Efficiency: Ensures low energy consumption and reduced heat output.
- 550W Power Output: Suitable for mid-range systems with moderate power needs.
- DC-to-DC Circuit Design: Provides stable and reliable voltage output for your components.
- 120mm HDB Fan: Delivers quiet cooling and efficient airflow.
- Active PFC + Forward Topology: Improves power efficiency and stability.
- Flat Black Cables: Simplifies cable management for a cleaner build.
- 5-Year Warranty: Ensures long-term durability and support.
Overview :
Power Evolved
Cooler Master presents the Cooler Master MWE 550 V3 230V, the upgraded version of the Cooler Master MWE 550 V3 230V featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
Embossed Cable
Cooler Master MWE 550 V3 230V An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.

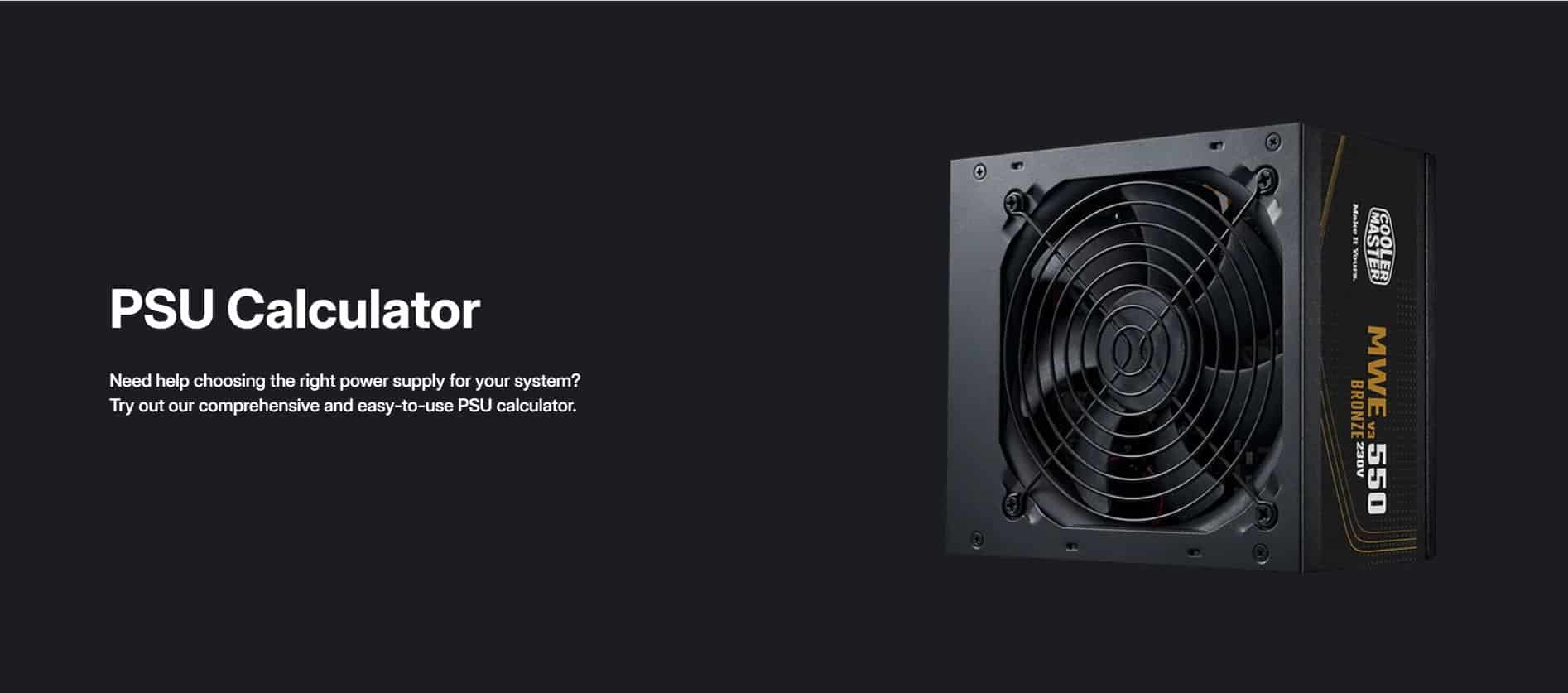

PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
Specifications :
Model | Cooler Master MWE 550 V3 230V |
ATX Version | ATX 12V V3.1 |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 5A |
Input Frequency | 50-60Hz |
Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
Fan Size | 120mm |
Fan Bearing | HDB |
Efficiency | >88% @ Typical Load |
80 PLUS Rating | 80 PLUS Bronze EU 230V |
ERP 2014 Lot 3 | Yes |
Operating Temperature | 0-40°C |
Power Good Signal | 100 – 150 ms |
Hold Up Time | >16 |
MTBF | >100,000 Hours |
Protections | UVP / OVP / OPP / OTP / SCP |
Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
ATX 24-Pin Connectors | 1 |
EPS 4+4 Pin Connectors | 2 |
SATA Connectors | 6 |
Peripheral 4-Pin Connectors | 3 |
PCI-e 6+2 Pin Connectors | 2 |
80 Plus | Bronze |
Modular | Non Modular |
Wattage | 550W |
Serie | MWE Bronze Series |
Warranty | 5 Years |
