Cooler Master Ncore 100 Max Bronze Edition Cabinet :
Features :
- Design and Build
- Cooling Support
- PSU Shroud
Overview :
Cooler Master Ncore 100 Max Bronze Edition
Cooler Master Ncore 100 Max Bronze Edition is the ultimate solution for going big on performance in the minimal amount of desktop space
The Compact Case for Powerful PC
Discover the Cooler Master Ncore 100 Max Bronze Edition: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving NCooler Master Ncore 100 Max Bronze Bronze Edition.
CUSTOM AIO COOLING
The Cooler Master Ncore 100 Max Bronze Edition leverage decades of expertise in thermal solutions and features a custom 120mm AIO Water Cooler supporting the latest Intel and AMD CPUs.
HIGH-END GPU COMPATIBILITY
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
TAILOR-MADE POWER SOLUTION
Cooler Master’s V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
Design
ULTRA-SMALL FOOTPRINT
The Cooler Master Ncore 100 Max Bronze Edition is super compact, with a footprint about the size of a small booklet.

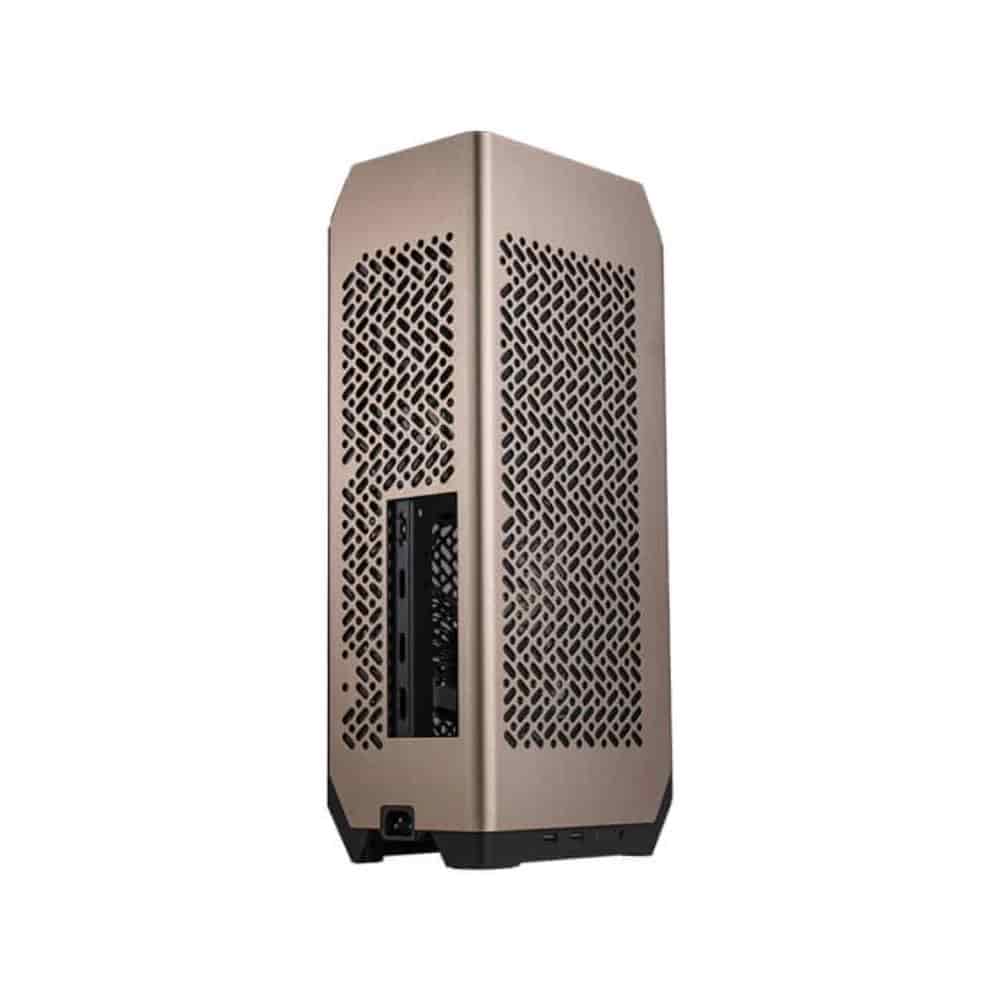

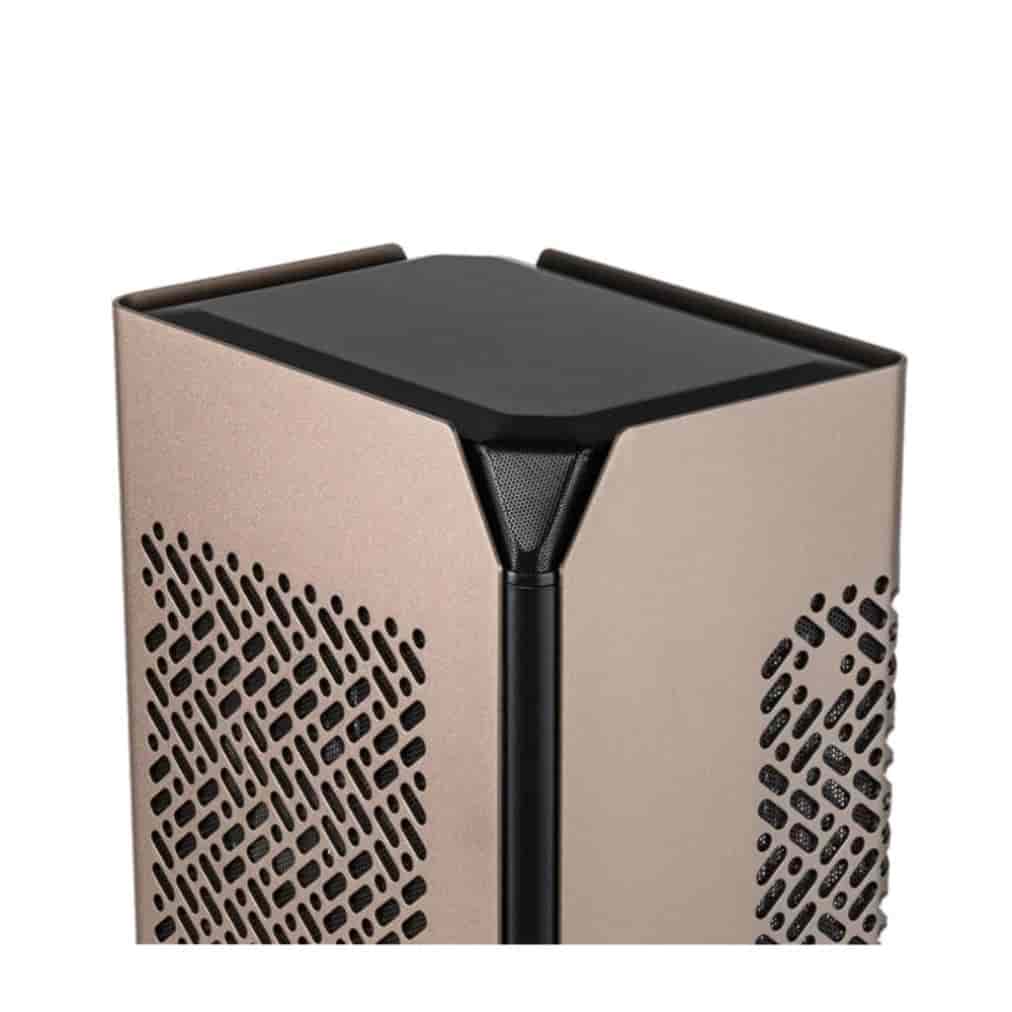

PREMIUM ALUMINUM PANEL
An anodized aluminum shell makes the NCORE 100 MAX stand out as a desktop work of art.
PRE-ROUTED CABLES
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
AIRFLOW
The Cooler Master Ncore 100 Max Bronze Edition layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surfaces.

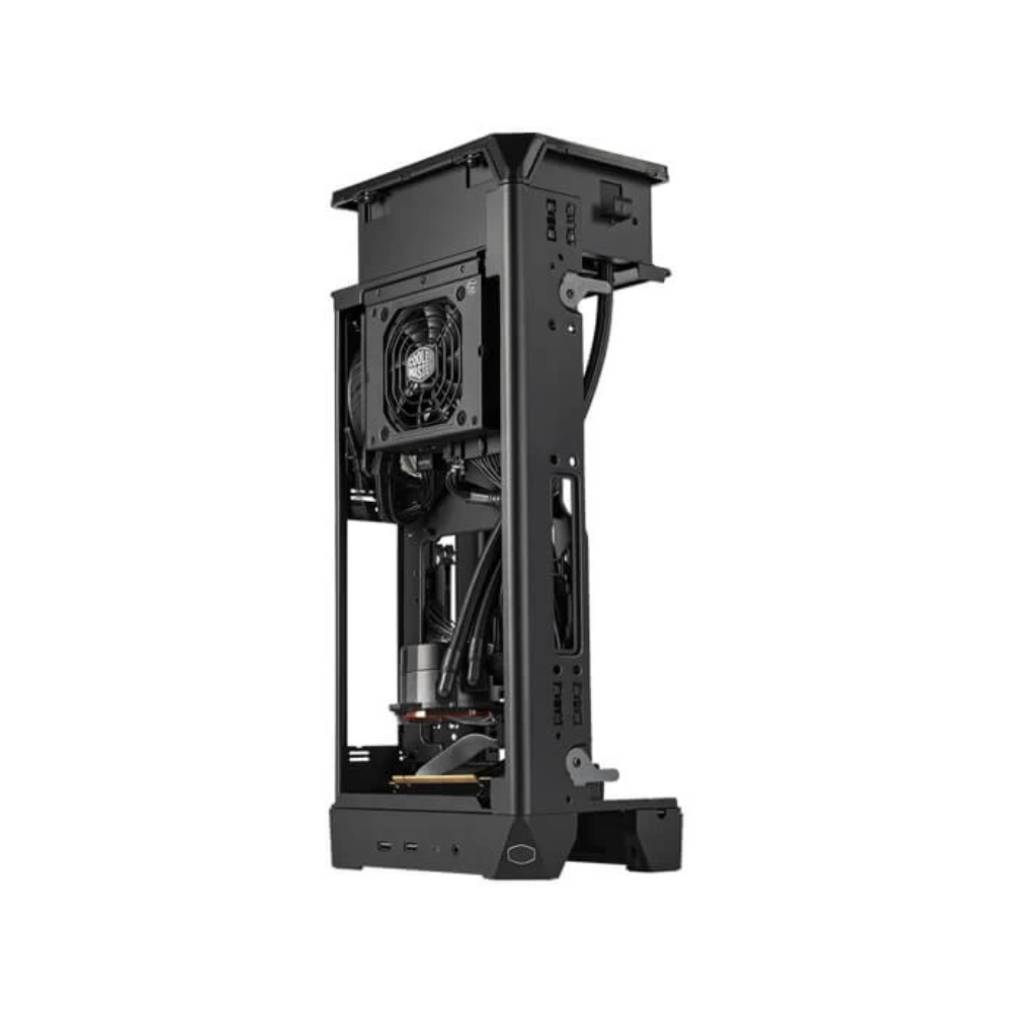

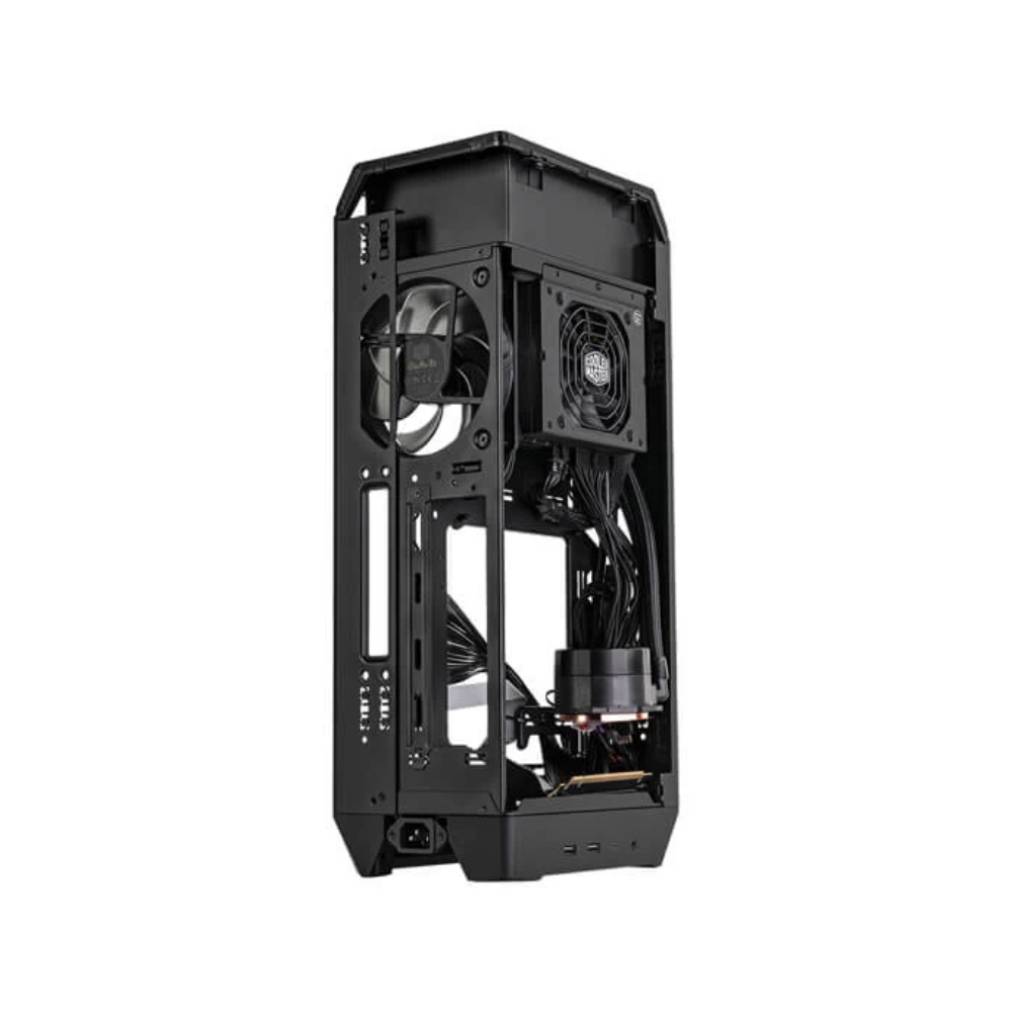

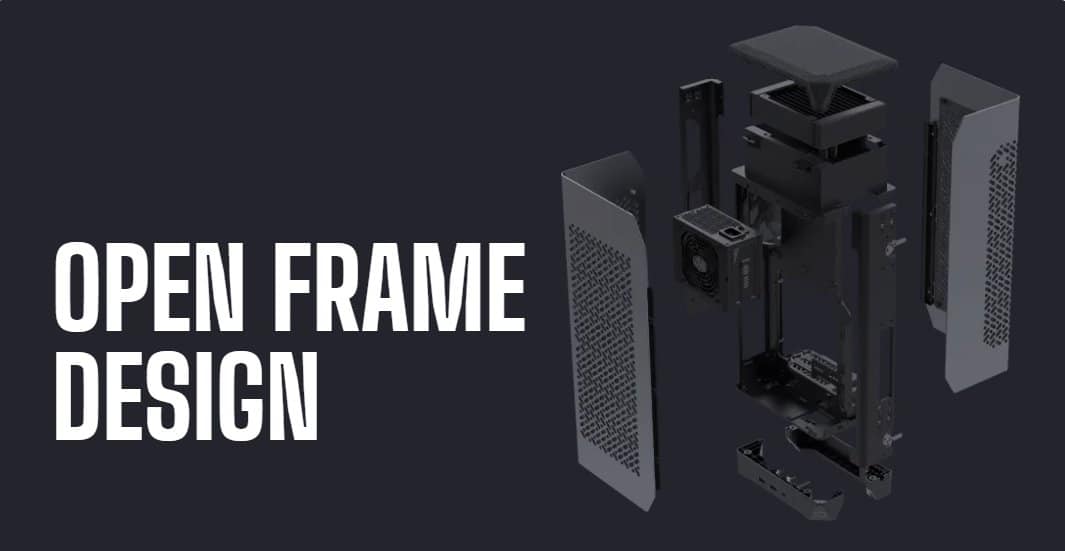

OPEN FRAME DESIGN
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even tha cable cover features tool-less removal, for the utmost in accessibility.
Innovative Extendable Mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.
Specifications :
| Product Name | Cooler Master Ncore 100 Max Bronze Edition |
| Product Number | NR100-ZNNN85-SL0 |
| Exterior Color | Bronze |
| Materials | |
| Exterior | Steel, Plastic, Aluminum |
| Side Panel | Aluminum |
| Dimensions (L x W x H) | Normal mode: 155mm x 212mm x 481mm |
| Incl. Protrusions | 172mm x 212mm x 481mm |
| Excl. Protrusions | 155mm x 212mm x 457mm |
| Volume | 15.80L (Normal mode) 17.54L (Expansion mode) |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot mounting |
| Drive Bays 2.5” SSD | 1 |

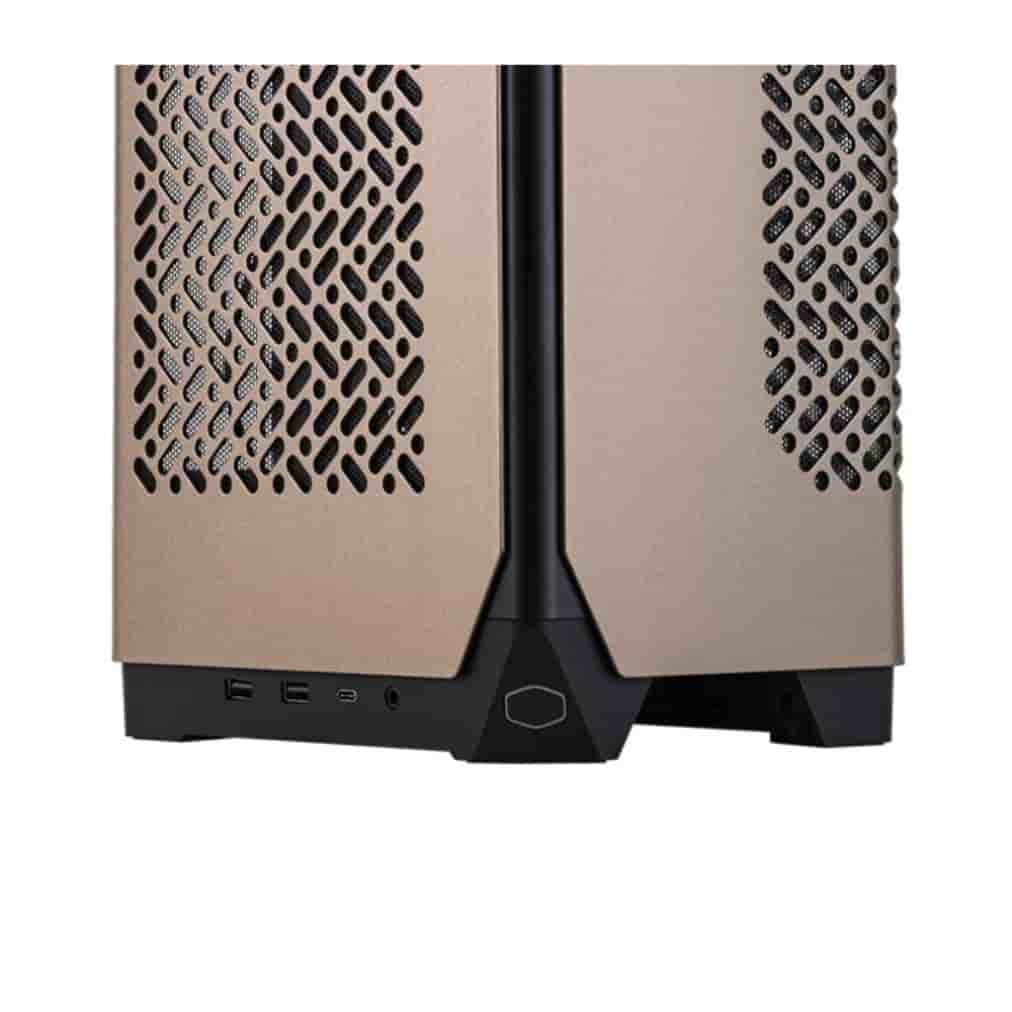

| I/O Panel | 2x USB 3.2 Gen1 Type A |
| I/O Panel | 1x USB 3.2 Gen2 x 2 Type C |
| I/O Panel | 1x Audio Combo (Audio In / Out 3.5mm) |
| Pre-Installed Accessories | 1x 240mm PCIe 4.0 x16 |
| Pre-Installed CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Pre-installed Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) – | Rear 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances – CPU Cooler | 48mm |
| Clearances – Power Supply | 100mm |
| Clearances – RAM | 48mm |
| Clearances – Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick) |
| Clearances – Graphics Card | 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) |
| Clearances – Graphics Card | (Maximum space including GPU power connector) |
| Cable Routing – Behind MB Tray | 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Size | Mini ITX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
