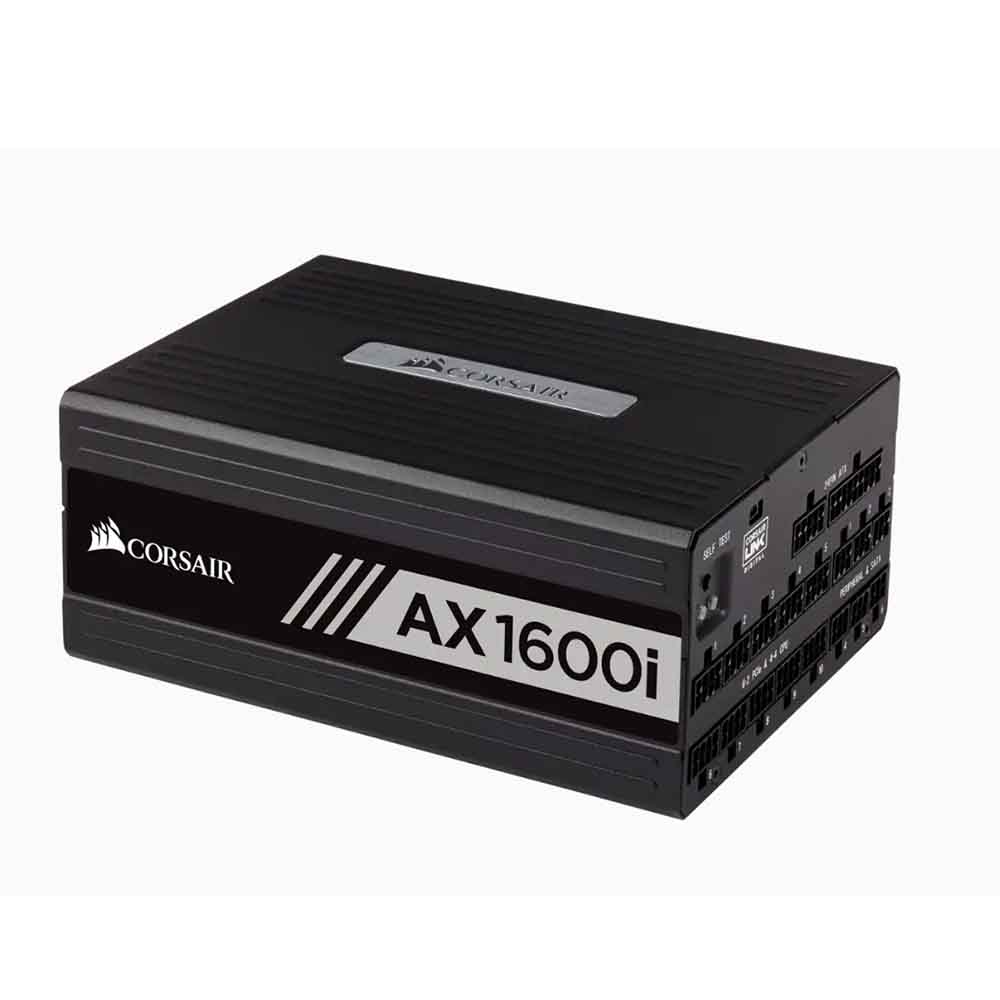

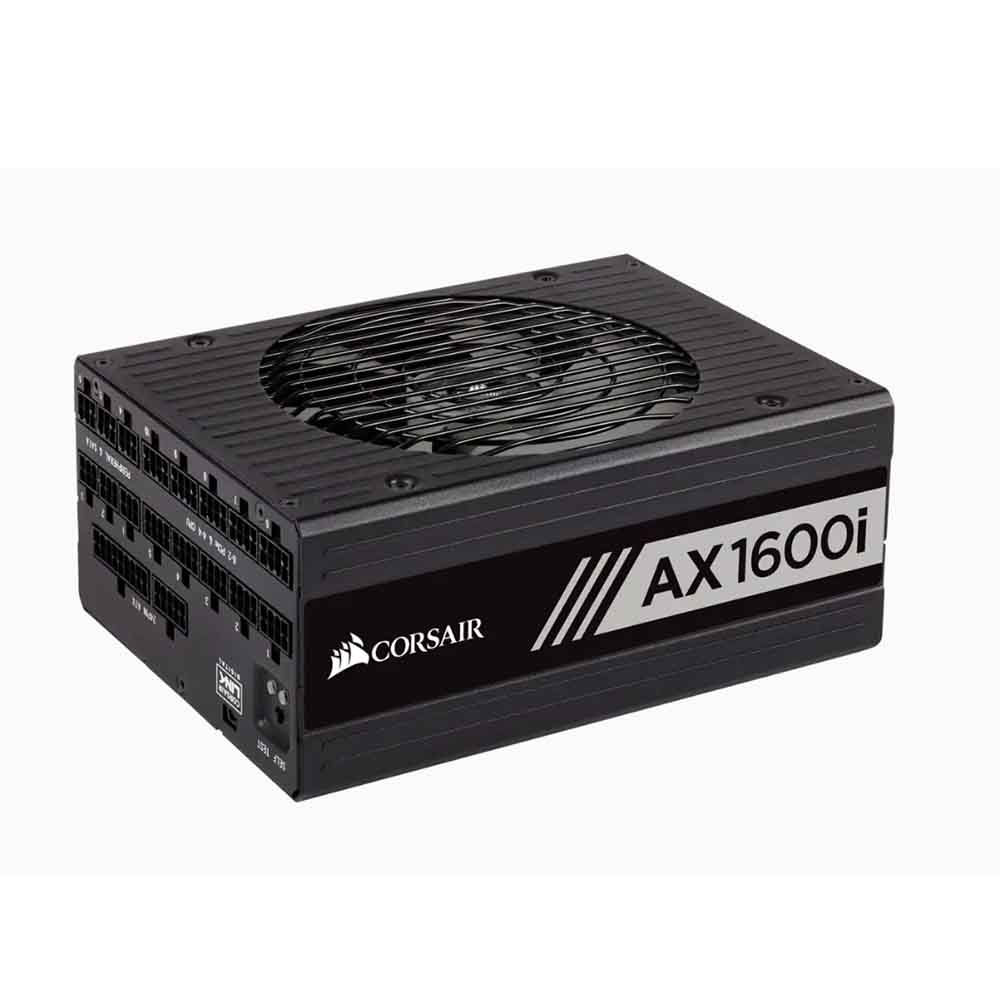

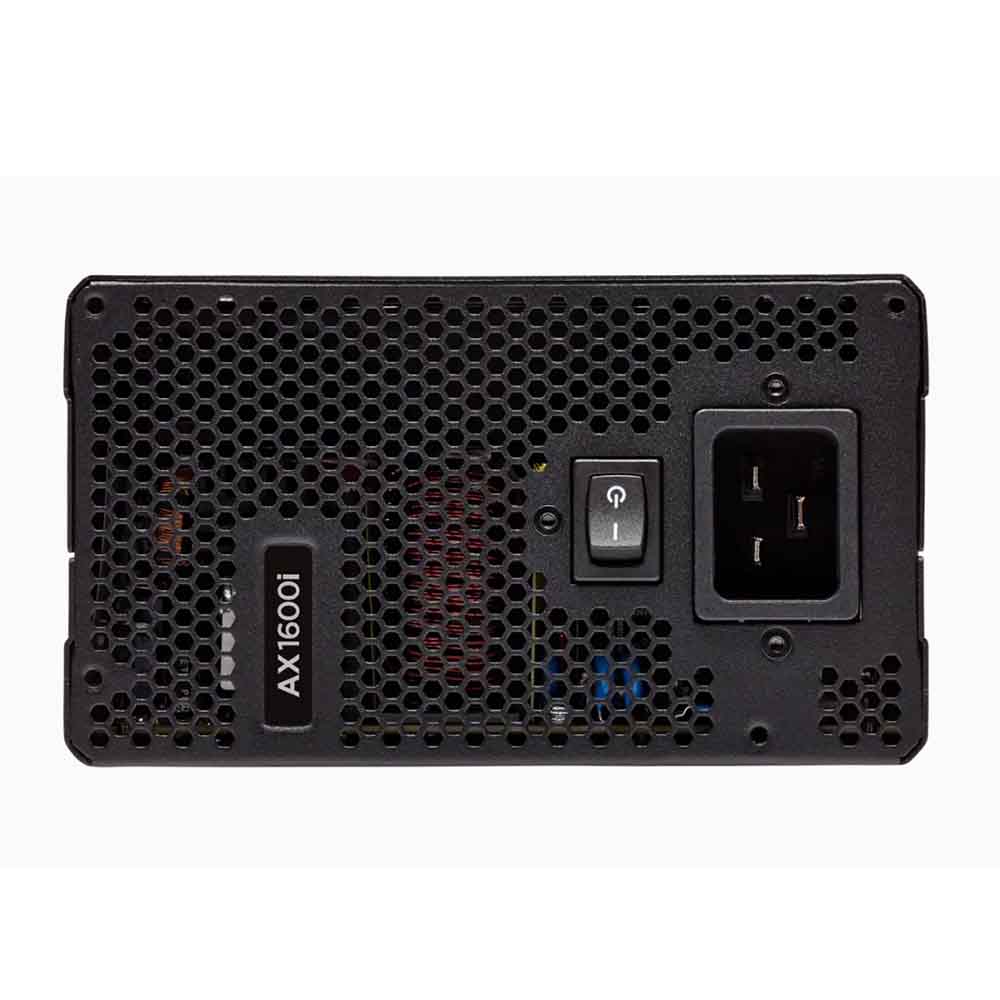

Corsair AX1600i 80 Plus Titanium Fully Modular 1600 Watts Power Supply
Overview :
THE WORLD’S BEST PSU GETS BETTER
The CORSAIR AX1600i 80 Plus Titanium is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
1600W OF ULTIMATE POWER
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.
TOP TIER COMPONENTS
100% 105°C Japanese electrolytic capacitors, top-specification internal components and digital design deliver over 94% efficiency.
THE ONLY CONSUMER PSU WITH GALLIUM NITRIDE TRANSISTORS
Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
WORLD CLASS ELECTRICAL PERFORMANCE
Corsair AX1600i 80 Plus Titanium has Incredibly stable voltages and ultra-low ripple noise.
INTELLIGENT CONTROL. UNLIMITED POSSIBILITIES.
CORSAIR iCUE provides in-depth PSU voltage and performance monitoring, as well as stunning system-wide RGB lighting synchronization.

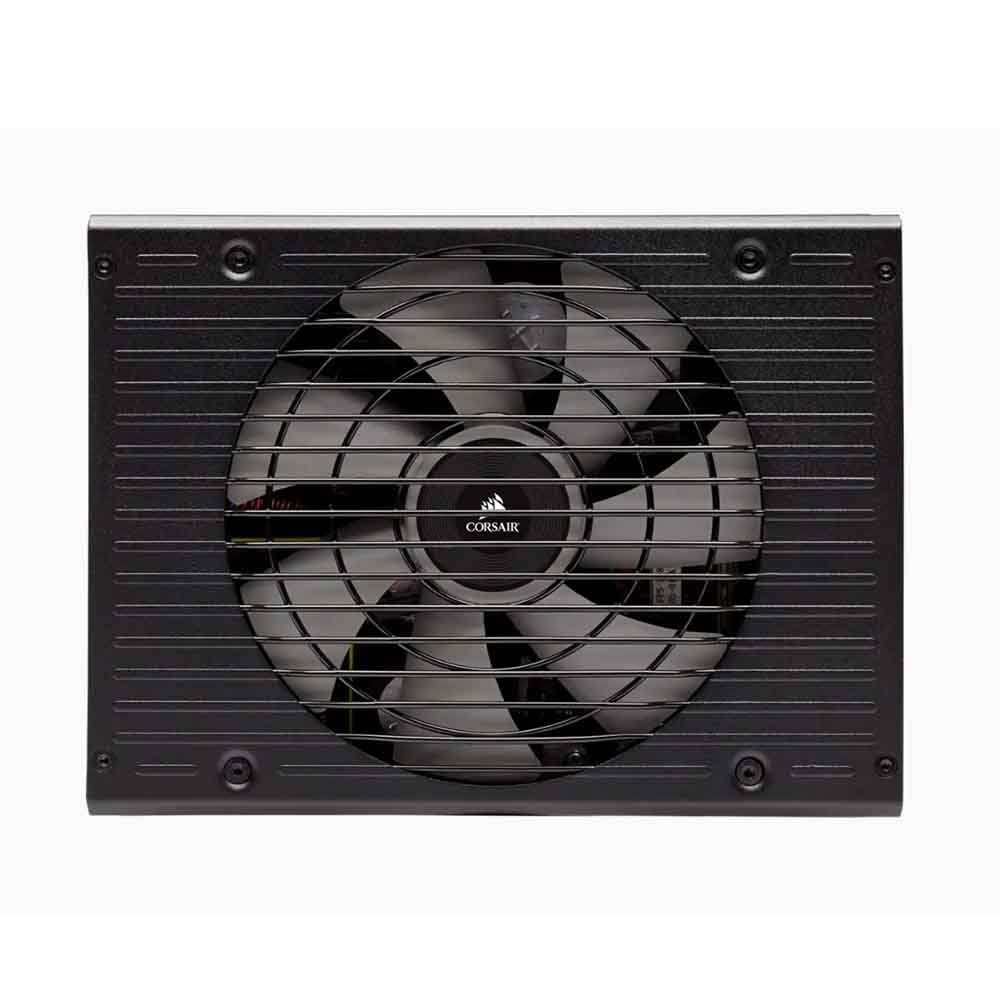

140MM PATENTED FDB COOLING FAN
Delivers low-noise operation even at demanding loads.
ZERO RPM FAN MODE
For near-silent operation at low to medium loads.
CHOOSE YOUR COLOR

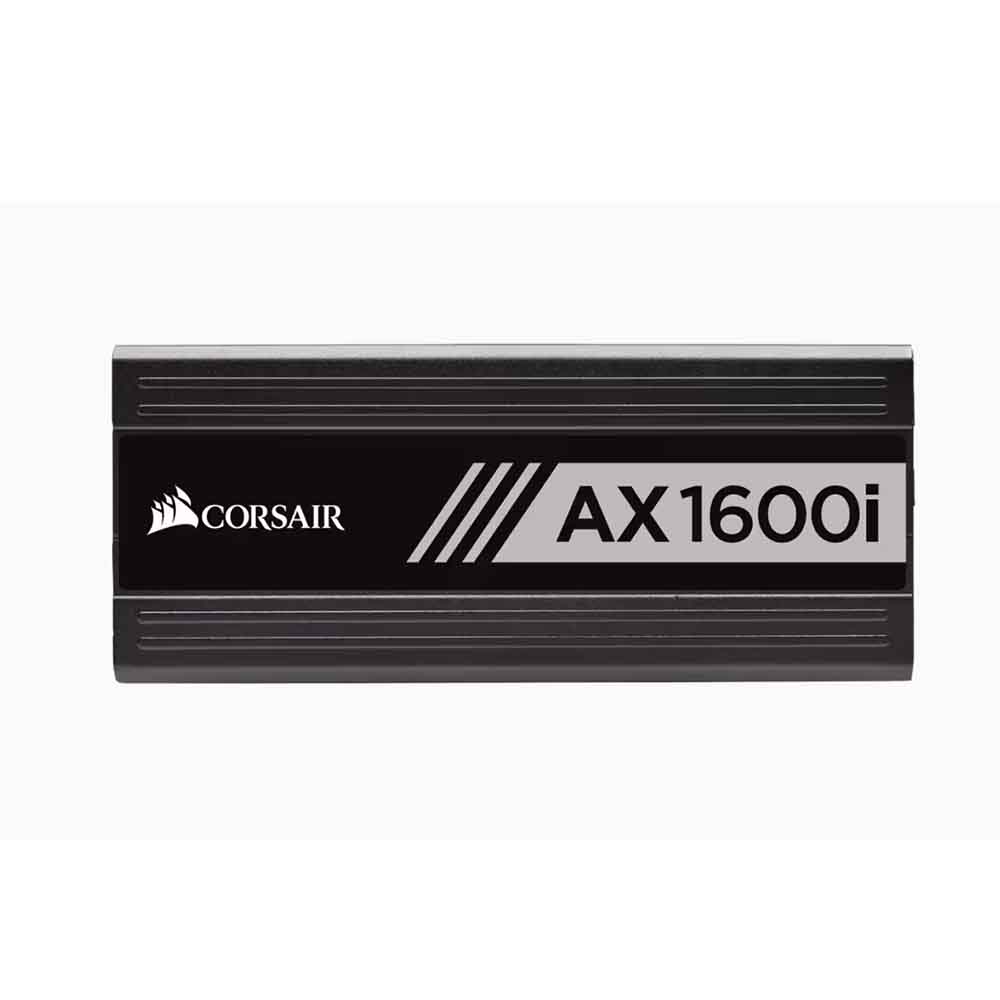

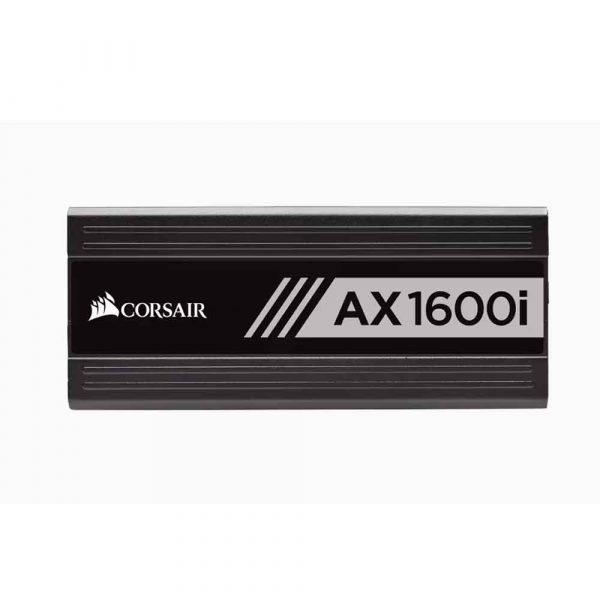

Three-color customizable magnetic side labels let you choose your Corsair AX1600i 80 Plus Titanium PSU’s style to match your build.

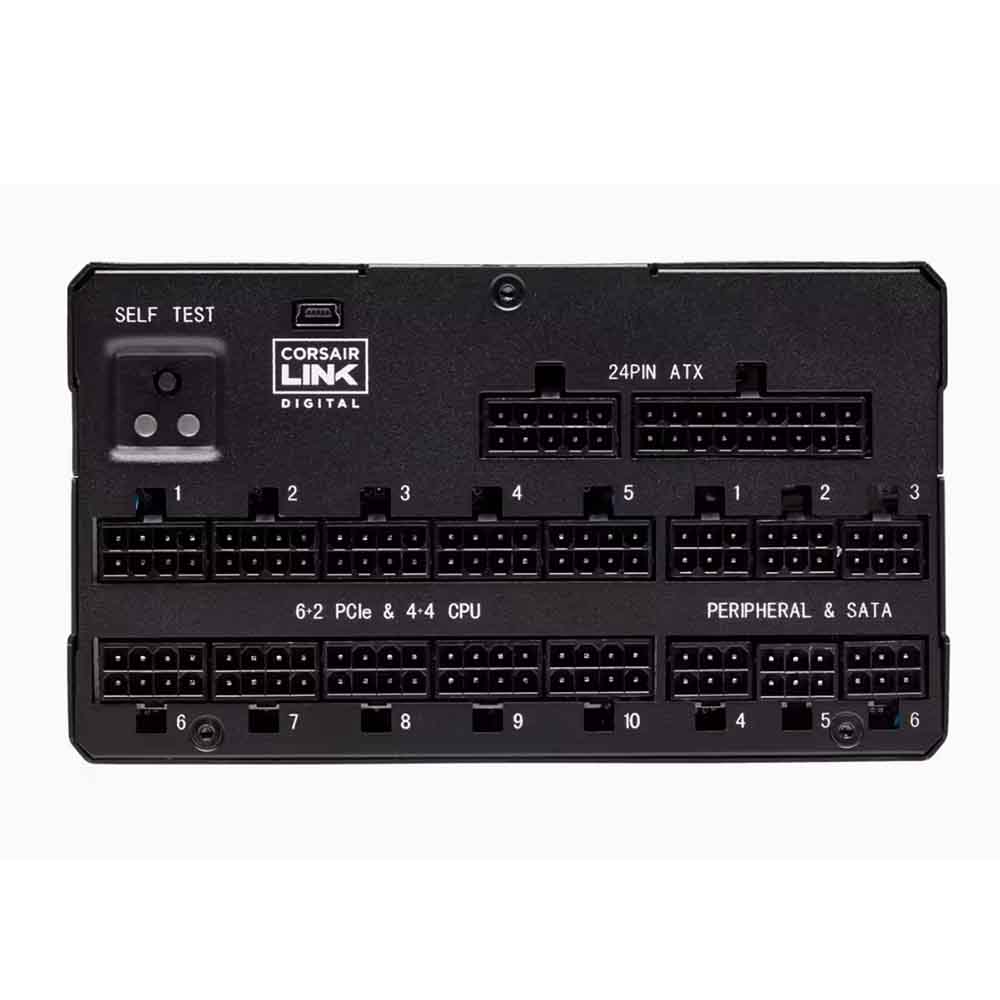

FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation. Unused cables can be stored in the included roll-up cable bag.
BUILT TO LAST
Ten-Year comprehensive CORSAIR warranty.
Specifications :
| Model | AX1600i |
| ATX Connector | 1 |
| Ability to toggle singlemultiple 12V rails | Yes |
| ATX12V Version | v2.4 |
| Continuous output rated temperature C | 50°C |
| Continuous power W | 1600 Watts |
| Corsair Link Support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing |
| Fan size mm | 140mm |
| MTBF hours | 100,000 hours |
| Multi-GPU ready | YES |
| Power | 1600 Watts |
| 80 PLUS Efficiency | Titanium |
| PSU Form Factor | ATX |
| Zero RPM Mode | Yes |
| Cable Type | Low-Profile, All Black |
| Dimensions | 150mm x 86mm x 200mm |
| EPS Connector | 2 |
| Floppy Connector | 2 |
| Modular | Fully |
| PCI-E Connector | 8 |
| SATA Connector | 16 |
| Warranty | 10 Years |
