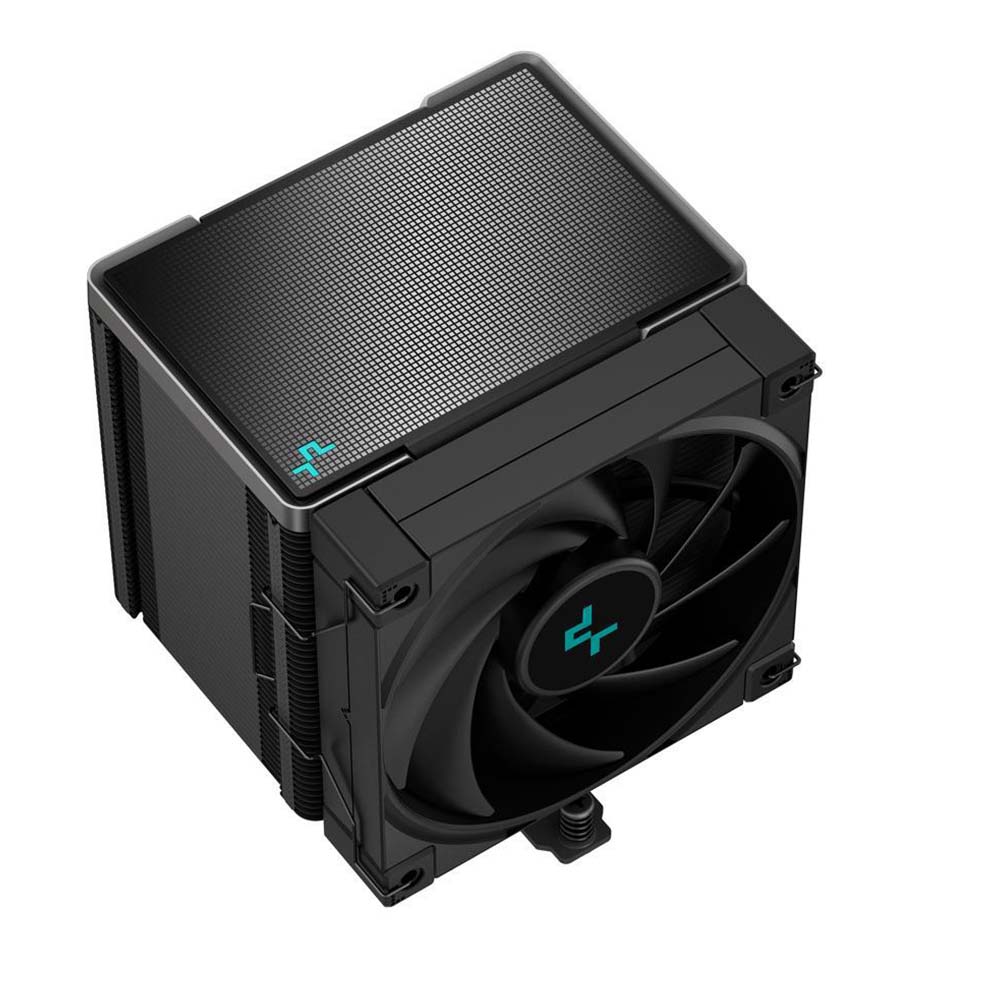

Deepcool AK500 Zero Dark CPU Air Cooler
Overview :

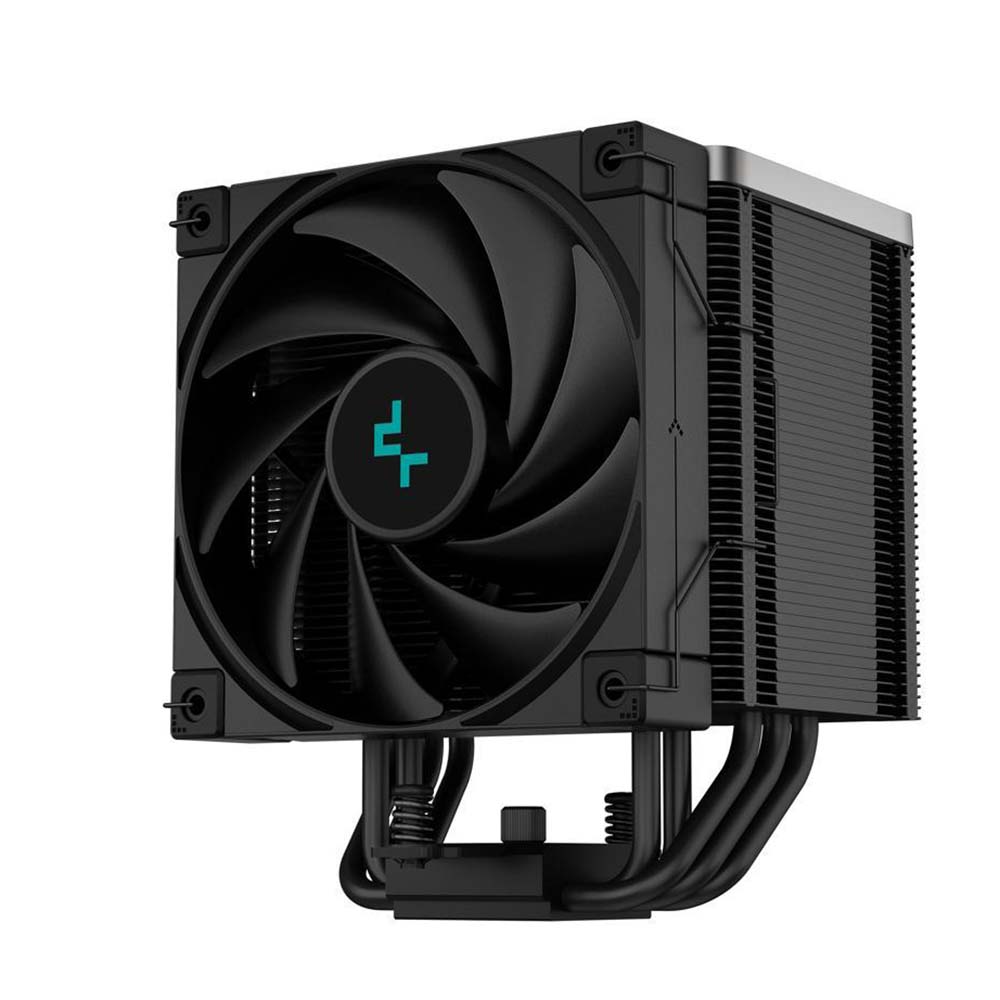

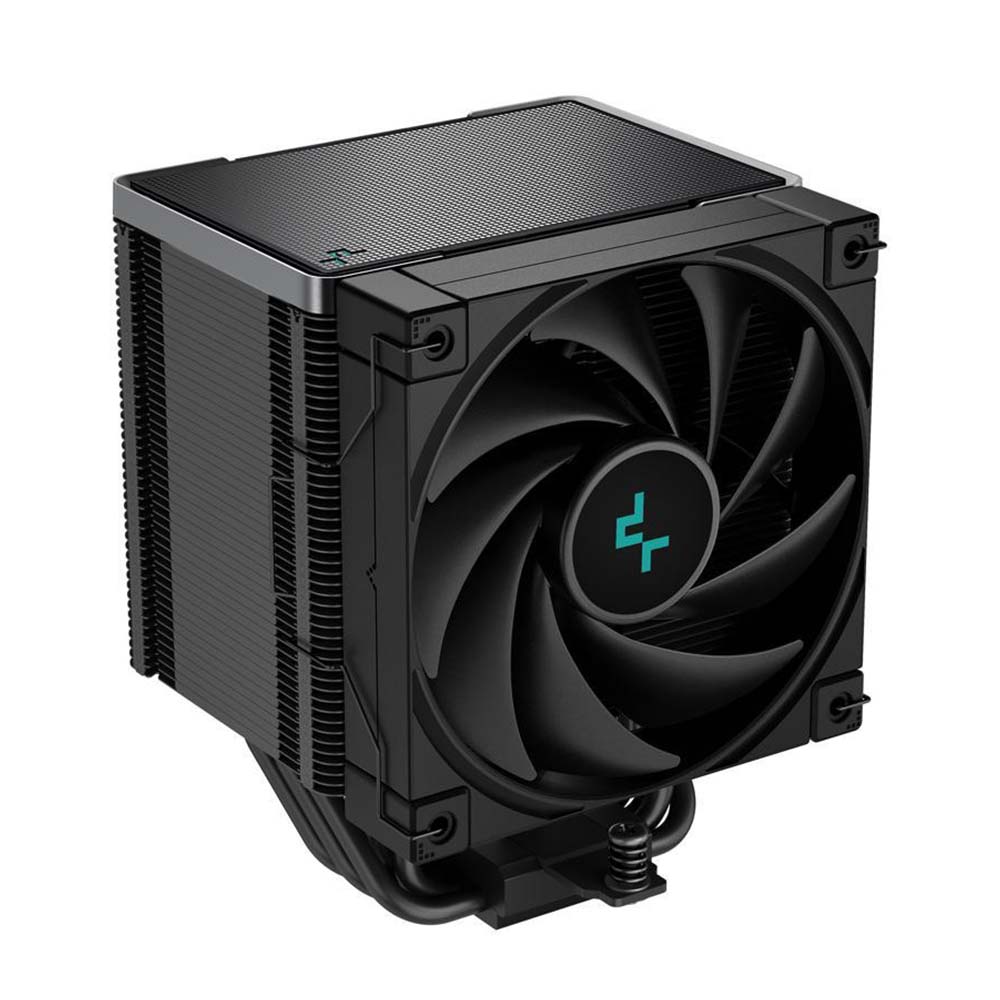

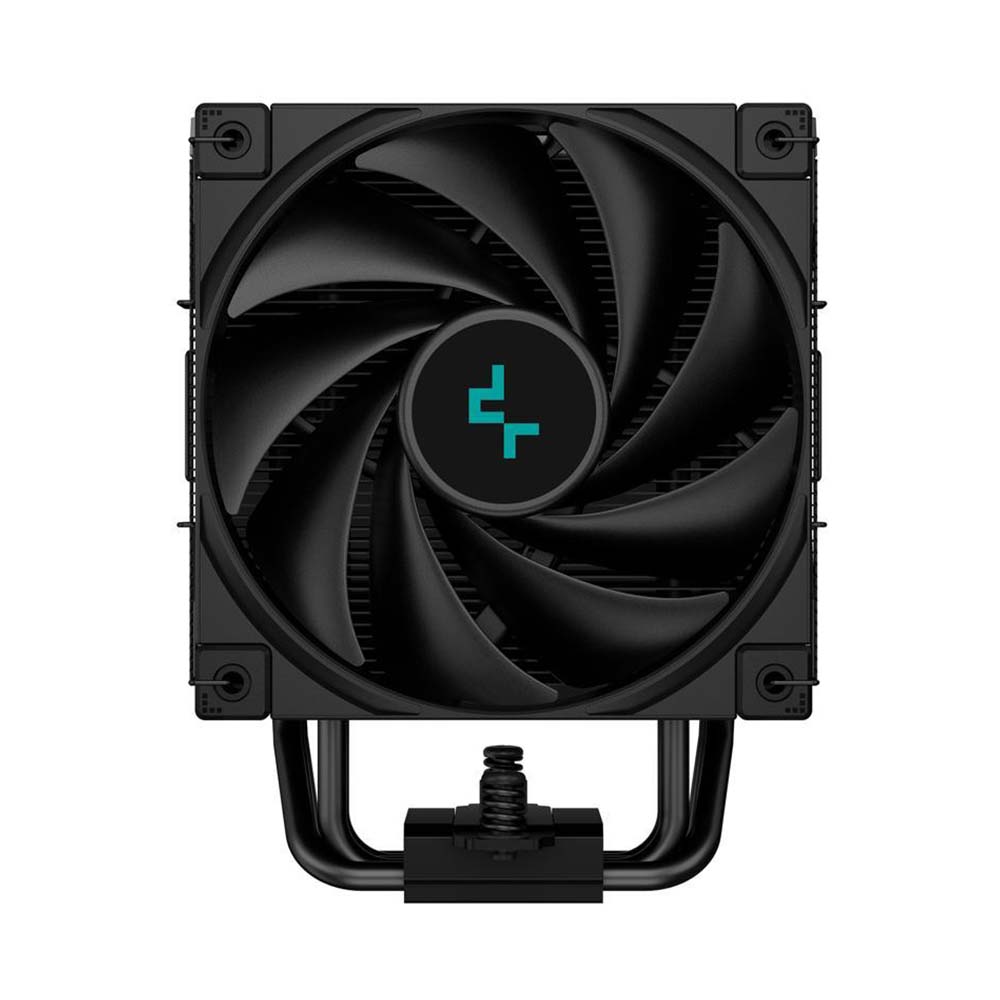

The Deepcool AK500 Zero Dark is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.
Prime Performance
Keep up with massive performance gains thanks to dominant cooling capacity from the Deepcool AK500 Zero Dark boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.
ZERO DARK Edition

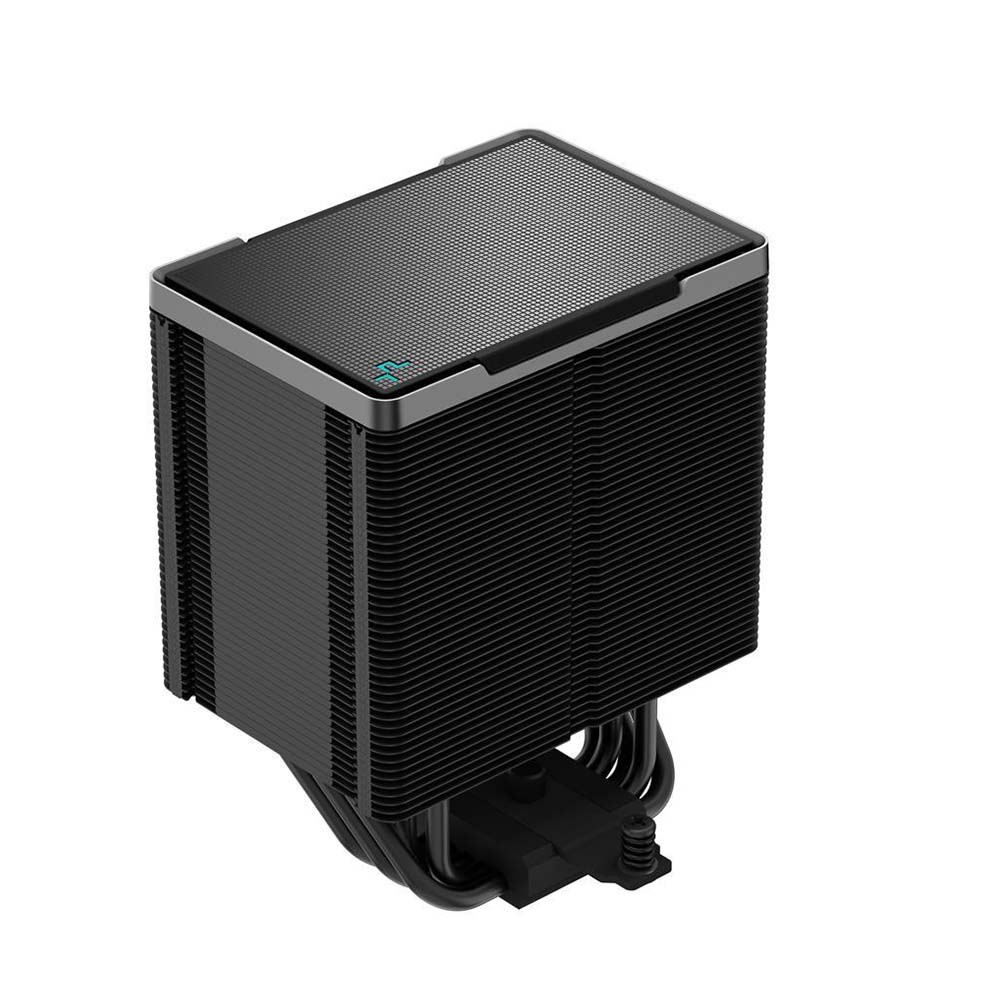

Deepcool AK500 Zero Dark featured in a full blackout edition that coats the every surface on the heat sink, heat pipe, and mounting bracket in all-black for a dark midnight aesthetic that suits any setup.

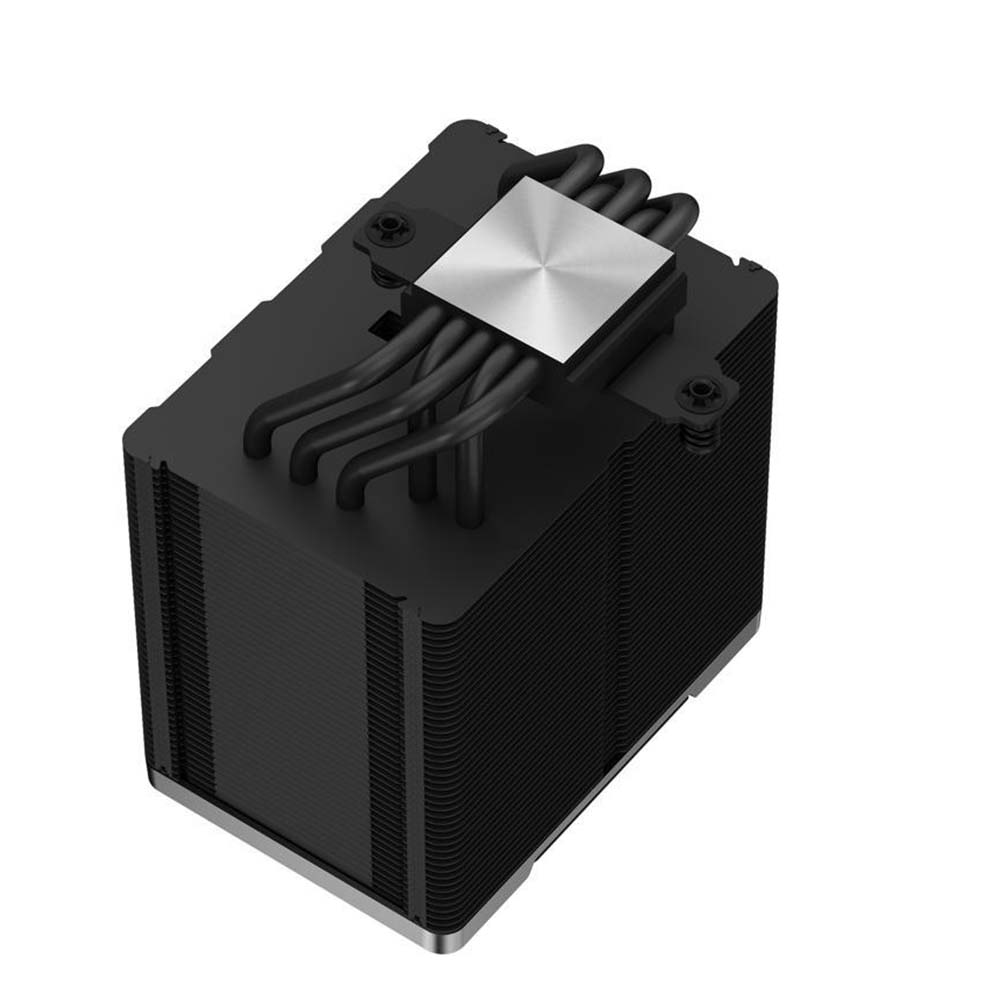

Balanced Bidirectional Heat Pipe Technology
By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.
Full DRAM Compatibility

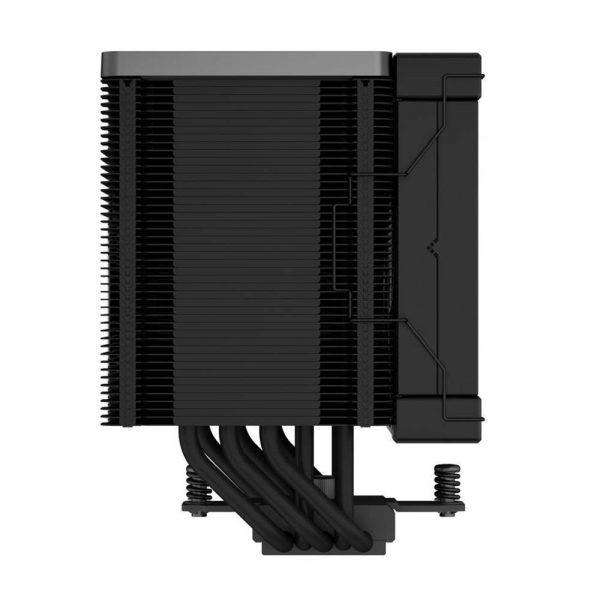

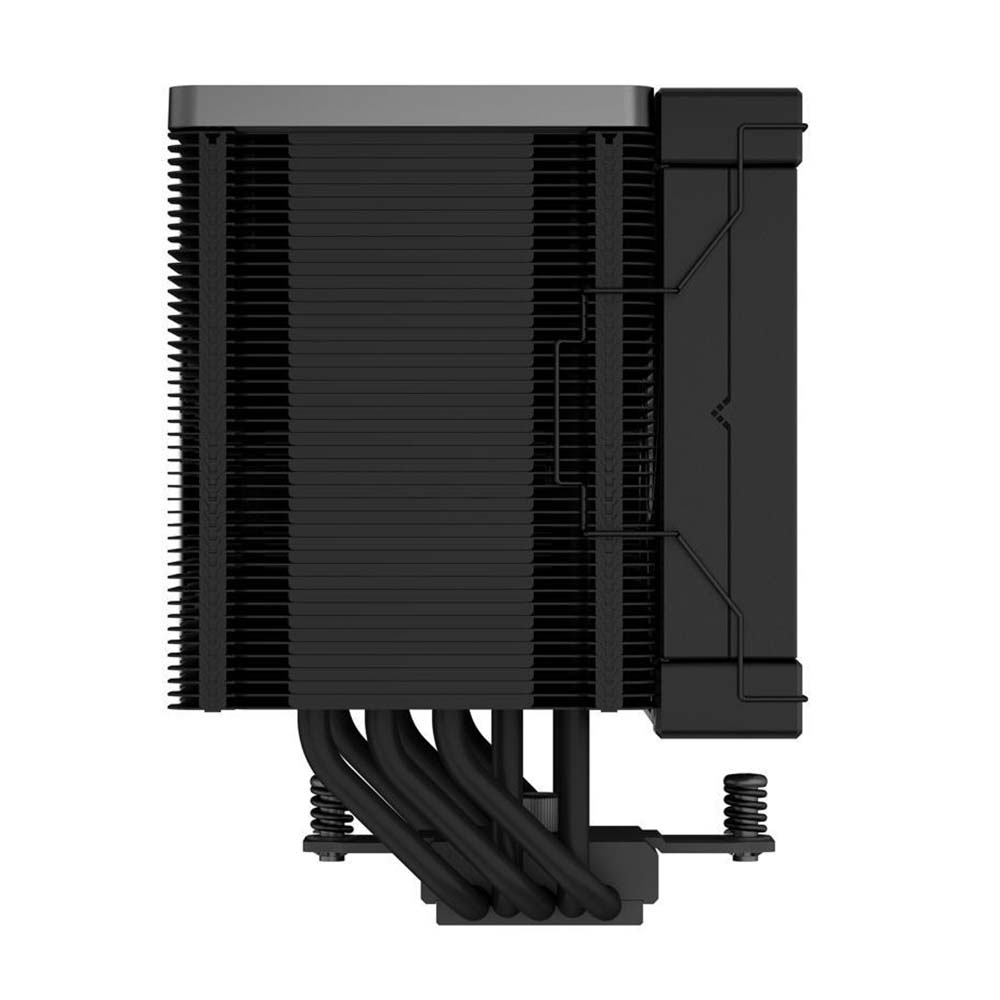

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
Cool,Quiet and Powerful

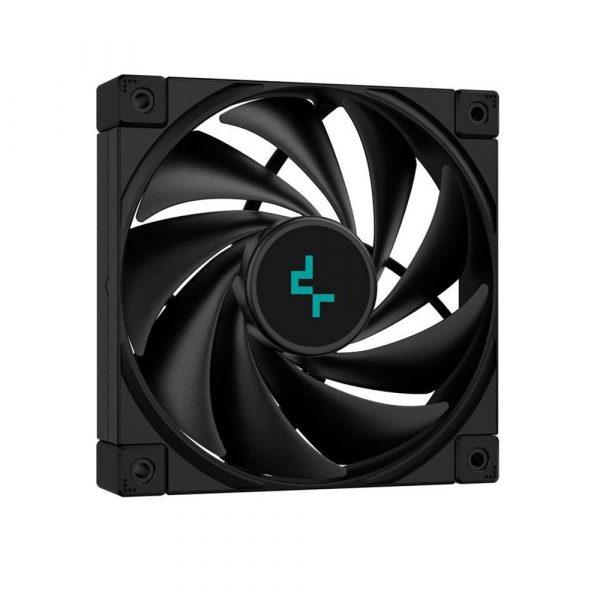

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.
Simple and Secure

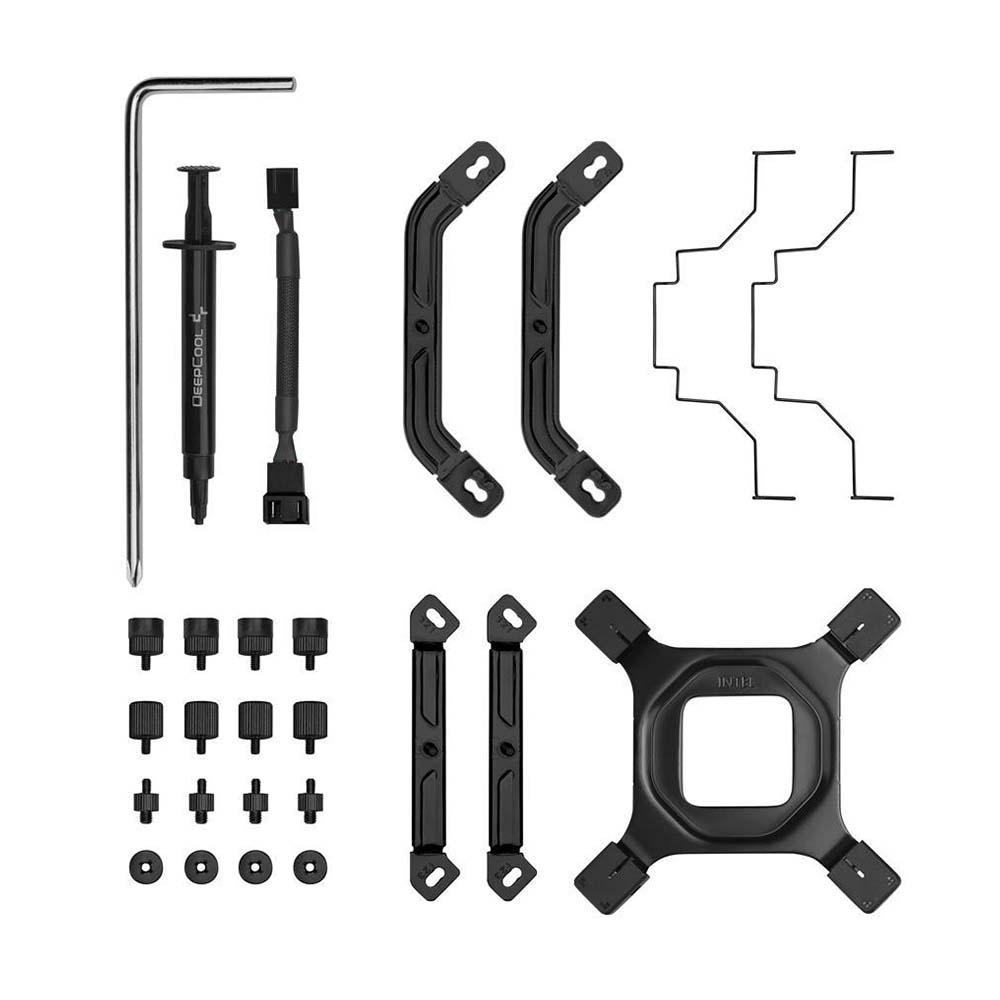

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
Specifications :
| Product Dimensions | 127×117×158 mm |
| Heatsink Dimensions | 127×90×158 mm |
| Net Weight | 1040 g |
| Heatpipe | Ø6 mm×5 pcs |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤31.5 dB(A) |
| Fan Speed (with LSP) | 500~1550 RPM±10% |
| Fan Airflow (with LSP) | 52.24 CFM |
| Fan Air Pressure (with LSP) | 1.2 mmAq |
| Fan Noise (with LSP) | ≤25.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| EAN | 6933412727972 |
| P/N | R-AK500-BKNNMT-G-1 |
