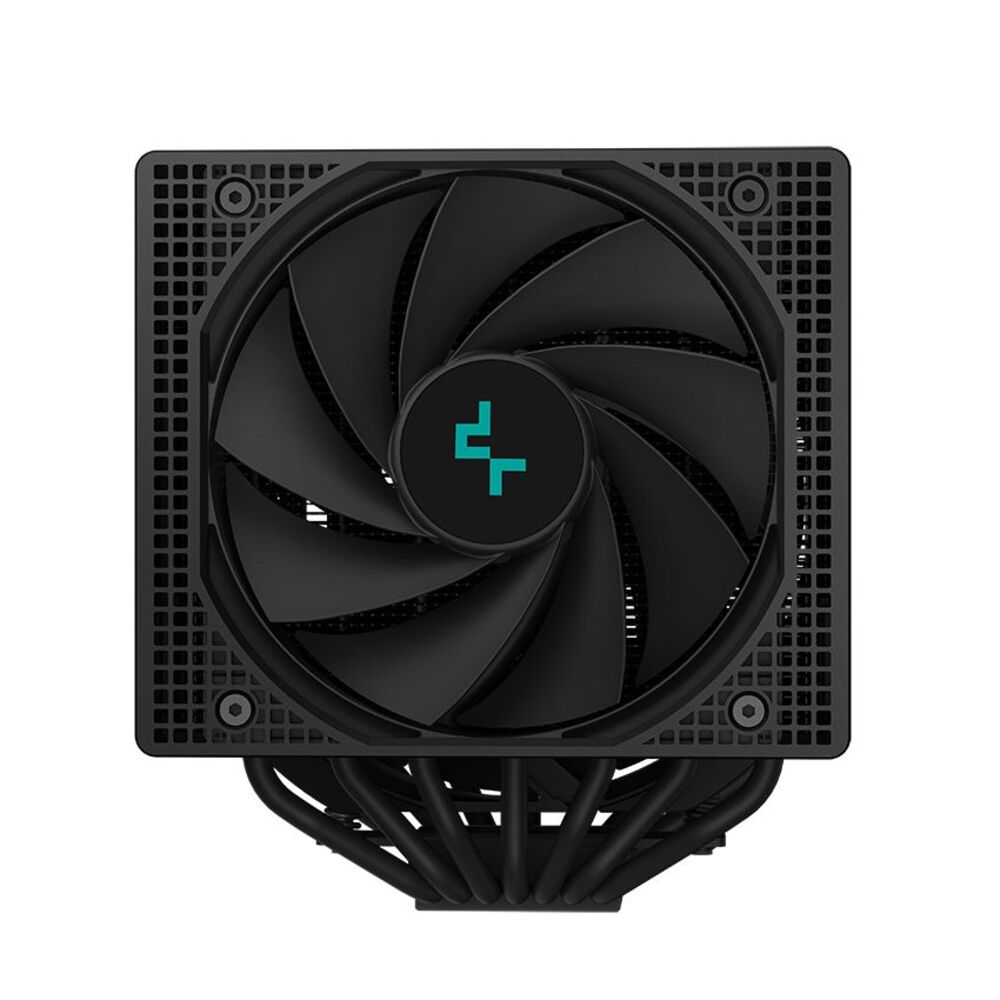

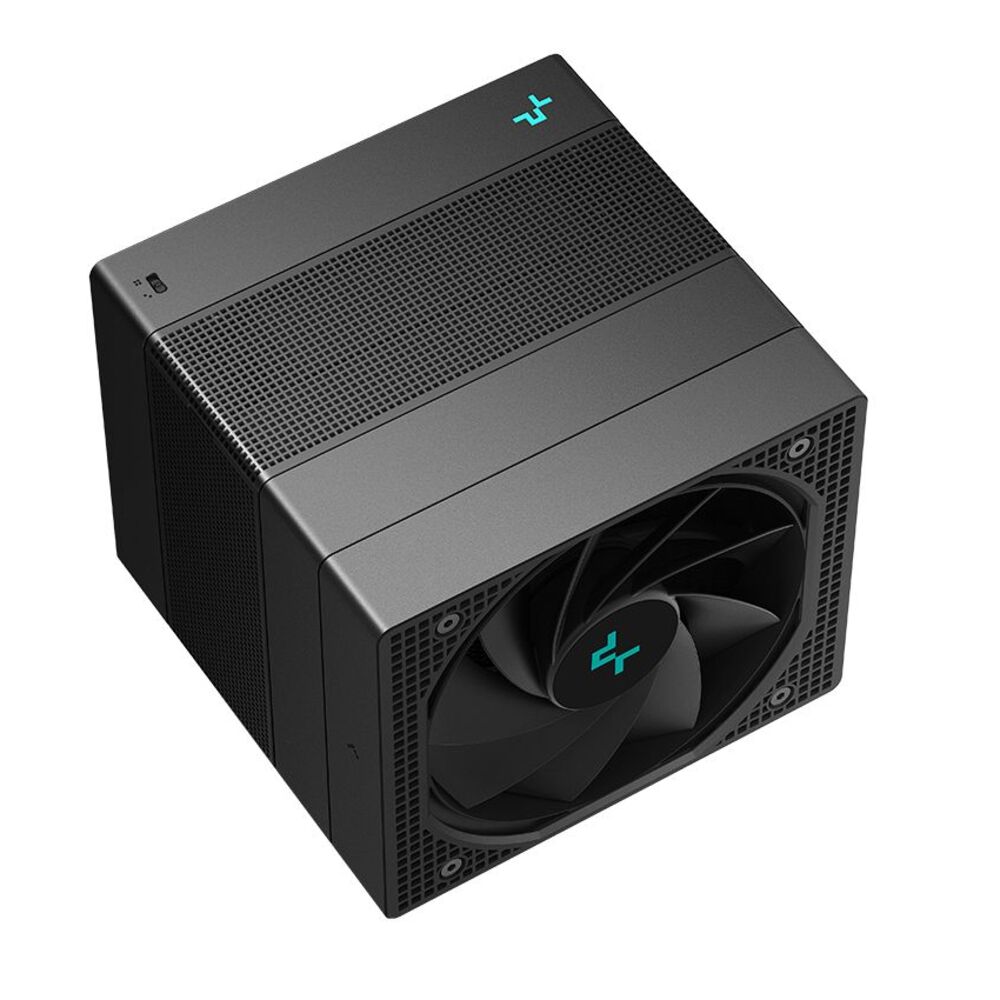

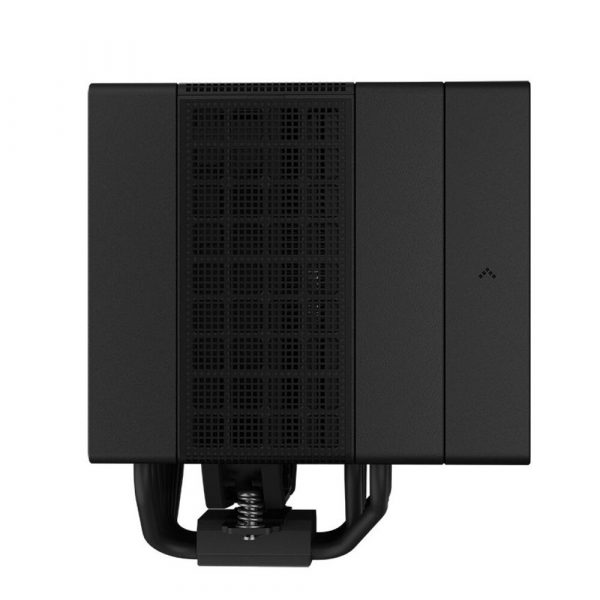

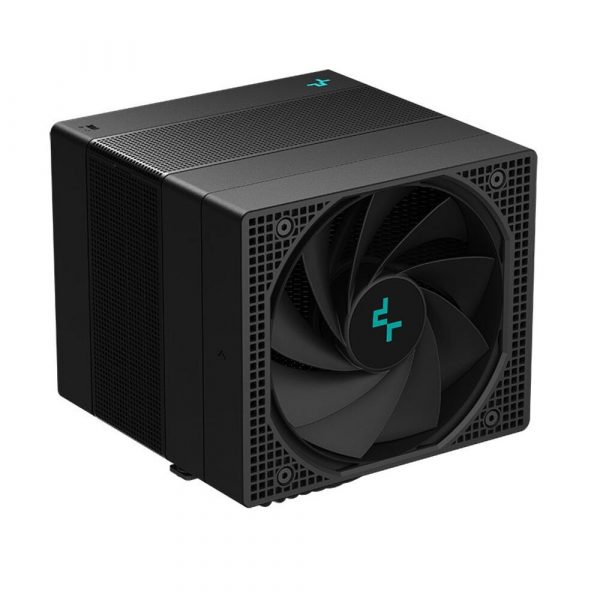

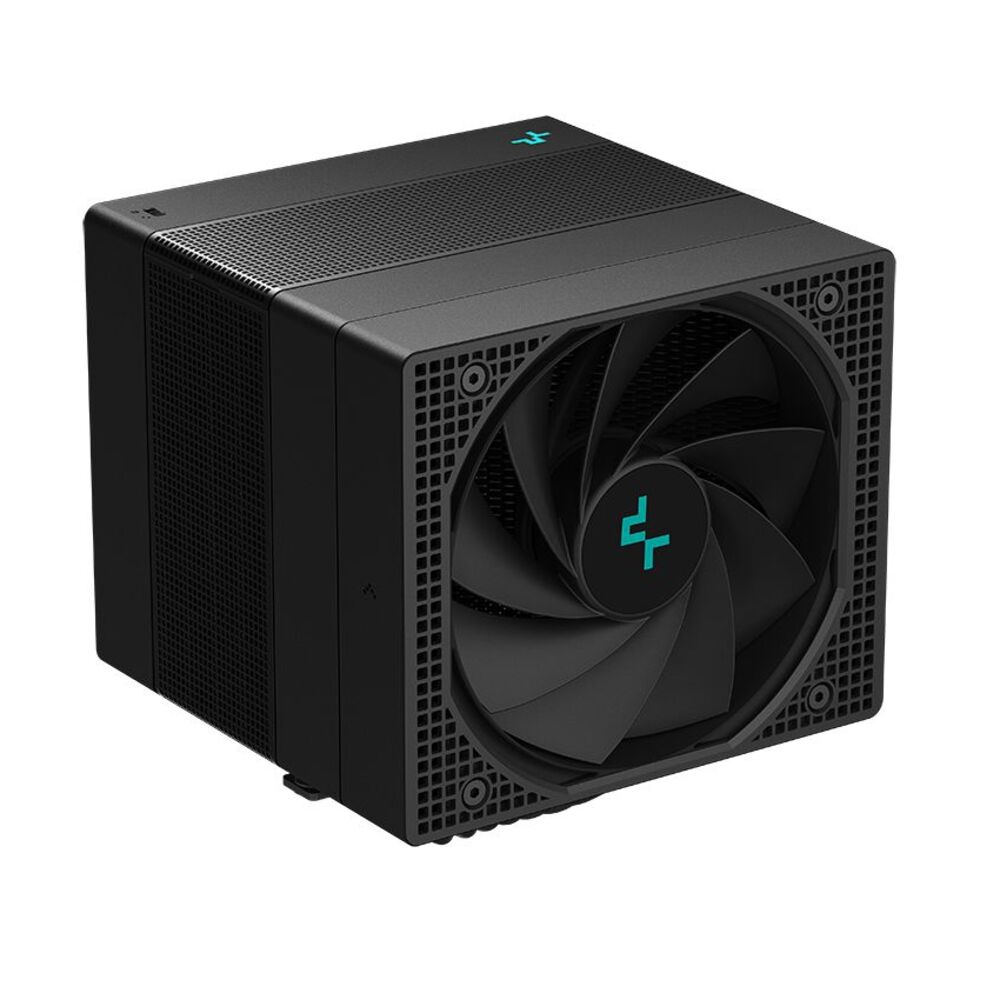

Deepcool Assassin IV CPU Air Cooler :
The ASSASSIN returns with a new aesthetic and efficient cooling capacity. The Deepcool Assassin IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
Overview :

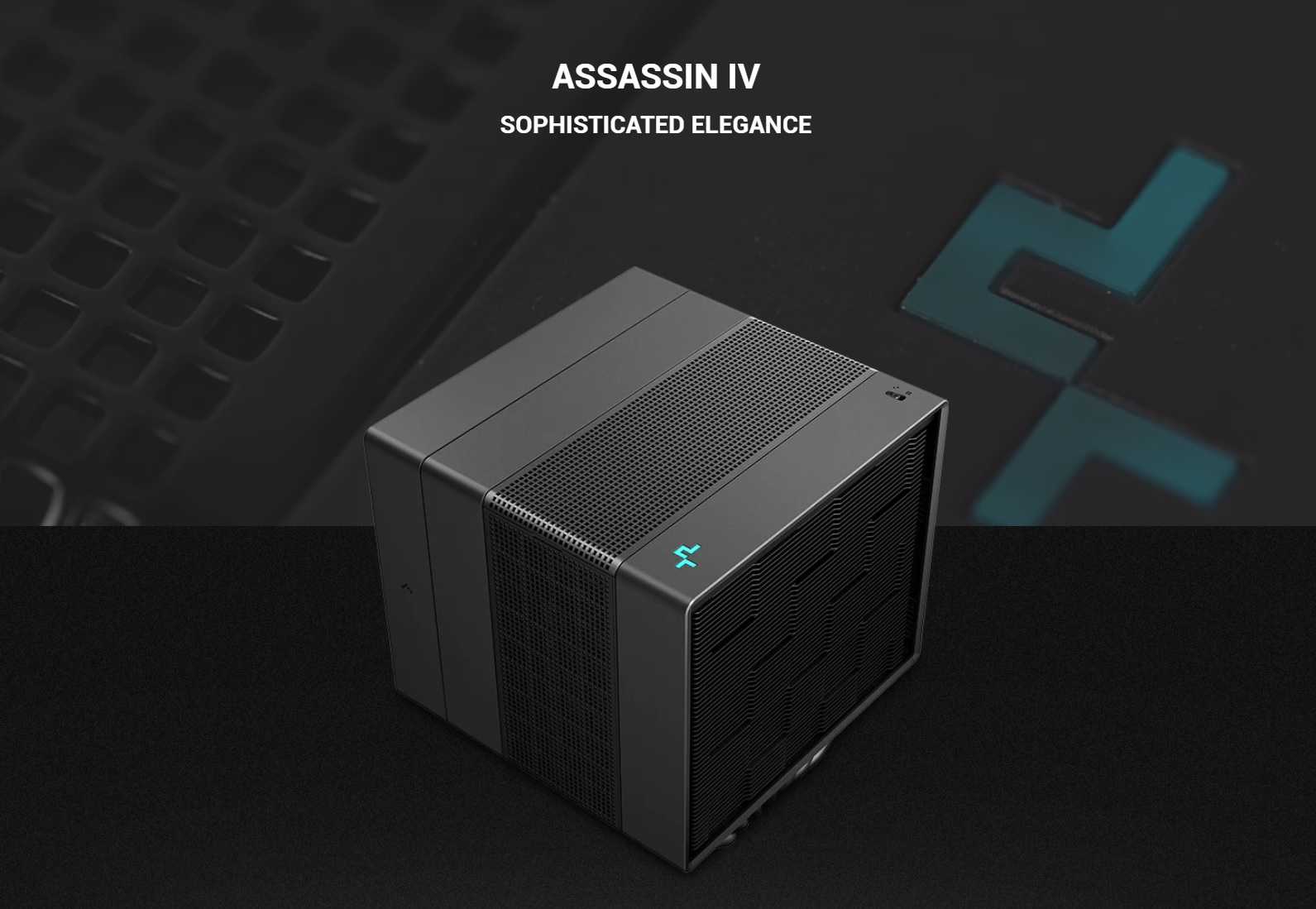

BEAUTY IN SIMPLICITY
The elegant design of the Deepcool Assassin IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN QUIET OR PERFORMANCE MODE, THE ASSASSIN IV IS THE OBVIOUS CHOICE
With a simple slide of a switch, the Deepcool Assassin IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!

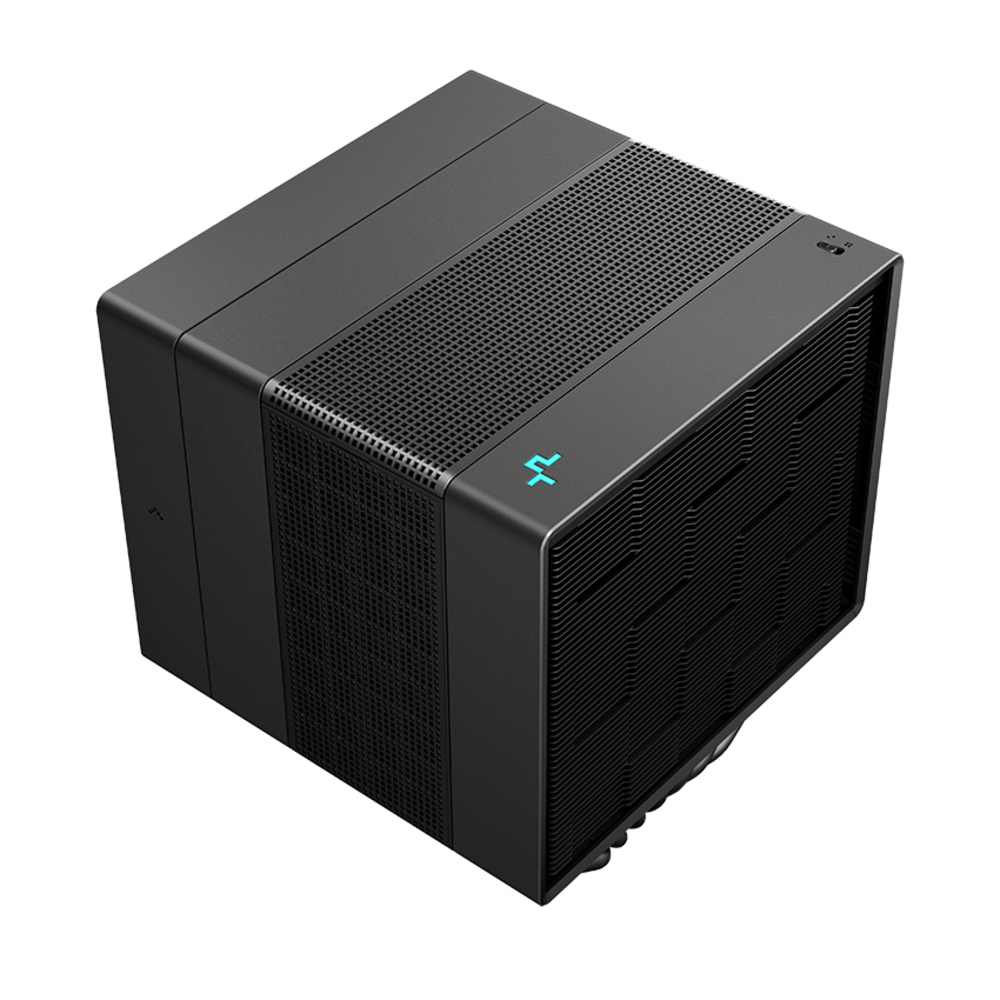

The Deepcool Assassin IV’s case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.
RAM Clearance
Intel LGA1700/1200/115X: Unobstructed
Intel LGA20XX: 63mm
AMD: AM4/AM5: Unobstructed
Due to differences in motherboard layouts, the following motherboards are not compatible with the ASSASSIN IV: ROG STRIX Z790-H GAMING WIFI, ROG STRIX Z690-E GAMING WIFI, MSI MEG X570 GODLIKE, MSI B650M APE WIFI, and ROG CROSSHAIR X670E GENE.
BE COOL, BE CALM
A key factor in the Deepcool Assassin IV’s extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the Deepcool Assassin IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN

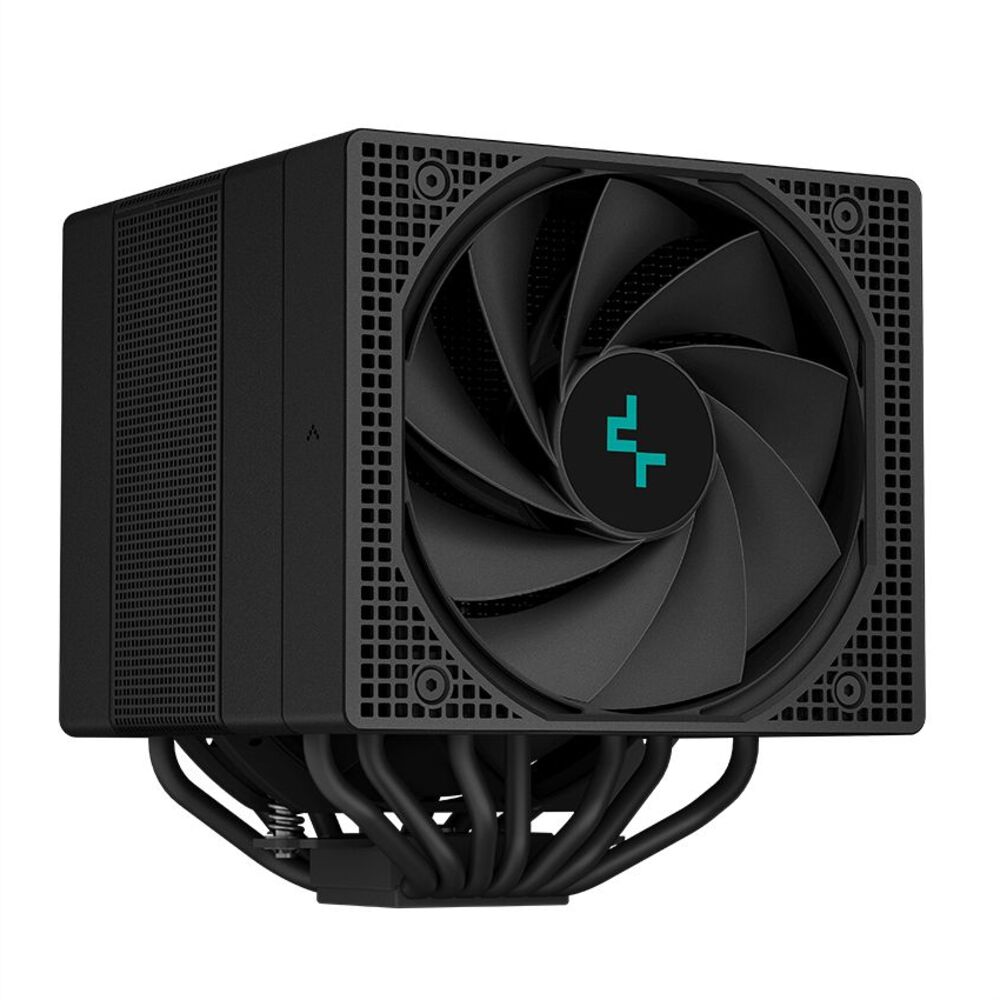

Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.

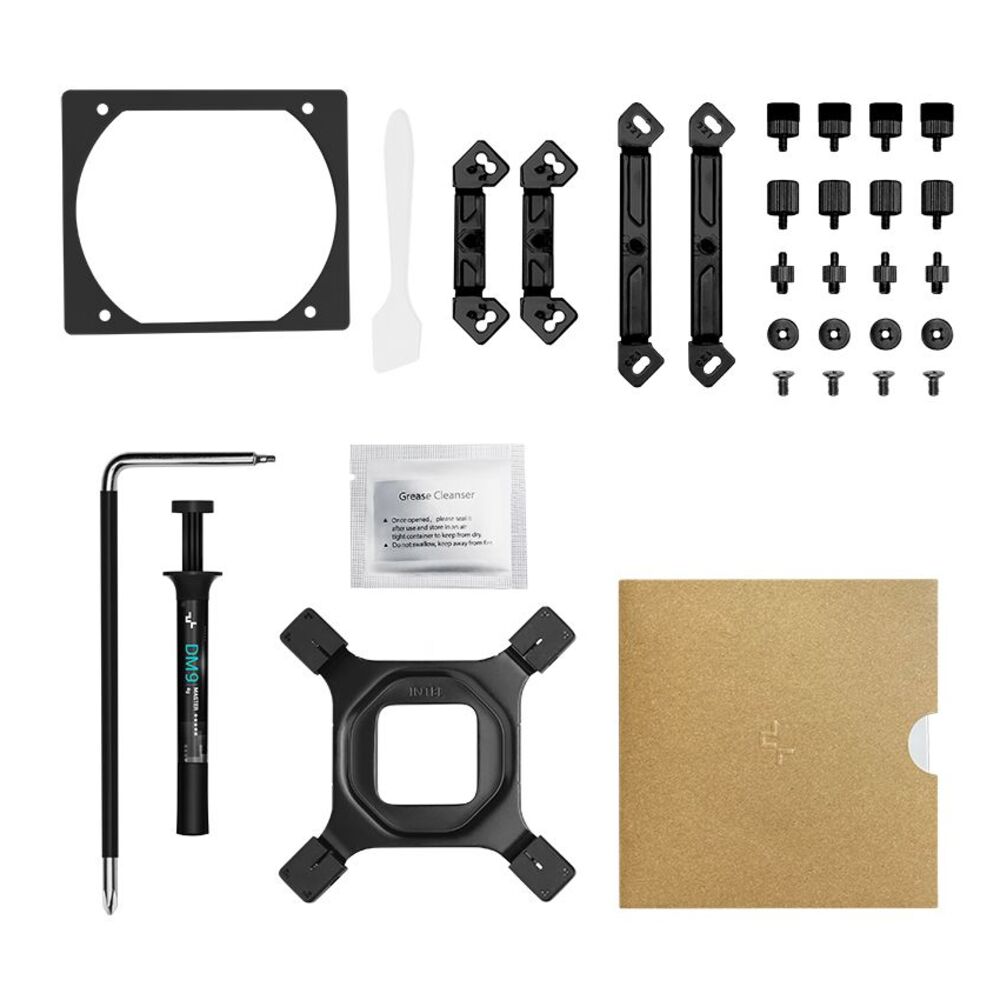

STREAMLINED INSTALLATION
Installing larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
Specifications :
| Product Dimensions | 144×147×164 mm(L×W×H) |
| Heatsink Dimensions | 140×110×160 mm(L×W×H) |
| Net Weight | 1575 g |
| Heatpipe | Ø6 mm×7 pcs |
| Fan Dimensions | 140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
| Fan Speed (Performance Mode) | 500~1700 RPM±10% |
| Fan Airflow (Performance Mode) | 79.1 CFM / 58.06 CFM |
| Fan Air Pressure (Performance Mode) | 2.44 mmAq / 2.1 mmAq |
| Overall Noise (Performance Mode) | ≤29.3 dB(A) |
| Fan Speed (Quiet Mode) | 500~1350 RPM±10% |
| Fan Airflow (Quiet Mode) | 63.76 CFM / 46.75 CFM |
| Fan Air Pressure (Quiet Mode) | 1.58 mmAq / 1.35 mmAq |
| Overall Noise (Quiet Mode) | ≤22.6 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Motor Type | 6-Pole Fan Motor |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.1 A / 0.07 A |
| Fan Power Consumption | 1.2 W / 0.84 W |
| Rated Voltage | 12 VDC |
| Power Consumption(Performance Mode) | 2.88 W |
| Power Consumption(Quiet Mode) | 1.56 W |
| EAN | 6933412728092 |
| P/N | R-ASN4-BKNNMT-G |
