DeepCool CH170 Digital White Cabinet :
Features :
- MAX 3.5″ HDD 1
- MAX 2.5″ SSD 1
- EXPANSION SLOTS 3
- MAX FAN SUPPORT 4
Overview :

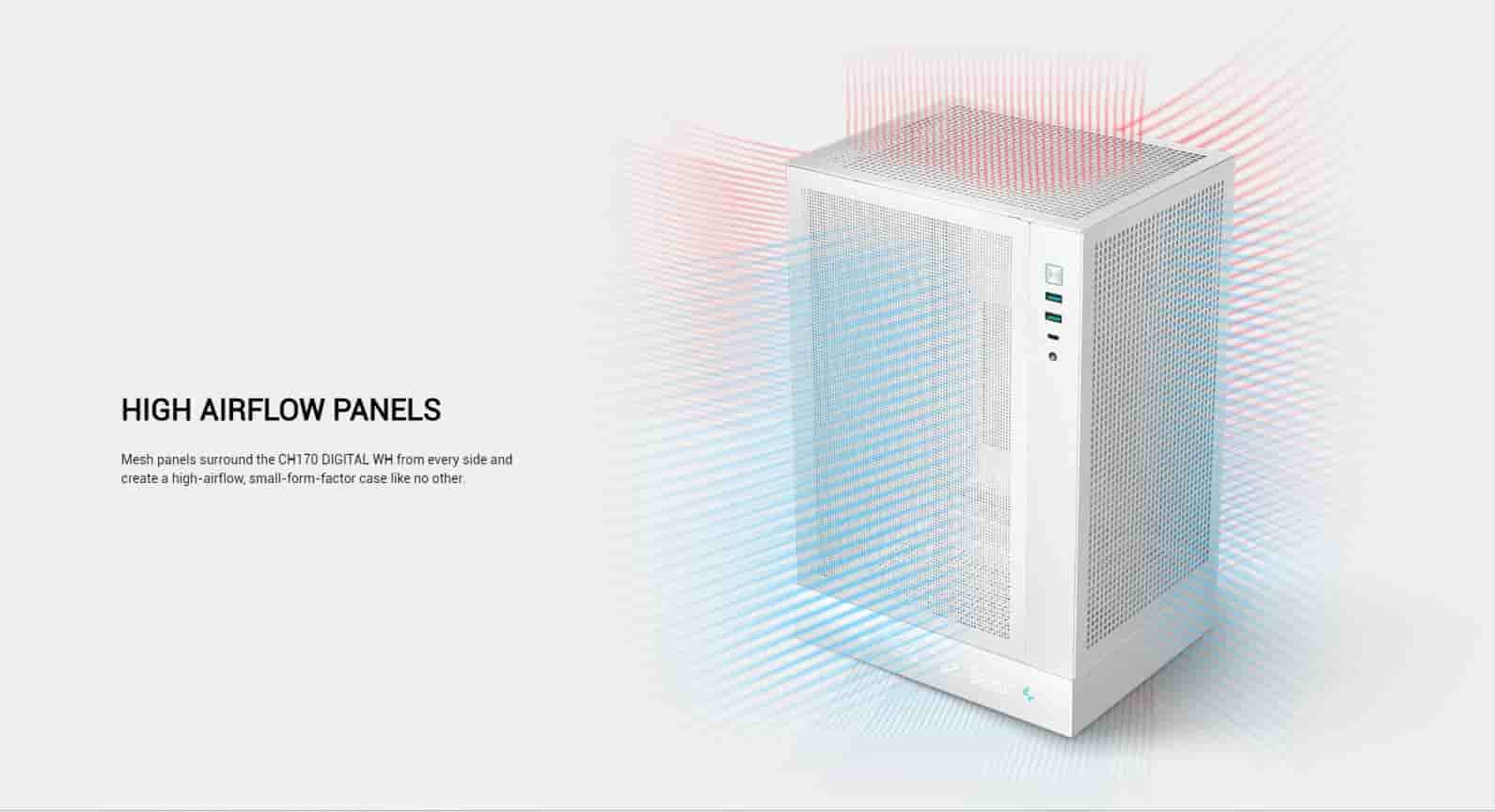

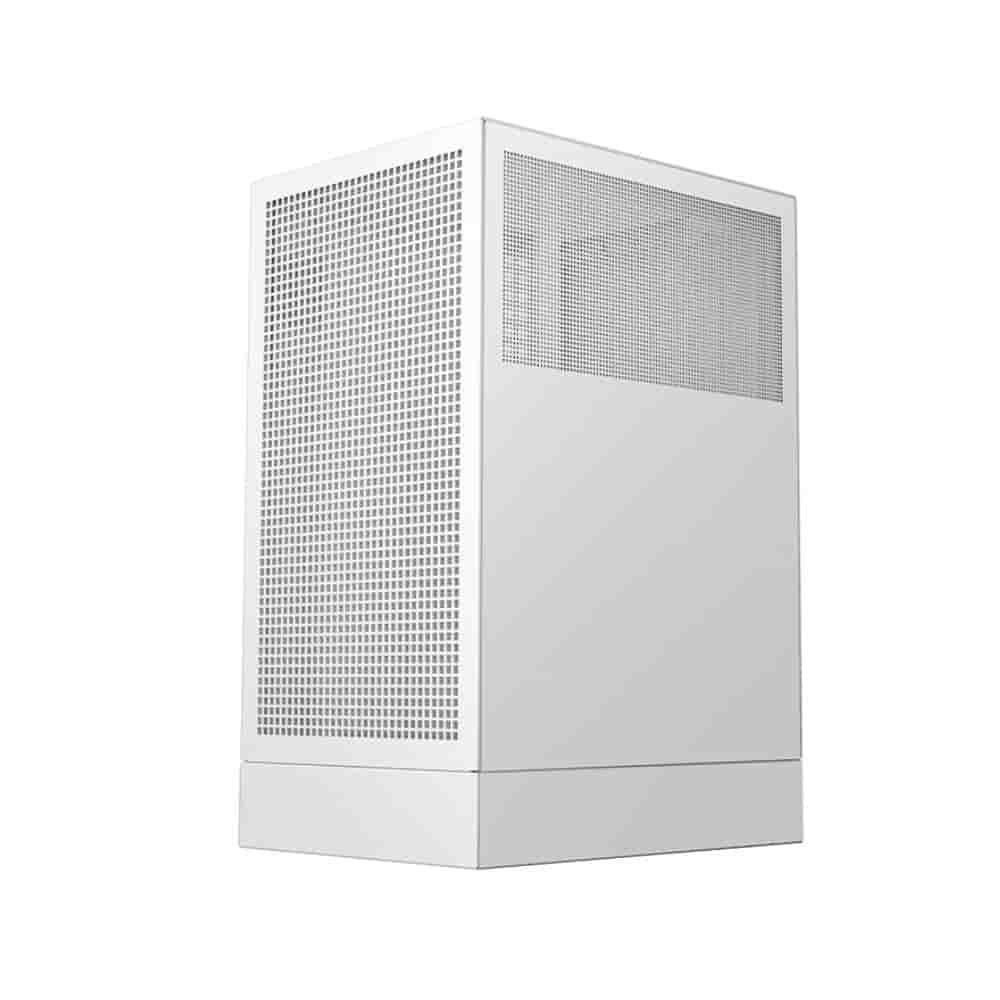

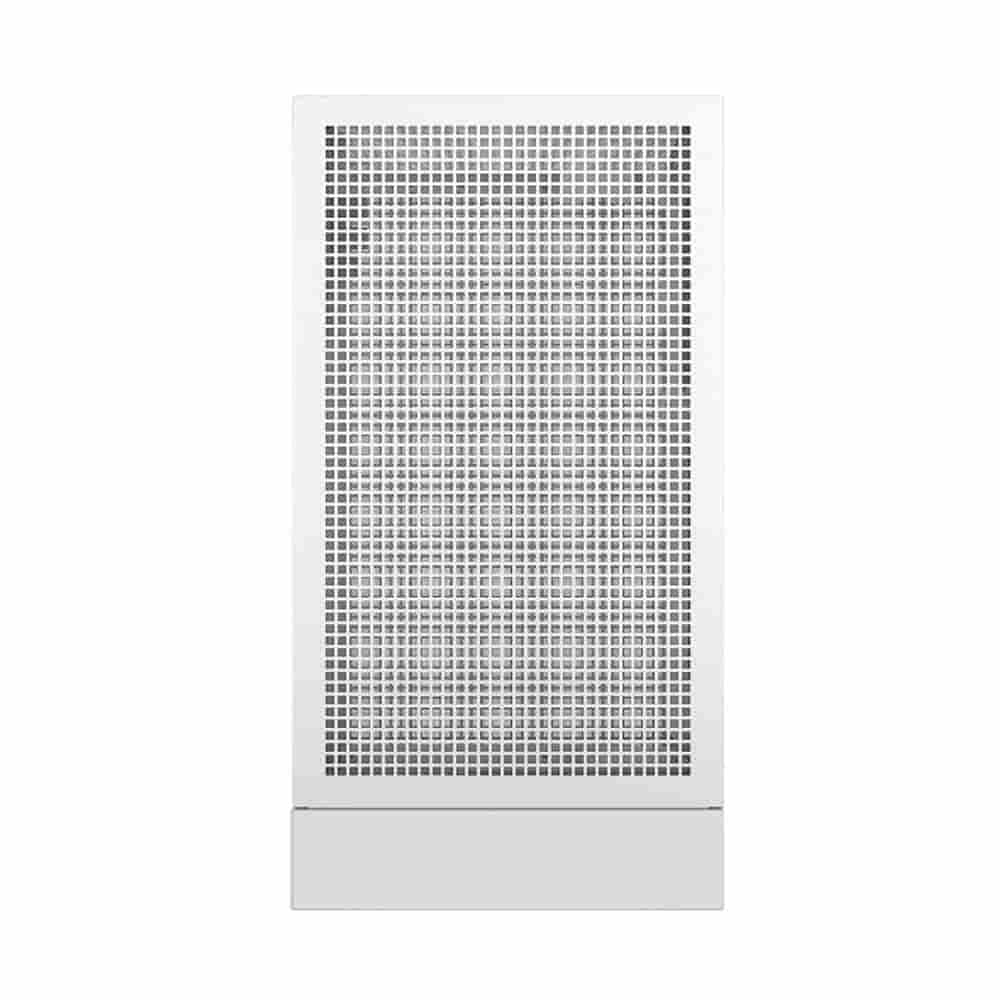

HIGH AIRFLOW PANELS
Mesh panels surround the Deepcool CH170 Digital White from every side and create a high-airflow, small-form-factor case like no other

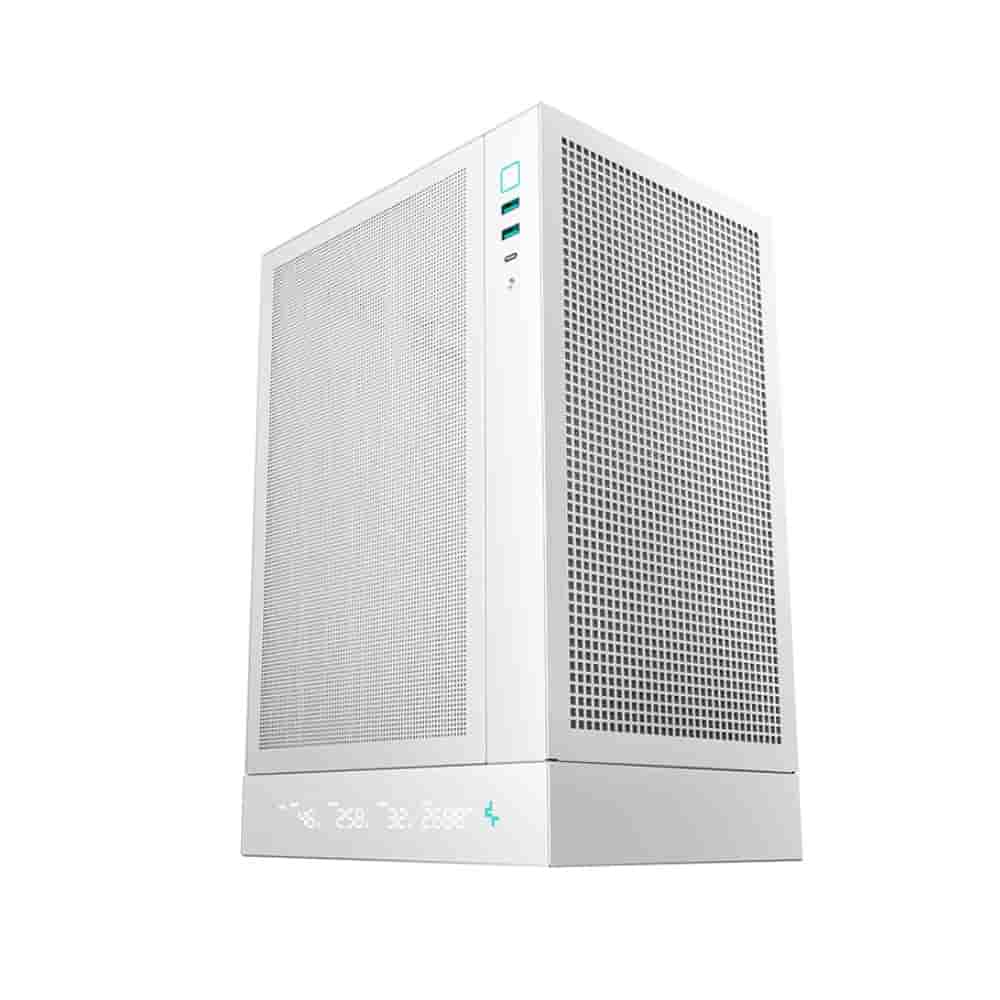

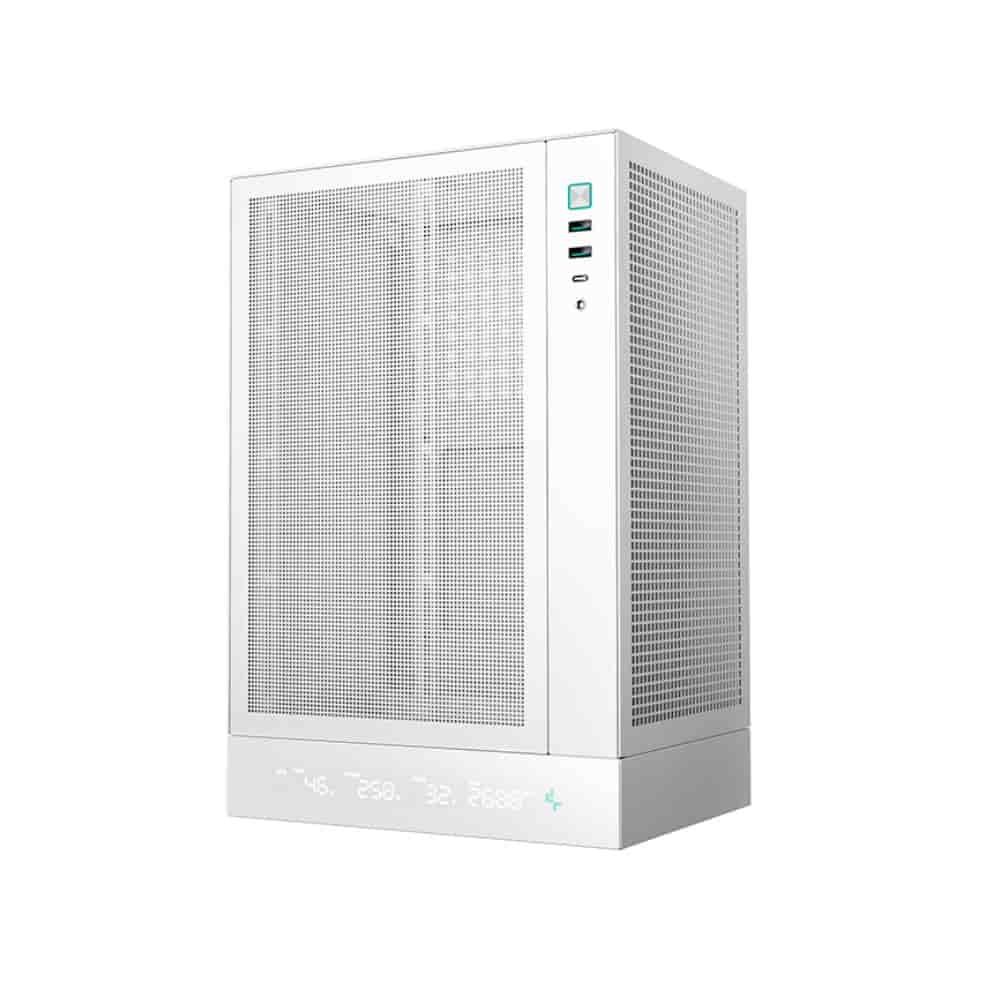

MULTIPLE DATA POINT DISPLAY
The DeepCool CH170 Digital White has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.
FULL SIZED AIR COOLING!
Lack of air cooler support in small mITX cases is a thing of the past. The DeepCool CH170 Digital White can support giant air coolers up to 172mm in height!
OR GO LIQUID
If liquid cooling is preferred, that is also an option with the DeepCool CH170 Digital White . A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.

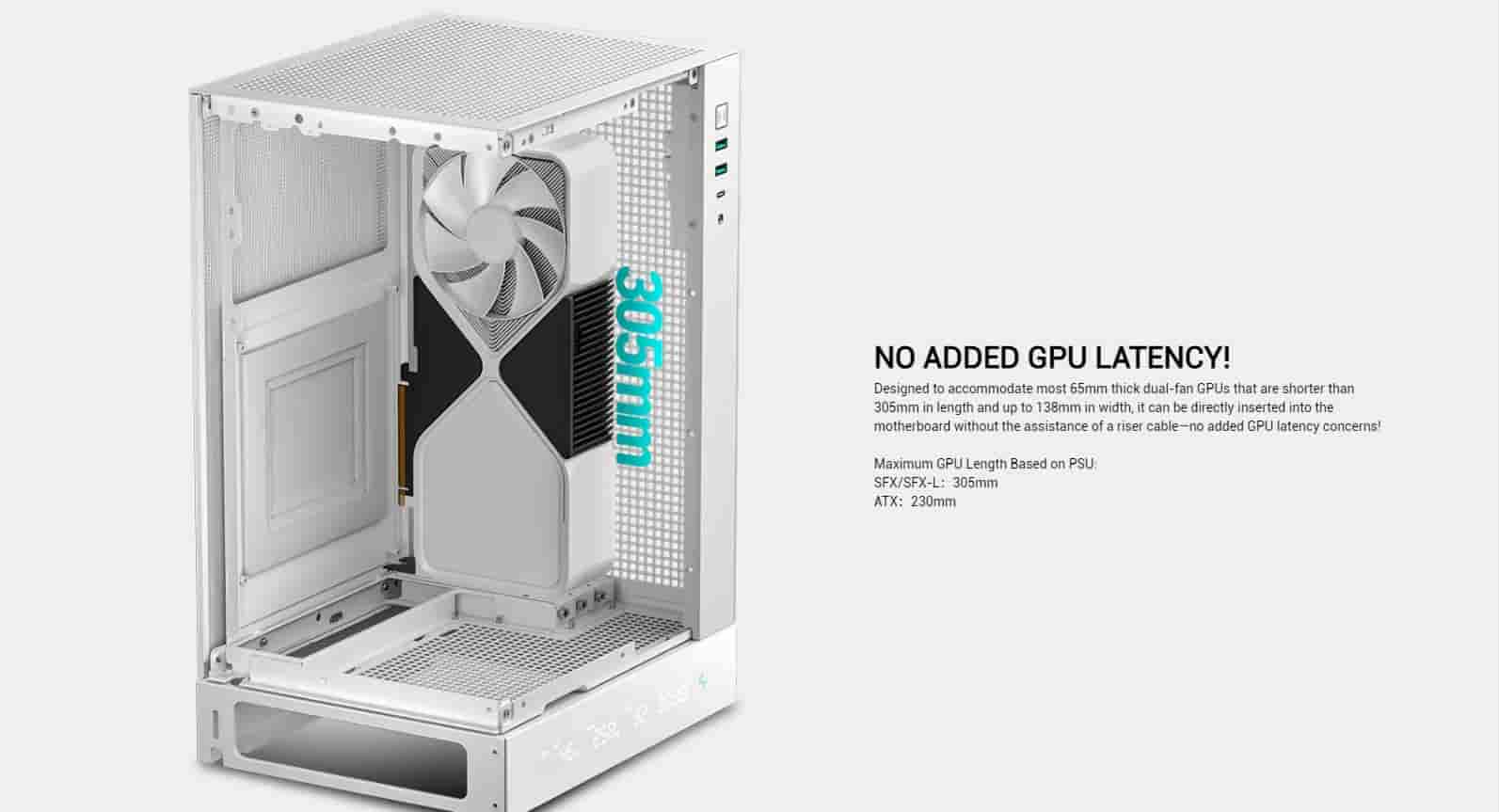

NO ADDED GPU LATENCY!
Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm

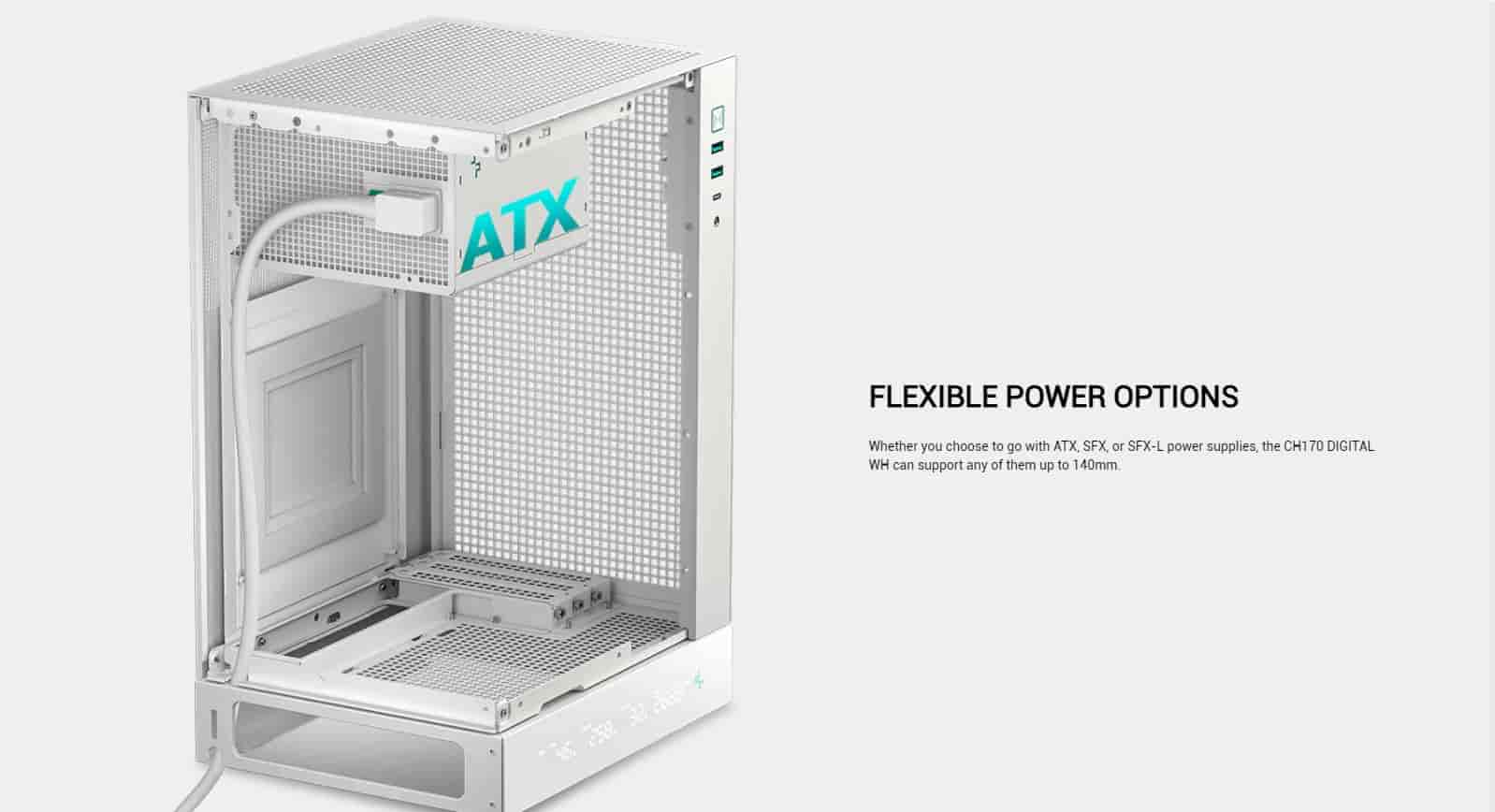

FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL can support any of them up to 140mm.

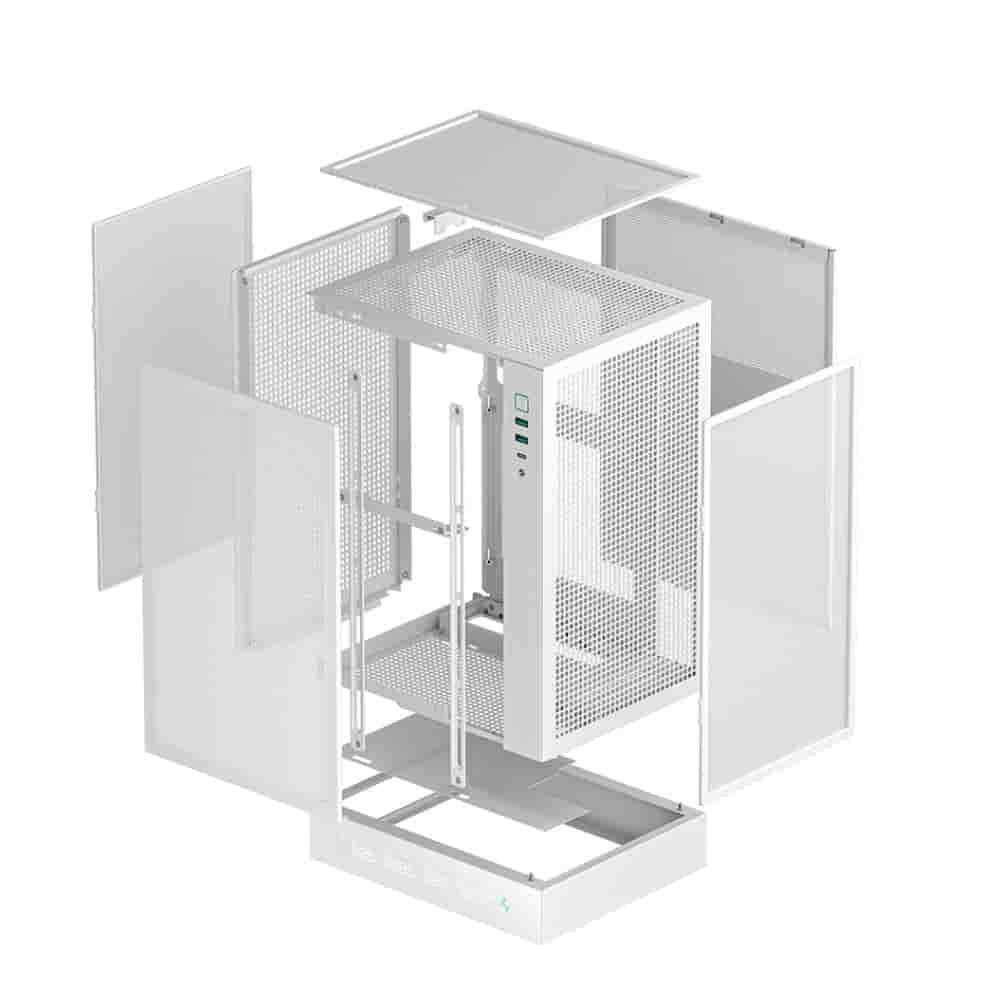

QUALITY OF LIFE IMPROVEMENTS
Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the DeepCool CH170 Digital White makes everything a little easier.
Specification :
| Product Dimensions | 380x200x250mm(L×W×H) |
| Net Weight | 3.4kg |
| Materials | ABS+SPCC |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | USB3.0×2、Audio×1、Gen2 TypeC×1 |
| 3.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three） |
| 2.5″ Drive Bays | 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three) |
| Expansion Slots | 3 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top:1×120 mm Front: NA Rear: 2×120 mm Bottom:1×120 mm Side : 2×120 mm |
| Radiator Support | Side : 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Length Limit | Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2（maximum length: 140mm）/ SFX / SFX-L |
| EAN | 6933412774228 |
| P/N (Part Number) | R-CH170-BKNPI0D-G-1 |
| Warranty | 1 Year |
