DeepCool PX1300P ATX 3.0 80 PLUS Platinum 1300W Power Supply :
Features :

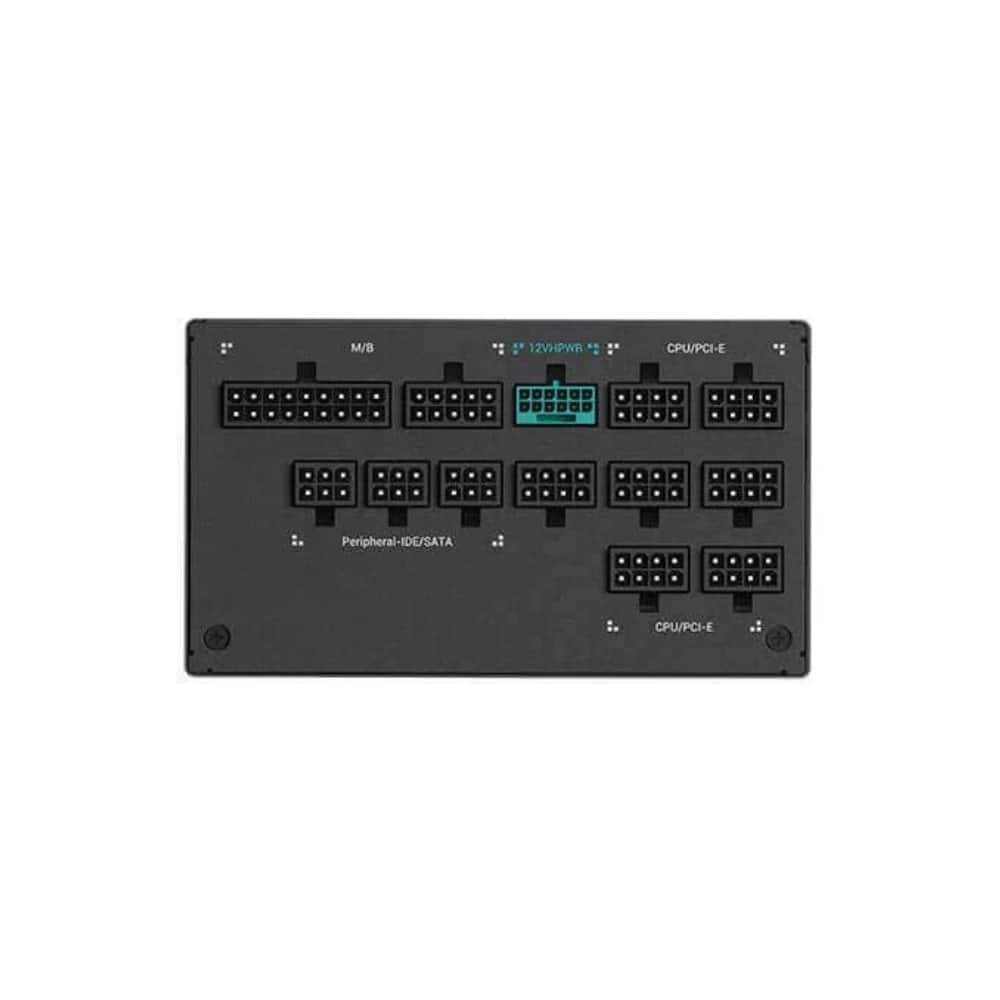

- The Deepcool PX1300P is a newly designed power supply that meets the latest Intel ATX 3.0 standard. With a dedicated 12V-2×6, 2 EPS, and 5 PCI-e ports, the PX1300P provides stable power for a wide range of modern high-power components.
Overview :

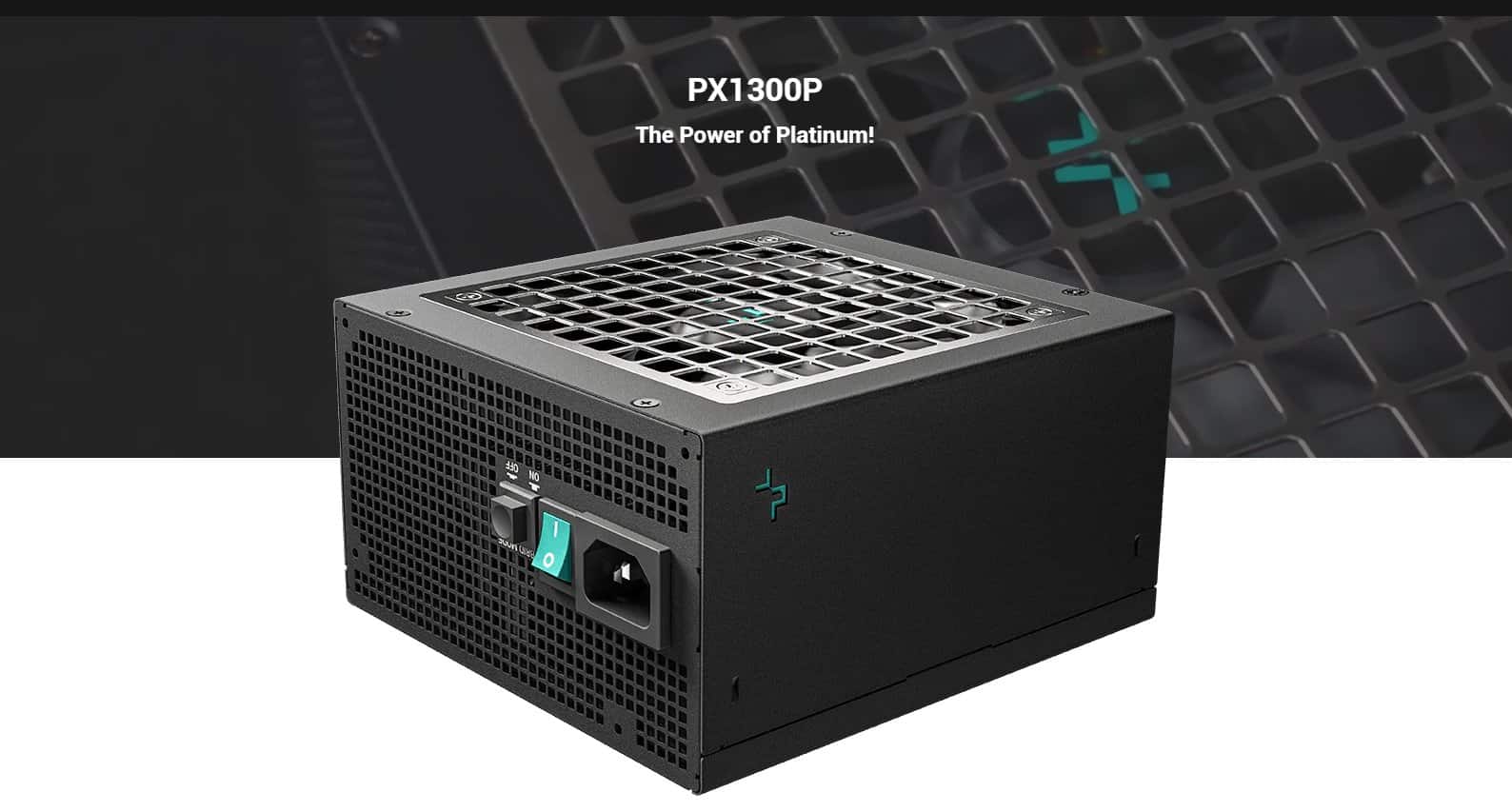

PX1300PThe Power of Platinum!

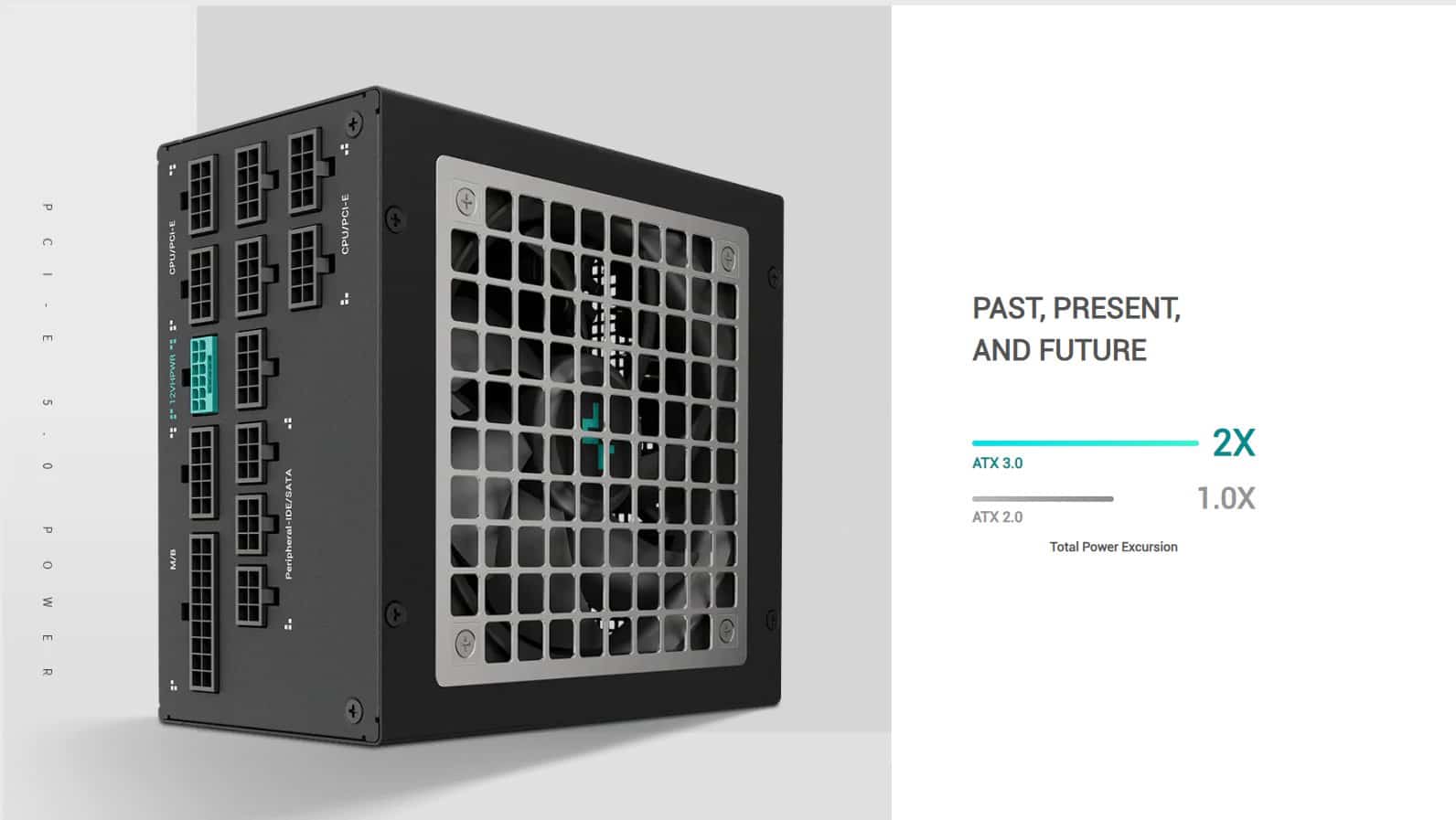

PAST, PRESENT,AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, random power spikes will never be an issue. The DeepCool PX1300P will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
PRISTINE PLATINUM
80 Plus and Cybenetics Platinum certified to meet a high level of power efficiency under typical loads.
PREMIUM QUALITY AT ITS FINEST
Solid and reliable power is provided through the use of all Japanese Electrolytic 105C capacitors and a dual main capacitor topology. Due to the high quality of the PSU build, the PX1300P will operate at altitudes up to 5000 meters above sea level.
STATIC TO DYNAMIC

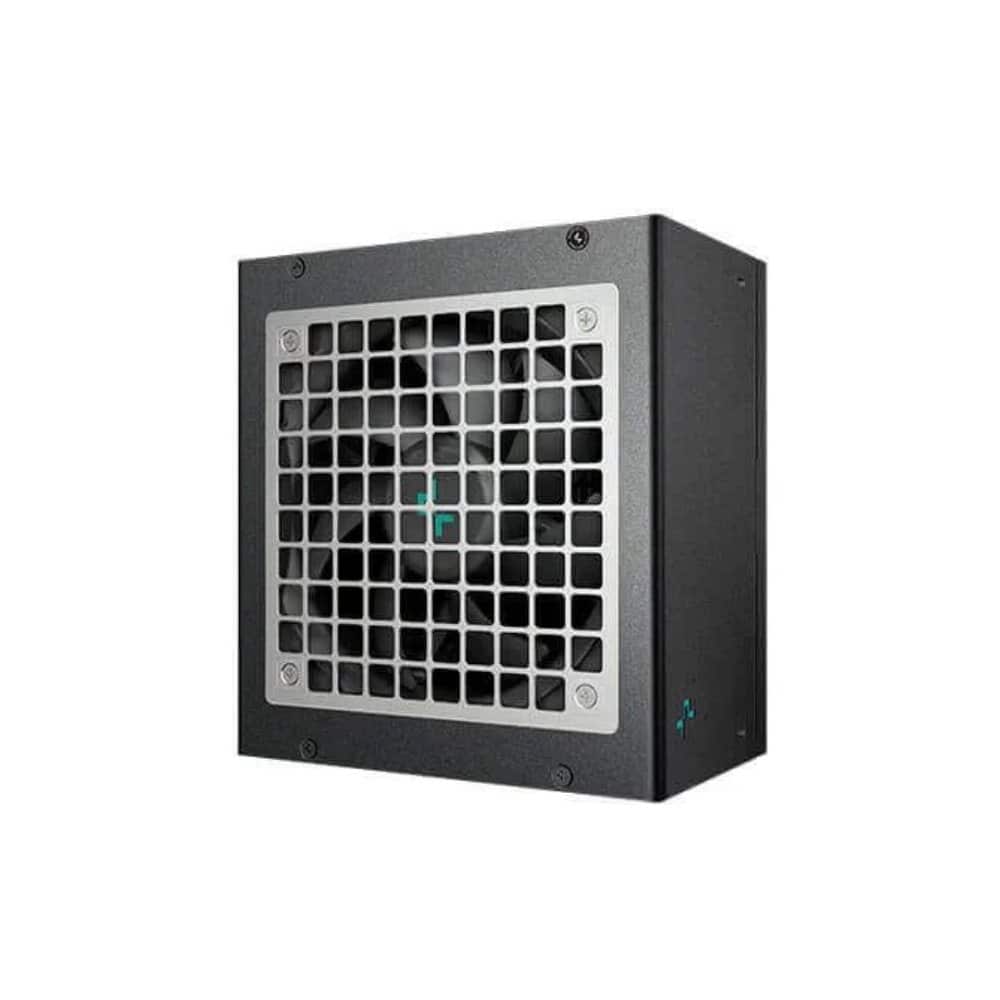

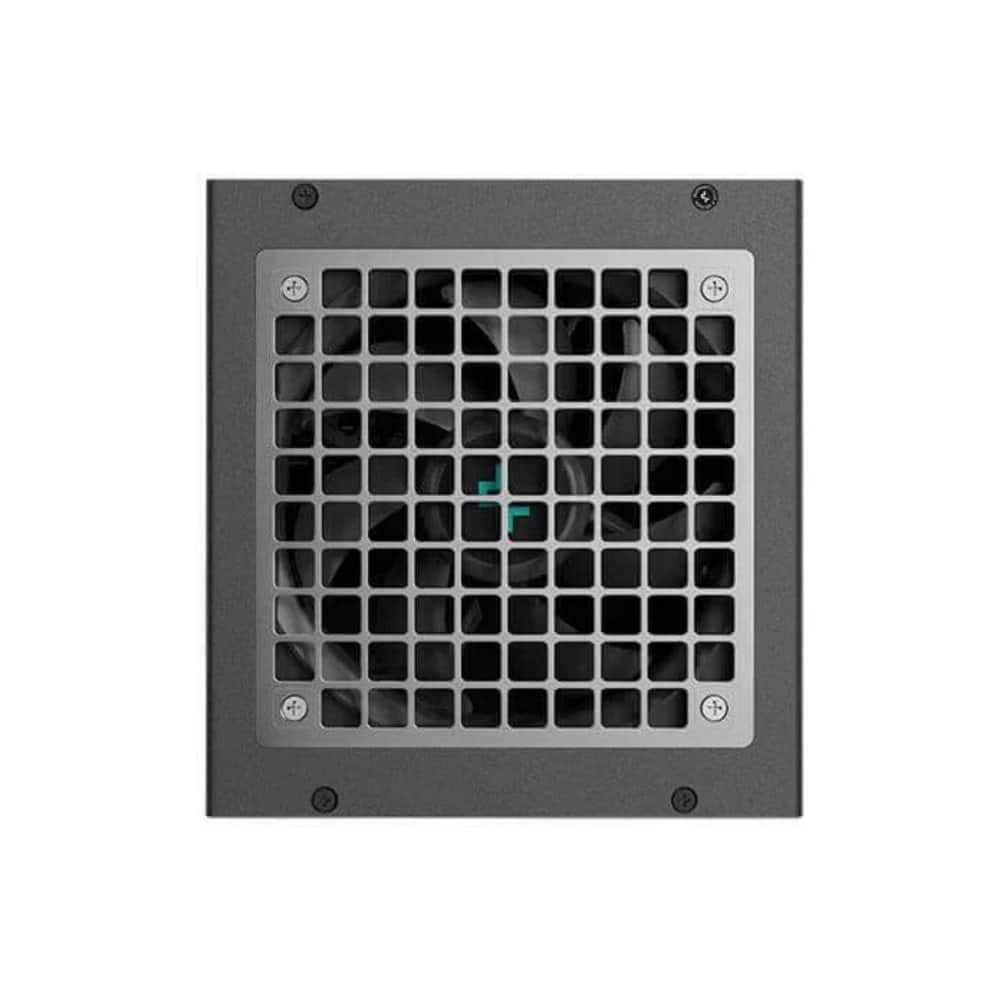

The PX1300P comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 120mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
Specifications :
Type | ATX12V V3.0 |
Product Dimensions | 150×160×86mm (W x L x H) |
Efficiency certification | 80Plus Platinum/Cybenetics_Platinum |
Fan Size | 120mm |
Fan Bearing | FDB (Fluid Dynamic Bearing) |
Topology | Interleaved PFC, Full-Bridge & LLC + DC to DC |
Capacitors | Full Japan Electrolytic Capacitors |
Power Good Signal | 100-150ms |
Hold Up Time | ≥ 16ms |
Efficiency | ≥92% Under Typical Load (50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP |
Operation Temperature | 0-40°C |
Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/; |
Erp Regulation | ErP 2014 |
Environment Protection | WEEE/中国 RoHS/Triman/P65 |
MTBF | 100,000 Hours |
Warranty | 12 Years |
