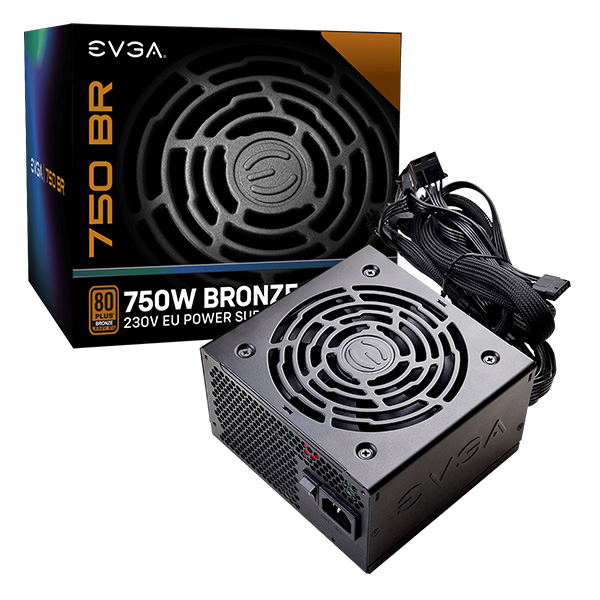

EVGA 750 BR, 80+ BRONZE 750W, 3 Year Warranty, Power Supply 100-BR-0750-K3 (UK 230V)
Features :
- 80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency
- Single 12V. Rai
- Active Power Factor Correction
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) - 3 Year Warranty
- DC-DC Converter improves 3.3V/5V stability
- Quiet and Intelligent Auto Fan for near-silent operation
Specifications :

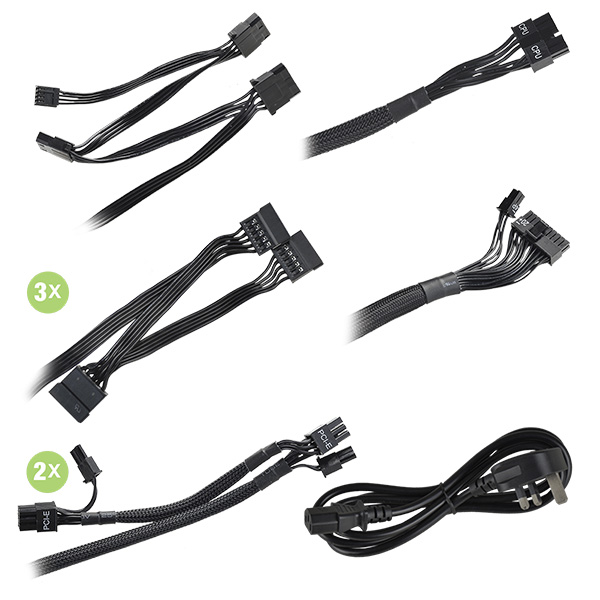

CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 2x 550mm, 670mm |
| SATA Cable | 3x 450mm, 570mm, 690mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| Floppy Adapter | 1x |
| AC Power | 1x 1200mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x 24pin (20+4) |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIe | 4x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

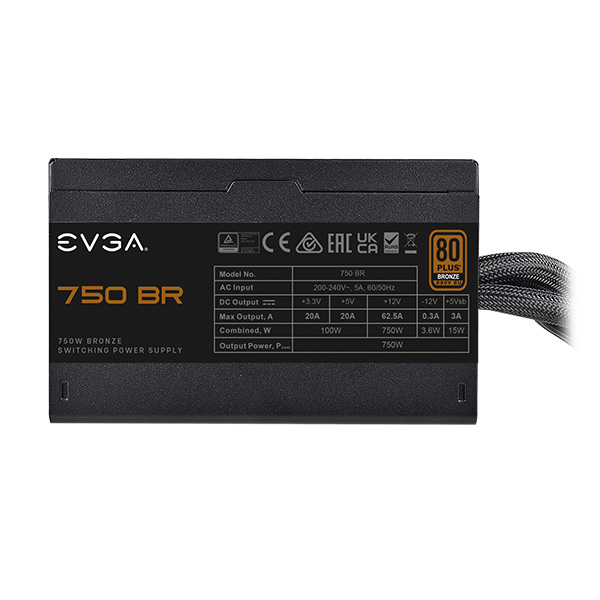

POWER SPECS
| AC Input | 200 – 240 VAC, 10/5A, 50 – 60 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 24A | 20A | 62.5 | 3A | 0.3A |
| 750W | |||||
| 100W | 750W | 15W | 3.6W | ||
| Total | 750W | ||||
ADDITIONAL DETAILS
| Operating Temperature | – |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4.82 lbs |
| Size | 86mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, RCM, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 120mm Long Sleeve Bearing |
