EVGA SuperNOVA 1000 GT, 80 Plus Gold 1000W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 150mm Size, Power Supply 220-GT-1000-X1
Features :
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- Fully Modular to reduce clutter and improve airflow
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
Overview :
REFINEMENT IN PERFORMANCE AND DESIGN
The EVGA SuperNOVA 1000 GT Iine is your next choice in a fully modular, compact 180mm length & width power supply with 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY
EVGA SuperNOVA 1000 GT is 80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA 1000 GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE 12V OUTPUT
Provides a stable output for compatibility with the latest hardware.
FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment,resulting in reduced noise.
Full Protection
OVP – Over Voltage Protection
OCP – Over Current Protection
OPP – Over Power Protection
SCP – Short Circuit Protection
UVP – Under Voltage Protection
OTP – Over Temperature Protection on the Primary and Secondary PCB
10 YEAR WARRANTY
EVGA SuperNOVA 1000 GT comes with a 10 year limited warranty with registration.
Specifications :

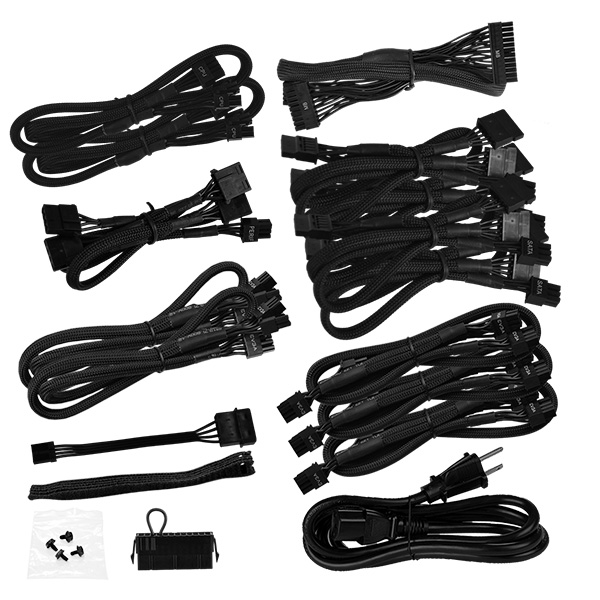

CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 700mm (m) |
| PCIe Cable | 2x 700mm (m), 3x 700mm, 850mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |
| Molex to FDD | 1x |

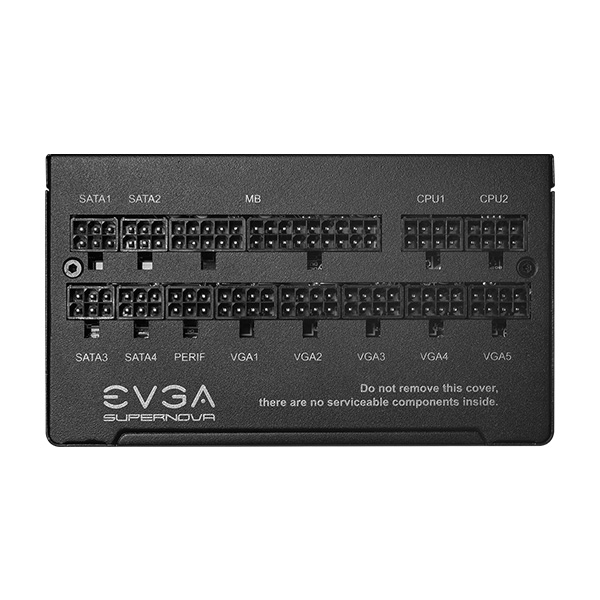

CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 4x |
| Floppy | 1x |

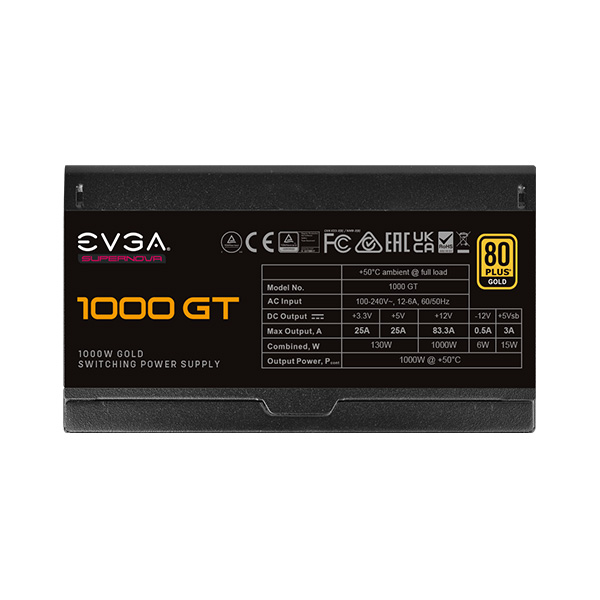

POWER SPECS
| AC Input | 100-240V~, 12-6A, 60/50Hz | ||||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V | ||
| Max Output | 25A | 25A | 83.3A | 3A | 0.5A | ||
| 130W | 1000W | 15W | 6W | ||||
| Total | 1000W | ||||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 8.80 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
