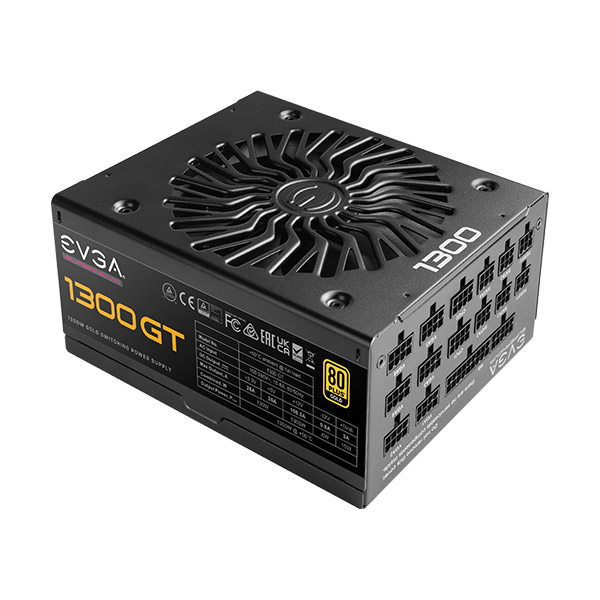

EVGA SuperNOVA 1300 GT, 80 Plus Gold 1300W, Fully Modular, Eco Mode with FDB Fan, 10 Year Warranty, Includes Power ON Self Tester, Compact 180mm Size, Power Supply 220-GT-1300-XN
Features :
- Includes EVGA PerFE 12 Cable
- 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Auto ECO Mode to ensure silent operation under low to medium loads with no configuration necessary
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and Dual OTP (Over Temperature Protection)
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
Overview :
REFINEMENT IN PERFORMANCE AND DESIGN
The EVGA SuperNOVA 1300 GT Iine is your next choice in a fully modular, compact 180mm length & width power supply with 100% Japanese capacitors.
80 PLUS GOLD EFFICIENCY
EVGA SuperNOVA 1300 GT is 80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher.
FLUID DYNAMIC BEARING
The EVGA SuperNOVA 1300 GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy.
SINGLE 12V OUTPUT
Provides a stable output for compatibility with the latest hardware.
FULLY MODULAR DESIGN
Choose the cables you need to make cable management simple and clean.
ECO MODE
Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment,resulting in reduced noise.
Full Protection
OVP – Over Voltage Protection
OCP – Over Current Protection
OPP – Over Power Protection
SCP – Short Circuit Protection
UVP – Under Voltage Protection
OTP – Over Temperature Protection on the Primary and Secondary PCB
10 YEAR WARRANTY
EVGA SuperNOVA 1300 GT comes with a 10 year limited warranty with registration.
Specifications :

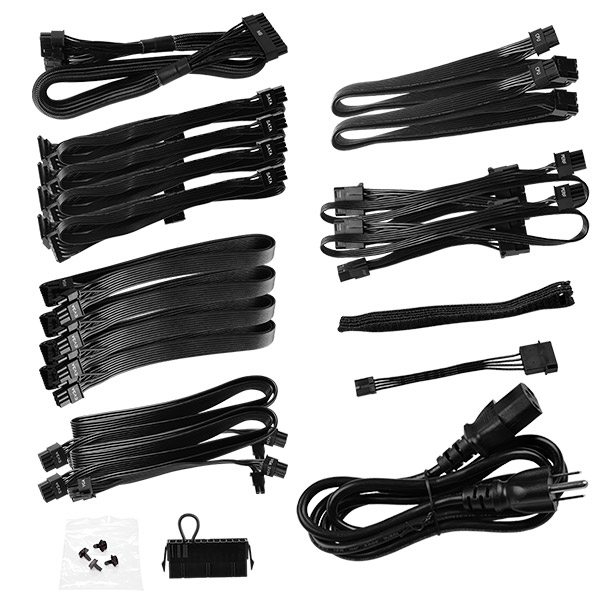

CABLE LENGTH
| ATX Cable | 1x 600mm (m) |
| EPS Cable | 2x 750mm (m) |
| PCIe Cable | 4x 750mm (m), 2x 750mm, 900mm (m) |
| SATA Cable | 4x 550mm, 650mm, 750mm (m) |
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm, 850mm (m) |
| Floppy Adapter | 1x Molex to FDD Adapter |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | Full |

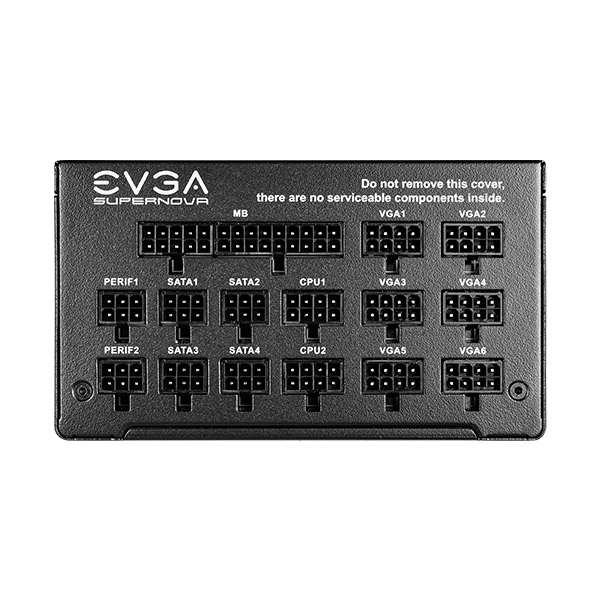

CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 8x 8pin(6+2) |
| SATA | 12x |
| Four-Pin Peripheral | 8x |
| Floppy | 1x |
INPUT
| Input Voltage | 100-240V~ |
| AC Input | 15-8A |
| Input Frequency Range | 60/50Hz |
| Efficiency | 90% or Higher Typical |

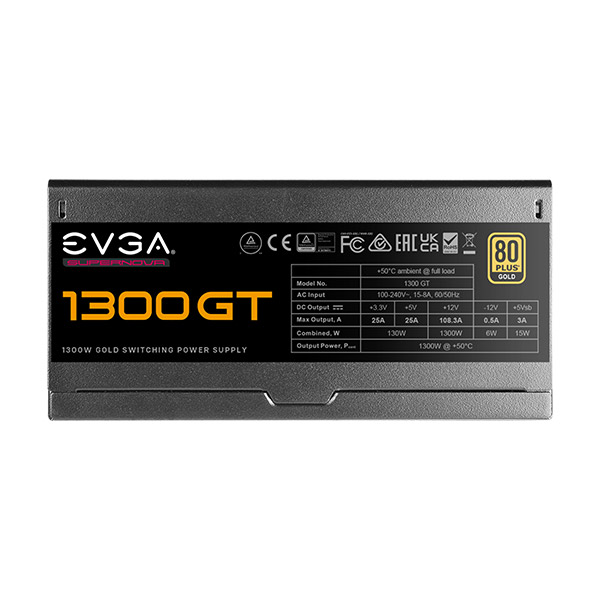

OUTPUT
| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 25A | 25A | 108.3A | 0.5A | 3A |
| 130W | 1300W | 6W | 15W | ||
| Total | 1300W | ||||
ADDITIONAL DETAILS
| Operating Temperature | +50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Gross Weight | 9.20 lbs |
| Size | 86mm (H) x 150mm (W) x 180mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| UPC | 843368072247 |
| EAN | 4250812443038 |
