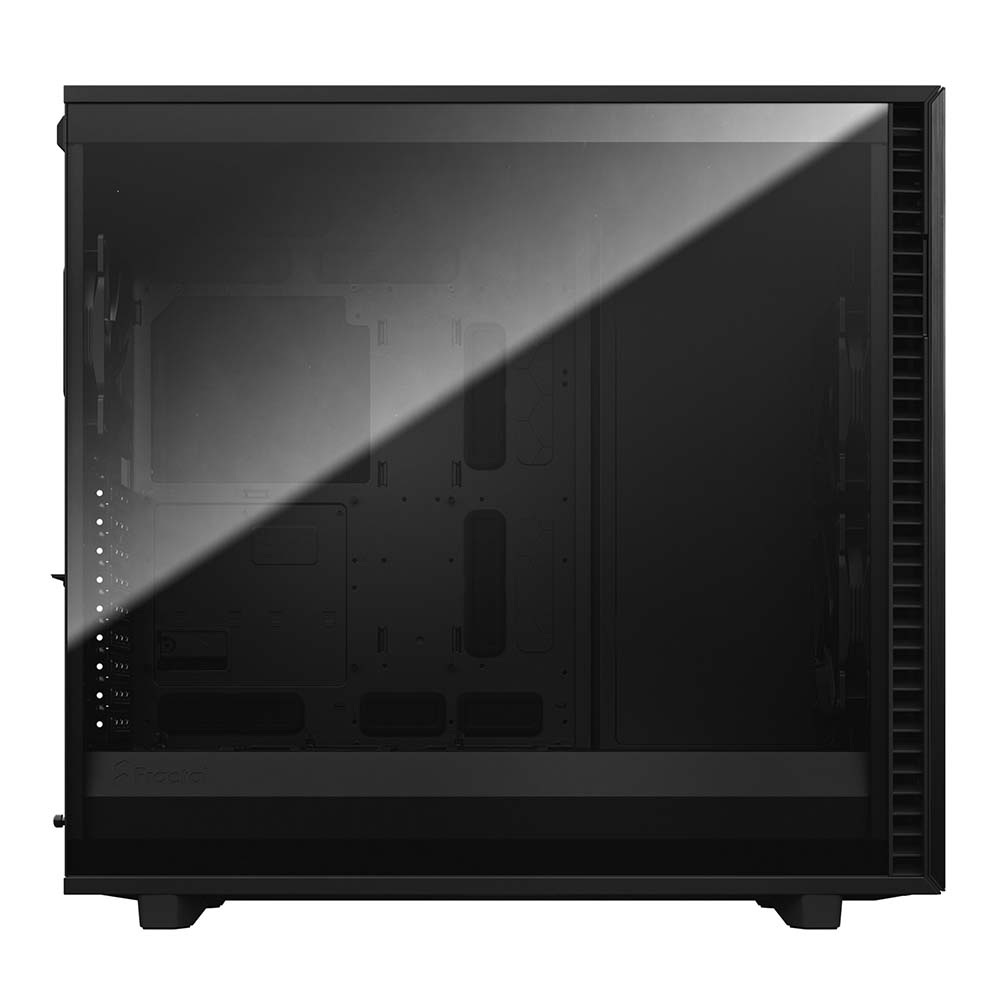

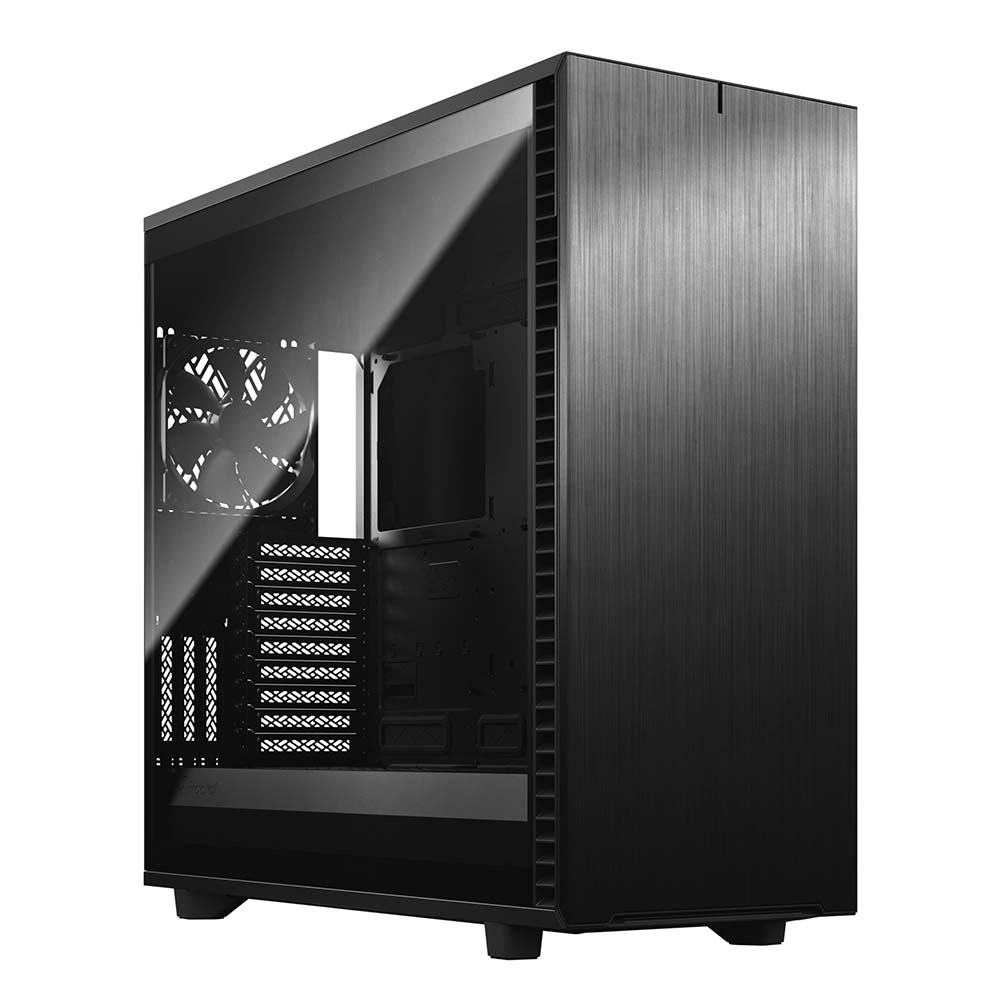

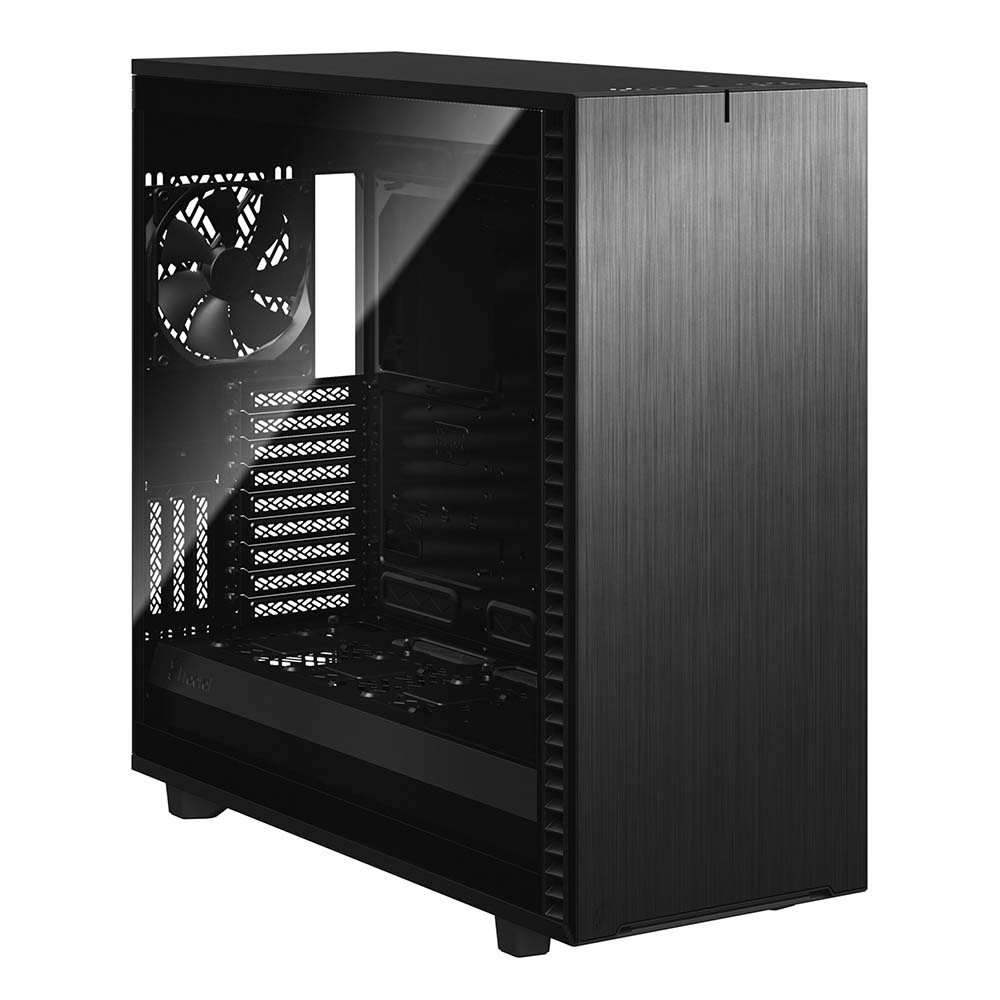

Fractal Design Define 7 XL Black Light Tint TG Cabinet
Features :

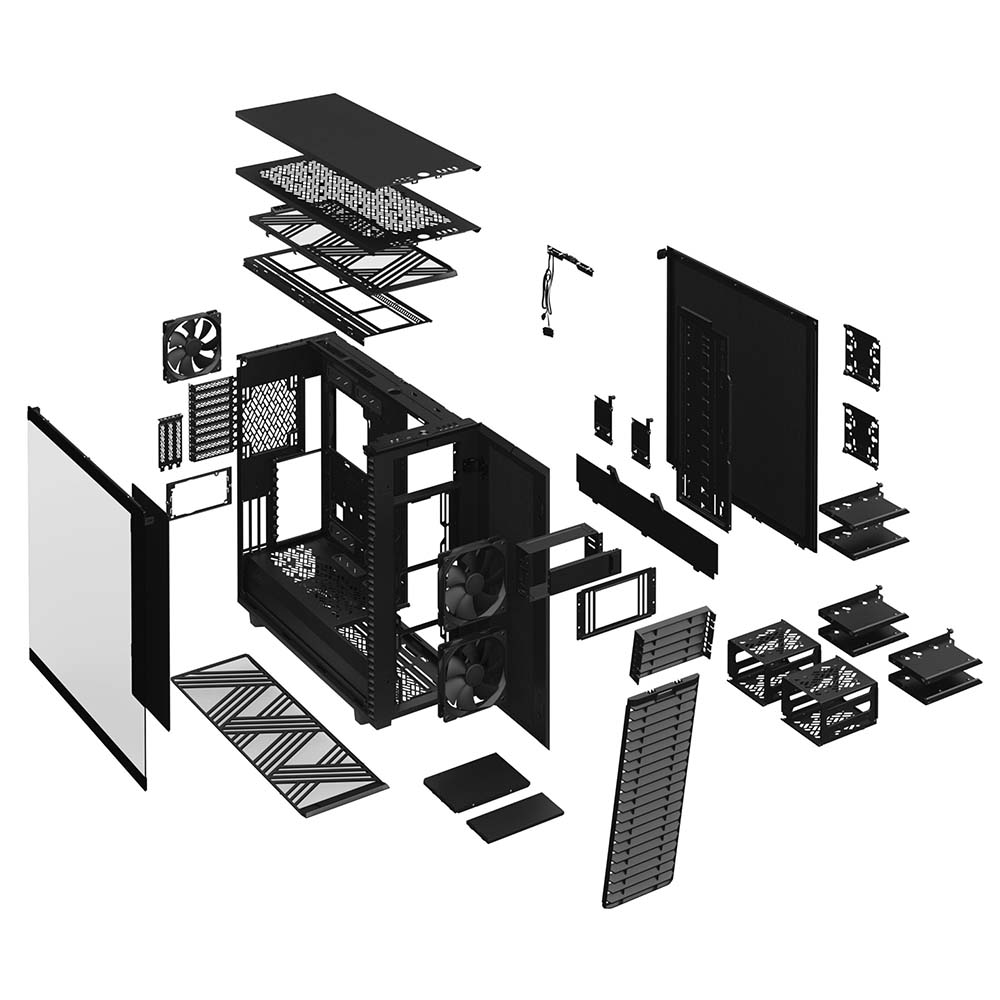

• New chassis design opens up to fully expose the case interior

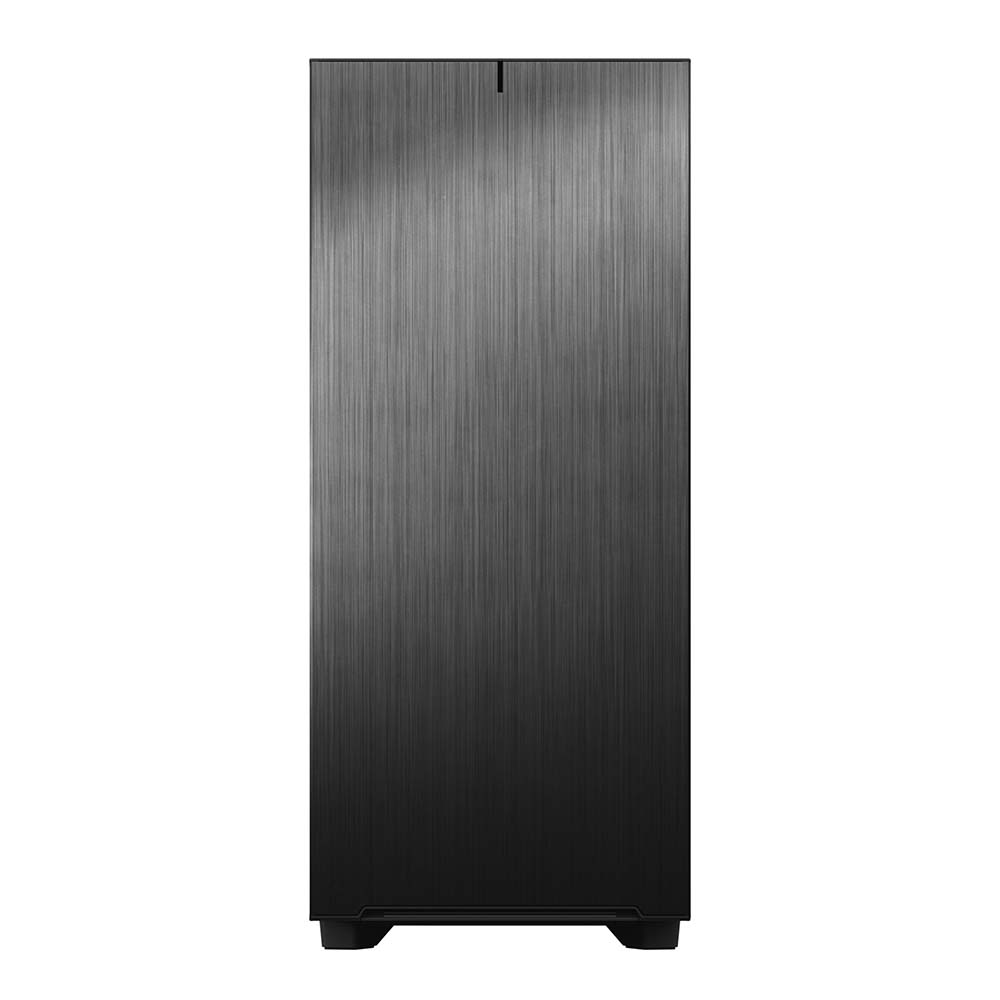

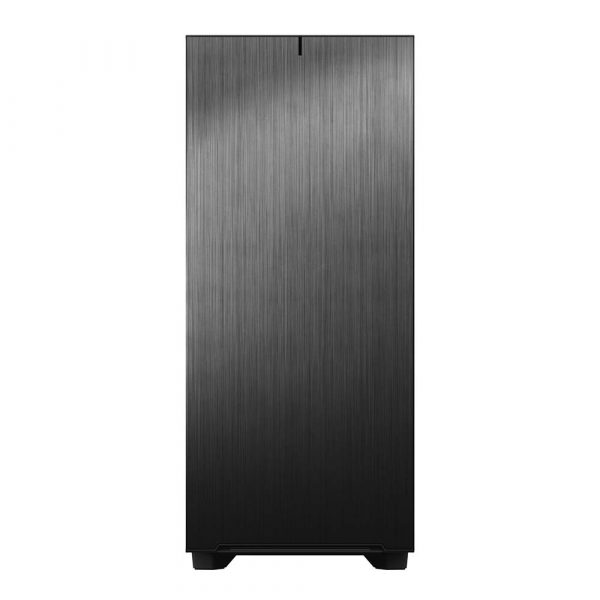

• Anodized aluminum front panel with reversible dual-handed hinges
• Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout
Overview :
The Fractal Design Define 7 XL Black Light Tint TG Cabinet sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
Plenty of room for massive builds

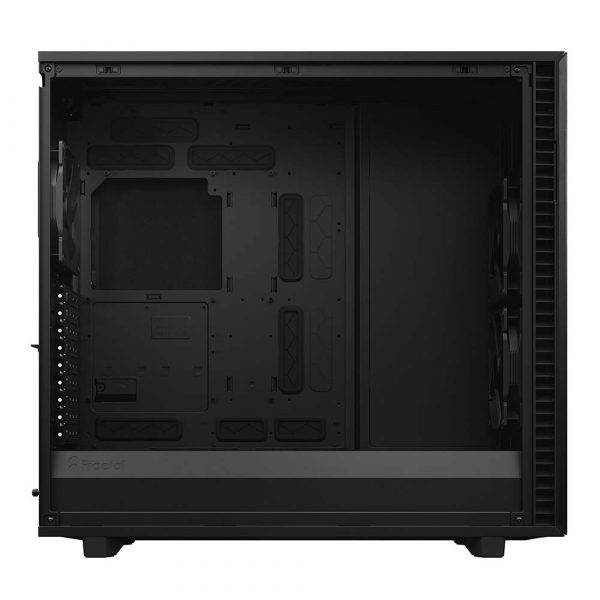

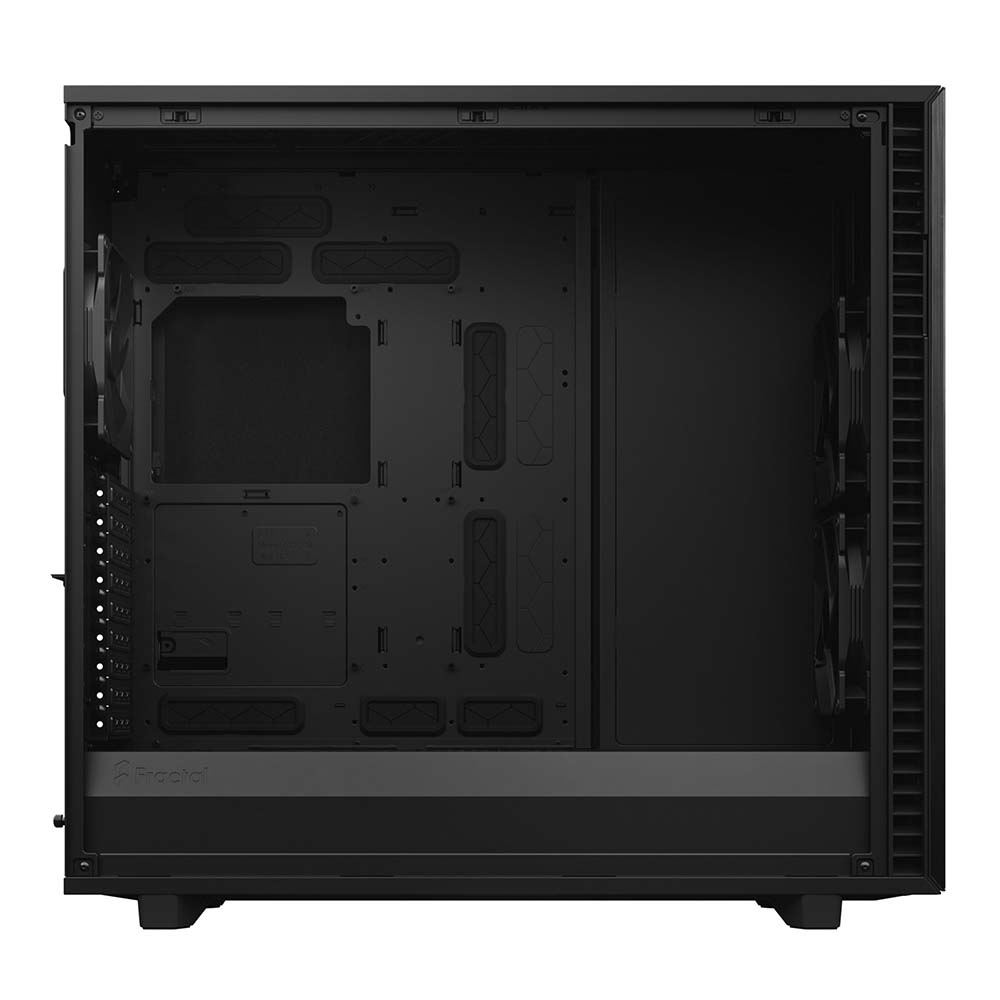

Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base. Fractal Design Define 7 XL Black Light Tint TG has Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB. Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering Ventilated PSU shroud with two-part removable cover. Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities

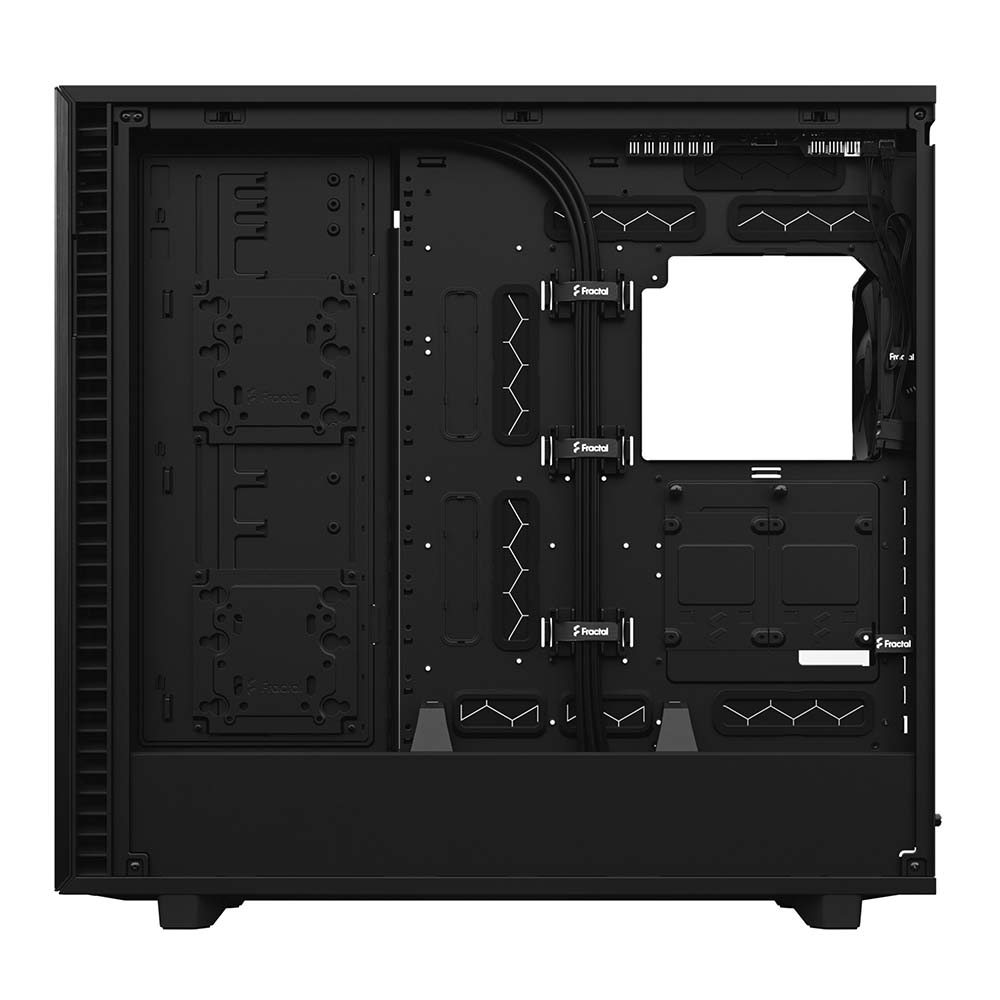

Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included). Fractal Design Define 7 XL Black Light Tint TG has Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board. Sturdy new HDD cage design with vibration damped trays. 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size.
Airflow and cooling

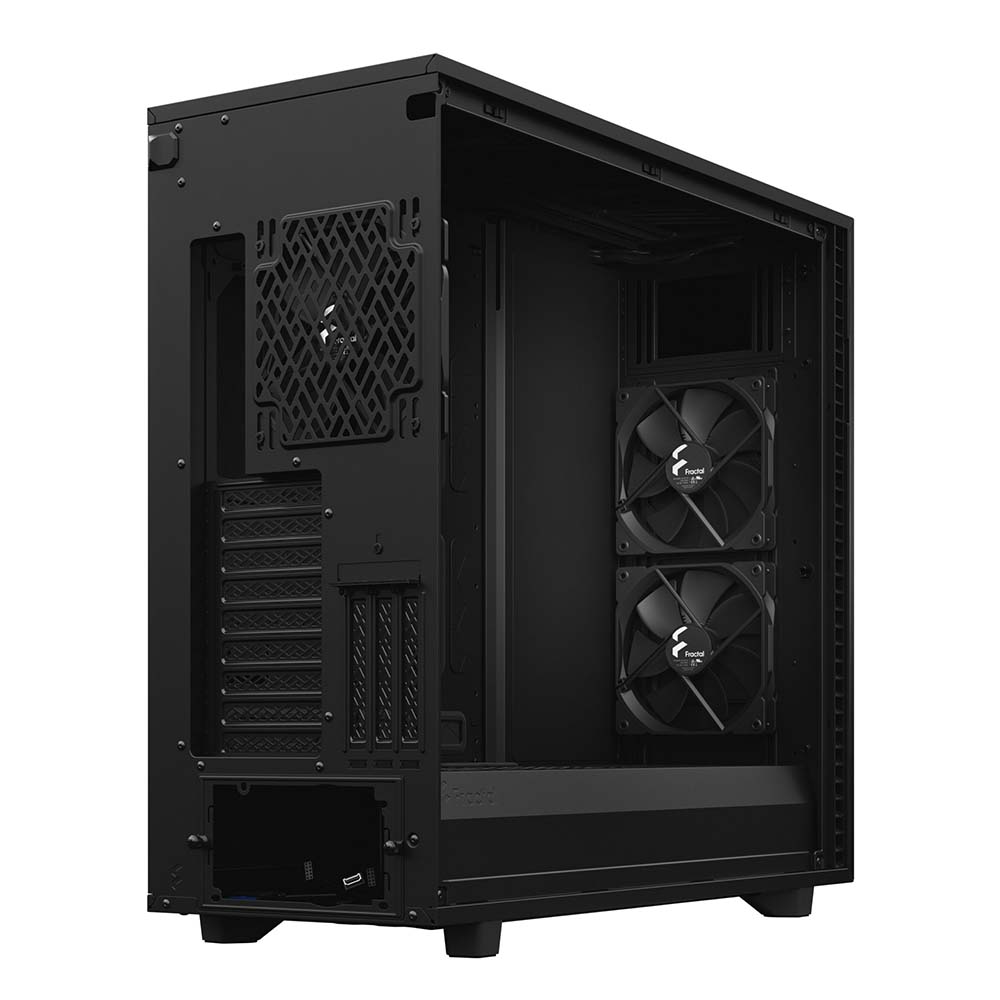

Fractal Design Define 7 XL Black Light Tint TG Cabinet has outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans. Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access. The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering.
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels.
Versatile new Multibracket
The included Multibrackets in Fractal Design Define 7 XL Black Light Tint TG lets you convert any unused fan position to an HDD, SSD or pump mount.
Specifications :
| 3.5″/2.5″ Universal drive brackets | 6 + 2 included, 18 positions total |
| 5.25” drive mounts | 2 |
| Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
| Front fan | 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) |
| Rear fan | 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
| Dust filters | Top, 2 x Front, Bottom + PSU |
| Cable routing grommets | Yes |
| Left side panel | Industrial sound-damped steel |
| Dedicated 2.5″ drive brackets | 2 included, 5 positions total |
| Expansion slots | 9 + 3 |
| Total fan mounts | 11 x 120 mm or 9 x 140 mm |
| Top fan | 4 x 120 mm or 3 x 140 mm |
| Bottom fan | 2 x 120/140 mm |
| Fixed velcro straps | Yes |
| Captive thumbscrews | HDD brackets, SSD brackets, PSU bracket |
| Right side panel | Industrial sound-damped steel |
| Compatibility | |
| Motherboard compatibility | E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
| PSU max length | 250 mm (both HDD cages installed) |
| CPU cooler max height | 185 mm |
| Top radiator | Up to 480/420 mm |
| Bottom radiator | Up to 240/280 mm |
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) | 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
| Power supply type | ATX |
| GPU max length | Storage layout: 359 mm – Open layout: 549 mm (524 mm w/ front fan) |
| Front radiator | Up to 480/420 mm |
| Rear radiator | 120 mm |
| Cable routing space | 30 mm |
| Dimensions | |
| Case dimensions (LxWxH) | 604 x 240 x 566 mm |
| Package dimensions (LxWxH) | 646 x 357 x 708 mm |
| Package weight | 18.84 kg |
| Case dimensions w/o feet/protrusions/screws | 590 x 240 x 548 mm |
| Net weight | 16.53 kg |
| Volume | 77.6 liters |
| Warranty | 2 Years |
