Fractal Design Lumen S36 RGB 360MM Aspect 12 ARGB PWM x2 AIO CPU Liquid Cooler
Overview :
Customize your CPU water-cooling from subtle to stunning with Fractal Design Lumen S36 RGB’s six addressable LEDs that you can command via motherboard or controller.
Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Fractal Design Lumen S36 RGB offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
• Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• Six ARGB LEDs are yours to command via your motherboard or controller
• The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
The right way up
The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
Duality design in Fractal Design Lumen S36 RGB provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
Six ARGB LEDs are yours to command via your motherboard or controller
Powerful aspects
Aspect fans for low turbulence and chaining support
Forget the thermal paste
Thermal paste is pre-applied to ensure a proper and pain-free installation
Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
Fractal Design Lumen S36 RGB Supports the most common sockets for both Intel and AMD
Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Specifications :
Product Code | FD-W-L1-S3602 |
Sockets supported (Intel) | LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 * |
Sockets supported (AMD) | AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
Thermal paste | Pre-applied |
Tube length | 400mm |
Tube material | Low-permeability rubber with braided nylon sleeve |
Fittings, block side | Articulating 90-degree Elbow |
Fittings, radiator side | Barbed fitting |
Block height | 43mm |
Block measurements (with fittings) | 79 x 67 mm |
Block diameter (main block body) | 67 mm |
Fan specifications | |
Fan type | Aspect 12 RGB PWM |
Rotational speed | 500–2000 RPM |
Fan bearing | Rifle bearings |
Fan PWM control | Yes |
Fan acoustical noise | <10–33.2 dBA |
Fan maximum air flow | 13-56 CFM |
Fan maximum static pressure | 0.230–2.34 mm H2O |
Fan input voltage | 12V |
Fan maximum input current | 0.37A |
Fan MTTF | 90,000 hours |
Pump specifications | |
Rotational speed | 4000 ± 10% RPM |
Bearing type | Ceramic |
PWM control | No |
Acoustical noise (full speed) | 22 dBA |
Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
Input voltage | 12V DC |
Input current (without fans) | 0.34 A |
MTTF | 50 000 hours |
Radiator specifications | |
Radiator dimensions | 392 x 120 x 27 mm |
Radiator housing material | Aluminum |
Radiator fin material | Aluminum |
Radiator fan screw threads | 6-32 |
Other | |

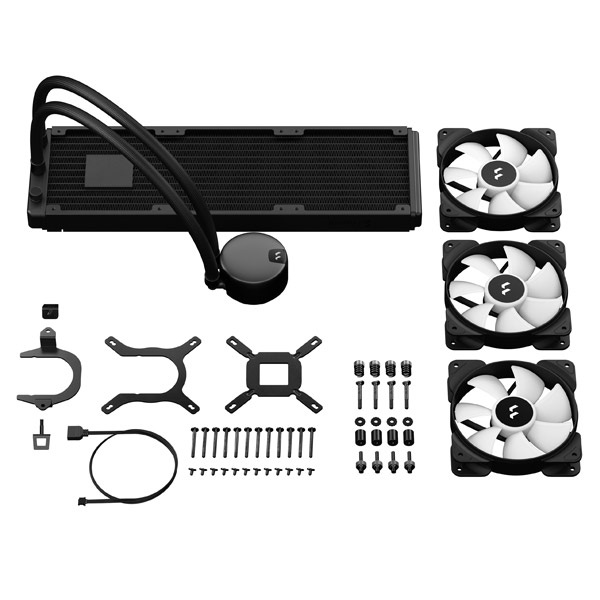

Package contents | CPU Cooler Assembly, 3x Aspect 12 RGB PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
Package dimensions | 448 x 205 x 137 mm |
Package weight | 2.20kg |
Warranty | 5 Years |
