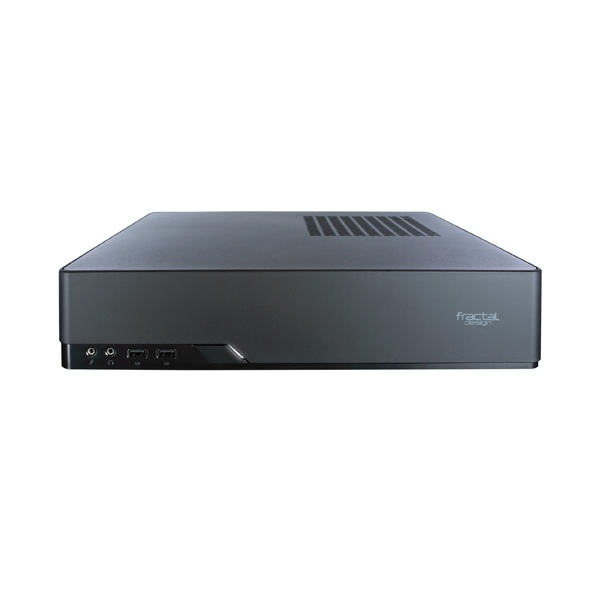

Fractal Design Node 202 ITX Mini Tower Black Cabinet
The Node 202 is the ultimate PC case for those looking for a beautifully designed, compact chassis that can house a
capable gaming build.
This small footprint is an intelligently built unit where extreme detail was placed into the design phase to get every line and
spec in perfect harmony. With both horizontal and vertical orientation possibilities, the Node 202 can be placed anywhere
in the house. The sleek design makes it very attractive next to the TV in the living room or on your desk in the office.

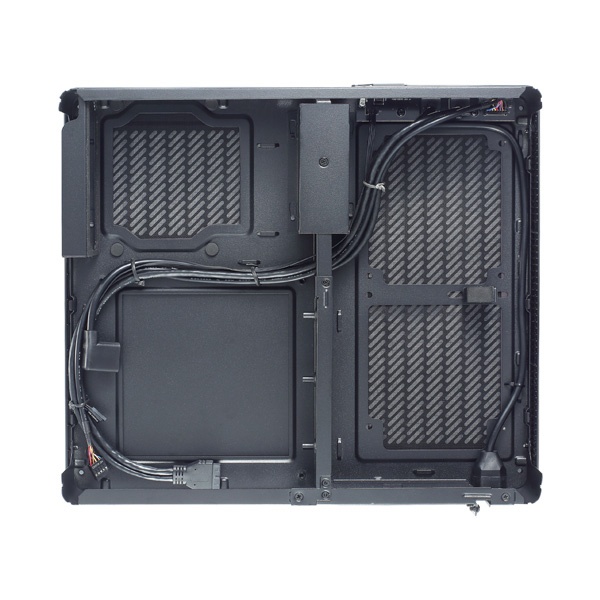

The internal layout of the Node 202 keeps the hot components separate and has them all placed in proximity of free-flow
air so the case will run cool despite not having any extra case fans.
Key features
- Extremely small footprint with a volume of only 10.2 liters

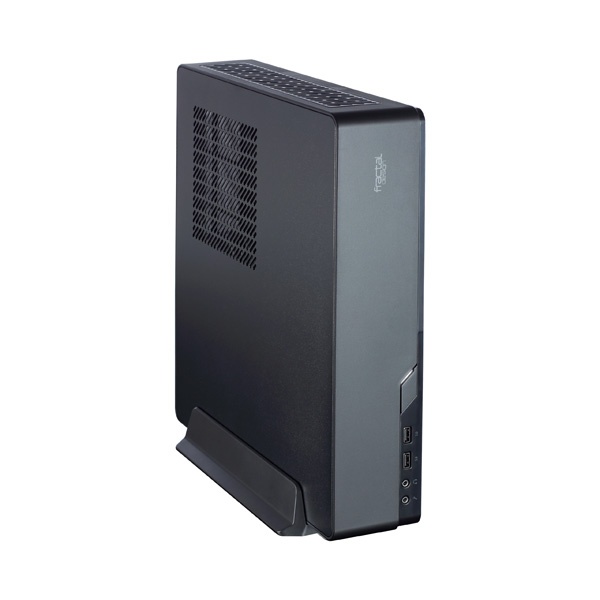

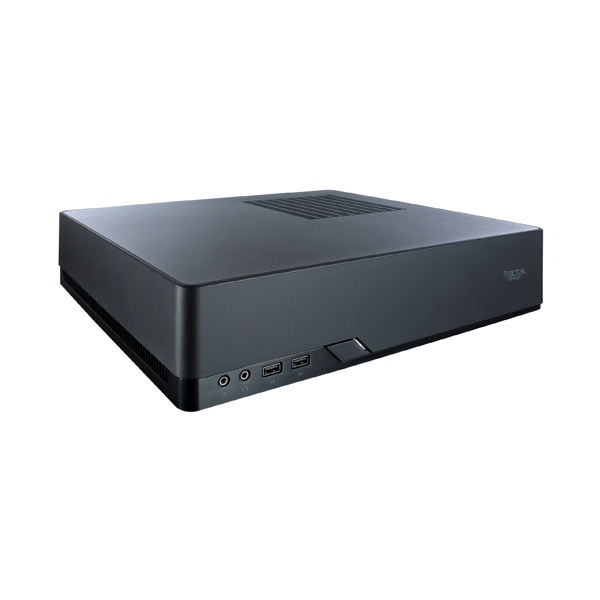

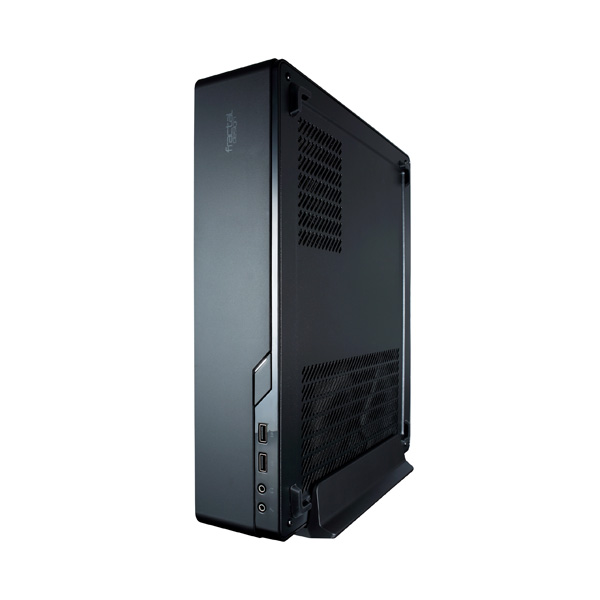

- A highly versatile case that can be set up both vertically and horizontally
- Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310 mm in length

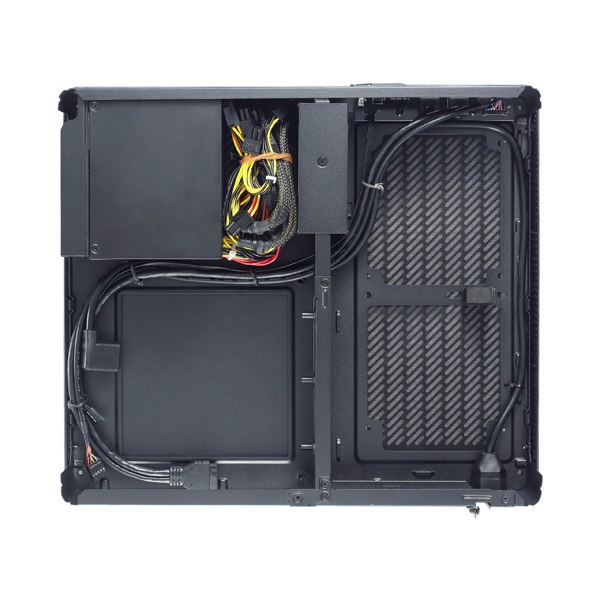

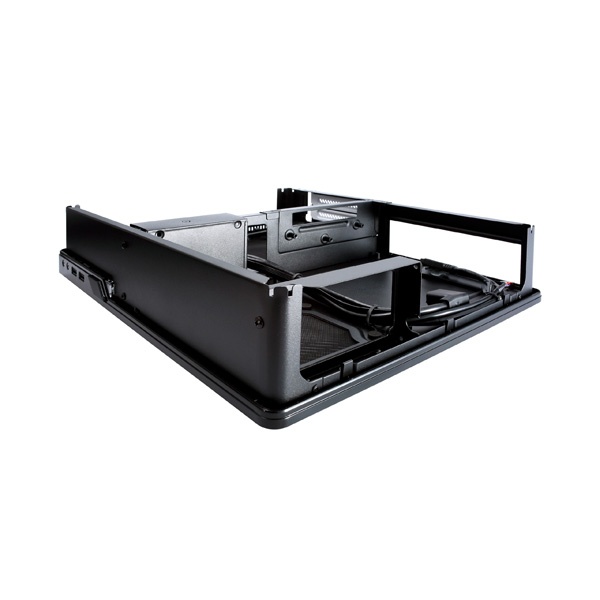

- Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers
- Strategically placed air filters for a dust free interior
Versatility
A highly versatile case that can be set up both vertically and horizontally
Thermal design
Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers
Dust free interior
Strategically placed air filters for a dust free interior
Available with Integra SFX 450W PSU
Specifications
| Product Code | FD-CA-NODE-202-BK |
| Riser card interface | PCI Express 3.0 x16 |
| 2.5″ SSD unit positions | 2 (height limitation 10.5mm) |
| Expansion slots | 2 |

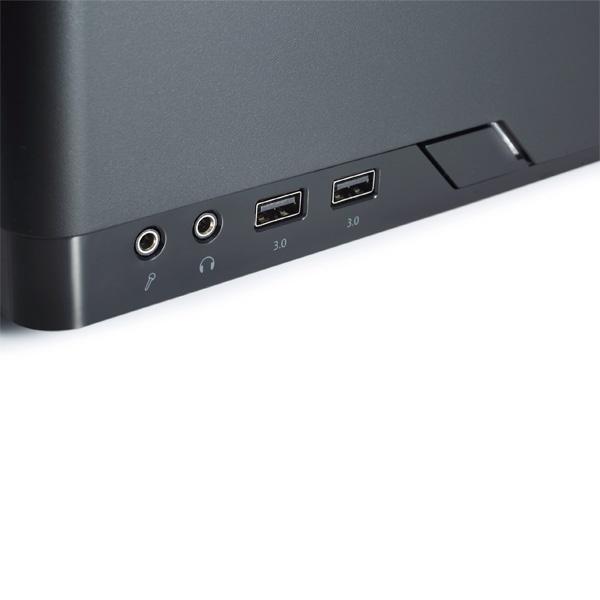

| Front ports | 2x USB 3.0, Audio in/out, Power button with LED (white) |
| Position | Can be placed both vertical and horizontal position |
| Total fan mounts | 2x 120 mm in graphics card chamber |
| Dust filters | 3 (CPU, GPU & PSU) |
| Top fan | 4 x 120 mm or 3 x 140 mm |
| Rear fan | 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
| Bottom fan | 2 x 120/140 mm |
| Dust filters | Top, 2 x Front, Bottom + PSU |
| Compatibility | |
| Power supply type | SFX (up to 130 mm long)* |
| Motherboard compatibility | Mini ITX |
| GPU max dimensions (LxHxD) | 310x145x47 mm |
| CPU cooler max height | 56 mm |
| *NOTE | Node 202 is not compatible with Ion SFX-L |
| Dimensions | |
| Case dimensions – Horizontal (WxHxD) | 377 x 82 x 330 mm |
| PSU Compatibility | SFX PSUs up to 130 mm long |
| Case dimensions – Horizontal, with feet/protrusions/screws (WxHxD) | 377 x 88 x 332 mm |
| Case dimensions – Vertical, with feet/protrusions/screws (WxHxD) | 125 x 385 x 332 mm |
| Net weight | 3.5 kg |
| Package dimensions (WxHxD) | 145 x 463 x 388 mm |
| Package weight | 4.0kg |
| Volume | 10.3 litres |
| Warranty | 2 Years |
