Fractal Design Prisma AL-12 PWM Single 120mm ARGB High Performance Fan for Cabinet or Radiator
Features

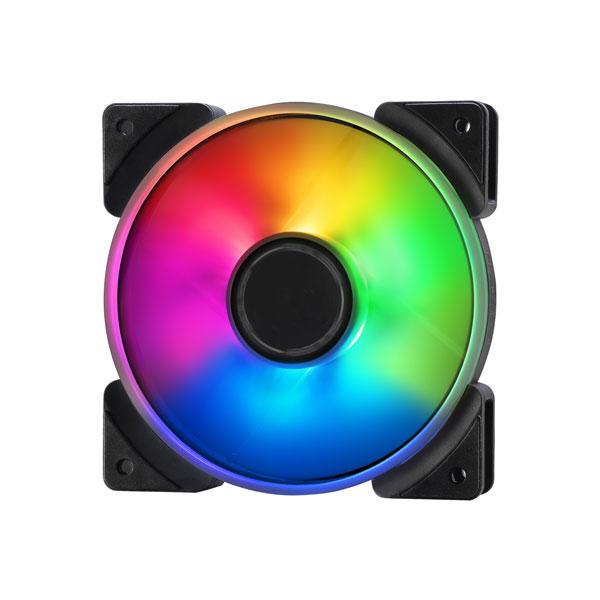

Our Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring
- Long Life Sleeve-bearings provide silent operation with a long lifespan
Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow

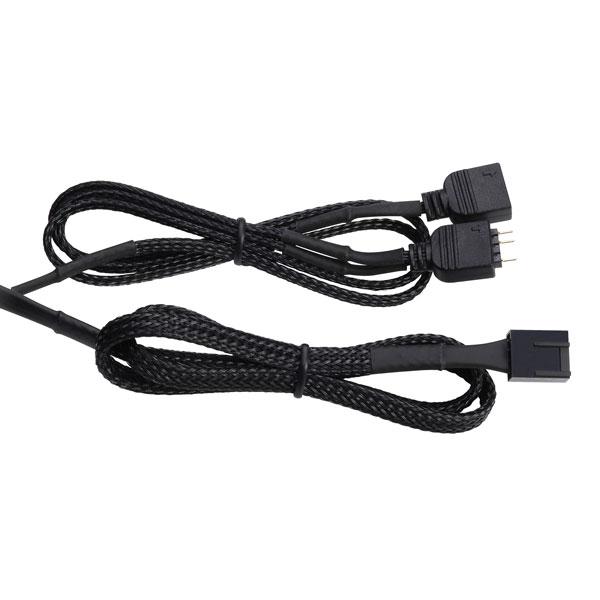

- Chainable RGB cables simplify wiring and make the most of available connections
- Black sleeved power cables offer an extra touch of style
- Asus AURA, Gigabyte Fusion, MSI Mystic Light, and ASRock Polychrome support
- Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
Uniform light : Specially designed white semi-opaque fan blades and outer ring produce an exceptionally uniform glow
Vibrant colors : Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of color choices
Full control : PWM control with a wide speed range ideal for CPU heatsinks and radiators
Aerodynamic performance

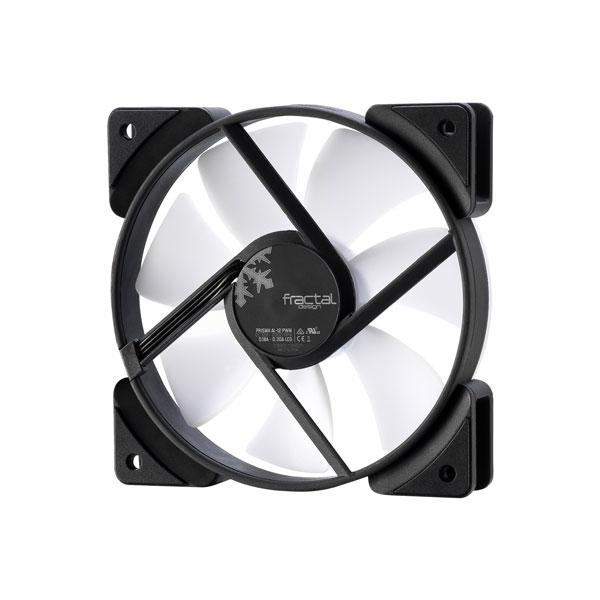

- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
- Integrated vibration-damping corners made from high-quality synthetic rubber
- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
Specifications
| Product code | FD-FAN-PRI-AL12-PWM |
| Size | 120 x 120 x 25 mm |
| Screw hole pattern | 105 x 105 mm |
| Fan Connector | 4-pin PWM |
| RGB Connector | 3-pin 5V addressable RGB |
| Bearing | LLS |
| Number of blades | 7 |
| Rotational speed | 500 – 2000 RPM |
| Noise level | 32.7 dB(A) |
| Airflow (CFM) | 85.71 CFM |
| Airflow (m3/h) | 145.62 m3/h |
| Static pressure | 2.78 mmH2O |
| Fan input power | 2.16 W |
| Fan max input current | 0.18 A |
| Fan input voltage | 12 V |
| Fan starting voltage | 7 V |
| LED max input current | 0.30 A |
| LED input voltage | 5 V |
| Low (0-20%) PWM speed | 500 RPM |
| Low PWM noise level | 14.8 dB(A) |
| Low PWM airflow (CMF) | 20.68 CFM |
| Low PWM static pressure | 0.36 mmH2O |
| MTBF | 100,000 hours |
| Fan weight | 169 g |
| Cable length | 500 mm |
| Cable type | Black sleeved |
| Package weight | 212 g |
| Package dimensions (Including hanging tab) | 182 x 122 x 30 mm |
| Package dimensions (Excluding hanging tab) | 147 x 122 x 30 mm |
| Warranty | 3 Years |
