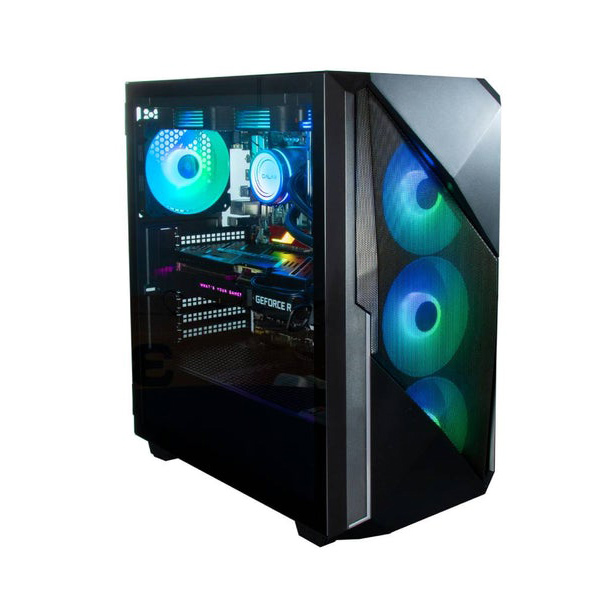

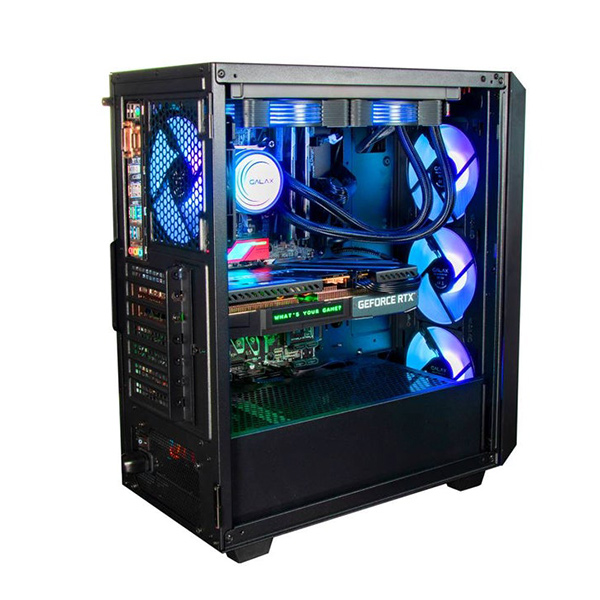

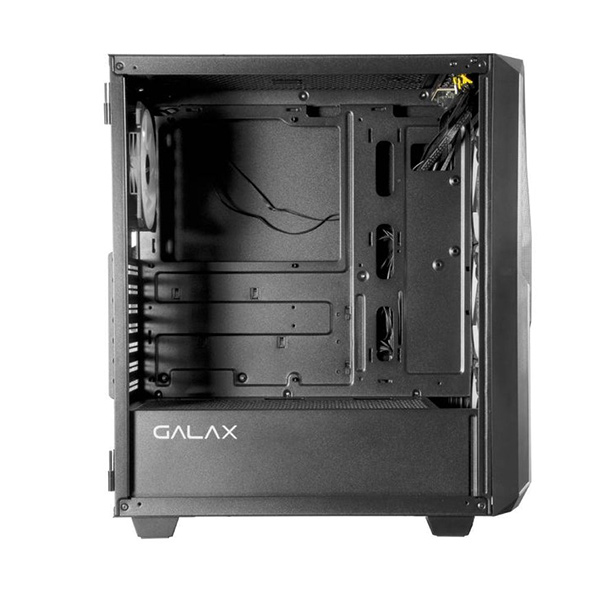

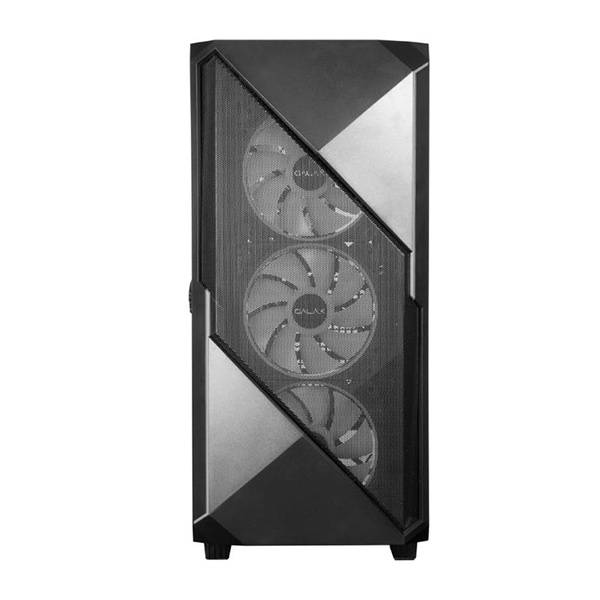

Galax Revolution 01 Black Cabinet :
Features :
- Mid Tower Gaming Case With ARGB Controlller
- 4 ARGB Fans With Premium quality side Tempered Glass Panel
- Design for best of Gaming experience
- Good space for gaming components installation
Overview :
Specifications :
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi | ||
| Chassis | SPCC: 0.45mm | ||
| PSU Form Factor | Bottom/ATX | ||
| M/B Form Factor | ATX、M-ATX | ||
| Front Panel | ABS, Mesh | ||
| Top Panel | Metal cover | ||

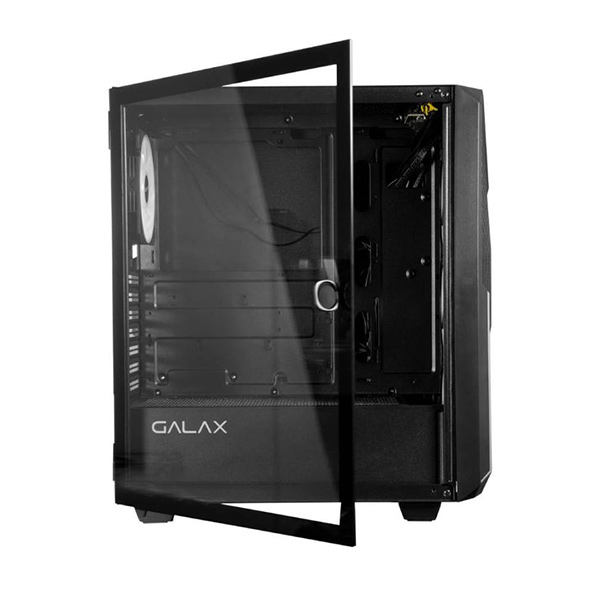

| Side Panel | Left | Tempered Glass | |
| Right | Metal cover | ||
| External Drive Bay(s) | 5.25″ (ODD) | *0 | |
| 3.5″ | *0 | ||
| Internal Drive Bay(s) | 3.5″ (HDD) | *2 | |
| 2.5″ (SSD) | *2 | ||
| 1*3.5HDD+3*2.5SSD or 2*3.5HDD+2*2.5SSD | |||
| I/O | Buttons | *4 | |
| USB1.1 Port(s) | *0 | ||
| USB2.0 Port(s) | *1 | ||
| USB3.0 Port(s) | *1 | ||
| USB3.1 Port(s) | *0 | ||
| HD Audio Support | *1 | ||
| Card Reader (Support) | *0 | ||
| P-Lock | *0 | ||
| RGB Controller | *1 Rainbow+PWM V2.0 | ||
| Controller max. fans | *5 | ||
| RGB Controller max. LED strips | *2 | ||
| Remote (IR or RF) | *0 | ||
| Cooling Fan Support | Front | 3x120mm,2x140mm(Fan optional) | |
| Top | 2x120mm,2x140mm(Fan optional) | ||
| Rear | 1x120mm (Fan optional) | ||
| Left Side | 0 | ||
| PSU Cover | 2x120mm (Fan optional) | ||
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Top | 120mm, 140mm, 240mm | ||
| Rear | 120mm*1 | ||
| Dust Cover | Bottom and top cover with dust filter | ||
| Slots | *7 | ||
| Dimensions | Chassis | mm | (L)360*(W)210*(H)440 |
| Full Case (inc Fascia) | mm | (L)424*(W)215*(H)460 | |
| Carton | mm | (L)506*(W)266*(H)465 | |
| Net Weight (Kg) | kg | 4.9 | |
| Gross Weight (Kg) | kg | 5.8 | |
| VGA Card Length | mm | up to 340 | |
| CPU Cooler Height | mm | 170 | |
| Cable Management Depth | mm | 22 | |
