Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler :
Features :
- IPS LCD Screen
- Customize LCD Background (png / gif / jpg)
- Micro-embedded Fan for Motherboard Cooling
- CHIONE CAST Software
- LCD Screen Orientation
- Control Lighting Effects / Brightness / Speed / Direction
- Show System Information (with customized image)
- Motherboard sync ARGB
- Durable Teflon Tube with Aesthetic Nylon-braided Tube Sleeve
- High Static Pressure Hydraulic PWM fan
- USB AEOLUS Box
- Support LGA 1700 / AM5 / TR4
Overview :
NEXT GENERATION COOLING

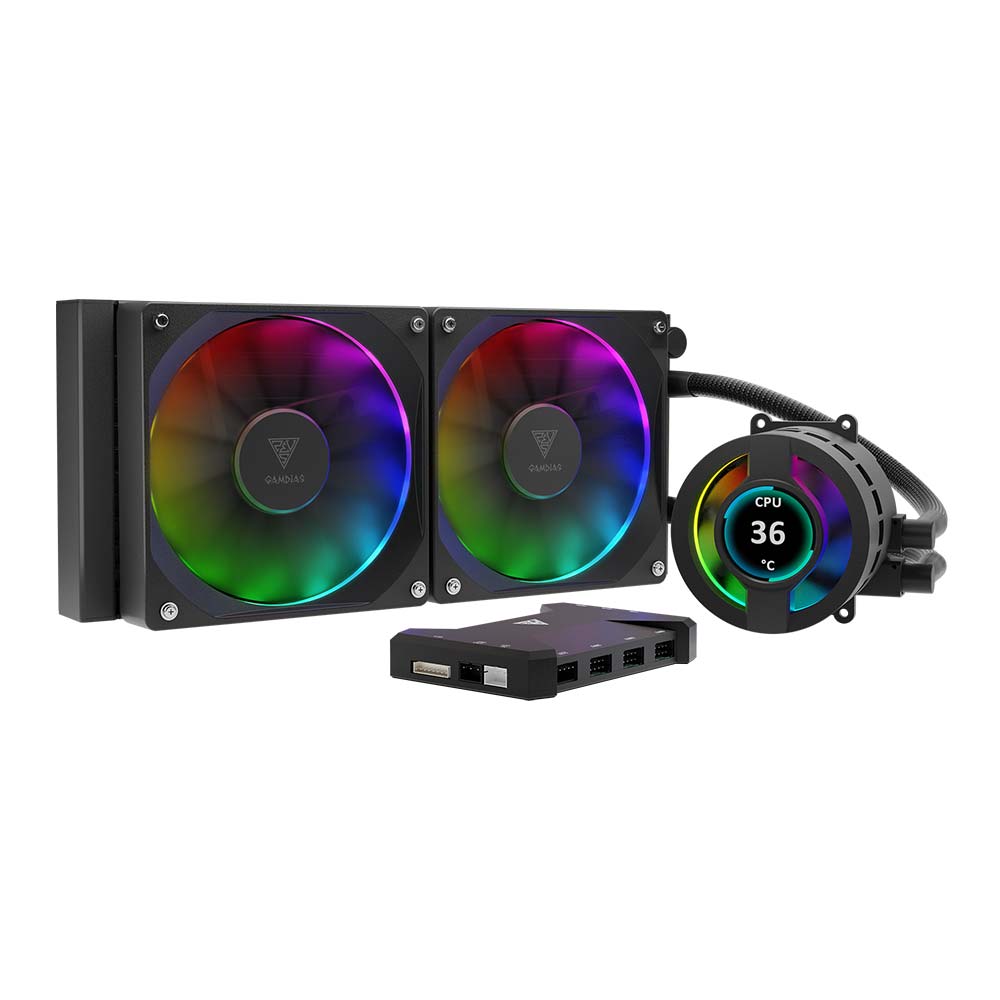

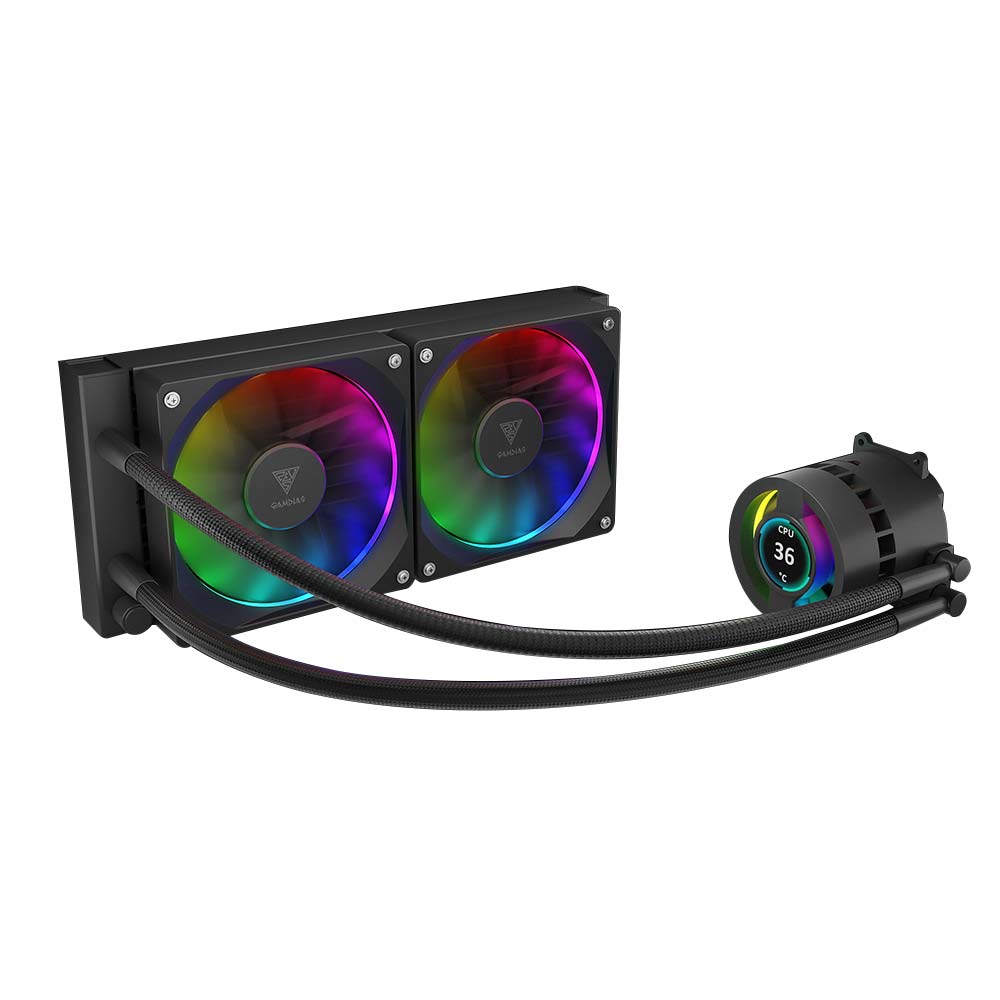

The Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler is a 240mm radiator AIO fine-tuned for next-generation cooling and equipped with a personalized LCD display. The AIO features a highly customizable IPS LCD display, a motor pump with a high-performance three-phase drive, an optimized cold-plate design, a micro-embedded fan within the pump head, and two fine-tuned AEOLUS M3 PWM fans to offer top-notch cooling power on any setup.

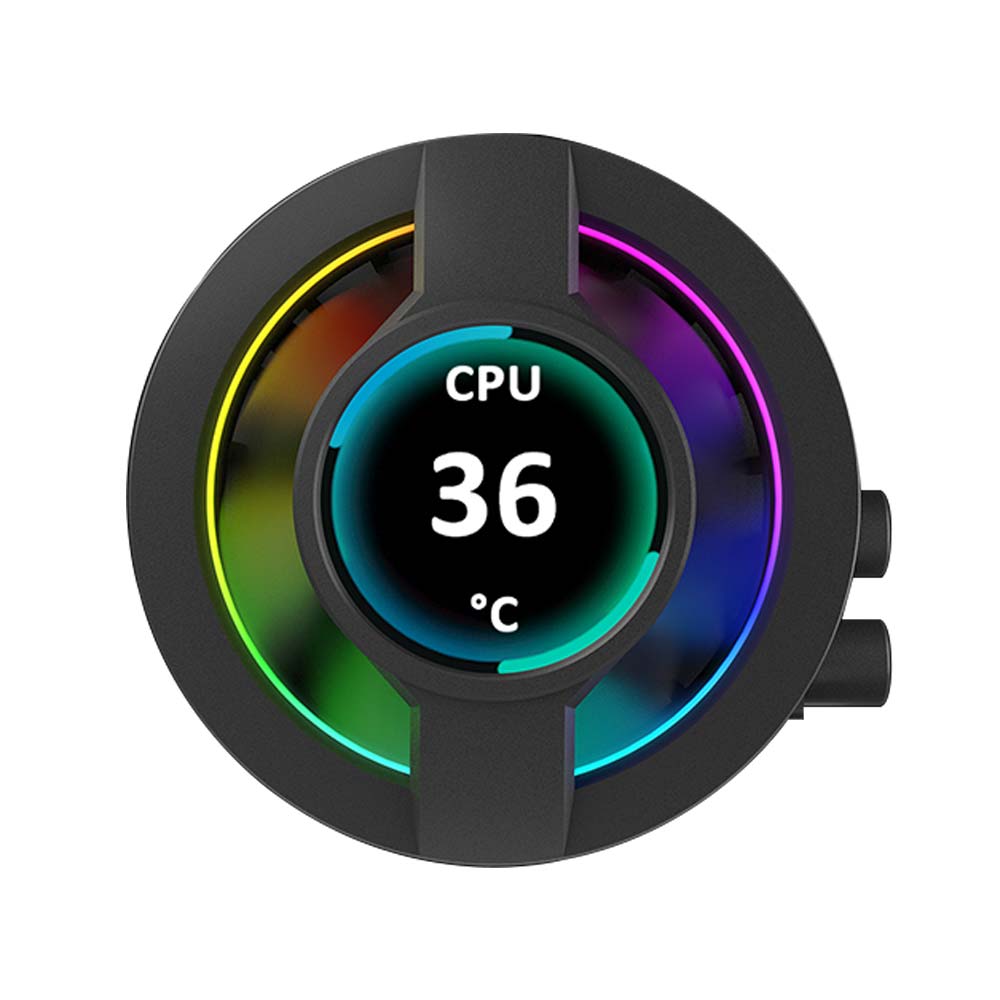

PERSONALIZED LCD DISPLAY
The Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler comes with a brilliant IPS LCD display, allowing you to monitor your system performance statistics in real-time, while also personalizing the screen with any images or animated GIFs as background for system statistics. The Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler pump head is equipped with a stunning ARGB lighting ring with pre-installed lighting modes for a dazzling display of lighting effects.

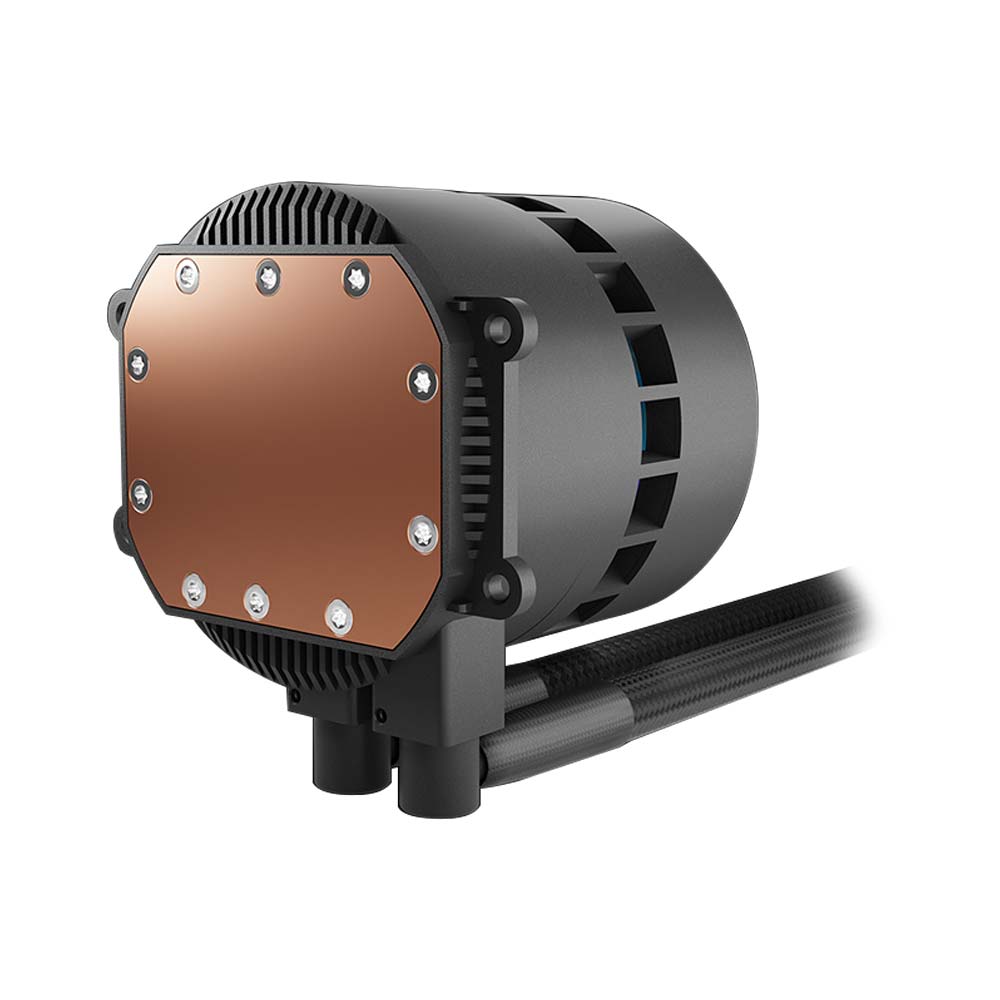

S-TIER COOLING PUMP
The AIO pump is enhanced by a high-performance three-phase drive motor water pump up to 2800RPM, a micro-embedded fan for enhanced heat dissipation around CPU VRMs and surrounding components, and a high-density copper base cold plate optimized for seamless CPU fittings to provide maximized cooling performance.

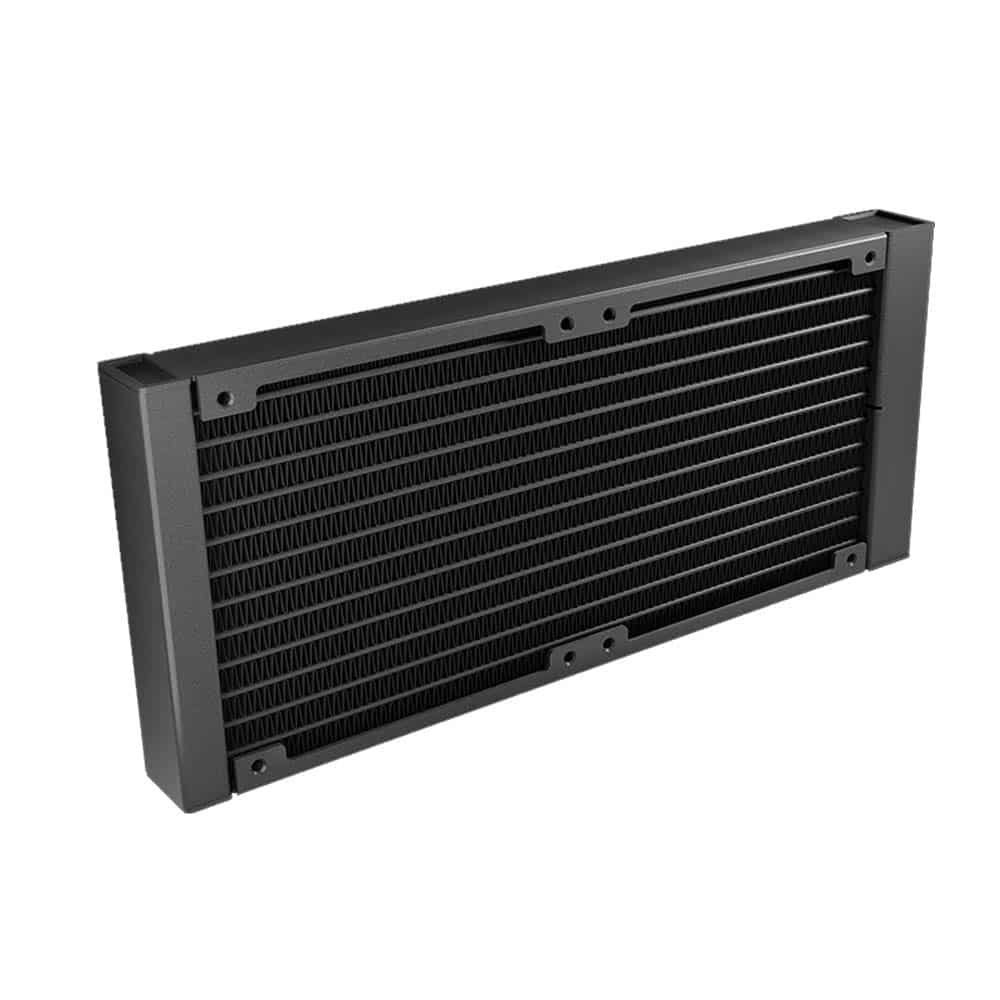

SUPERIOR RADIATOR

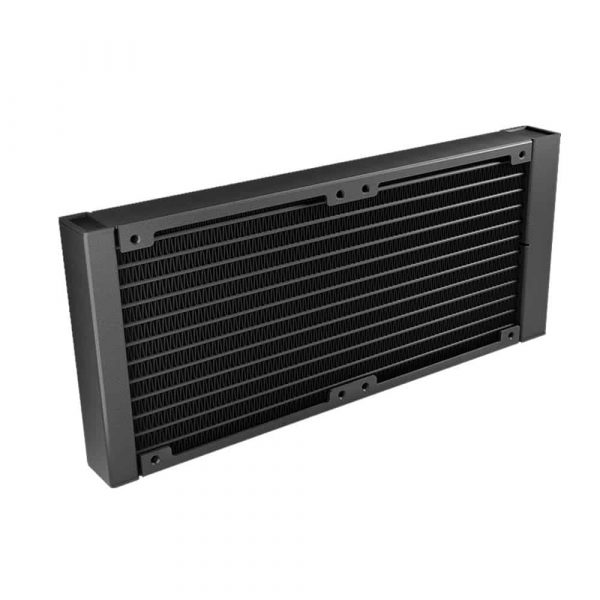

Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler is equipped with a premium-class radiator sporting a 25% increase in radiator thickness and high-density fins for a more reliable cooling ability.

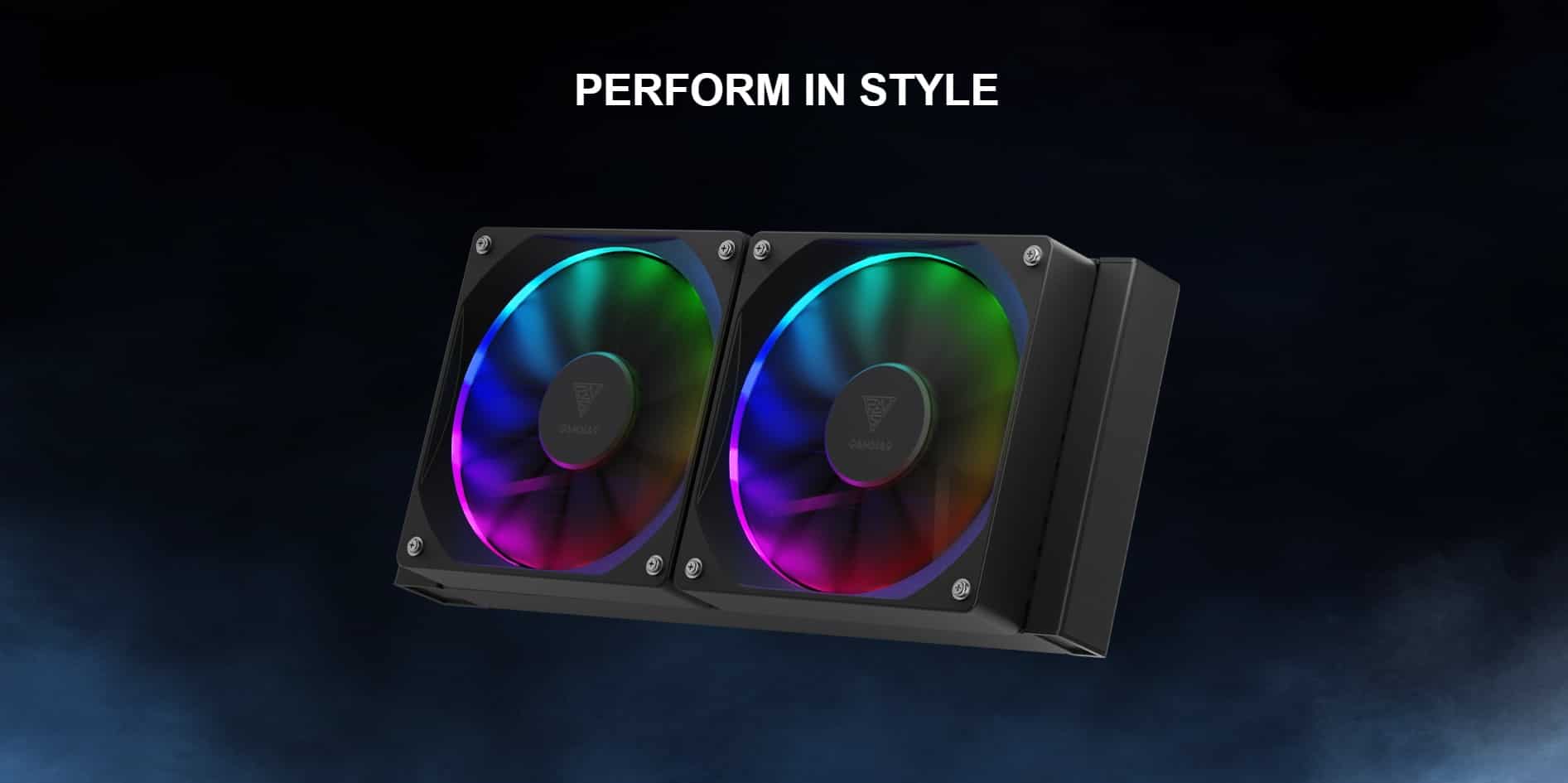

PERFORM IN STYLE

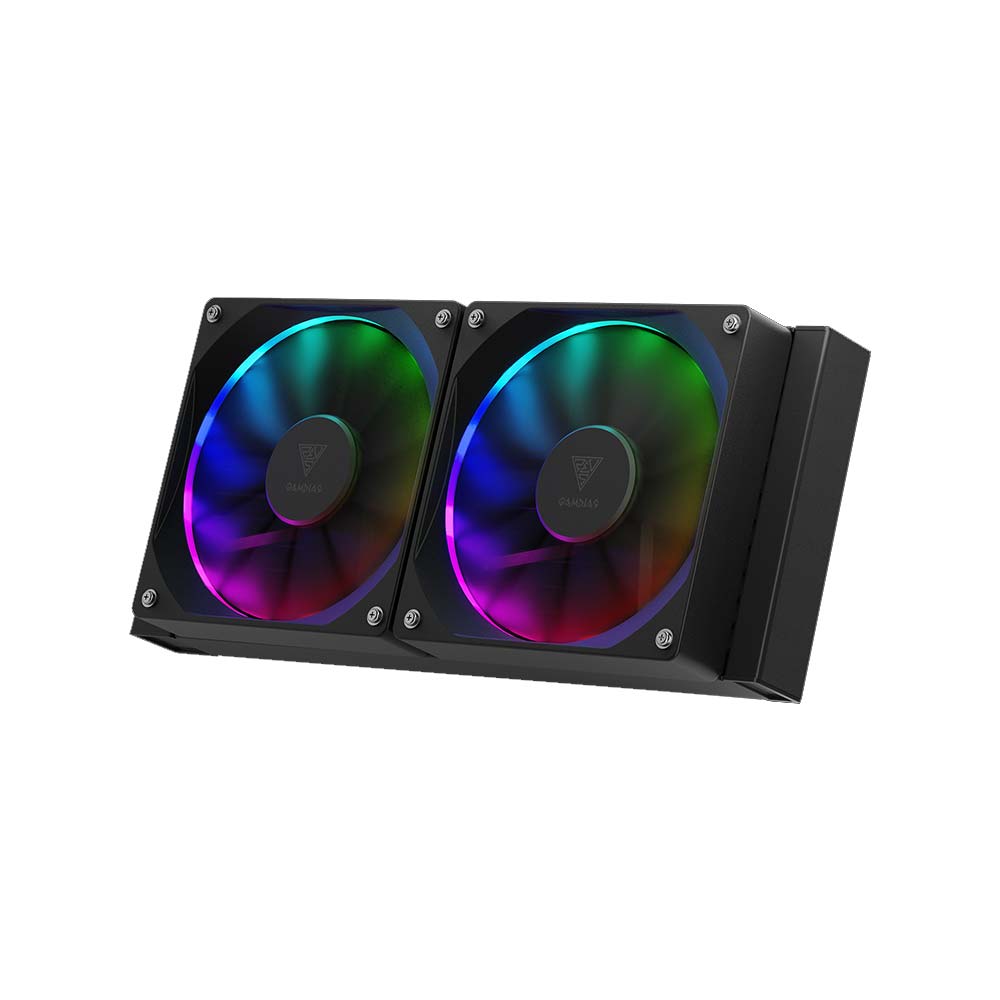

Built with an emphasis on superior airflow performance, the radiator AEOLUS M3 PWM fans provide high static pressure of up to 69.01 CFM for optimized airflow guidance. The fans feature fully addressable low-profile ARGB lighting providing a subtle and modish look.

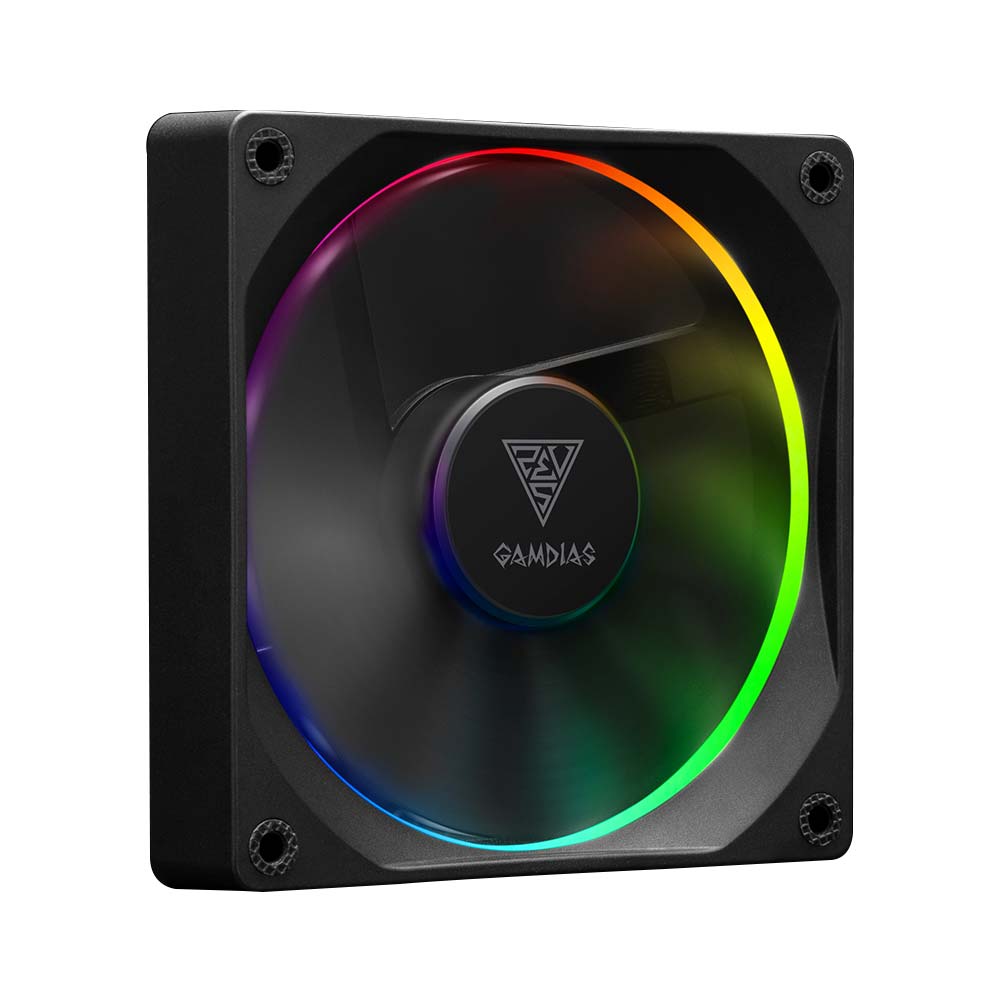

PREMIUM HYDRAULIC BEARING
With near-zero friction between moving parts, the AEOLUS M3 fans make minimal noise while generating maximum airflow while having a long lifespan.

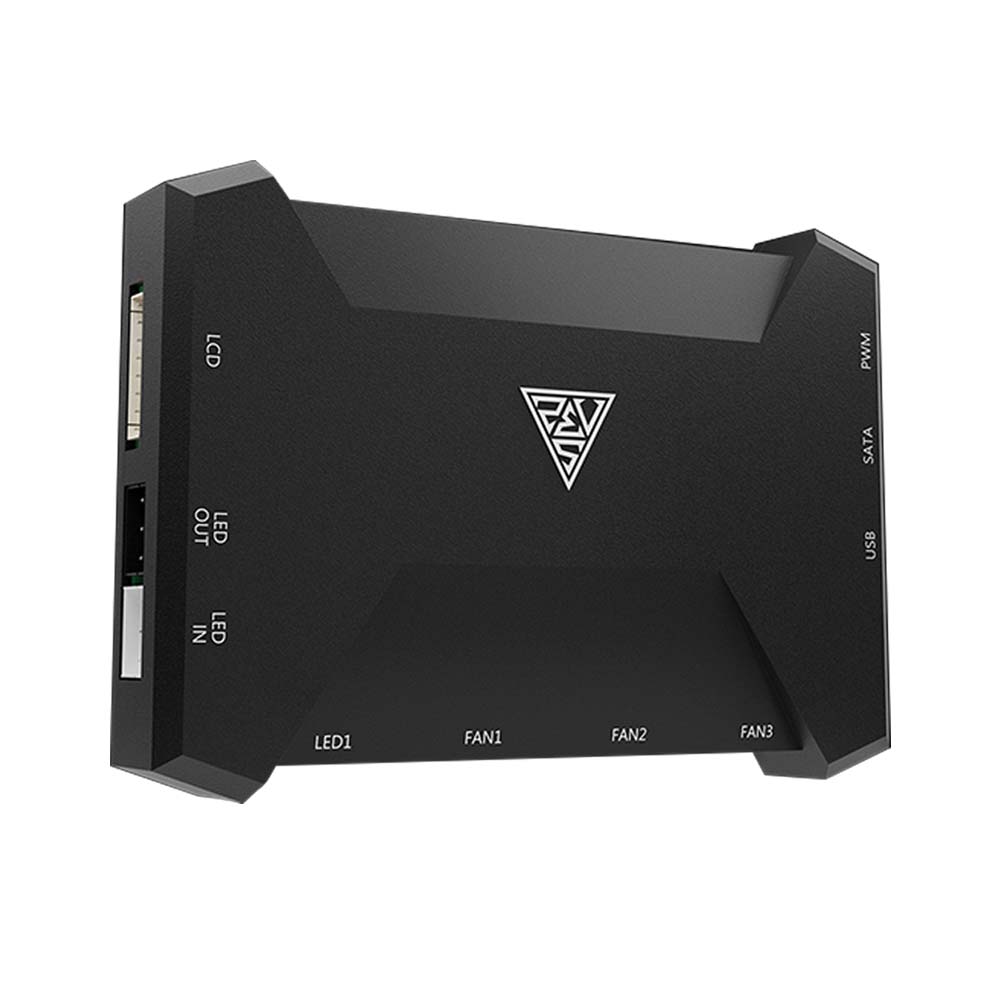

INTEGRATED CONTROL BOX
The standalone USB AEOLUS Box for the Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler can control three fans and one LED strip. While connected to the GAMDIAS AEOLUS BOX, daisy chain up to 8 additional fans and 2 LED strips to sync up your build.
REAL-TIME SYSTEM MONITORING
The CHIONE CAST software provides real-time support in monitoring essential system information on your PC once connected to the USB AEOLUS Box and the Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler header to the motherboard.
FULLY CUSTOMIZABLE SOFTWARE
Upload images or animations (PNG/JPG/GIF), display system information while showing your own custom image or animation, and freely adjust screen orientation and brightness via the CHIONE CAST software.
FULLY ADDRESSABLE RGB LIGHTING
Enjoy immersive software-controlled ARGB lighting effects or choose from a variety of built-in lighting effects. Customize lighting brightness, speed, and direction, or simply sync directly with the motherboard all through the CHIONE CAST Software.
UNIVERSAL COMPATIBILITY

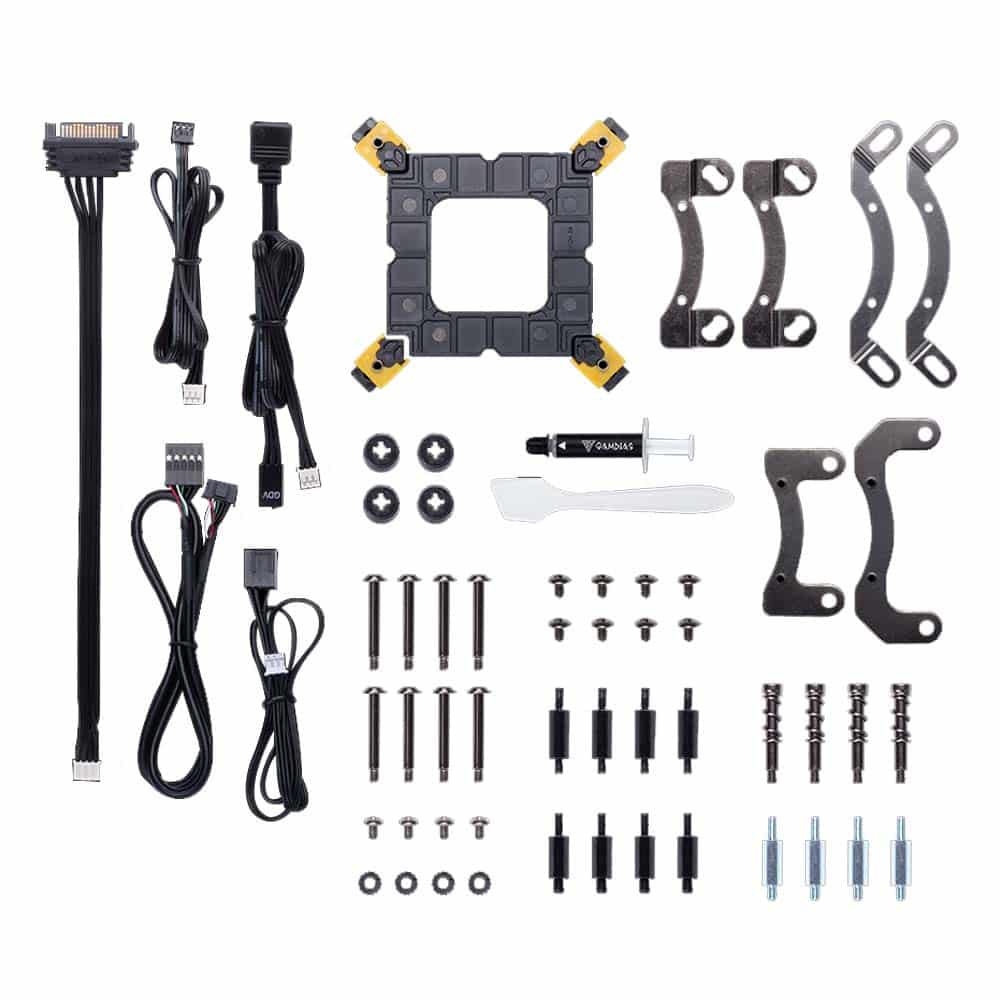

The Gamdias CHIONE P3-240U Black ARGB CPU Liquid Cooler comes with an upgraded mounting kit for easy installation on both AMD and Intel platforms. (LGA 1700/AM5/TR4 Ready)
Specifications :
Package Contents | Cooler, 1 / Fan, 2 / USB AEOLUS Box, 1 / Thermal Grease, 1 / Mounting Kit, Yes |
LIQUID COOLER – FAN | |
Dimensions | 120 x 120 x 25 mm |
Speed | 800 – 2000 RPM±10% |
Noise Level | 10 – 31 dBA |
Air Flow | 69.01 CFM |
Air Pressure | 2.37 mmH2O |
Bearing | Hydraulic |
Rated Voltage | 12 V (Fan) / 5V(LED) |
Connector | 8 pin |
Support PWM Control | Yes |
LIQUID COOLER | |
Radiator Dimensions | 277 x 119 x 27 mm |
Tube Material | Teflon |
Base Plate Material | Copper |
Radiator Material | Aluminum |
Sleeved Tube | Yes |
Pump Rated Voltage | 12 V (Pump) / 5V(LED) |
Pump Connector | 3 Pin |
Compatibility | LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4 |
TDP | 270W ±10% |
Support Motherboard RGB Sync Connectors | 5V 3-pin addressable (digital) RGB header Only |
LIQUID COOLER – CONTROL BOX | |
Model | USB AEOLUS Box |
Dimensions | 83 x 59 x 14 mm |
Power Connector | SATA |
Support LED type | 5V 3-pin Addressable (Digital) LED |
Support Daisy Chain | Yes |
Built-In Magnet | Yes |
Warranty | 1 Years |
