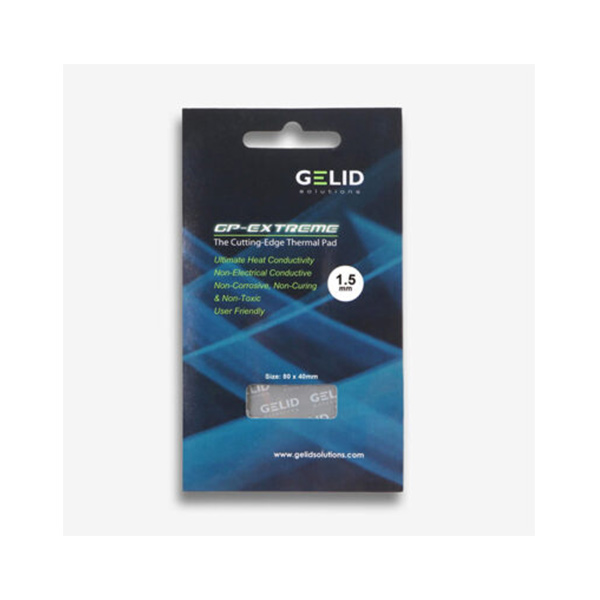

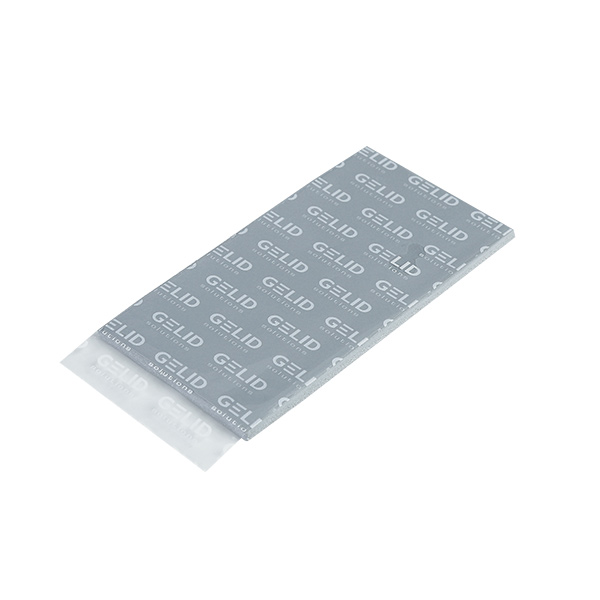

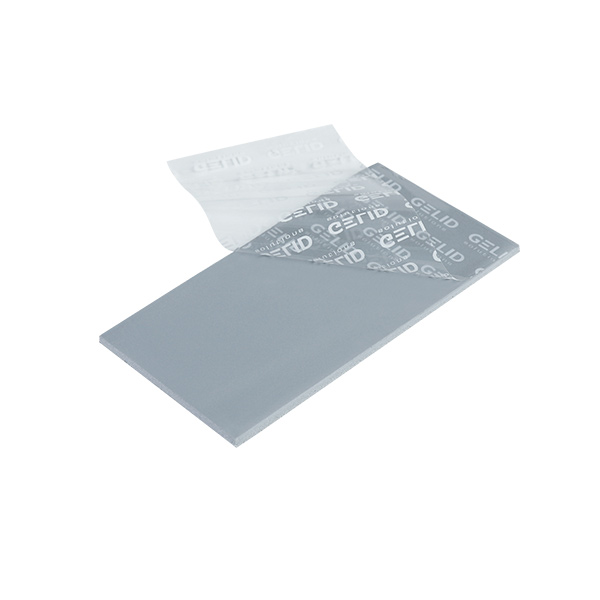

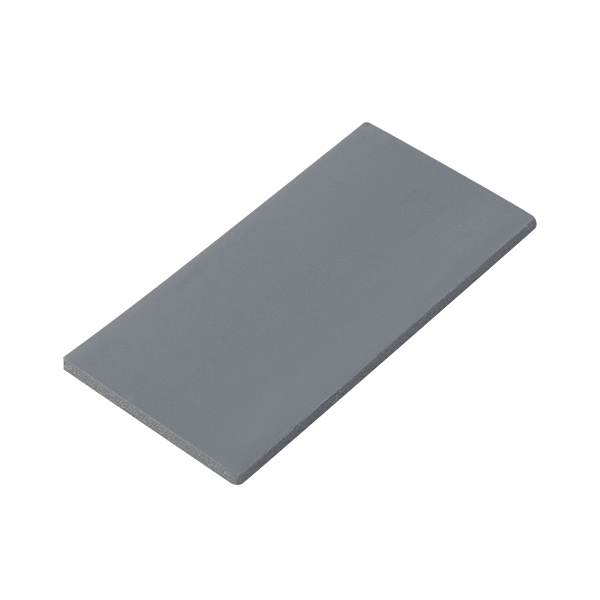

Gelid GP-EXTREME 80x40x1.5mm Thermal Pad:
Features:
- Ultimate Heat Conductivity
- Non-Electrical Conductive
- Non-Corrosive, Non-Curing & Non-Toxic
Overview:
The Gelid GP-EXTREME 80x40x1.5mm is designed to provide perfect thermal contact to the heatsink when installed on PCBs with height differences and uneven surfaces such as micro-controller units, memory ICs, analog ICs, MOSFETs and other SMD components. Thanks to its softness and ultimate thermal conductivity the GP-Extreme fills spaces properly and offers the best performance in class. The GP-Extreme is non-electrical conductive, non-corrosive, non-curing and non-toxic. The GP-Extreme ensures an easy application and the thermal pad dimensions of 80×40 x 1.5 optimally fit to large PCB surfaces of VGA cards, laptops, gaming consoles and other densely packed devices.
Specifications:
| Density (g/cm3): | 2.8 |
| Hardness (Shore): | 35 OO |
| Size (mm): | 80 x 40 x 1.5 |
| Thermal Conductivity (W/mK): | 12 |
