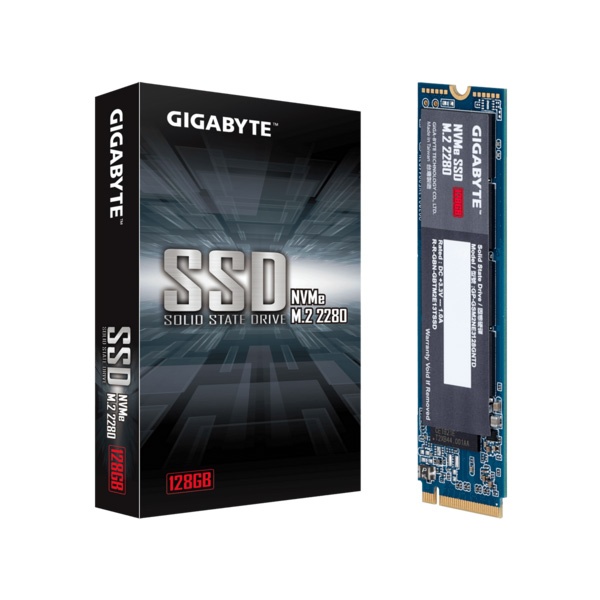

Gigabyte 128GB M.2 NVMe Internal SSD

Gigabyte 128GB M.2 Sata Internal SSD :

Features :

• Form Factor: M.2 2280
• Interface: PCI-Express 3.0 x4, NVMe 1.3
• Total Capacity: 128GB*
• Warranty: Limited 5-year or 110TBW
• Sequential Read Speed : up to 1550 MB/s**
• Sequential Write speed : up to 550 MB/s**
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported

Specifications :

• Interface : PCI-Express 3.0 x4, NVMe 1.3
• Form Factor : M.2 2280
• Total Capacity : 128GB
• Warranty : Limited 5-year or 110TBW
• NAND : NAND Flash
• External DDR Cache : N/A
• Sequential Read speed : Up to 1550 MB/s
• Sequential Write speed : Up to 550 MB/s
• Random Read IOPS : Up to 100k
• Random Write IOPS : Up to 130k
• Dimension : 80 x 22 x 2.3 mm
• Mean time between failure (MTBF) : 1.5M hours
• Power Consumption (Active) : Avg. read : 2.2W ; Write : 1.7W
• Power Consumption (Idle) : 1.1mw
• Temperature (Operating) : 0°C to 70°C
• Temperature (Storage) : -40°C to 85°C
• Note :
  * Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
  * Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
  * Speeds based on internal testing. Actual performance may vary.
  * TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail.
  * 1GB = 1 billion bytes. Actual useable capacity may vary.
  * 5-years or 110TBW, whichever comes first.
