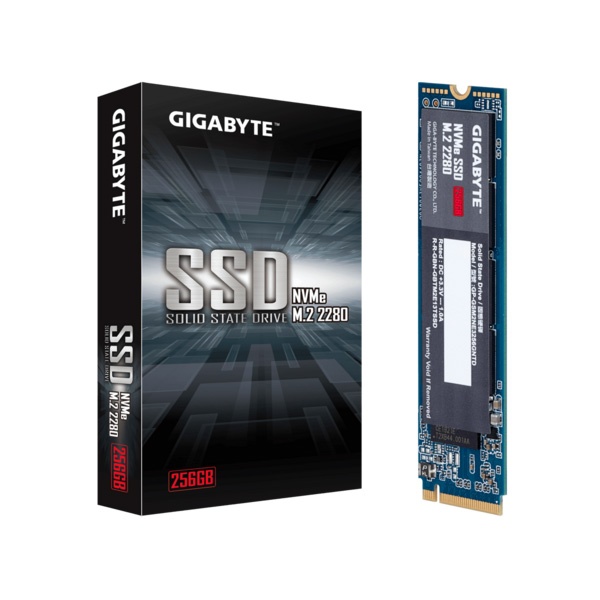

Gigabyte 256GB M.2 NVMe Internal SSD :
Features :
- Form Factor: M.2 2280
- Interface: PCI-Express 3.0 x4, NVMe 1.3
- Total Capacity: 256GB*
- Warranty: Limited 5-year or 300TBW
- Sequential Read Speed : up to 1700 MB/s**
- Sequential Write speed : up to 1100 MB/s**
- HMB (Host Memory Buffer) supported
- TRIM & S.M.A.R.T supported
Overview :
Performance . Stability
GIGABYTE NVMe SSD Type 2280
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5″ SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
Reliability You Can Trust – 5 Years Limited Warranty
GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 5 years or 300TBW** limited warranty***.
Specifications :
- Interface : PCI-Express 3.0 x4, NVMe 1.3
- Form Factor : M.2 2280
- Total Capacity : 256GB
- Warranty : Limited 5-year or 300TBW
- NAND : NAND Flash
- External DDR Cache : N/A
- Sequential Read speed : Up to 1700 MB/s
- Sequential Write speed : Up to 1100 MB/s
- Random Read IOPS : Up to 180k
- Random Write IOPS : Up to 250k
- Dimension : 80 x 22 x 2.3 mm
- Mean time between failure (MTBF) : 1.5M hours
- Power Consumption (Active) : Avg. read : 2.6W ; Write : 2.4W
- Power Consumption (Idle) : 1.9mw
- Temperature (Operating) : 0°C to 70°C
- Temperature (Storage) : -40°C to 85°C
- Note :* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
* Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
* Speeds based on internal testing. Actual performance may vary.
* TBW (Terabyte Written):Terabytes Written” is the total amount of data that can be written into an SSD before it is likely to fail.
* 1GB = 1 billion bytes. Actual useable capacity may vary.
* 5-years or 110TBW, whichever comes first.
