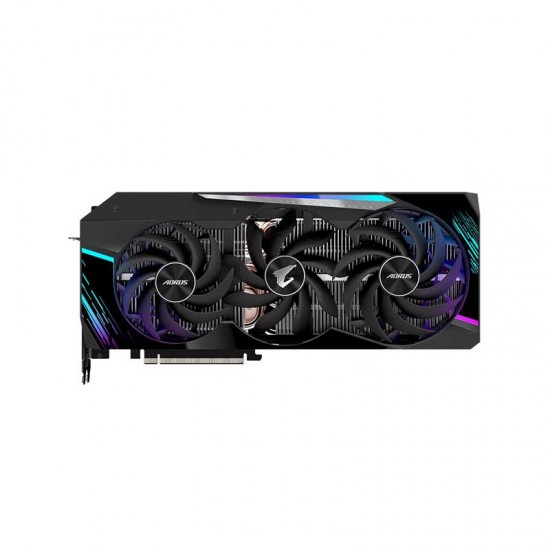

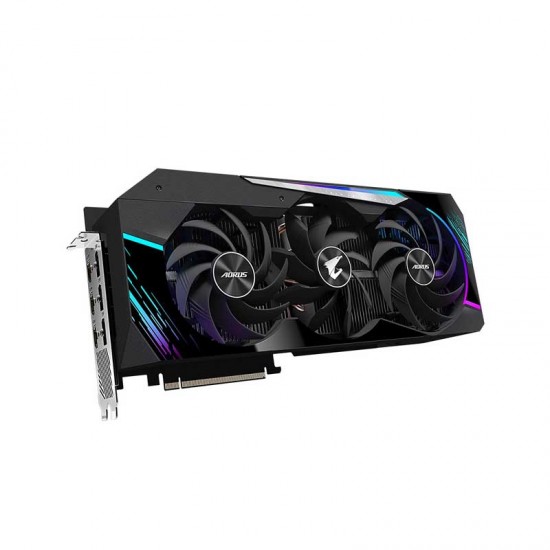

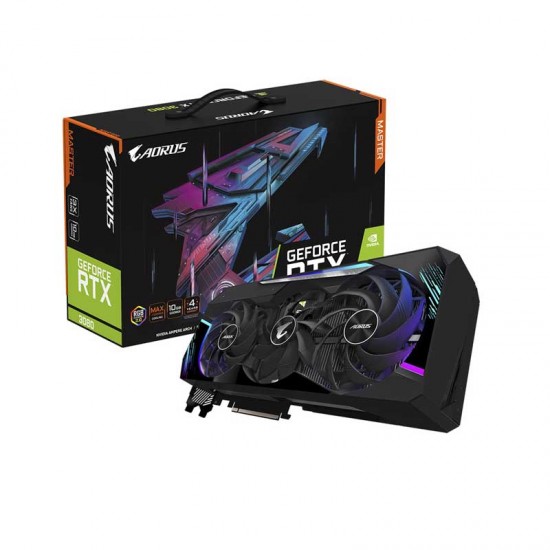

Gigabyte Aorus RTX 3080 Master 10GB
Features :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3080
- Integrated with 10GB GDDR6X 320-bit memory interface
- MAX-COVERED cooling
- LCD Edge View
- RGB Fusion 2.0
- 6 video outputs
- Protection metal back plate
- 4 years warranty (Online registration required)
Overview :
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The Max-Covered cooling features 2x 115mm and 1x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
UNIQUE BLADE STACK FANS
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGN
Reinforce and channel the airflow to completely cover the heat sink.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
VAPOR CHAMBER & HEAT PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.
LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
ENTHUSIAST
Various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.
CUSTOM TEXT
Users can easily customize texts and fonts.
CUSTOM IMAGE
Support jpg, bmp and png file types. You can crop the image to fit.
CUSTOM GIF
Users can upload a favorite GIF video.
CHIBI TIMETEAM UP. FIGHT ON.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3080 with 10G memory and 760 GB/s memory bandwidth has 8704 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

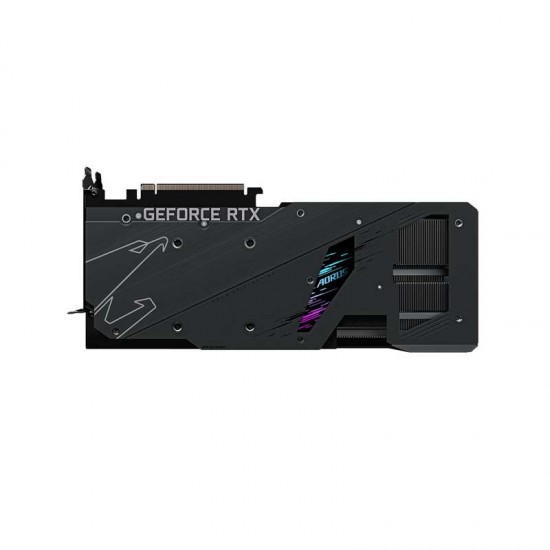

METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

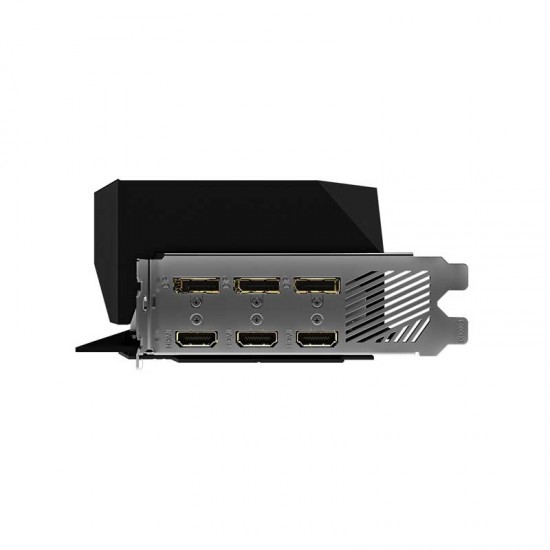

6 OUTPUTS
You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PCB COATING
Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
INTUITIVE AORUS ENGINE
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
WARRANTY 4 YEARS
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
Specifications :
- Graphics Processing : GeForce RTX™ 3080
- Core Clock : 1845 MHz (Reference Card: 1710 MHz)
- CUDA® Cores : 8704
- Memory Clock : 19000 MHz
- Memory Size : 10 GB
- Memory Type : GDDR6X
- Memory Bus : 320 bit
- Memory Bandwidth (GB/sec) : 760 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320
- Multi-view : 4
- Card size : L=319 W=140 H=70 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*2
- Output :DisplayPort 1.4a *3
HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) - SLI Support : N/A
- Accessories :1. Quick guide
2. 4-year warranty registration
3. Metal sticker
