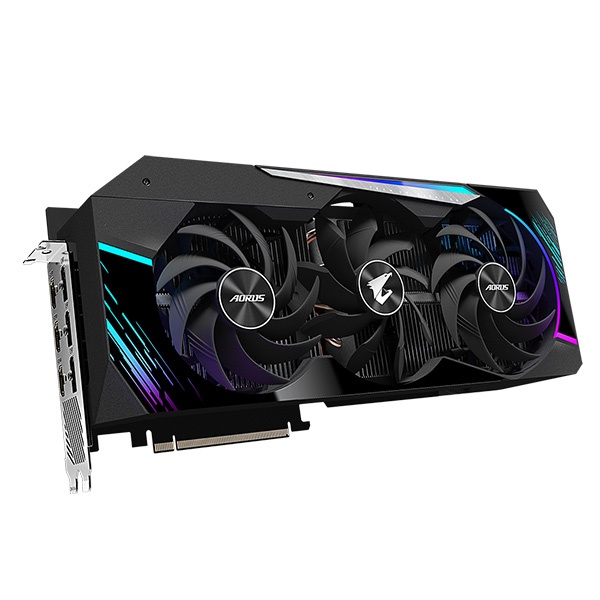

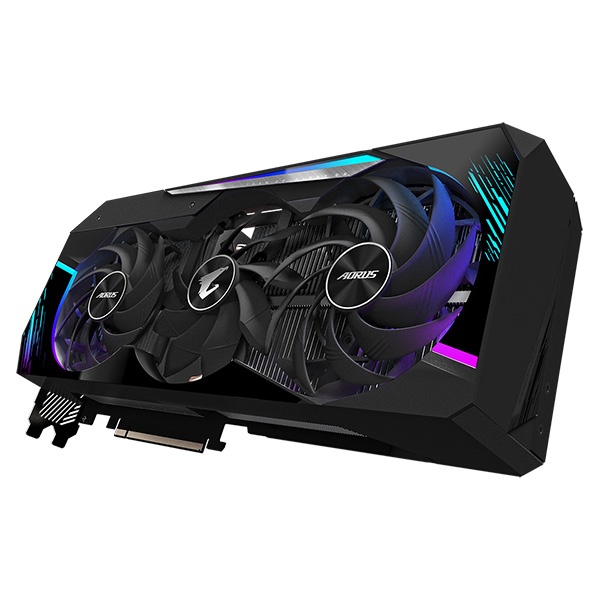

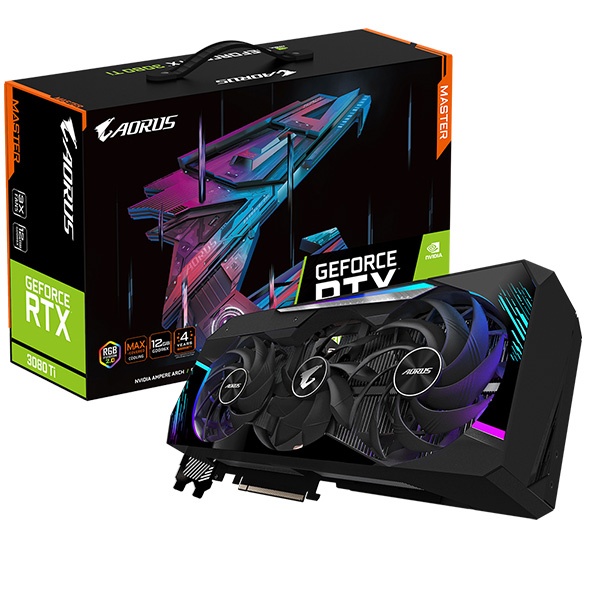

Gigabyte Aorus RTX 3080 Ti Xtreme12GB Graphics Card :
Features :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3080 Ti
- Integrated with 12GB GDDR6X 384-bit memory interface
- MAX-Covered cooling
- LCD Edge View
- RGB Fusion 2.0
- 6 video outputs
- Protection metal back plate
- 4 years warranty (Online registration required)
Overview :
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
MAX-COVERED COOLING
The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
UNIQUE BLADE STACK FANSThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGNReinforce and channel the airflow to completely cover the heat sink.
ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase air pressure.
SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.
VAPOR CHAMBER & HEAT PIPEWith direct contact to the GPU and VRAM, the large vapor chamber combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

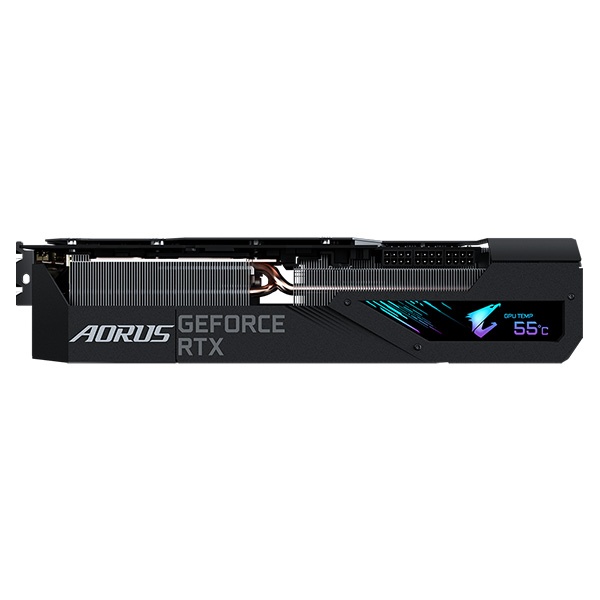

LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
ENTHUSIASTVarious GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.
CUSTOM TEXTUsers can easily customize texts and fonts.
CUSTOM IMAGESupport jpg, bmp and png file types. You can crop the image to fit.
CUSTOM GIFUsers can upload a favorite GIF video.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3080 Ti with 12 GB memory and 912 GB/s memory bandwidth has 10240 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOSSilent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

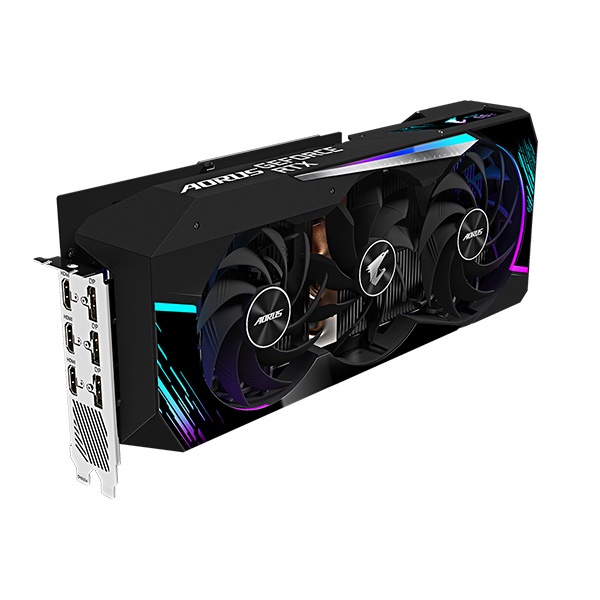

6 OUTPUTSYou can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
POWER INDICATORSWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
ULTRA DURABILITY
PCB COATING
FRIENDLY PCB
AORUS ENGINE
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
Specifications :
- Graphics Processing : GeForce RTX™ 3080 Ti
- Core Clock : 1830 MHz (Reference Card: 1665 MHz)
- CUDA® Cores : 10240
- Memory Clock : 19000 MHz
- Memory Size : 12 GB
- Memory Type : GDDR6X
- Memory Bus : 384 bit
- Memory Bandwidth (GB/sec) : 912 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320
- Multi-view : 4
- Card size : L=319 W=140 H=70 mm (3.5 slot)
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*3
- Output :DisplayPort 1.4a *3
HDMI 2.1*2
HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) - SLI Support : N/A
- Accessories :1. Quick guide
2. Warranty registration
3. Metal sticker4. Xtreme robot limited edition
