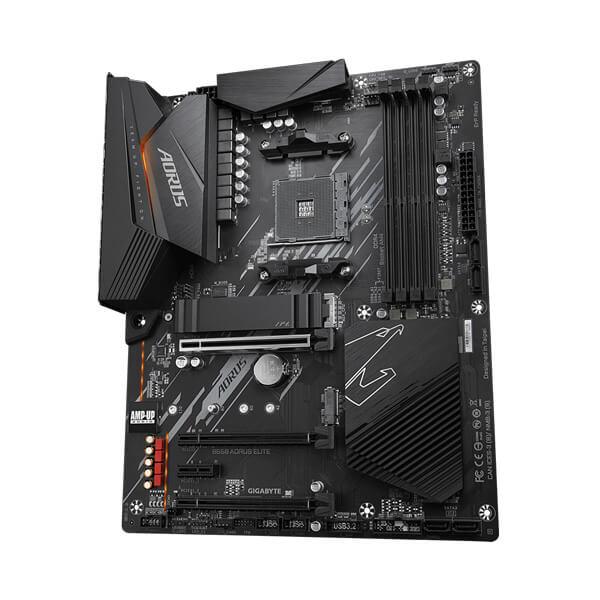

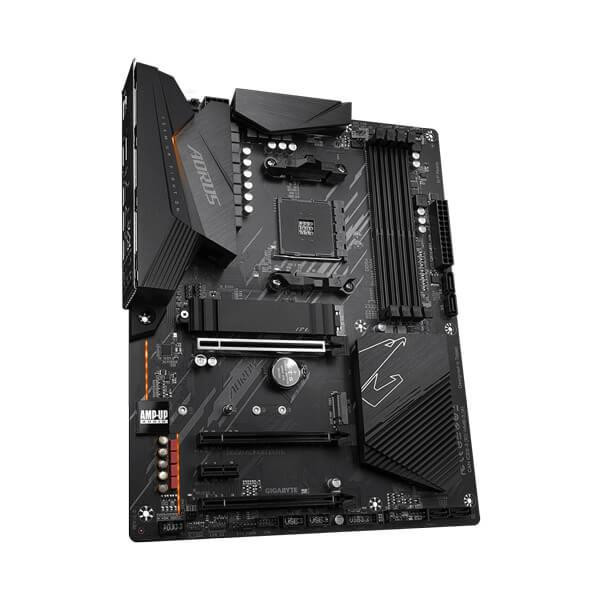

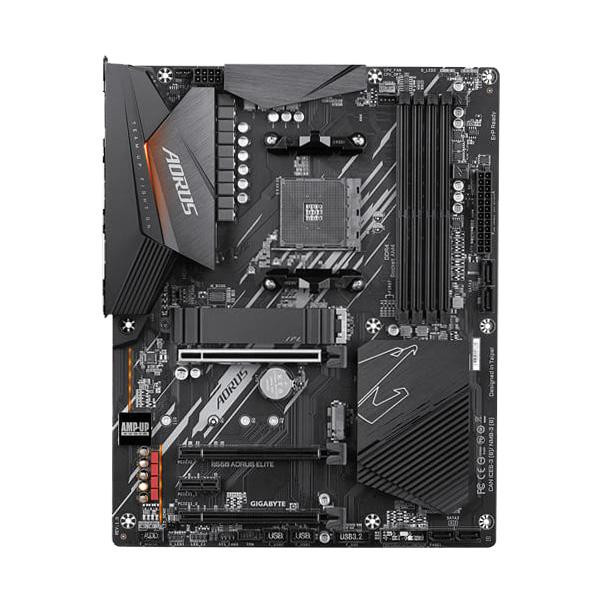

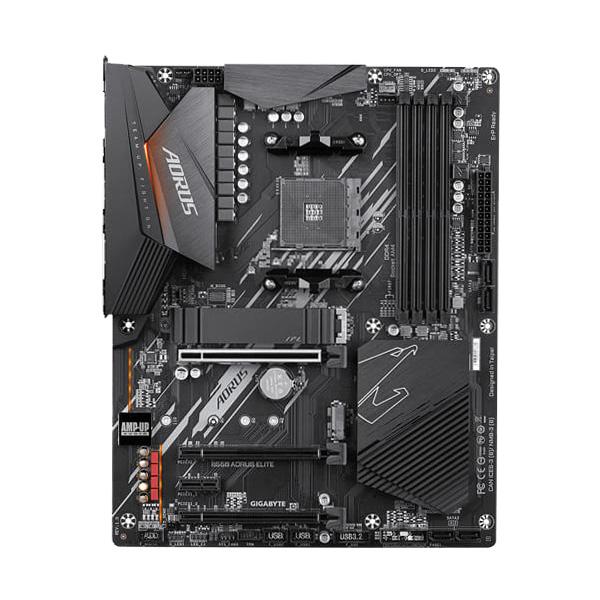

Gigabyte B550 Aorus Elite V2 Motherboard

• Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+2 Phases Digital Twin Power Design with 50A DrMOS
• Advanced Thermal Design with Enlarged Surface Heatsinks
• Ultra Durable™ PCIe 4.0 x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard
• AMP-UP Audio with ALC1200 and WIMA Capacitors
• Blazing Fast 2.5GbE LAN with Bandwidth Management
• Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
• Pre-installed IO Shield for Easy and Quick Installation

Specifications :

• CPU
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. AMD B550
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  2. AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :
     Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
     Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  4. Dual channel memory architecture
  5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  7. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

  1. 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz
     * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio
  1. Realtek^® ALC1200 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
     – 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
     – 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
     – Supporting PCIe 3.0 x2 mode
  3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
     – Supporting PCIe 3.0 x1 mode
  4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
     – Supporting PCIe 3.0 x1 mode
• Storage Interface
  1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
     – 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
     – 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  2. 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
     – Supporting SATA and PCIe 3.0 x4/x2 SSDs
  3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
     – Support for RAID 0, RAID 1, and RAID 10
• USB

  CPU:

  1. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  2. 2 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 1 x USB 3.2 Gen 1 port on the back panel
  3. 2 x USB 3.2 Gen 1 ports are available through the internal USB header
  4. 2 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports are available through the internal USB headers
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 2 x M.2 Socket 3 connectors
  4. 4 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x water cooling CPU fan header
  7. 3 x system fan headers
  8. 1 x CPU cooler LED strip/RGB LED strip header
  9. 2 x addressable LED strip headers
  10. 2 x RGB LED strip headers
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  17. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump, and high-performance fan with the capability of delivering up to 2A/12V @ 24W.

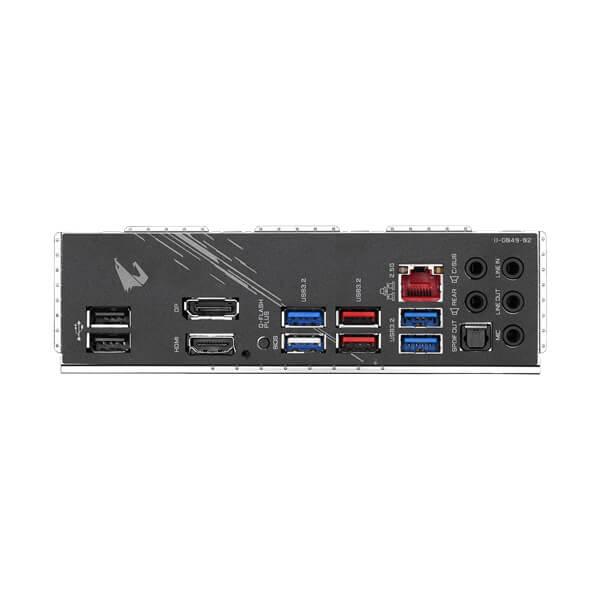

• Back Panel Connectors
  1. 1 x DisplayPort
  2. 1 x HDMI port
  3. 2 x USB 3.2 Gen 2 Type-A ports (red)
  4. 3 x USB 3.2 Gen 1 ports
  5. 2 x USB 2.0/1.1 ports
  6. 1 x Q-Flash Plus button
  7. 1 x RJ-45 port
  8. 1 x optical S/PDIF Out connector
  9. 5 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. Realtek^® 8125 Gaming LAN Bandwidth Control Utility
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
