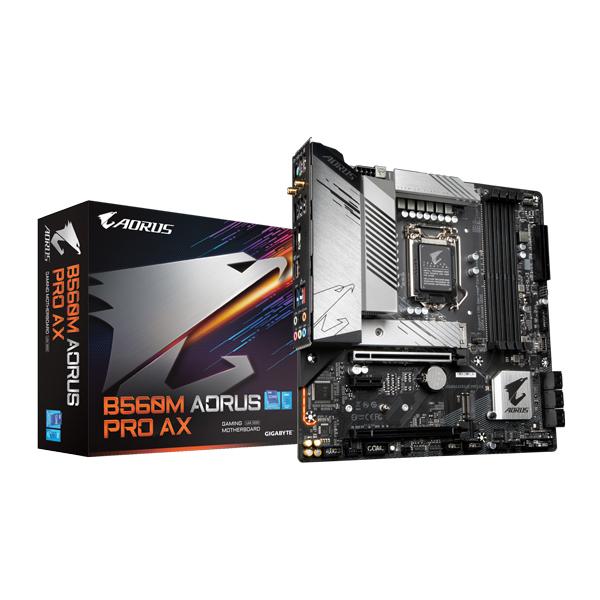

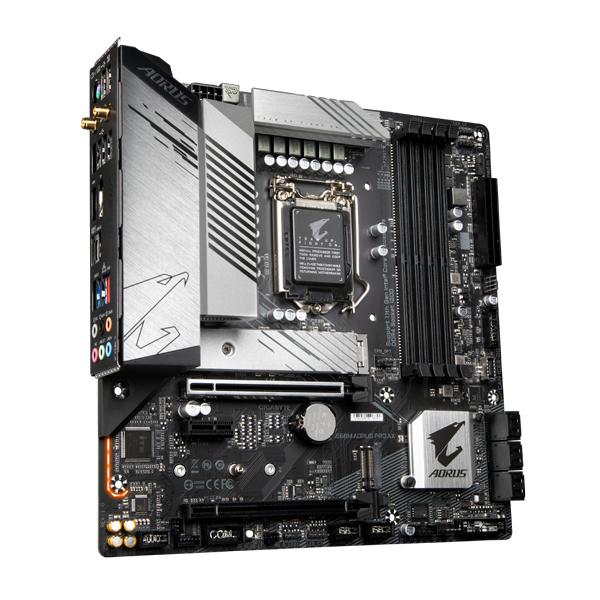

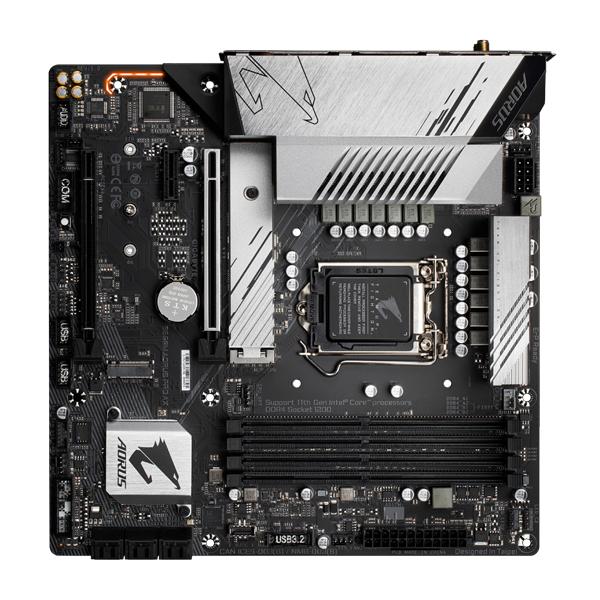

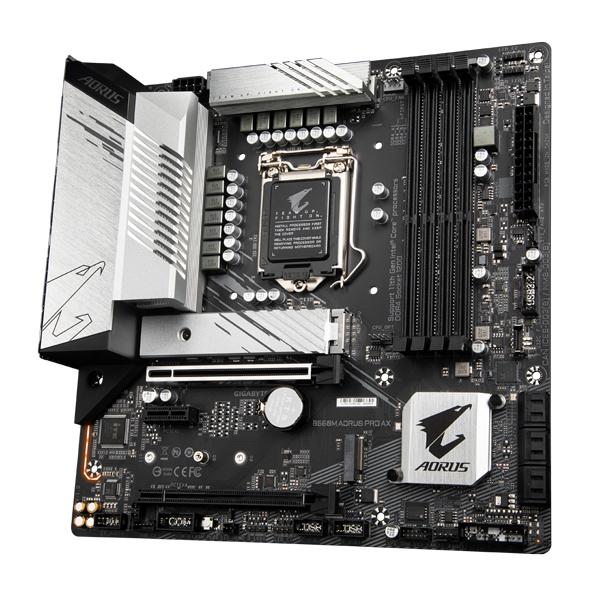

Gigabyte B560M Aorus Pro AX Motherboard

Gigabyte B560M Aorus Pro AX Motherboard :

Features :

Specifications :

• CPU

  LGA1200 package:

  1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
  2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors*
     * Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
  3. L3 cache varies with CPU

  (Please refer to “CPU Support List” for more information.)

• Chipset
  1. Intel^® B560 Express Chipset
• Memory
  1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
     Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 10th Generation Intel^® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel^® Core™ i5/i3 /Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
     * Support for DisplayPort 1.2 version, HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio
  1. Realtek^® Audio codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
• LAN
  1. Intel^®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
• Wireless Communication module

  Intel^® Wi-Fi 6 AX200

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.1
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1. 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
           * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

     (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

  1. *Supported by 11th Generation processors only.

  1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  2. 1 x PCI Express x1 slot
     (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
• Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
     * Supported by 11th Generation processors only.

  Chipset:

  1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

  6 x SATA 6Gb/s connectors
  * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  Intel^® Optane™ Memory Ready

• USB

  Chipset:

  1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen2x2 support
  2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
  3. 2 x USB 3.2 Gen1 ports on the back panel
  4. 2 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 3.2 Gen 1 Hub:

  1. 1 x USB Type-C^® port with USB 3.2 Gen1 support, available through the internal USB header
  2. 2 x USB 3.2 Gen1 ports available through the internal USB header

  Chipset+ 2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x water cooling CPU fan header
  5. 3 x system fan headers
  6. 2 x addressable LED strip headers
  7. 2 x RGB LED strip headers
  8. 6 x SATA 6Gb/s connectors
  9. 2 x M.2 Socket 3 connectors
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
  13. 1 x USB 3.2 Gen 1 header
  14. 2 x USB 2.0/1.1 headers
  15. 2 x Thunderbolt™ add-in card connectors
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  17. 1 x serial port header
  18. 1 x Clear CMOS jumper
  19. 1 x Q-Flash Plus button

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

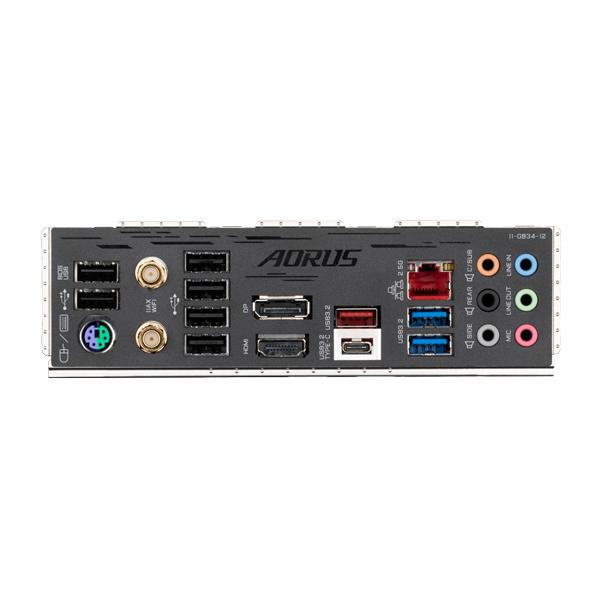

• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C^® port, with USB 3.2 Gen2x2 support
  3. 1 x USB 3.2 Gen2 Type-A port (red)
  4. 2 x USB 3.2 Gen1 ports
  5. 6 x USB 2.0/1.1 ports
  6. 2 x SMA antenna connectors (2T2R)
  7. 1 x DisplayPort
  8. 1 x HDMI port
  9. 1 x RJ-45 port
  10. 6 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     EasyTune
     Fast Boot
     Game Boost
     ON/OFF Charge
     RGB Fusion
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
