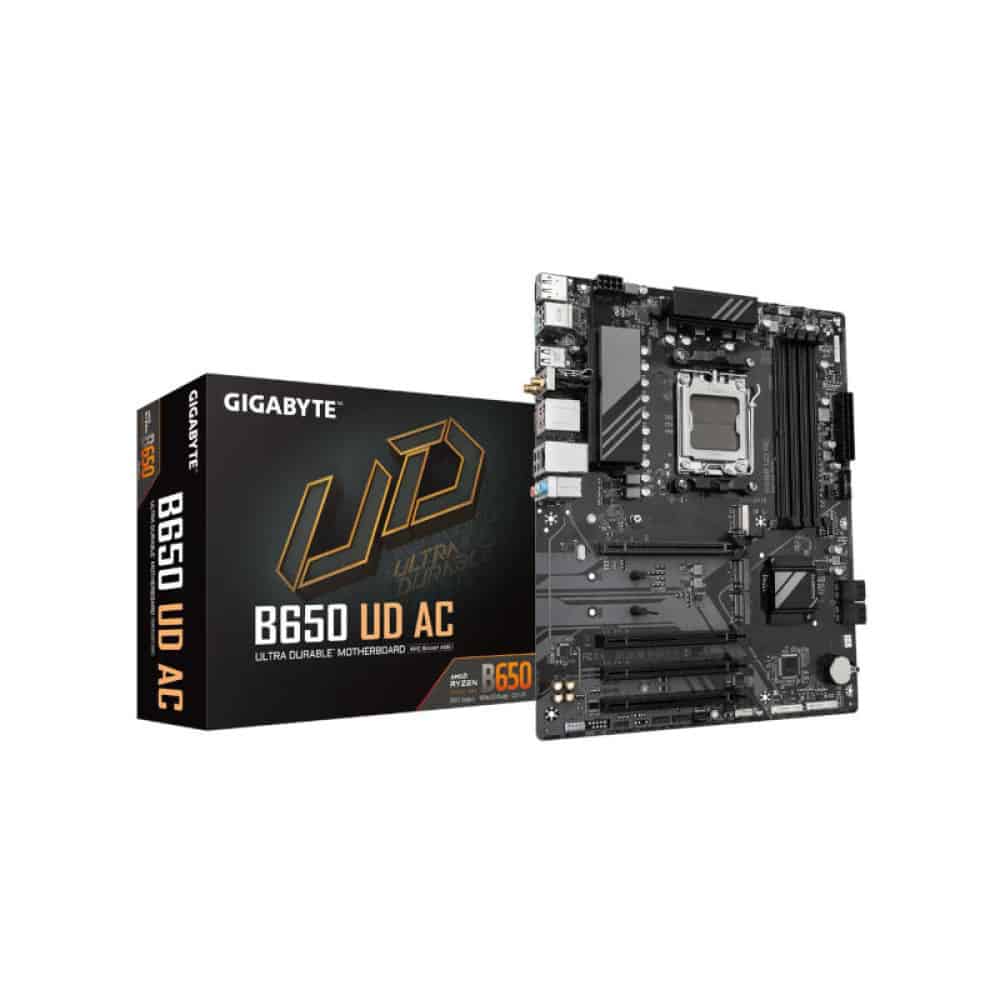

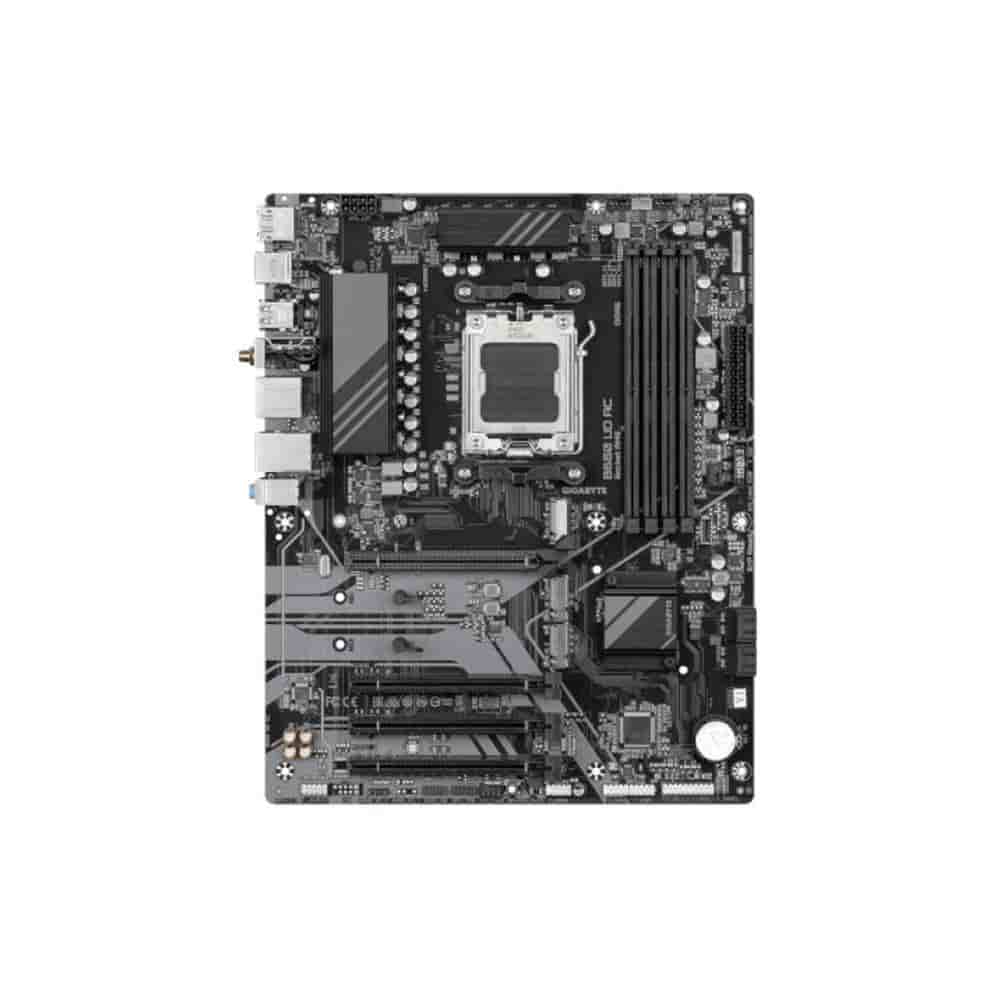

Gigabyte B650 UD AC Motherboard :
Features :
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance：6+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 6E 802.11ac & GbE LAN
- Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Overview :
Durable Performance
Gigabyte B650 UD AC Motherboard built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage of the Gigabyte B650 UD AC Motherboard.
Easy Friendly
In the Gigabyte B650 UD AC Motherboard you can Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Specifications :
| CPU | AMD Socket AM5, support for: <br> – AMD Ryzen™ 7000 Series Processors <br> – AMD Ryzen™ 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules <br> 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) <br> Dual channel memory architecture <br> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules <br> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: <br> – 1 x DisplayPort, max resolution of 3840×2160@144 Hz, DisplayPort 1.4 <br> – 1 x HDMI port, max resolution of 4096×2160@60 Hz, HDMI 2.1 and HDCP 2.3 |
| Audio | Realtek® Audio CODEC <br> High Definition Audio <br> 2/4/5.1/7.1-channel support (configurable via audio software) |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication Module | AzureWave Wi-Fi AW-CB304NF/AW-CB515NF (Realtek® RTL8821CE) <br> – WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band <br> – BLUETOOTH 5.0 <br> – Support for 11ac wireless standard |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16): <br> – Ryzen™ 7000 Series: PCIe 4.0 x16 mode <br> – Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 mode <br> – Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 mode <br> 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2): PCIe 3.0 x1 (unavailable with Ryzen™ 8000 Series-Phoenix 2) <br> 1 x PCI Express x16 slot (PCIEX1_3): PCIe 3.0 x1 |
| Storage Interface | 1 x M.2 connector (M2A_CPU): <br> – Ryzen™ 7000 Series: PCIe 5.0 x4/x2 <br> – Ryzen™ 8000 Series-Phoenix 1/2: PCIe 4.0 x4/x2 <br> 1 x M.2 connector (M2P_CPU): PCIe 4.0 x2 <br> 1 x M.2 connector (M2C_SB): PCIe 4.0 x4/x2 <br> 4 x SATA 6Gb/s connectors <br> RAID 0, 1, 10 support for NVMe and SATA |
| USB | CPU: <br> – 2 x USB 3.2 Gen 2 Type-A ports <br> – 1 x USB Type-C® port (USB 3.2 Gen 1) <br> CPU+USB 2.0 Hub: <br> – 4 x USB 2.0/1.1 ports <br> Chipset: <br> – 2 x USB 3.2 Gen 1 ports (internal) <br> – 1 x USB Type-C® port (internal, USB 3.2 Gen 1) <br> – 4 x USB 2.0/1.1 ports (2 back panel, 2 internal) <br> Chipset+USB 2.0 Hub: <br> – 4 x USB 2.0/1.1 ports (internal) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector <br> 1 x 8-pin ATX 12V power connector <br> 1 x CPU fan header <br> 1 x CPU fan/water cooling pump header <br> 2 x system fan headers <br> 1 x system fan/water cooling pump header <br> 3 x addressable RGB Gen2 LED strip headers <br> 1 x RGB LED strip header <br> 3 x M.2 Socket 3 connectors <br> 4 x SATA 6Gb/s connectors <br> 1 x front panel header <br> 1 x front panel audio header <br> 1 x USB Type-C® header (USB 3.2 Gen 1) <br> 1 x USB 3.2 Gen 1 header <br> 3 x USB 2.0/1.1 headers <br> 1 x Trusted Platform Module header <br> 1 x Q-Flash Plus button <br> 1 x serial port header <br> 1 x Clear CMOS jumper |

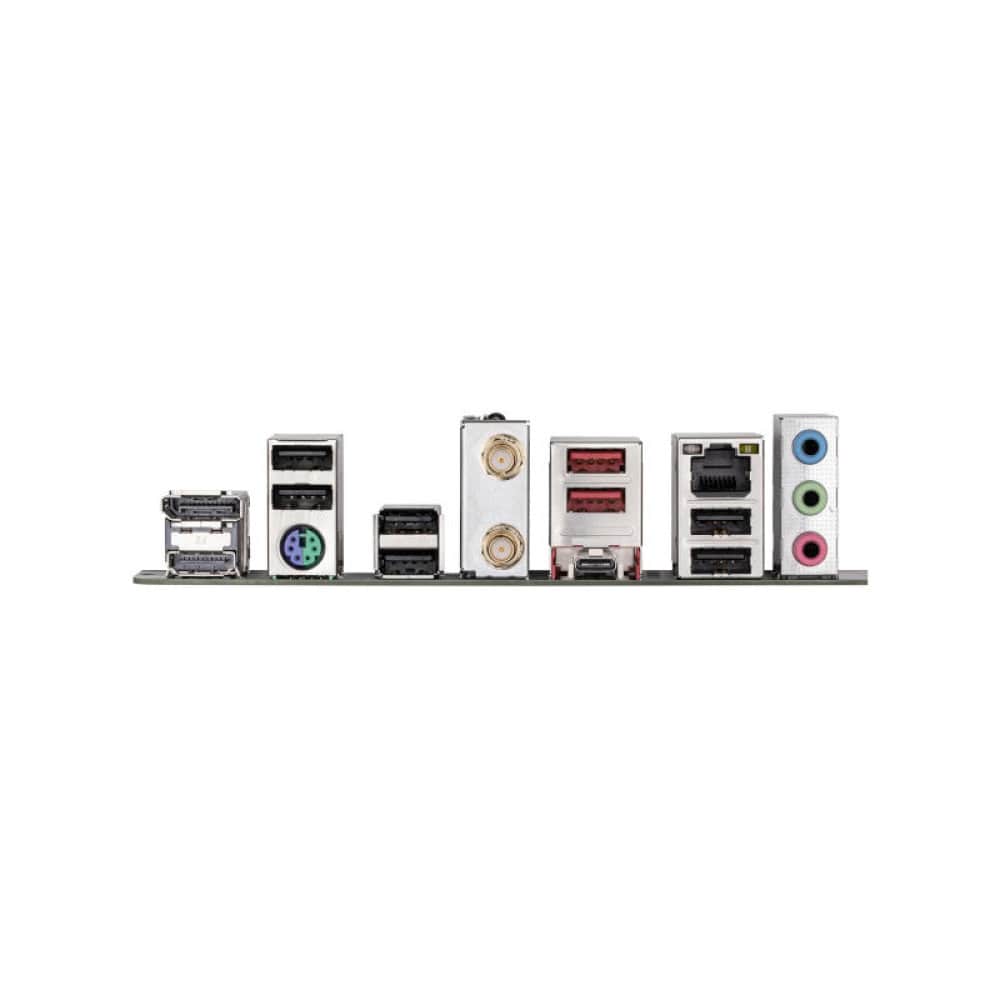

| Back Panel Connectors | 1 x DisplayPort <br> 1 x HDMI port <br> 1 x PS/2 keyboard/mouse port <br> 2 x SMA antenna connectors <br> 1 x USB Type-C® port (USB 3.2 Gen 1) <br> 2 x USB 3.2 Gen 2 Type-A ports <br> 6 x USB 2.0/1.1 ports <br> 1 x RJ-45 port <br> 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection <br> Temperature detection <br> Fan speed detection <br> Water cooling flow rate detection <br> Fan fail warning <br> Fan speed control |
| BIOS | 1 x 256 Mbit flash <br> AMI UEFI BIOS <br> PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) <br> Support for Q-Flash <br> Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) <br> LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit <br> Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
