Gigabyte M28U Gaming Monitor
Overview :
WORLD’S FIRST KVM GAMING MONITOR :
It’s time :
THE LAST MILE FOR YOUR GAMING SYSTEM
Gigabyte M28U As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.
Performance :
One For All
KVM feature allows Gigabyte M28U to control multiple devices via one set of keyboard, video and mouse. With our exclusive KVM button, you’ll find switching devices cannot be any easier! Quick like a snap!
1ms GTG Response Time
The SuperSpeed IPS technology reduces the response time to 1ms; meanwhile offering the IPS-grade splendid color!
UHD with 144Hz
High resolution and fast refresh rate, giving you the detailed display quality and fluid gaming experience!
8-bit color, 94% DCI-P3
Fantastic color display and 94% DCI-P3 super wide-gamut color
HIGH BIT RATE 3
The support of DisplayPort High Bit Rate 3 (HBR3) provides the bandwidth to offer monitor’s fastest refresh rate, full color depth and HDR effect at the same time!
Characteristic :
SIMPLE BUT STYLISH
The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.
Gaming Features :
OSD Sidekick
GIGABYTE OSD Sidekick allows you to set the display options with keyboard and mouse, giving you the easiest way to adjust monitor settings.
Dashboard
The dashboard reveals your real-time hardware information including CPU voltages, clock speed, temperatures, etc. The best part is that it won’t be blocked by any games.
Black Equalizer
This feature allows you to have more details of the dark side without overexposing the bright side at the same time.
HIGHER LEVEL OF CUSTOMIZED COLOR ADJUSTMENT
With the help of Six Axis Control, it’s able get to control six colors (red, green, blue, cyan, magenta, and yellow) individually. It allows you to more accurately display the color gamut on the monitor.
Auto-Update
Users can effortlessly enjoy the finest gaming experience with features GIGABYTE continues to develop and upgrade while giving extra protection to your monitor.
Ergonomic Design :

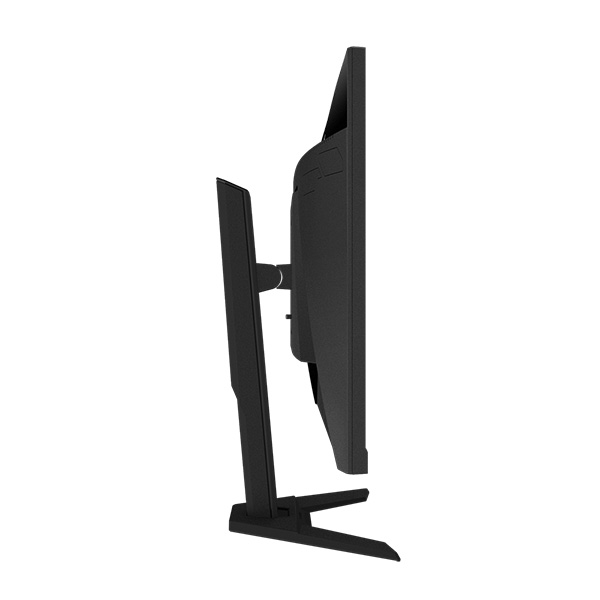

PERFECT VIEWING ANGLE
GIGABYTE Gaming monitor features an exclusive stand that’s ergonomically designed to offer extensive range of height and tilt adjustments.
Specifications :
| Panel Size (diagonal) | 28″ SS IPS |
| Display Viewing Area (HxV) | 631.928 x 359.78 (mm) |
| Panel Backlight/ Type | Edge type |
| Display Surface(non-glare/ glare) | Non-glare |
| Color Saturation | 94% DCI-P3/ 120% sRGB |
| True Resolution | 3840 x 2160 (UHD) |
| Pixel Pitch | 0.16 (H) x 0.16 (V) |
| Brightness | 300 cd/m2 (TYP) |
| Contrast Ratio | 1000:01:00 |
| Viewing Angle | 178°(H)/178°(V) |
| Display Colors | 8 bits |
| Response Time | 1ms GTG / 2ms MPRT |
| Refresh Rate | 144Hz |
| 120Hz for Console Game* | |
| HDR | VESA Display HDR400 |
| Flicker-free | Yes |
| HBR3 | Yes |

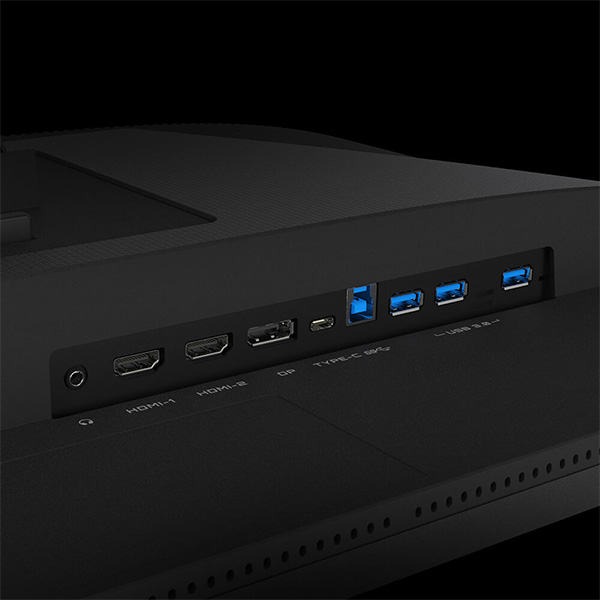

| Signal Input | HDMI 2.1 (support 4K 144Hz 4:4:4 @ DSC enabled or 4K 144Hz 4:2:0) x2 |
| Display port 1.4 (DSC) x1 | |
| USB Type-C x1 | |
| Earphone Jack | Yes |
| Speaker | 3W x2 |
| Unique Features | OSD Sidekick |
| Aim Stabilizer Sync | |
| Black Equalizer | |
| Dashboard | |
| Crosshair | |
| Timer | |
| Counter | |
| Auto-Update | |
| KVM | |
| 6 axis Color Control | |
| Smart OD | |
| USB port(s) | USB 3.0 x3 |
| Power Type | Built-in |
| AC Input Max | 115W |
| Power Saving Mode | 0.5W |
| Power Off Mode | 0.3W |
| Voltage | AC 100-240V ~ 50/60Hz |
| Tilt(angle) | -5°~+20° |
| Swivel(angle) | N/A |
| Pivot(angle/direction) | N/A |
| Height Adjustment (mm) | 130mm |
| VESA Wall Mounting(mm) | 100*100mm |
| Kensington lock | Yes |
| Phys. Dimension with Stand(WxHxD) | 636.5*534.2*193.6 |
| Phys. Dimension w/o stand (WxHxD) | 636.5*372.3*63.1 |
| Box Dimension (WxHxD) | 890*510*148 |
| Net Weight with stand (Esti.) | 6.93 (kg) |
| Net Weight without stand (Esti.) | 5.18 (kg) |
| Gross Weight (Esti.) | 9.7 (kg) |
| Accessories | Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card |
| Note | *HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0) |
