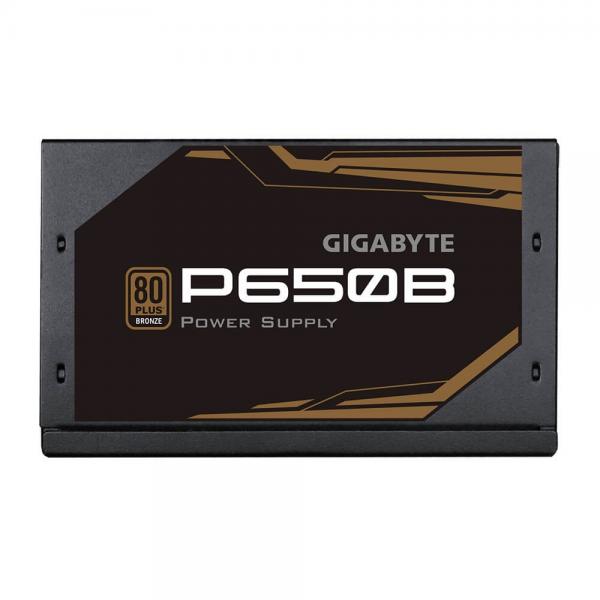

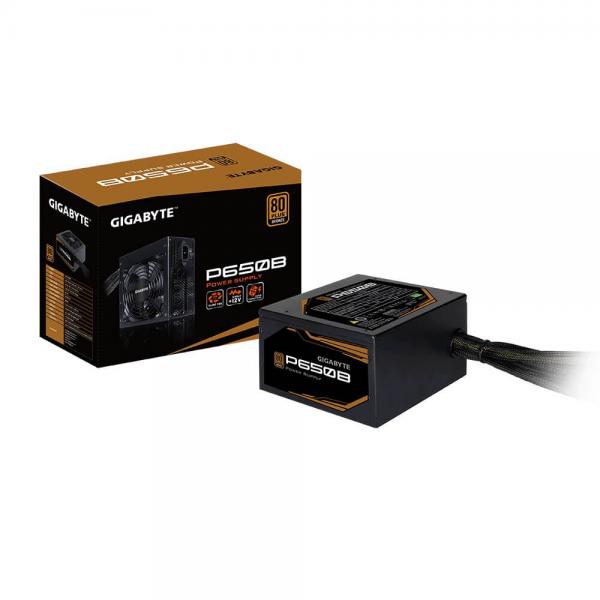

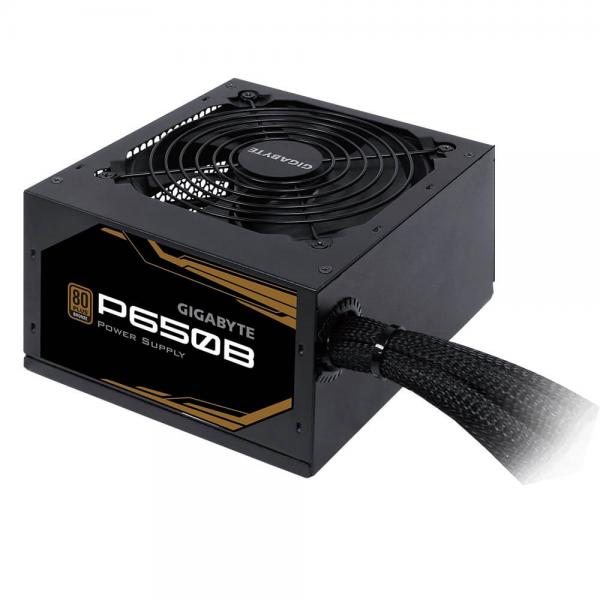

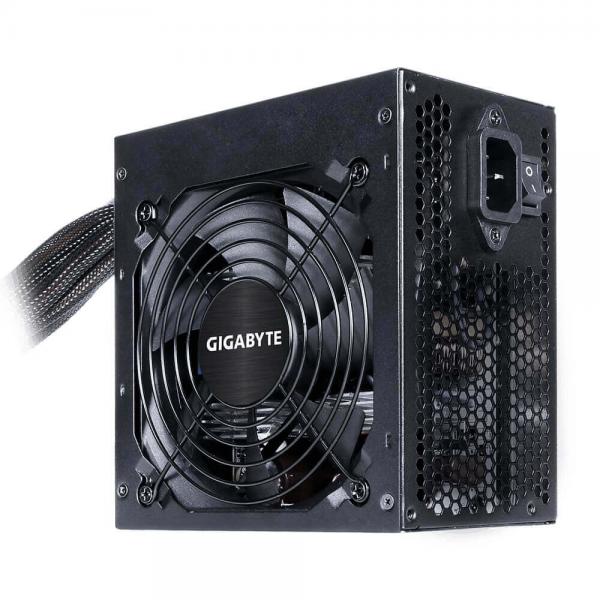

Gigabyte P650B 80 Plus Bronze 650W Power Supply
Features :
- 80 PLUS bronze certified: up to 89% efficiency
- 100% Japanese Capacitors
- 120mm Hydraulic Bearing (HYB) Fan
- Single +12V rail
- Meet ErP LOT6 2013 (< 0.5W at standby mode)
- OPP/UVP/OVP/SCP/OCP protection
- 3 years warranty (Adjusted according to different regions)
Specifications :
| Model | P650B |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC(>0.9 typical) |
| Input Voltage | 100-240 Vac(full range) |
| Input Current | 89-4 A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120 mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS | Bronze |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All black |
| Connectors | ATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1 |
| Warranty | 3 Years |
