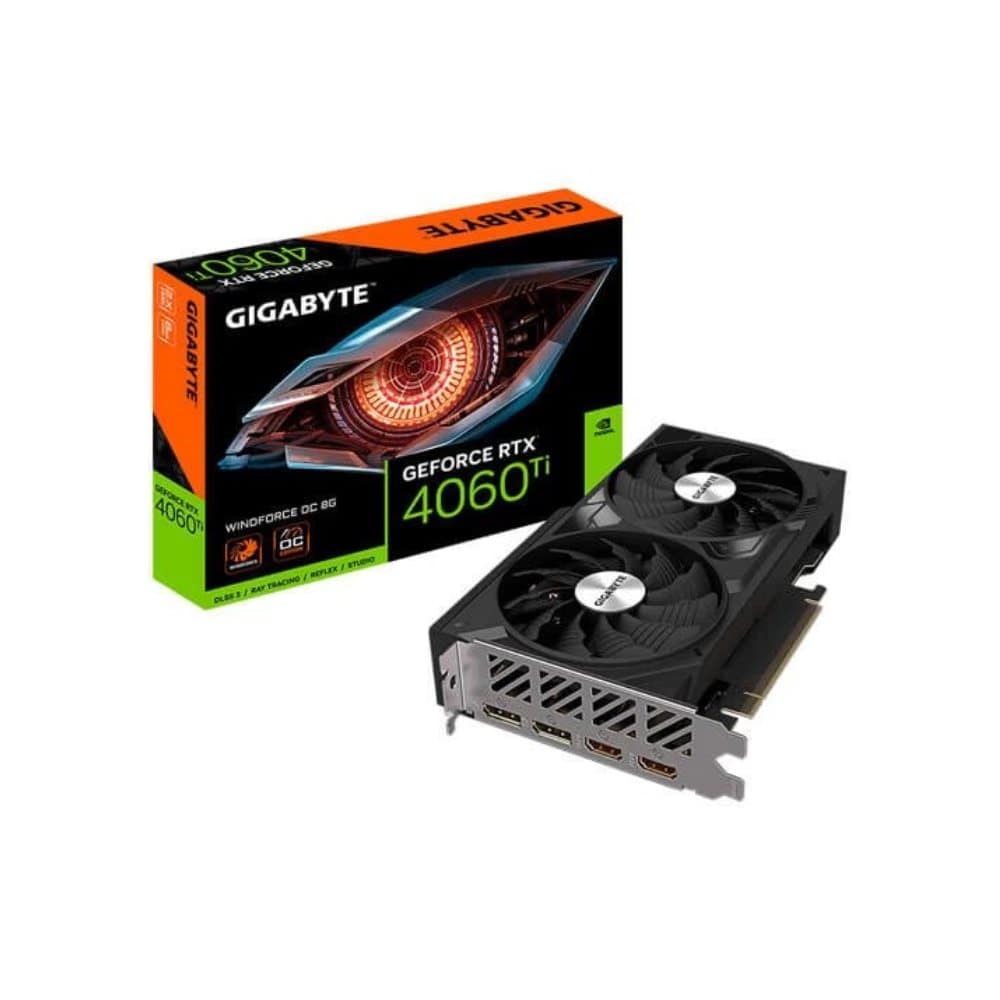

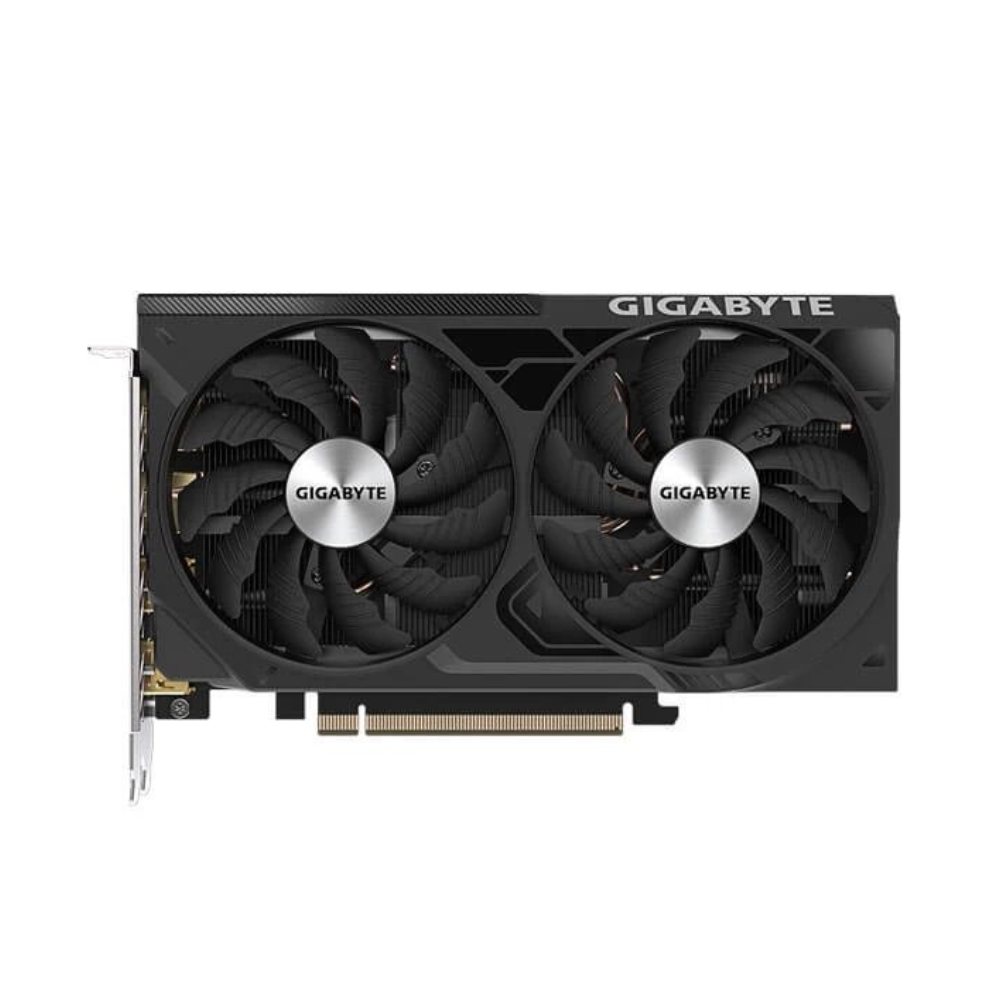

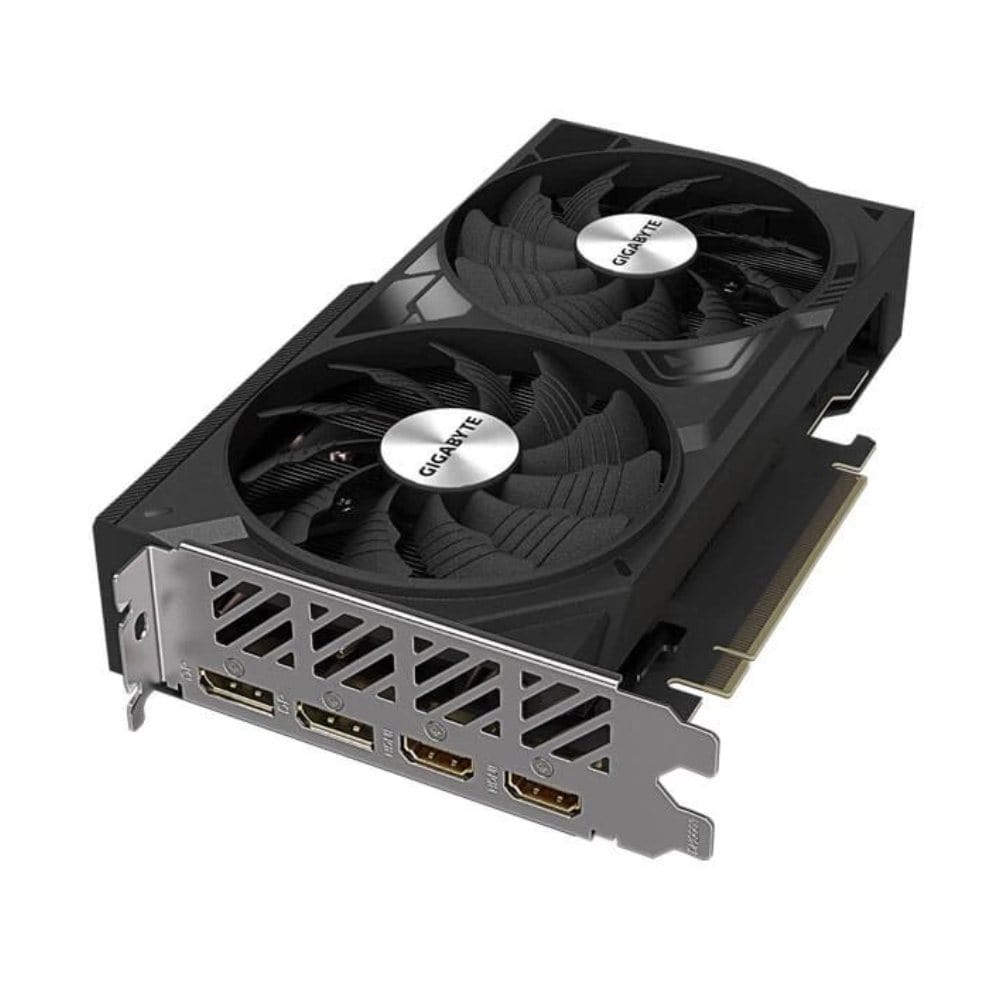

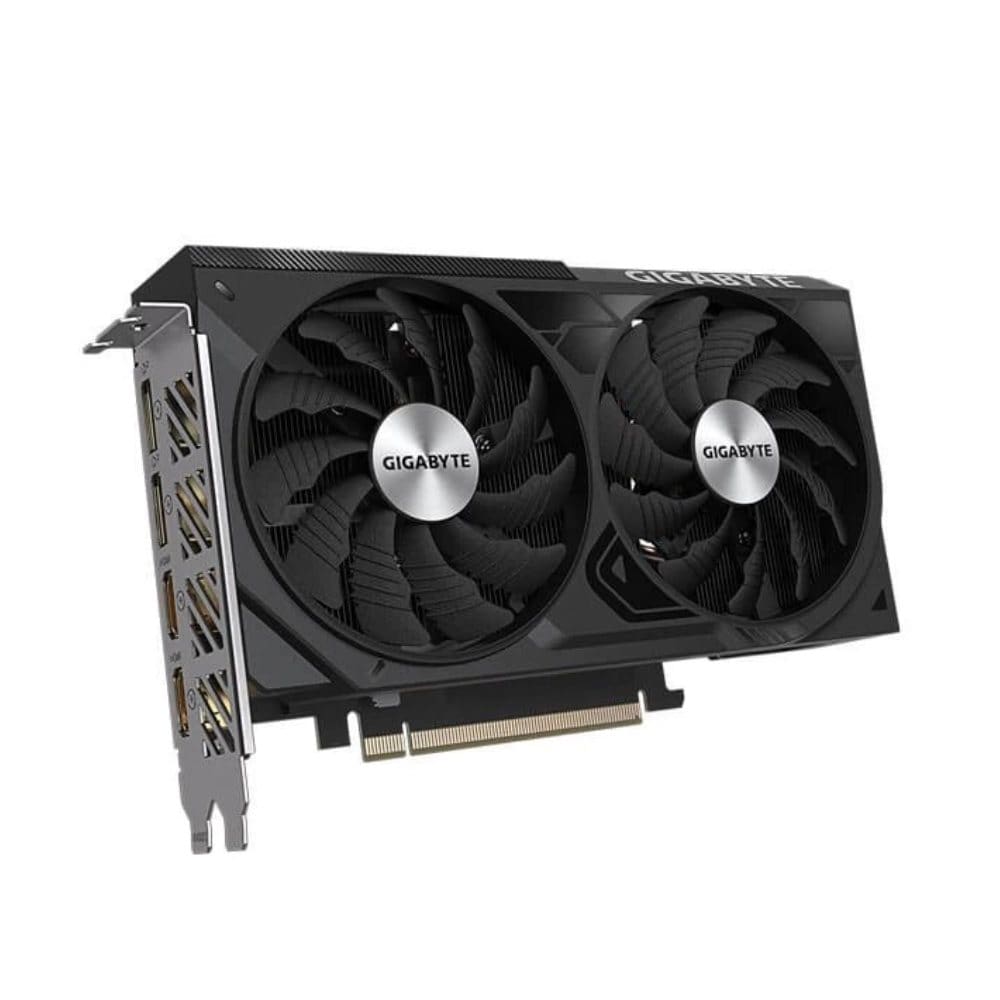

Gigabyte RTX 4060 Ti Windforce OC 8GB Graphics Card :
Features :
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection back plate
Overview :

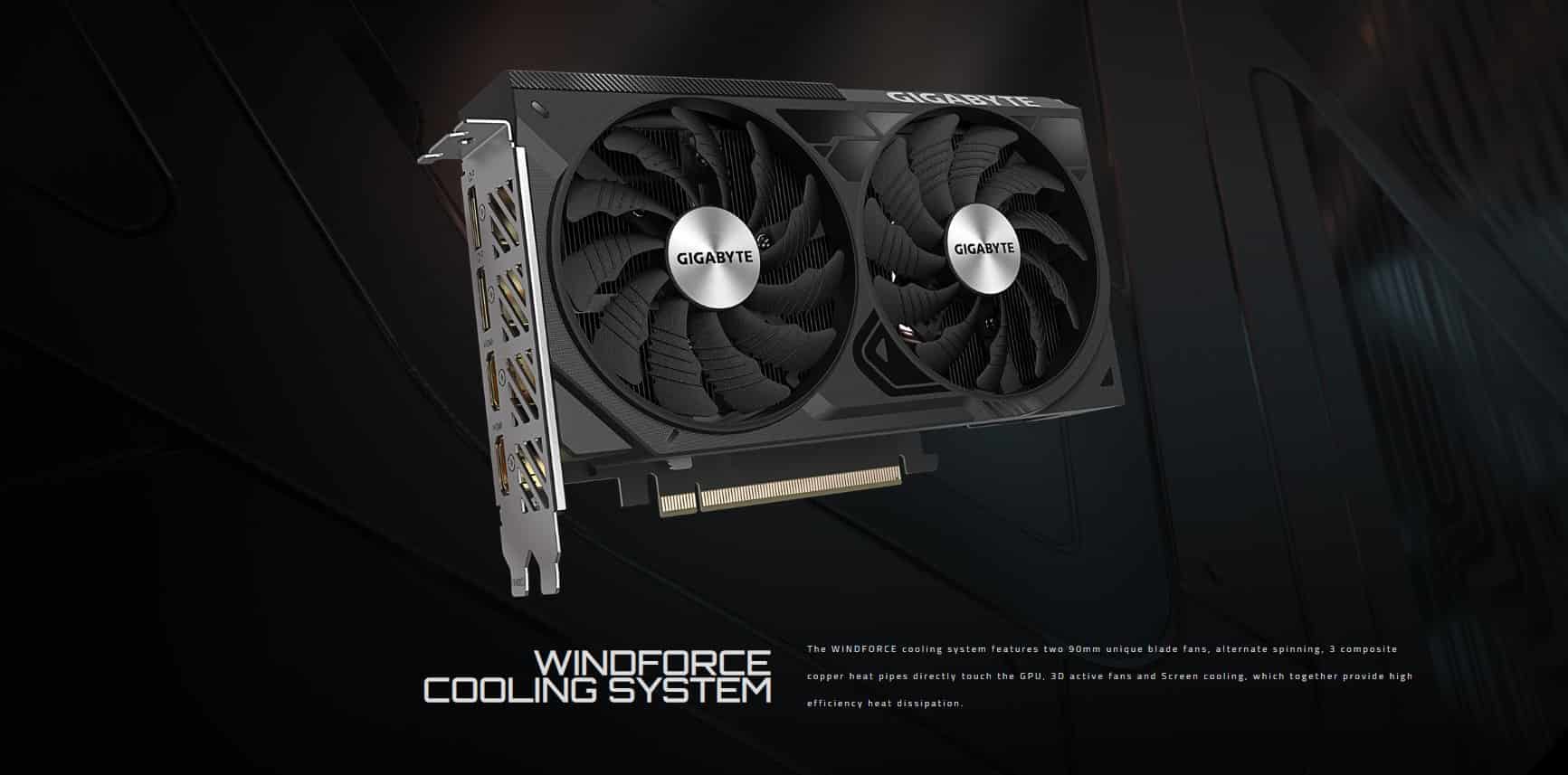

WINDFORCE COOLING SYSTEM
The Gigabyte RTX 4060 Ti Windforce OC cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

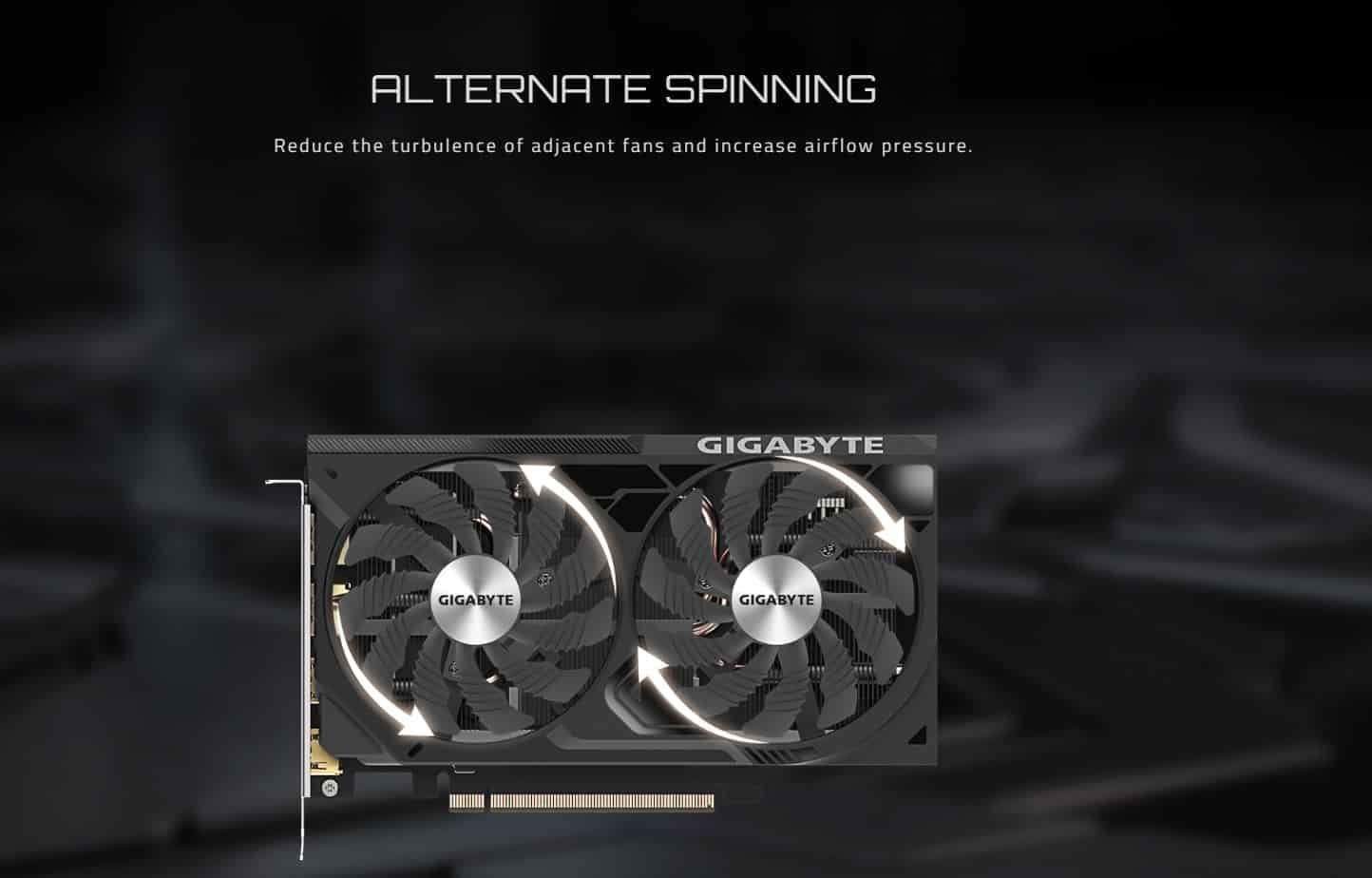

ALTERNATE SPINNING
Gigabyte RTX 4060 Ti Windforce OC Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.All in Gigabyte RTX 4060 Ti Windforce OC.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface in Gigabyte RTX 4060 Ti Windforce OC.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.All in Gigabyte RTX 4060 Ti Windforce OC.
HEAT PIPES DIRECT TOUCH
The shape of the copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.All in Gigabyte RTX 4060 Ti Windforce OC.

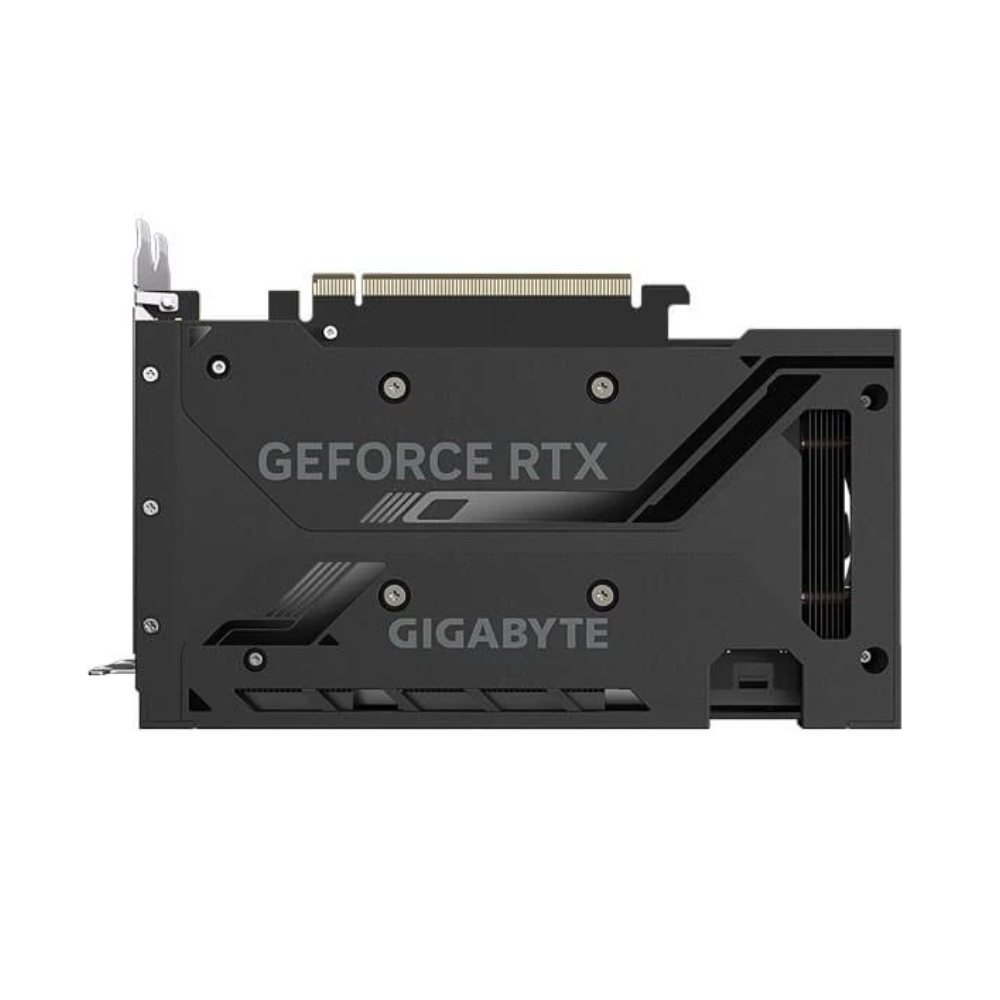

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life with Gigabyte RTX 4060 Ti Windforce OC.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications :
| Model | Gigabyte RTX 4060 Ti Windforce OC 8GB |
| Graphics Processing | GeForce RTX™ 4060 Ti (8GB) |
| Core Clock | 2550 MHz (Reference Card: 2535 MHz) |
| CUDA® Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=201 W=120 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500W |

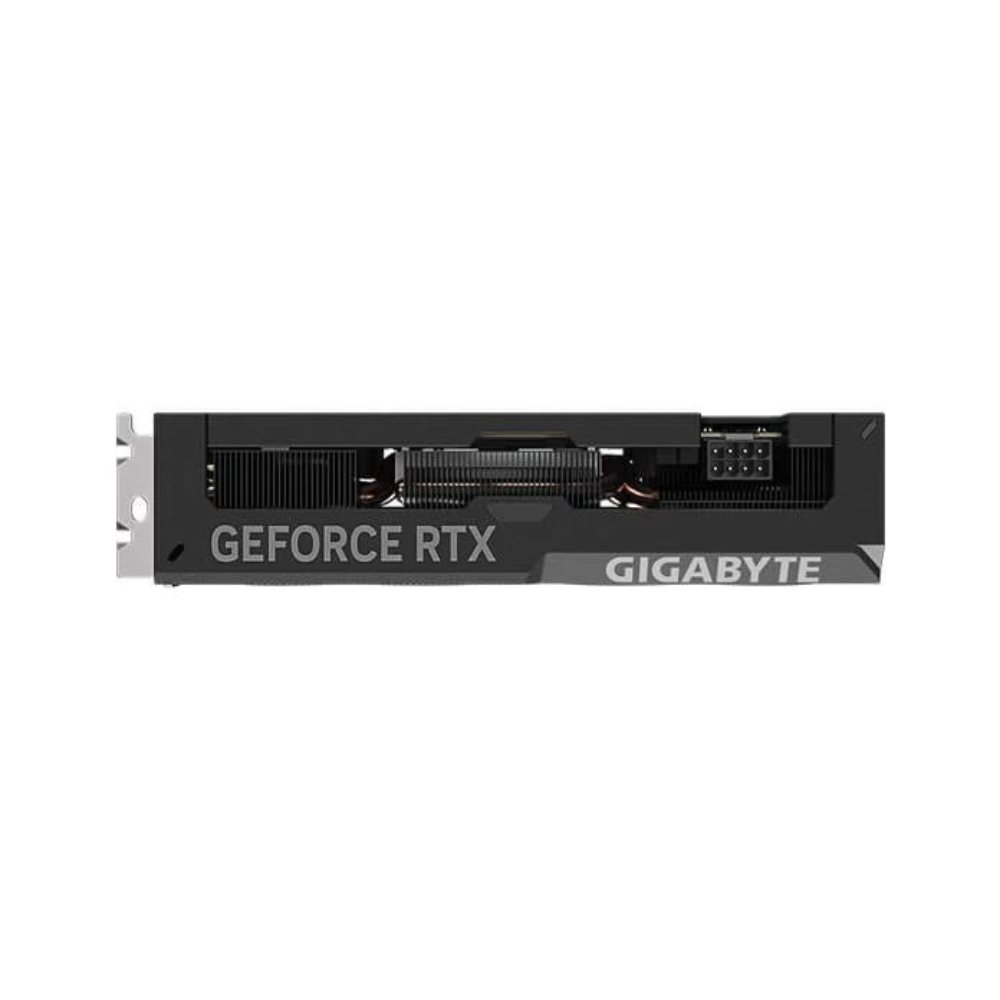

| Power Connectors | 8 pin*1 |

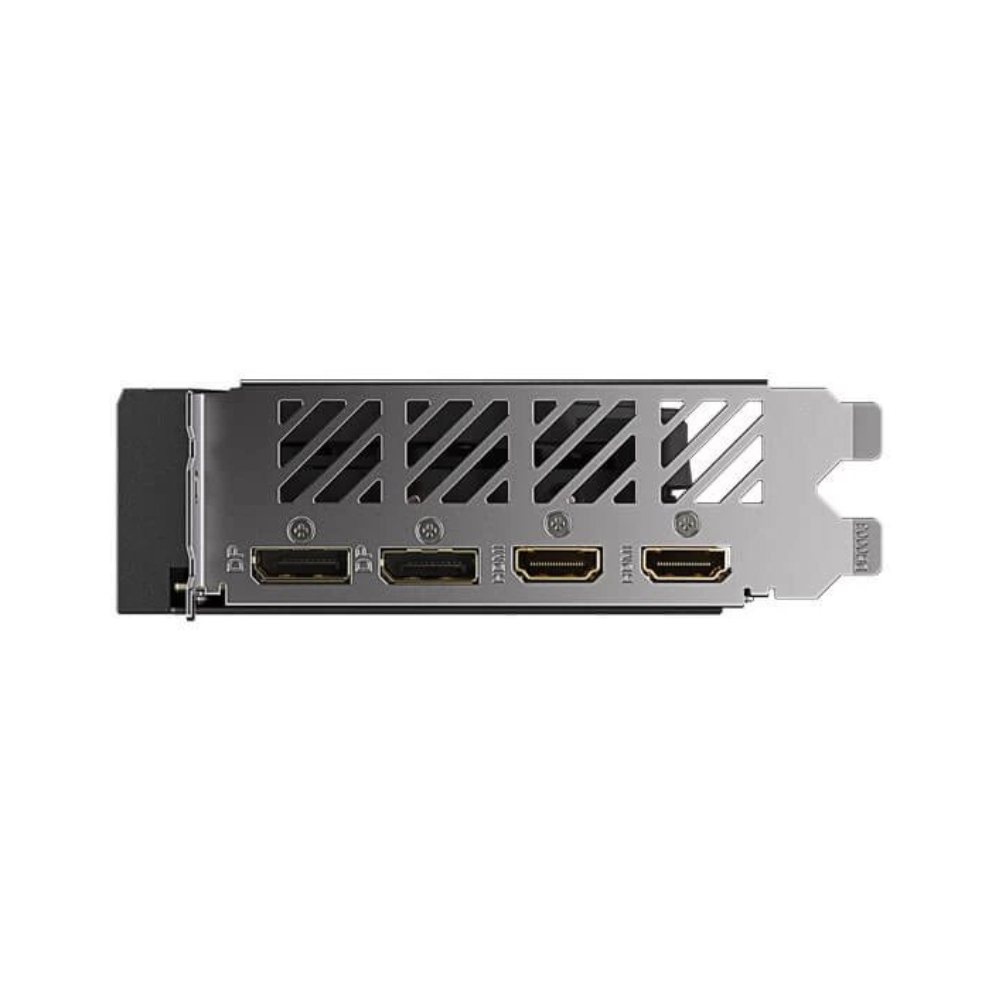

| Output | DisplayPort 1.4a*2 HDMI 2.1a*2 |
| Accessories | 1. Quick guide |
| Warranty | 3 Years |
