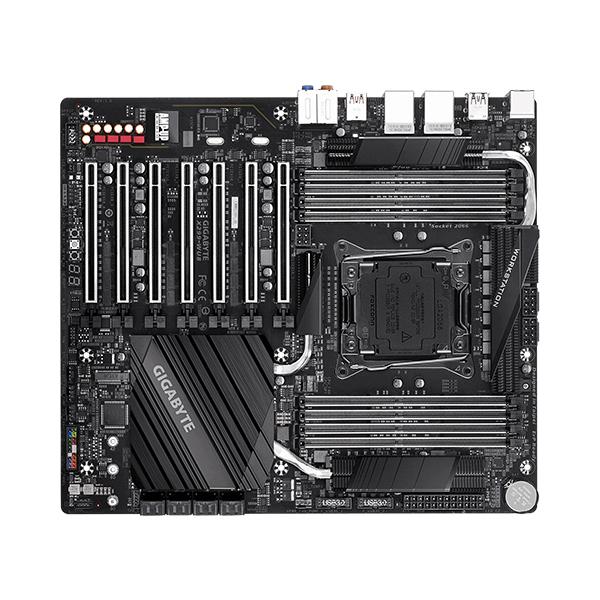

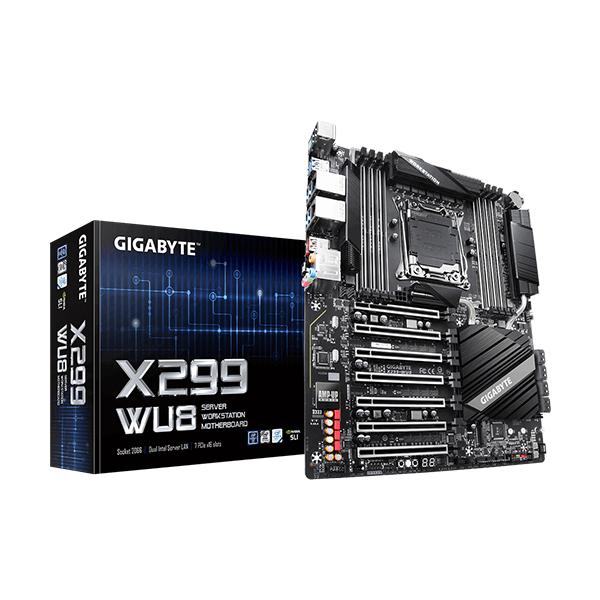

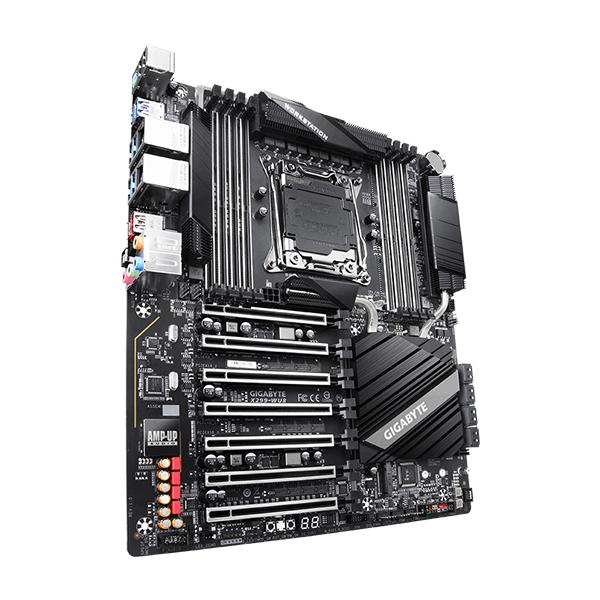

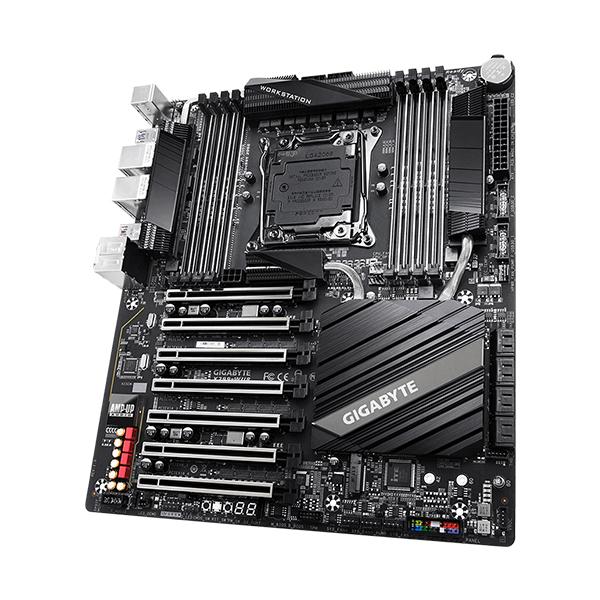

Gigabyte X299 WU8 Motherboard

Specifications:

• CPU
  1. Support for Intel^® Core™ X series processors (6-core or above) in the LGA2066 package
  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. Intel^® X299 Express Chipset
• Memory
  1. Intel^® Core™ X series 48-lane processors:
     – 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
     Intel^® Core™ X series 44-lane/28-lane processors:
     – 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
  2. 4 channel memory architecture
  3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
  4. Support for non-ECC Un-buffered DIMM
  5. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Audio
  1. Realtek^® ALC1220-VB codec
     * The back panel line out jack supports DSD audio.
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. 2 x Intel^® GbE LAN chips (10/100/1000 Mbit)
• Expansion Slots
  1. 4 x PCI Express x16 slots, running at x16 (PCIEX16_1/2/3/4)
  2. 3 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3)
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
     * Refer to “1-6 Setting up AMD CrossFire™/NVIDIA^® SLI™ Configuration,” for the installation notices for the PCI Express x16 slots.
• Multi-Graphics Technology
  1. Support for NVIDIA^® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA^® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
  2. 8 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * The M.2 connector supports SATA RAID only.
     * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

  Intel^® Optane™ Memory Ready

• USB

  Chipset+ASMedia^® USB 3.1 Gen 2 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

  Chipset:

  1. 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)
  2. 2 x USB 2.0/1.1 ports on the back panel
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 2 x 8-pin ATX 12V power connectors
  3. 1 x VGA_PW power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 1 x 3 Amp fan/water cooling pump header
  9. 1 x digital LED strip header
  10. 1 x digital LED strip power select jumper
  11. 2 x RGB (RGBW) LED strip headers
  12. 1 x M.2 Socket 3 connector
  13. 8 x SATA 6Gb/s connectors
  14. 1 x Intel^® VROC Upgrade Key header
  15. 1 x front panel header
  16. 1 x front panel audio header
  17. 1 x S/PDIF Out header
  18. 2 x USB 3.1 Gen 1 headers
  19. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
  20. 1 x Thunderbolt™ add-in card connector
  21. 1 x power button
  22. 1 x reset button
  23. 1 x Clear CMOS button
  24. 2 x temperature sensor headers
• Back Panel Connectors
  1. 2 x USB 2.0/1.1 ports
  2. 6 x USB 3.1 Gen 1 ports
  3. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  4. 1 x USB 3.1 Gen 2 Type-A port (red)
  5. 2 x RJ-45 ports
  6. 1 x optical S/PDIF Out connector
  7. 5 x audio jacks
• I/O Controller
  1. iTE^® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Overheating warning
  6. Fan fail warning
  7. Fan speed control
     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS
  1. 2 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Operating Properties
  1. Operating temperature: -10°C to 50°C
  2. Operating humidity: 8 – 90%
  3. Non-operating temperature: -40°C to 70°C
  4. Non-operating humidity: 5% – 95%
• Unique Features
  1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     3D OSD
     @BIOS
     AutoGreen
     Cloud Station
     EasyTune
     Easy RAID
     Fast Boot
     Game Boost
     ON/OFF Charge
     Platform Power Management
     RGB Fusion
     Smart Backup
     Smart Keyboard
     Smart TimeLock
     Smart HUD
     System Information Viewer
     Smart Survey
     USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton^® Internet Security (OEM version)
  2. cFosSpeed
  3. XSplit Gamecaster + Broadcaster (12 months license)
• Operating System
  1. Support for Windows 10 64-bit
• Form Factor
  1. CEB Form Factor; 30.5cm x 26.7cm
