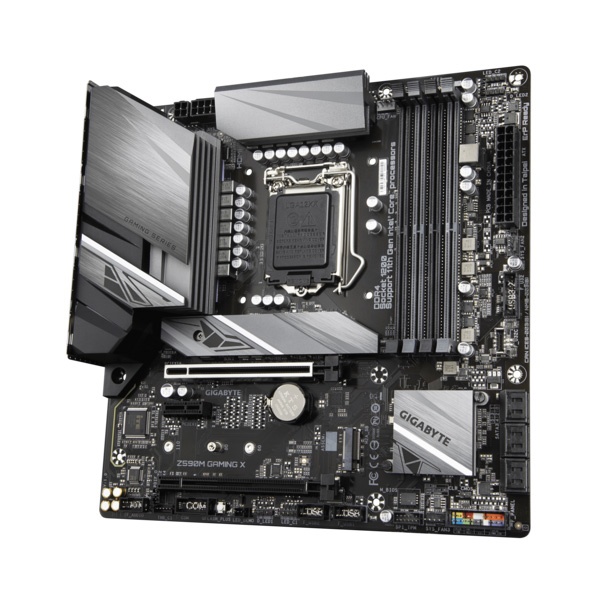

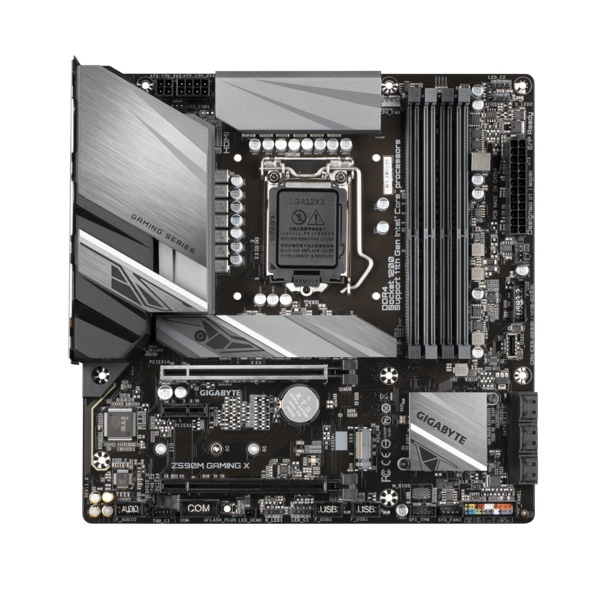

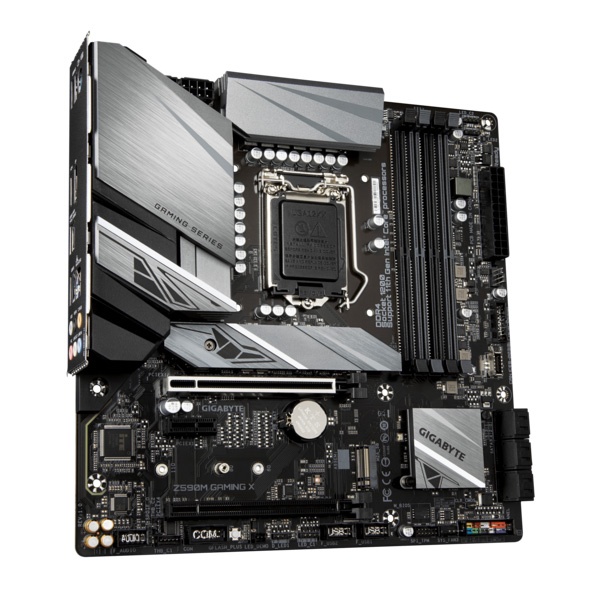

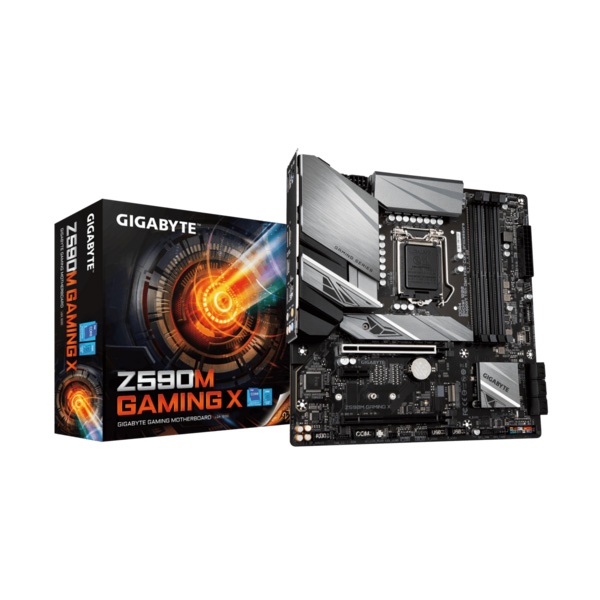

Gigabyte Z590M Gaming X Motherboard

₹17,249 (Inclusive of GST)

Available Models: Z590M-GAMING-X
Brand:

Out of stock

Email when back in stock

Gigabyte Z590M Gaming X Motherboard

Features :

Intel® Z590M GAMING Motherboard with Direct 12+1 Phases Digital VRM with DrMOS, Full Gen4 Design, Fully Covered Thermal Design with Integrated IO Armor, PCIe 4.0 M.2 with Thermal Guard, 2.5GbE Gaming LAN, 8-ch HD Audio with Audio Caps, USB 3.2 Gen2 TYPE-C® , RGB FUSION 2.0, Q-Flash Plus
  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • Fast 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting devices
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overview :

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 12+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 720 Amps current in total.
  • All-solid capacitors to improve Transient response and minimize oscillation.
  • 8+4 Solid Pin CPU Power Connectors

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Single 32GB Support
The maximum memory capacity on the Z590 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.

Dual PCIe 4.0/3.0 x4 M.2

GIGABYTE Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

ADVANCED THERMAL SOLUTION

Z590M GAMING X uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590M GAMING X provides all next generation network, storage, connectivity to keep you up to speed.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

ULTRA DURABLE

GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z590M GAMING X motherboard and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER

Good software goes hand in hand with perfect hardware. Z590M GAMING X bundled several useful and intuitive software to help users to control every aspect of motherboard.

Specifications :

  • CPU

    LGA1200 package:

    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z590 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version, HDCP 2.3.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.

    (Supported graphics specifications may vary depending on CPU or graphics card used.)

  • Audio
    1. Realtek® Audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
  • Expansion Slots
        1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*

      1. * Supported by 11th Generation processors only.
    1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    2. 2 x PCI Express x1 slots
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface

    CPU:

        1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*

      *Supported by 11th Generation processors only.

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    2. 6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready

  • USB

    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    5. 2 x USB 2.0/1.1 ports available through the internal USB header

    Chipset+USB 2.0 Hub:

    1. 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x 8-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 6 x SATA 6Gb/s connectors
    9. 2 x M.2 Socket 3 connector
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x S/PDIF Out header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    14. 1 x USB 3.2 Gen 1 header
    15. 2 x USB 2.0/1.1 headers
    16. 2 x Thunderbolt™ add-in card connectors
    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    18. 1 x serial port header
    19. 1 x Clear CMOS jumper
    20. 1 x Q-Flash Plus button

    ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

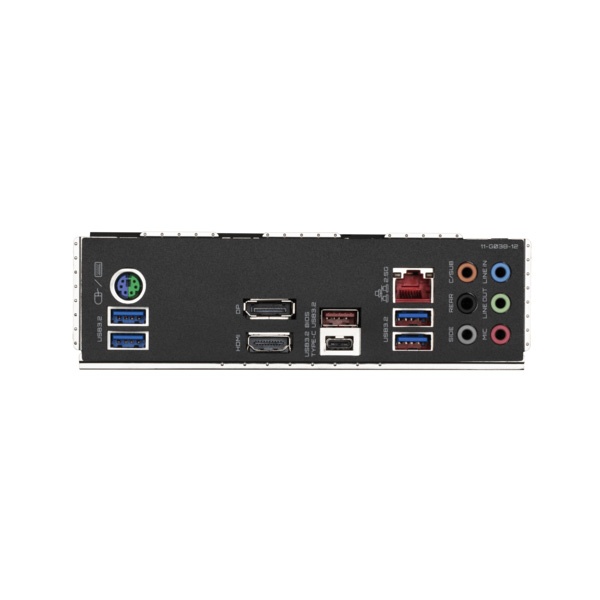

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 4 x USB 3.2 Gen 1 ports
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    7. 1 x RJ-45 port
    8. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

LGA1200

Chipset

Z590

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

Available Models

Z590M-GAMING-X

EAN/UPC

4719331815493

Memory Slot Type

DDR4
