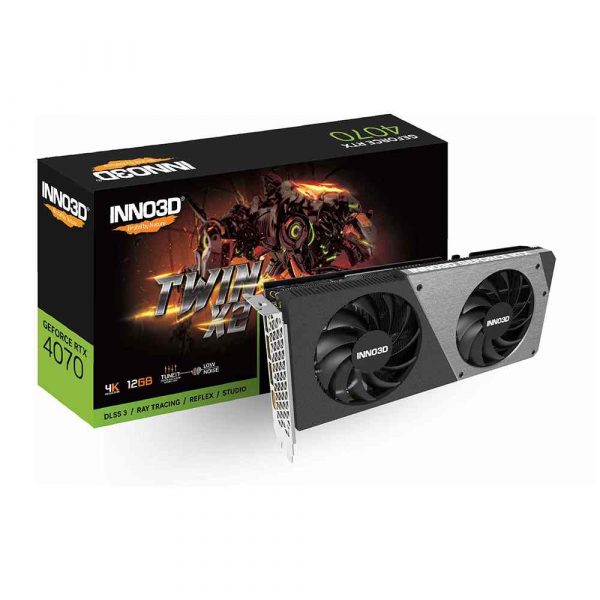

Inno3d RTX 4070 Twin X2 12GB Graphics Card :
UNLOCK NEXT-LEVEL PERFORMANCE WITH INNO3D GeForce RTX” 4070 TWIN X2 DLSS 3
INNO3D introduces its new Inno3d RTX 4070 Twin X2 12GB DLSS 3, the latest NVIDIA GPU with its ground-breaking Ada architecture. For those with smaller form factor builds, the INNO3D TWIN X2 dual slot design is the perfect solution. Not only does this next-generation graphics card deliver superior performance, but it’s also aesthetically pleasing with its modern design.
Features of Inno3d RTX 4070 Twin X2 12GB :
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- IceStorm 2.0 Advanced Cooling
- FREEZE Fan Stop, Active Fan Control
- Compact 2.2 Slot Footprint
- SPECTRA RGB Lighting
- Metal Backplate
- Bundled with GPU Support Bracket
- All-new FireStorm Utility (DOWNLOAD/ LEARN MORE)
Overview of Inno3d RTX 4070 Twin X2 12GB :
POWERFUL DUAL FAN
Inno3d RTX 4070 Twin X2 12GB have 88mm scythe fan blades for optimal cooling with detachable fan blades
DUAL SLOT
Two slot form factor is an excellent option for MATX and |TX SFF (small form factor) builds
COPPER BASE
– Full coverage for GPU
– Absorb the heat effectively and spread out by heatpipe
OPTIMIZED FIN THICKNESS AND SPACING
– Increased airflow between the fins
ALUMINUM BASE
– Full coverage for Memory
– Spread out the heat effectively to the fins
MULTIFUNCTIONAL BACKPLATE
Hot air extraction and release, and PCB protection
Specifications of Inno3d RTX 4070 Twin X2 12GB :
| GPU Engine Specs: | |
|---|---|
| CUDA Cores | 5888 |
| Boost Clock (MHz) | 2475 |
| Base Clock(MHz) | 1920 |
| Thermal and Power Spec: | |
| Minimum System Power Requirement (W) | 600 |
| Supplementary Power Connectors | 1x PCIe 8-pin cable |
| Memory Specs: | |
| Memory Clock | 21Gbps |
| Standard Memory Config | 12GB |
| Memory Interface | GDDR6X |
| Memory Interface Width | 192-bit |
| Memory Bandwidth (GB/sec) | 504 |
| Feature Support: | |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | 3rd Generation |
| Tensor Cores | 4th Generation |
| NVIDIA Architecture | Ada Lovelace |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| PCI Express Gen 4 | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 4.0 X16 |
| NVIDIA ShadowPlay | Yes |
| OS Certification | Windows 11 / 10, Linux, FreeBSDx86 |
| NVIDIA Highlights | Yes |
| NVIDIA G-SYNC™-Ready | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.6 |
| DisplayPort 1.4a | Yes |
| NVIDIA Encoder | 2x 8th Generation |
| NVIDIA Decoder | 5th Generation |
| HDMI 2.1a | Yes |
| Accessories: | |
| Installation Guide | Yes |
| Power Guide | Yes |
| Graphics Card Dimensions: | |
| Length | 250mm |
| Height | 118mm |
| Width | 42mm |
| Display Support: | |
| Multi Monitor | Yes |
| Maxmium Digital Resolution | 7680×4320 |
| HDCP | 2.3 |
| Standard Display Connectors | HDMI 2.1a, 3x DisplayPort 1.4a |
