Lian Li A4 H2O Black Cabinet Mini ITX motherboard supported Small Form Factor ITX Chassis with PCIe 4.0 Gen 4 Riser Cable.
Overview :

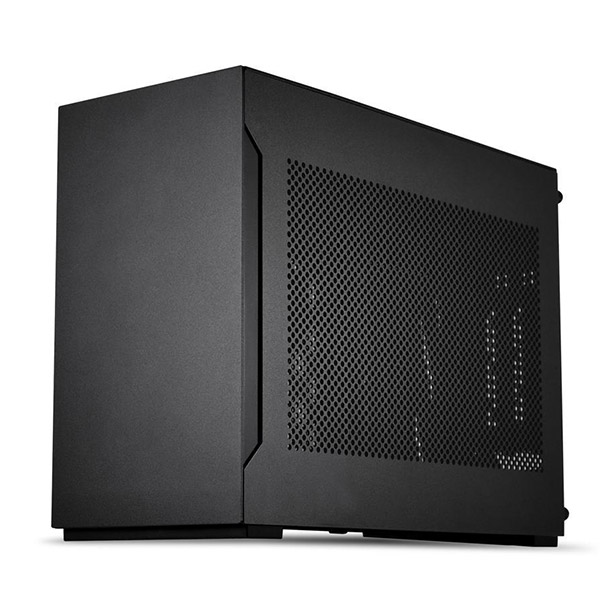

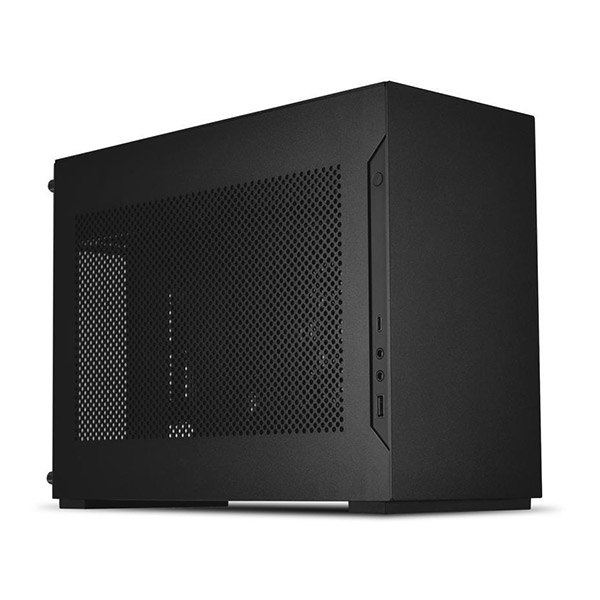

The Lian Li A4 H2O Black is an 11-liter small form factor case, a collaboration project with DAN Cases. Based on the original DAN A4-SFX case sandwich layout concept, the A4-H2O continues the minimalist and compact form factor with improved hardware compatibility (including AIO water cooling) and simplifies installation.
Specifications :
| PRODUCT NAME | Lian Li A4 H2O Black | |||
|---|---|---|---|---|
| MODEL | A4-H20 X4 | |||
| COLOR | Anodized Black Exterior Matte Black Interior | |||
| RISER CABLE GENERATION | PCIe4.0 | |||
| DIMENSIONS | (D) 326mm x (W) 140mm x (H) 244mm | |||
| CAPACITY | 11L | |||
| MATERIALS | Aluminum Exterior SPCC Steel Interior | |||
| MOTHERBOARD SUPPORT | Mini-ITX | |||
| FAN SUPPORT | Top：2x 120mm | |||
| RADIATOR SUPPORT | Top：1x 240mm (55mm. max total thickness with fans) | |||
| PSU SUPPORT | SFX, SFX-L | |||
| GPU LENGTH CLEARANCE | Max 322mm | |||
| CPU COOLER CLEARANCE | Max 55mm | |||
| DRIVE SUPPORT | 1x 2.5” SSD | |||
| EXPANSION SLOT | 3 | |||
| I/O PORTS | 1x USB 3.0 TYPE-A, 1x USB 3.1 TYPE-C, 1x Mic, 1x HD Audio. | |||
| WARRANTY | 1 year | |||
