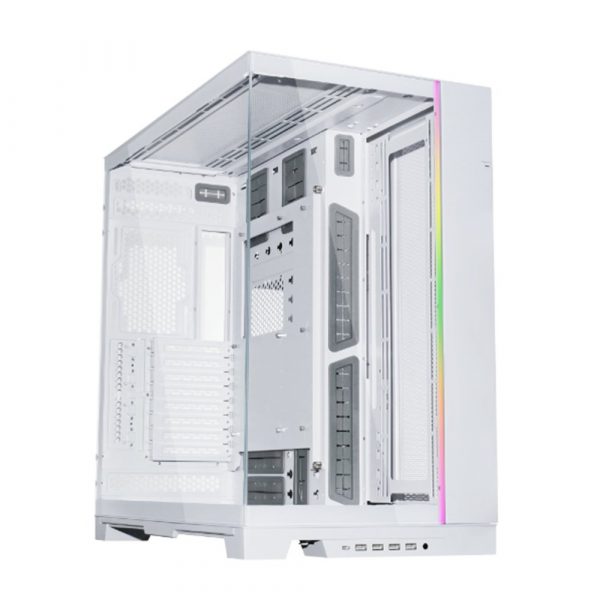

Lian Li O11 Dynamic EVO XL White Cabinet :
Feature :
- Full-tower chassis with two modes: Normal Mode/ Reverse Mode
- Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting
- Supports up to 3x 420mm radiators and a maximum of 11 fans
- Offers mounting space for 7 storage drives
- Dual-chamber layout with cable management compartment and three cable holders
- Features a multi-directional power button and movable IO module
- Optional accessories for vertical GPU or upright GPU mounting
Overview :
FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the Lian Li O11 Dynamic EVO XL White are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.
COMPLETE SEEMLESS VIEW
The Lian Li O11 Dynamic EVO XL White’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.
BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in theLian Li O11 Dynamic EVO XL White for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.
TOOL-LESS INSTALLATION
This Lian Li O11 Dynamic EVO XL White can Easily secure the graphics card. Comes with the new anti-sag bracket, (GB-003) designed with easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with quick-release design,
the fan brackets can be easily removed or installed.
RELOCATABLE I/O PORT
To satisfy any need, the modular I/O port includes 1 × USB Type C and 4 × USB Type A ports
FRIENDLY STORAGE CAPACITY
Offers multiple easily accessible storage mounting locations that support up to 7 × SSDs or 4 × HDDs + 3 × SSDs
WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes
CUSTOMIZABLE CABLE MANAGEMENT
The Lian Li O11 Dynamic EVO XL White comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan
Specifications :
Product Name | O11D EVO XL |
Case Type | Tower Chassis |
Model | O11DEXL-W (White) |
Color | White |
Dimensions | (D) 522mm x (W) 304mm x (H) 531.9mm |
Material | Steel, 4.0mm Tempered Glass, Aluminum |
Motherboard Support | E-ATX (Under 280mm), ATX, Micro-ATX, Mini-ITX |
Expansion Slots | 8 |
Storage | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD |
GPU Length Clearance | 460mm (Max.) |
CPU Cooler Height Clearance | 167mm (Max.) |
PSU | ATX (Under 220mm) |
Fan Support | Top: 3 x 120mm / 3 x 140mm Side: 3 x 120mm / 3 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2x 120mm |
Radiator Support | Top: 360 / 420 / 240 / 280mm Side: 360 / 420 / 240 / 280mm Bottom: 360 / 420 / 240 / 280mm |
I/O Ports | 1 x Power Button 1 x Reset Button 4 x USB 3.0 1 x USB Type C 1 x Audio 1 x LED Color Button 1 x LED Mode Button |
Dust Filters | 1 x Bottom 1 x Top 2 x Side |
1 x Top | |
2 x Side | |
Warranty | 1 year |
